Sfera Proximity Reader

Installer manual

Contents

1 Introduction 4

1.1 Warnings and recommendations 4

2 Description 5

2.1 Main functions 5

2.2 Front view 6

2.3 Back view 7

3 Configuration 8

3.1 Manager master badge 8

3.1.1 New manager master badge 8

3.1.2 Deleting the manager master badge 10

3.2 Passepartout badge 11

3.2.1 New passepartout badge 11

3.2.2 Deleting passepartout badges 13

3.3 Resident badge 14

3.3.1 New resident badge (M= 00) 14

3.3.2 Deleting resident badges (M=00) 16

3.3.3 New apartment master badge (M=01) 18

3.3.4 Deleting the apartment master badge (M=01) 20

3.3.5 New resident badge (M= 01) 21

3.3.6 Deleting resident badges (M=01) 23

4 Advanced configuration 24

4.1 Connection to the PC 24

4.2 Reset 25

5 Appendix 26

5.1 Technical data 26

1 Introduction

1.1 Warnings and recommendations

Before proceeding with the installation we recommend that you read the content of this manual

very carefully. The warranty will automatically become void in case of negligence, improper use,

and tampering by unauthorised personnel.

The Sfera Proximity Reader must only be used with BTicino 2 wire digital systems.

Front covers that may be used with the Sfera BTicino Proximity reader:

Front cover 353205 Front cover 353201/02/03

Sfera Proximity Reader

Installer manual

2 Description

2.1 Main functions

The BTicino Sfera Proximity Reader enables residents to open a door lock using univocal codes,

read by appropriate badges.

The device consists of an antenna used for reading the badge (transponder), and luminous and

sound indicators for the control of the correct storage of the codes inside the badge. The transmis-

sion of the codes takes place when the badge is placed near the proximity reader.

Programming can be performed in two ways:

- using the TiSferaDesign software supplied with the product (chapter 4);

- using specific procedures to be performed using the reader (chapter 3).

To save the manager master codes remove the front cover and press the programming

pushbutton indicated in the legend (chapter 2.2). Once the badges have been saved in the reader,

opening of the door lock will be possible.

Four types of badges may be programmed:

- MANAGER MASTER Badge providing access to the programming of other codes.

It can only be used for programming, not for access.

- APARTMENT MASTER Once the apartment badge has been defined, this can be used to

program the badges of the resident of that apartment.

It can only be used for programming, not for access.

 PASSEPARTOUT It can be used to open the door lock the entrance panel is associated to.

It’s not linked with any apartments.

It can only be used for access, not for programming.

 RESIDENTS It can be used to open the door lock the entrance panel is associated to.

It’s linked to an apartment of the system.

It can only be used for access, not for programming.

Note: when switched on for the first time, the Proximity Reader has no preset badges.

M= 00 managing residents

using the manager

master.

M= 01 managing residents

using the apartment

master.

2 Description

2.2 Front view

1 - Programming reset pushbutton.

2 - Mini-USB programming connector.

3 - Red LED on steady: access denied, or programming error.

4 - Green LED on steady: access granted, or programming successful.

5 - Antenna.

1 2

Sfera Proximity Reader

Installer manual

2.3 Back view

1 - Connection to the door lock (CP-P1) and tamper

(CP-P2 – future application) pushbutton.

2 - Local relay contacts.

3 - Connection to the BUS.

4 - Connector for the connection to subsequent modules.

5 - Connector for the connection to previous modules.

6 - Configurator sockets.

3 2 1

3 Configuration

3.1 Manager master badge

For safety reasons, a “MASTER” badge is required, directly programmed by the installer, providing

access to the programming of the other badges (apartment master, passepartout, and residents).

To access programming mode, a master badge must be allocated to the device. Up to 20 master

badges may be saved.

The proximity reader will confirm that the badge has been accepted by means of audible signals

and the switching on of the green LED.

The transmission of an unrecognised badge, or a programming error (e.g. memory full or badge

already used), will cause the interruption of the programming procedure. This interruption is con-

firmed by a long beep, and the red LED coming on.

3.1.1 New manager master badge

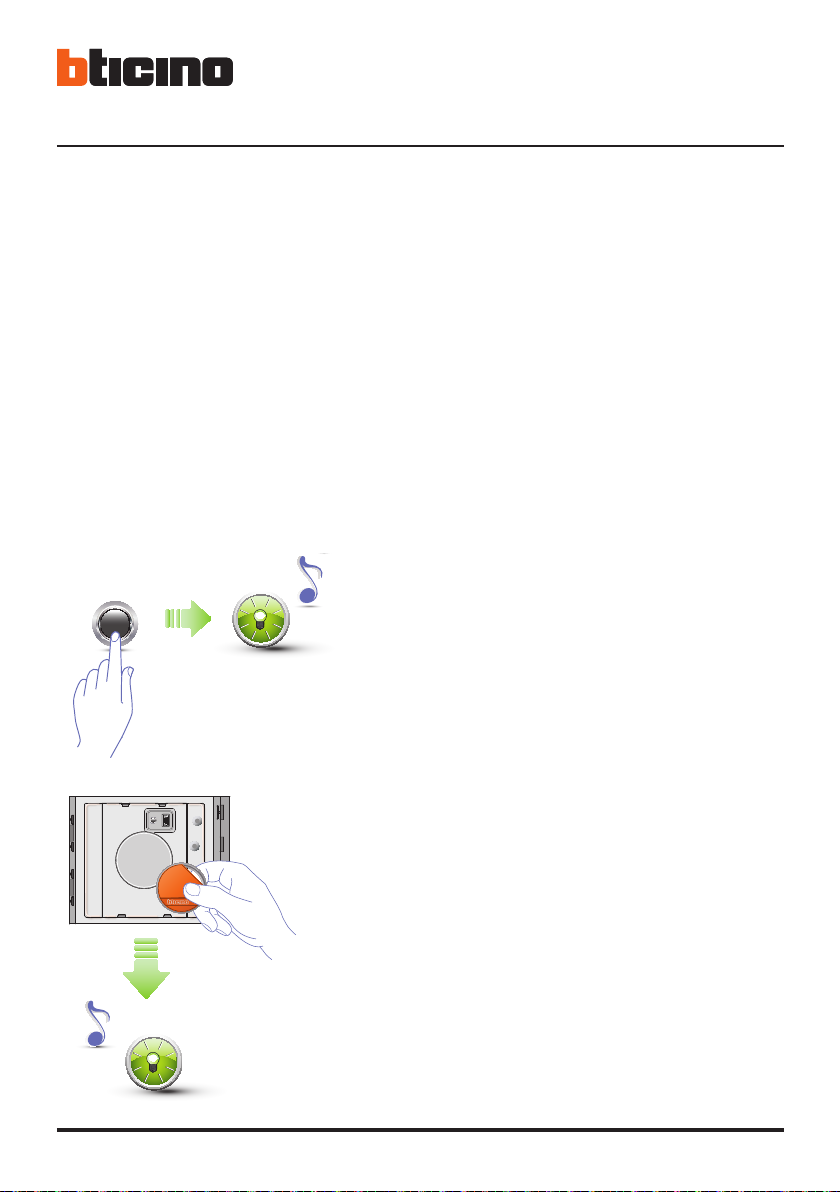

1 Press and hold down the programming pushbutton

until the green LED starts flashing, and a confirmation

tone is heard.

3 The flashing of the green LED and a short beep

confirm that the manager master badge has been

saved.

2 Release the key and move the manager master

badge near the reader to save it.

Manager

master

Sfera Proximity Reader

Installer manual

A short beep and the switching off of the LED confirm that the programming sequence has been

completed. The Sfera Proximity Reader is ready for normal operation.

The programming sequence must start within 30 seconds from the moment the pro-

gramming key has been pressed and must be carried out in one stage.

5 Press the pushbutton, or wait 30 seconds to exit the

procedure.

4 It is possible to continue to enter further manager

master badges (max. 20) one after the other.

Manager

master

3 Configuration

3.1.2 Deleting the manager master badge

1 Press and hold down the programming pushbutton;

the green LED flashes.

- The procedure will delete all the stored manager master badges.

- To stop the deletion procedure release the programming pushbutton before the

extended beep (see item 2).

- To only delete a specific badge use the TiSferaDesign software.

2 Continue holding down the pushbutton;

the device emits 1 beep per second, and a long beep

after ten seconds.

3 The red LED flashes and then switches off to confirm

that the deletion has been performed.
