Bticino Classe 300 Manual de usuario
User manual
Classe 300
www.bticino.com
Classe 300
User manual
3
Classe 300
User manual
Your Classe 300 Video Internal Unit, use it now! 4
Answer a call 4
Listen to the answering machine (only models 344622) 6
Auto-switching on and camera scrolling 9
Write or record a memo 11
Call another room or apartment (Intercom) 15
General information 17
Function keys and status LEDs 17
Home page 18
Enabling functions 18
Quick actions 18
Functions 19
Functions 20
Answering machine (only models 344622) 21
Cameras 25
CCTV 27
Memo 29
Text memo 31
Audio memo 32
Intercom 33
Activations 35
Quick actions 36
Settings 37
General settings 38
Time and date 38
Language 39
Information 39
Ringtones 40
Display 41
Clean monitor 41
Background 42
Calibration 42
Answering machine 43
Quick actions 45
Configuration 48
Services 49
Inductive loop 49
Door status 50
Office 51
Paging 52
Contents
Classe 300
User manual
4
Quick guide
Answer a call
1. Touch to answer the call, the LED comes on steady. To end the call touch the connection key
again.
2. If necessary, during the call touch the screen to display the audio/video adjustment icons.
3. Touch the icons and to adjust the parameters.
1
2
3
Your Classe 300 Video Internal Unit, use it now!
Classe 300
User manual
5
Quick guide
B
A
C
D
E
A. Adjust the volume.
B. Disable the microphone.
C. Adjust the image brightness.
D. Adjust the image contrast.
E. Adjust the image colour.
4
4. Touch to open the Entrance Panel door lock.
The door lock key lights up briefly, to indicate that the door lock has been released.
Classe 300
User manual
6
Quick guide
Listen to the answering machine (only models 344622)

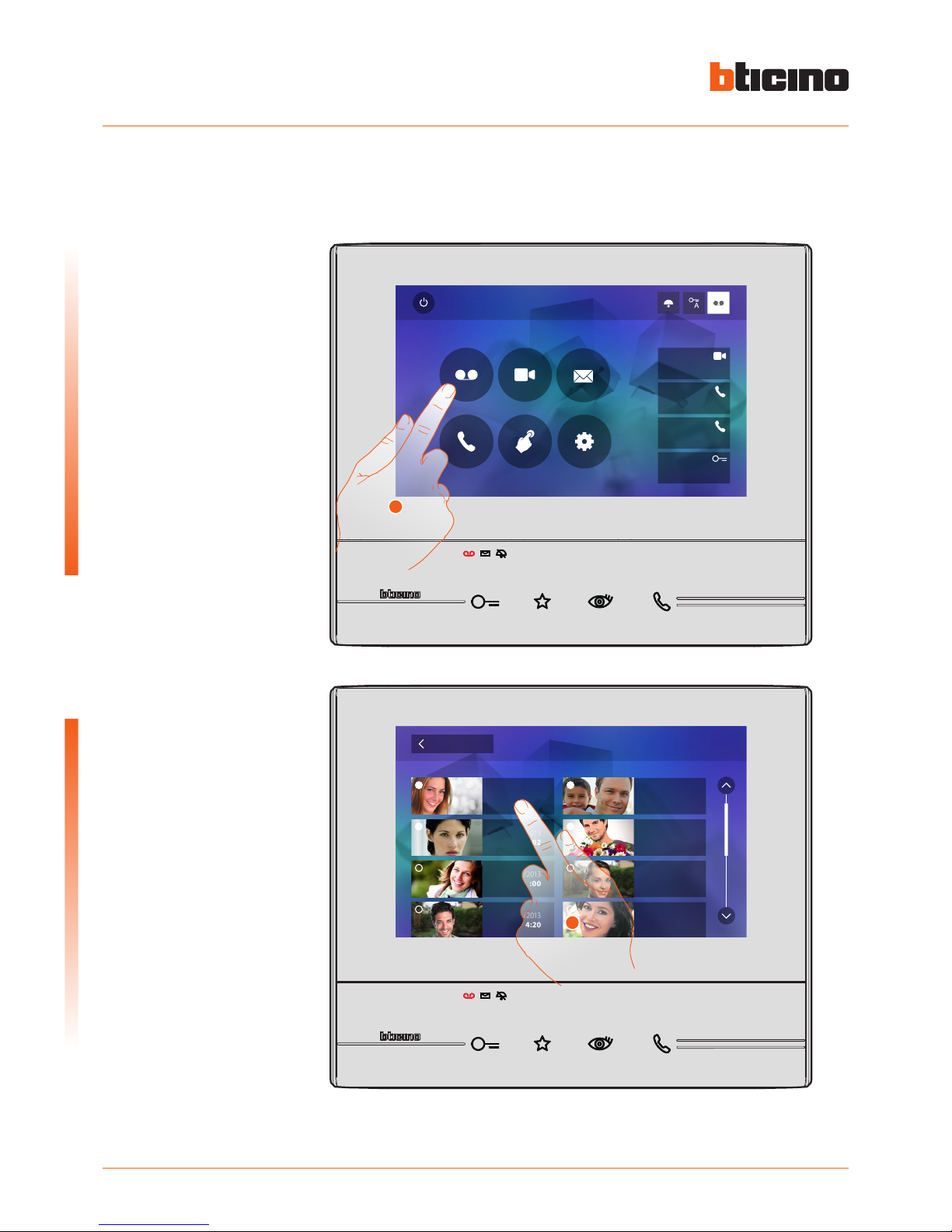

1. Touch to enter the answering machine and display the message.
2. Touch to open the message.
Quick Actions
10:36
Tuesday, 22 April
Activations
Answering machine Cameras Memo
Settings
Intercom
Private camera
Lock
External intercom
Pager
1
1
When there are one or more unread messages in the answering machine, the home page that
opens when clicking the answering machine icon shows a numeric indication, and the answering
machine LED flashes.
Back Answering machine
22/10/2013
19:34
22/10/2013
16:30
22/10/2013
17:02
21/10/2013
11: 25
21/10/2013
15:00
20/10/2013
17:59
19/10/2013
14:20
15/10/2013
20:03
2
Classe 300
User manual
7
Quick guide
3. Touch to pause or restart playback.
The message is played back automatically
The message can be managed using the appropriate icons:
Back
Volume
22/10/ 2013
18:34
3
Back
Volume
22/10/ 2013
18:34
B
C
A
D
A. Adjust the volume.
B. Delete the message.
C. Beginning and end of message.
D. Return to the answering machine screen.
Classe 300
User manual
8
Quick guide
the message status indication automatically switches to “read” , and the numeric indication
disappears from the home page
5. Touch to return to the home page.
Back Answering machine
22/10/2013
16:30
22/10/2013
17:02
21/10/2013
11: 25
21/10/2013
15:00
20/10/2013
17:59
19/10/2013
14:20
15/10/2013
20:03
22/10/2013
18:34
5
Classe 300
User manual
9
Quick guide
Auto-switching on and camera scrolling
1. Touch to display the cameras in your system.
2. The connection key flashes; touch this key to enable audio communication.
Any cameras installed in the system can be accessed using the dedicated section, or using the
automatic switching on key.
The corresponding key comes on and the display shows the images recorded by the camera of the
associated Entrance Panel.
For the camera adjustments see Answer a call.
Quick Actions
10:36
Tuesday, 22 April
Activations
Answering machine Cameras Memo
Settings
Intercom
Private camera
Lock
External intercom
Pager
1
2
Classe 300
User manual
10
Quick guide
3. Touch to display another camera (scrolling). When switching from one camera to the next, the
key lights up.
To end camera display mode wait for the switching off time to elapse.
3
Note: switching from one camera to another is also possible without enabling the audio
