Bticino 343100 Guía del usuario

343100

Monobloc Audio

Digital Entrance Panel

Installer manual

05/16-01 PC

Monobloc Audio

Digital Entrance Panel

Installer manual

Contents

1 Introduction 4

1.1 Warnings and recommendations 4

2 Description 5

2.1 Main functions 5

2.1.1 Using the pushbutton panel 5

2.2 Front view 6

2.3 Back view 7

2.4 Installation 8

3 Configuration 10

3.1 Access to programming 10

3.2 Master code setup 13

3.2.1 Setting up a master code 13

3.2.2 Deleting a master code 13

3.2.3 Deleting all master codes 14

3.2.4 General device reset 14

3.3 SCS and logic addresses setup 15

3.3.1 Call type selection: SCS or logic 15

3.3.2 New logic address from the SCS address 16

3.3.3 Changing a logic address 17

3.3.4 Deleting a logic address 18

3.3.5 Deleting a logic address from an SCS address 19

3.3.6 Deleting all logic addresses 20

3.4 Setup codice serratura 21

3.4.1 Enabling the door lock code function 22

3.4.2 Associating the door lock code to the internal contact or to an external P actuator 23

3.4.3 Setting up a new door lock code 24

3.4.4 Deleting a door lock code 25

3.4.5 Deleting all door lock codes 26

3.5 Passepartout SCS setup 27

3.5.1 Enabling the passepartout function 27

3.5.2 Associating the door lock code to the internal contact or to an external P actuator 28

3.5.3 Setting up a new passepartout 29

3.5.4 Deleting a passepartout code 29

3.5.5 Deleting all passepartout codes 30

3.6 Switchboard setup 31

3.6.1 Enabling the switchboard call 31

3.6.2 Changing the switchboard SCS address 32

3.7 Error messages 33

4 Appendix 34

4.1 Display view 34

4.2 Reset of master codes without using the main master code 35

4.3 Technical data 36

1 Introduction

1.1 Warnings and recommendations

Before proceeding with the installation we recommend that you read the content of this manual

very carefully.

The warranty will automatically become void in case of negligence, improper use, and tampering

by unauthorised personnel.

Monobloc Audio

Digital Entrance Panel

Installer manual

2 Description

2.1 Main functions

The BTicino door entry system entrance panel can manage up to 4000 handset addresses (from 0

to 3999) and the direct call to the switchboard .

Through the recognition of previously saved numerical (SCS addresses) or alphanumerical codes

(logic addresses), it can be used to call handsets, and to give residents the possibility of opening

the door lock using a dedicated numerical code.

The device consists of a pushbutton panel with 16 backlit keys, and a digital display for the display

of the status.

2.1.1 Using the pushbutton panel

The pushbutton panel of the device may be used to perform the following operations:

- numeric or logic (alphanumeric) call;

- code programming: master, passepartout, and door lock codes;

- change the door lock code;

- direct switchboard call.

Below is a table showing the basic operations that can be performed using the keypad.

ENTER ACTION

Example of type of call with SCS address.

Call the apartment with SCS address “1”.

Example of type of call with logic address.

Call the apartment with logic address “1A”.

0000 Entering of the master code.

It provides access to the device configuration.

1234

Entering of the passepartout or door lock code.

It can be used to open the door lock the entrance panel is associated to.

1234

5678 5678

Example for door lock code change from 1234 to 5678.

Direct call to the switchboard.

2 Description

2.2 Front view

1 - Alphanumeric keypad;

” “Key - code confirmation;

“ “ key – door lock release.

2 - Keypad lighting LED.

3 - Loudspeaker.

4 - Display.

5 - Switchboard call key.

6 - Microphone.

7 - Rainshield.

Monobloc Audio

Digital Entrance Panel

Installer manual

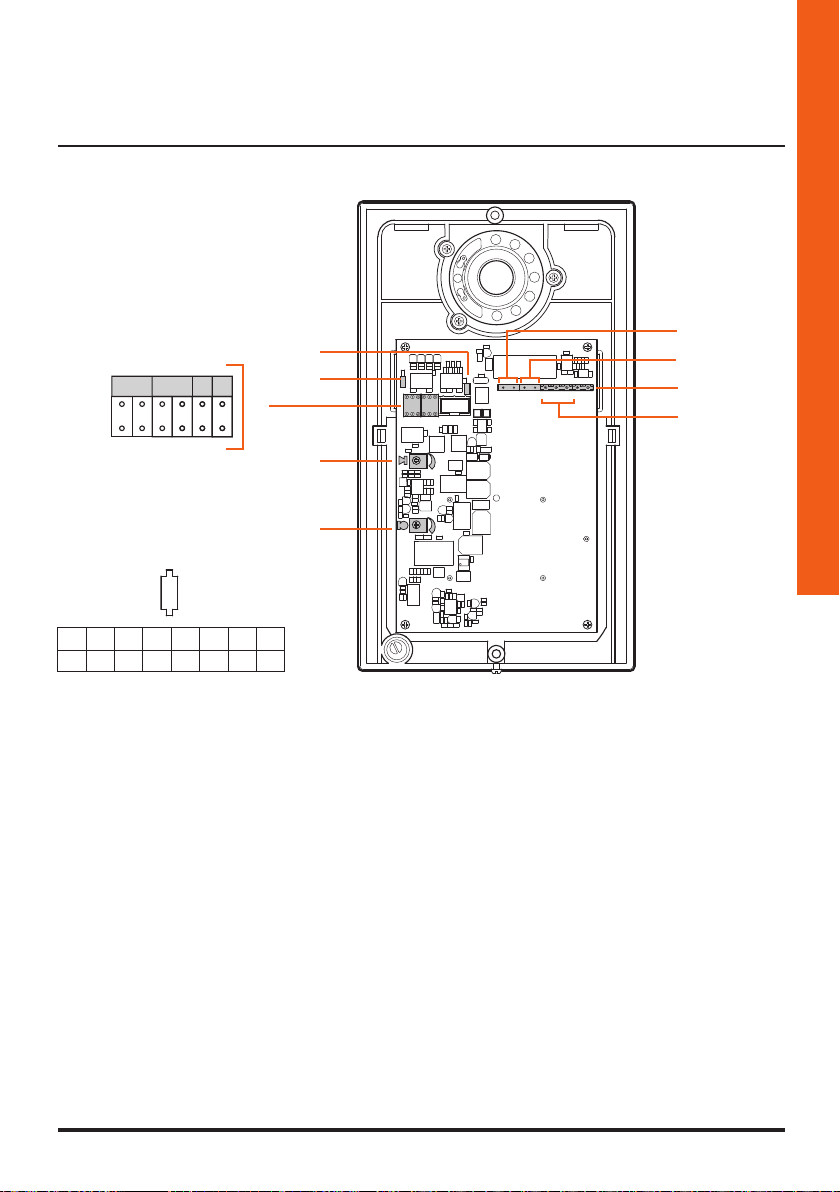

2.3 Back view

1 - Microphone volume adjustment.

2 - Loudspeaker volume adjustment.

3 - Configurator socket:

P= Entrance panel address (0 – 95)

N= Address of the first called internal unit (0 – 99)

T= Door lock control timer (see table*)

S= Select the ringtone;

S = 0, 1, 2, 3 on the basis of the selection, the internal units ring with a different tone/tune

(Useful to differentiate several entrance panels on the same system);

S = 4, 5, 6, 7 on the basis of the selection, the internal units ring with a different tone/

tune (Useful to differentiate several entrance panels on the same system) and the recall

function (a series of 3 rings for each single call) is activated

4 - J2: remove to disable the sounds.

5 - J1: remove to enable the additional power supply.

6 - Connection to the BTicino 2 wire digital system BUS.

7 - Additional power supply connector.

8 - Door lock additional pushbutton connector.

9 - Door lock contacts connector.

P N T S

N T SP P N

BUS 1 2 C NO NC PL

01234567

4 s 1 s 2 s 3 s 4 s 6 s 8 s 10 s

T(*)

2 Description

2.4 Installation

Monobloc Audio

Digital Entrance Panel

Installer manual

*To complete the installation insert and fully tighten the fixing screw supplied.

To access the entrance panel programming function, a master code must be set (default 0000),

consisting of 4 digits.

Below is an example.

3 Configuration

3.1 Access to programming

To confirm the operation

press OK.

To cancel the operation press

the key with the KEY symbol

or wait 5 seconds.

After entering the desired

level (example: P R 0.2) and

pressing OK, the display will

show 4 dashes.

0000

Enter the master code. If the code is valid the display

will show: “ P r – –”.

It is now possible to access

the level to be programmed

by entering the correspond-

ing digit (example: P R 0.2).

If the code is wrong, too long or too short, the display will show an error message (see the dedi-

cated section).

To exit programming mode press the key twice.
