In Touch Pendant ~ Issue 2 ~ 1st Edition ~ 14.08.03

User Guide

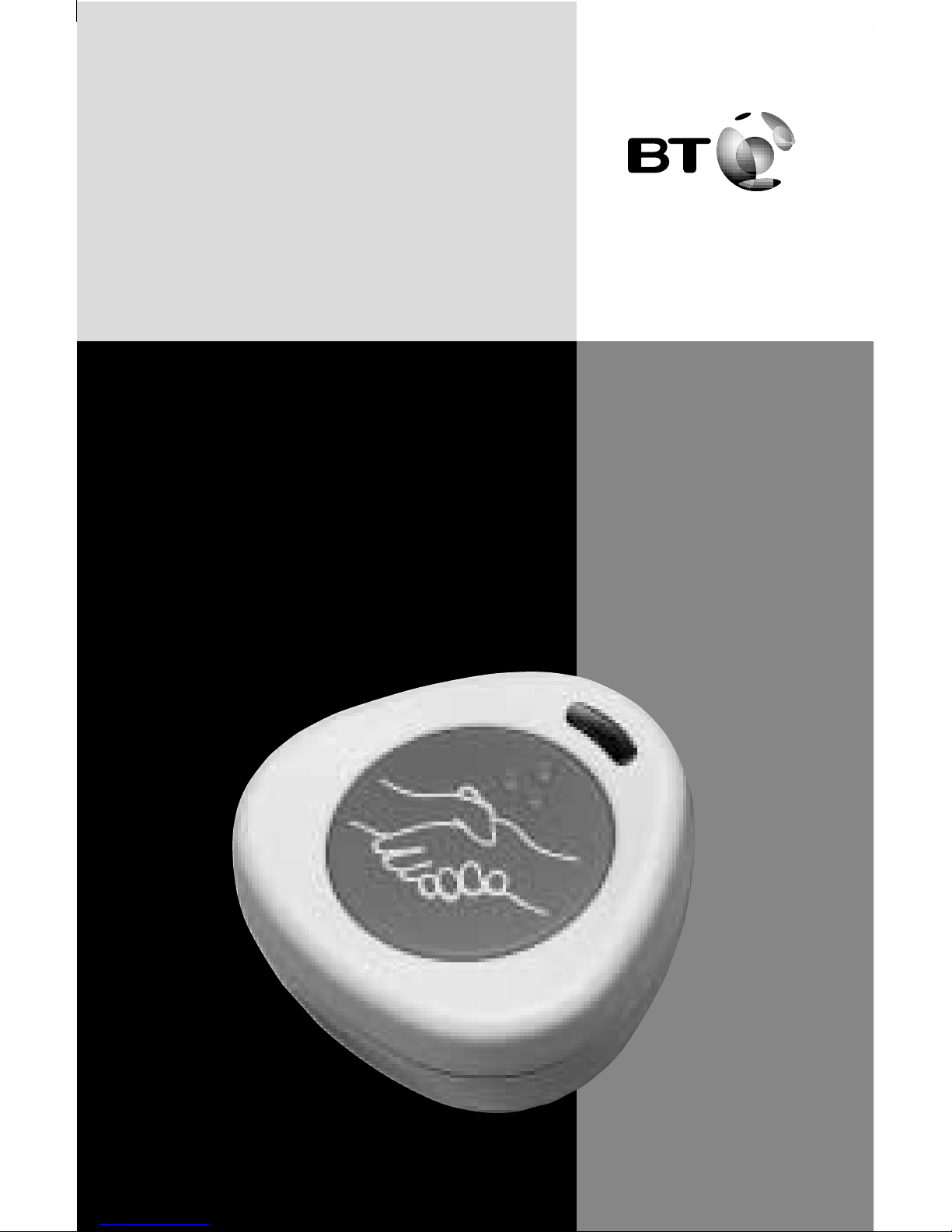

BT IN TOUCH PENDANT

In Touch Pendant ~ Issue 2 ~ 1st Edition ~ 14.08.03

When unpacking you

should have:

One BT In Touch Pendant with

2 detachable mounts.

Pendant includes sealed batteries.

Necklace

Wrist strap

Detachable mounts shown with BT In Touch

Pendant in position.

In Touch Pendant ~ Issue 2 ~ 1st Edition ~ 14.08.03

Your BT In Touch Pendant

The pendant is used for two purposes:-

•To start an emergency sequence -

by sending a signal to the BT In Touch

User Phone.

•To receive incoming calls and auto-

matically put the phone in ‘handsfree’.

Changing the way you wear your

BT In Touch Pendant

The BT In Touch Pendant can be worn

in two ways, depending on which is most

convenient:

• Around the neck using the cord

provided.

• On the wrist like a watch.

In Touch Pendant ~ Issue 2 ~ 1st Edition ~ 14.08.03

To change the way you wear your BT In

Touch Pendant, simply push on or pull

off any of the detachable mounts.

Before use

Using 2 BT In Touch Pendants

Your BT In Touch User Phone will

support up to two BT In Touch Pendants.

This means that two people in the same

house can benefit from BT In Touch.

Before using BT In Touch Pendants for

the first time, it is necessary to register

them to your BT In Touch User Phone.

In Touch Pendant ~ Issue 2 ~ 1st Edition ~ 14.08.03

To register BT In Touch Pendants

Press and hold down the Store

button on your BT In Touch User

Phone for 5 seconds.

The display shows:

Continue holding down the

Store button.

Press and release the Pendant

button.

If you have a second Pendant,

continue holding down the

Store button.

Press and release the second

Pendant button.

Now release the Store button.

LOG PENDANT

Store

Continued over ➘

In Touch Pendant ~ Issue 2 ~ 1st Edition ~ 14.08.03

You will hear a double beep,

and the announcement

“Pendant logged on. Please test

all Pendants.” The display shows:

Registration of your BT In Touch

Pendant(s) is now complete.

Using the BT In Touch Pendant

Your Pendant can be used in two ways:

• To answer incoming calls.

• To start the emergency sequence.

To answer incoming calls

When the phone rings, simply

press the Pendant button to

answer the call.

✓

PENDANT LOGGED ON

Continued from over

In Touch Pendant ~ Issue 2 ~ 1st Edition ~ 14.08.03

This puts the phone into

‘handsfree’. You don’t need to

pick up the handset, simply speak

to the caller using the built-in

microphone on the telephone.

When you have finished your

conversation, press the Pendant

button again to hang-up.

If during the call you decide to

use the handset, simply pick it up

and continue your conversation.

To use the Pendant in an emergency

To activate the emergency

sequence, press the Pendant

button. The small red light on

the Pendant will flash to confirm

that the Pendant button has

been pressed. The BT In Touch

In Touch Pendant ~ Issue 2 ~ 1st Edition ~ 14.08.03

User Phone will then start to

dial the stored emergency

numbers you have programmed.

Pendant battery low warning

When the Pendant battery has about

1 month’s life left, the Pendant will warn

you by flashing 3 times every time the

Pendant button is pressed, and the

voice prompt will say “Replace Pendant

soon”.

This gives enough time for you or your

Carer to order a replacement BT In

Touch Pendant by ringing BT on

Freefone 0800 800 150, or the product

Helpline on 0845 6011 406 and quoting

Item Code 871769.

In Touch Pendant ~ Issue 2 ~ 1st Edition ~ 14.08.03

Technical specifications

Radio frequency. . . . . . . . 173MHz

Transmitted po er. . . . . . Less than 10mW

Range. . . . . . . . . . . . . . . 50 metres free-field

Important note: The range can be

greatly reduced where conditions

are not ideal, (i.e. in certain

buildings or near bodies of water, etc).

Battery life . . . . . . . . . . . Up to 5 years (based on

2 presses a day)

Waterproofing standard . . IP67

Dimensions . . . . . . . . . . . 38mmx15mm ( idth xdepth)

Weight . . . . . . . . . . . . . . 5g

Approvals . . . . . . . . . . . . SRDGB

In Touch Pendant ~ Issue 2 ~ 1st Edition ~ 14.08.03

Visit us at .bt.com

fﬁces worldwide

The telecommunications services described in this publication

are subject to availability and may be modiﬁed from time to time.

Services and equipment are provided subject to British

Telecommunications plc’s respective standard conditions of

contract. Nothing in this publication forms any part of any contract.

Registered Ofﬁce: 81 Ne gate Street, London EC1A 7AJ.

Registered in England No. 1800000.

BT In Touch Pendant (8/03) 1
