Brother VX1140 Manual de usuario

GENERAl- INFORMATION

°This service manual was compi[ed for use when repairing

the VXl120, VXll40 and VX1250 Zigzag Stitch Sewing Machines.

• Usethis manual, together with the Pal_s Catalogr

when making repairs.

• This manual was wri[_en based on the most up-to-date

product specifications at the time of printing.

Some machine specifications may have been changed to

improve the quality of the product.

Cont_lct the manufacturer or you_ local sales representative

for information on such changes.

Brother Industries, Ltd.

Nagoya, ;apan

• Symbols used

T - ! M°ve[nepartinthedirecti°n°f[hearrow

--_ Set the clearance as indicated.

Move the part to it5 highest _r

lowest position.

Zigzag

1. PRINCIPAL MECHANISMS COnnsclingrOd

Bobbin winder

Nsed e bsr

T-belt

(BaYing bell)

Horlzor3taJ feed 8ha4t ing foal

-1-

2. DISASSEMBLING THE SEWING MACHINE

I. Remove_hescr_w_ndthef_cepJmefromtbeJeit_ided_emachine.

_. Loosen lhe [hree screws a[[achin 8 the front and rear carets _nd _hescrew on the levi side Use a screwdriver to disenBa_e the front

cgver tab and remove the [font c_)ver.

;. Lower the presse_ _oot [iftel, Iemove [he four screws indicated and remove the rear cover¸

-2-

3. ADJUSTING THE CLEARANCE BETWEEN THE NEEDLE AND THE SHUTTLE

HOOE (SHUTTLE RACE POSITION)

STANDARD

_. Theclearance between the needle and the shutt]e hook should be between 0.02 and 0.1 ram.

2. The shuttle race should be posl ioned correc ly wL h respee o he urnmg dlrec ion of he shuLLle race.

ADJUSTMENT

1. SeL the needle position selector to "M" and the stitch width knob LO"0".

_. Turn the baJ_nce wheel to set the needle and the shuttle hook to the correct timing position.

3. Use a screwdriver to _um the needle bar supporter stud slightly to either the right or left and a_just the crearance between the needle

and the shuttle hook.

NOTE

A line through the center of the needle should pass through the center of Lhe shuLtle hook shaft.

O_O2-_lmrn

-3-

4. A.DJUSTII_G THE CLEARANCE BETWEEN THE SHUTTLE DRIVER AND THE

RACE WAY

STANDARD

There should be no clearance be_veer_ _he shuttJe driver and the race way and the shuttle driver should rotate smoothJy.

_.DILJSTMENT

_, Loosen the two driver shaf[gear screws,

2. Adjust lhe dearance of the drlver shaft.

4. Tighten the t_vo driver shaft gear screws

®©

-4-

5. ADJUSTING THE NEEDLE SWING

STANDARD

When the stitch width knob is set at "S", [he needle swing shou]d be 0.05 mm or less when the needle is moving down from the needle

alate to its lowest position. When the needle is moving up from its lowest position to the needle plate, the needle swing should be 0.15

mm or less Both sides of the needle plate hole should have these ¢Eearances.

ADJUSTMENT

I, Loosen the i_vo zigzag base assembly screws.

2. Align the upper shaf_ _ear and the zigzag cam gea_

3. Tighten lbe two zigza_ base assembly screws.

NOTE

To coFrecl _he needle swing, align the upper shaft g_ar and the zigzag cam gear at an,/two points.

®X

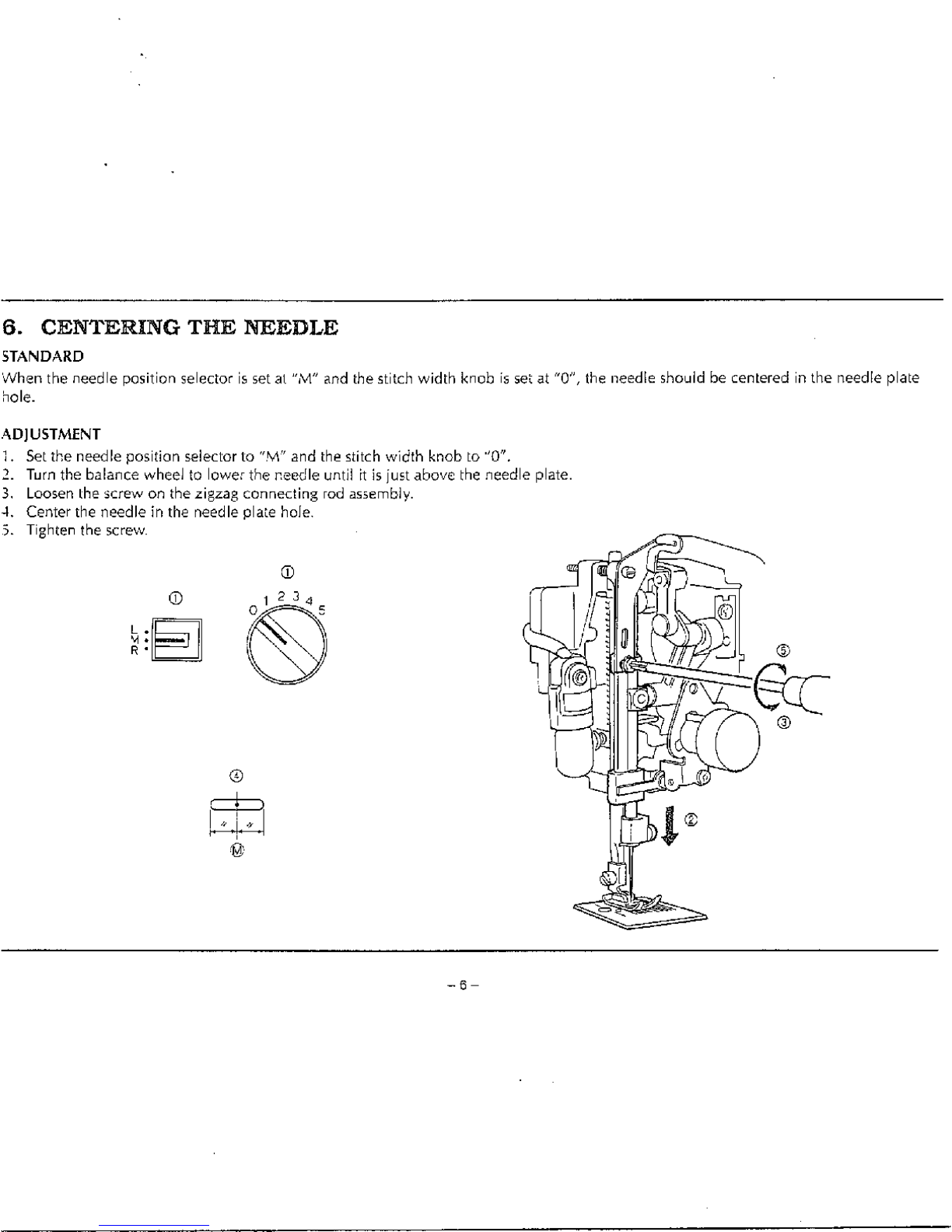

6. CENTERING THE NEEDLE

STANDARD

When the needle position selector is set at "M" and the stitch width knob is se_ at "0", the needle should be centered in the needle plate

hole.

ADJUSTMENT

Set the needle position selector to "M" and the stitch width knob to "0".

2. Turn the balance whee] to lower the needle until it is just above the needle plate.

S, Loosen thefcrew on thezi_zag connecting rod assembly.

4. Center the needle in the needle plate hole

5. Tighten the screw

(_ 012345

-6

S. ADJUSTING THE TIMING OF THE NEI_DLE AND THE SHUTTLE HOOK (SHUT-

TLE HOOK POSITION)

STANDARD

,Vhen hes chwdhknob sse a '5 and heneedle s asedon heJef sdeavl,7 o2.1mmfrom[tsrowestpos o ,thesh ttlehook

Joint should align with the side af the needle.

_DJUSTMENT

:. Set the stitch width knob to "5", then lower the need]e to its [o_,esl poskion at the left side of the needle plate.

2. Loosen the set screw on Lhedrive connecting rod.

5. Raise the needle between l.T and 2.1 mm andaligntheshuttlehookpointwiththes[deoftheneed[e.

nTighten the set screw.

CB[It _r

Left

@, mlrl

-8-

9. ADJUSTING THE HEIGHT OF THE NEEDLE BAR

STANDARD

VVhen the stitch width knob is set at "g" and die needle contact5 the shuttle hook when the needle i_ an the right side, lhe clearance

between the top of the needle eye and the shuttle hook point should be between 0.8 and 1,2 mm.

ADJUSTMENT

Set the stitch width knob to "5", then lower the neefl]e to its lowest position at the right side of _he need[e plate,

2 Turn the balance wheel unt[[ the needle contacts the shuttle hook.

3. Loosen the set screw on the needle bar.

4. Move the r_eed{e bar elther up or dow_ umjI _heclearance between the top of the needle ege and the shuttle hook point is within Q.8

and 1,2 mm

T_ghten the set screw, i

_234

O' E \

(Right) ®

-9-

10. ADJUSTING THE TENSION OF TH]_ TL_ING BELT

STANDARD

Fhere should be between 4,0 and 6,0 mm of slack in the th'n[ng belt when the cenler of the belt is pushed with appro×imate]y 200 g of

pressure

ADJUSMENT

I. Loosen the b_o screws on the _TIotor holder,

2. Movethemotorhofdertoadjustthebefttension_oitmeetstheabovestandard.

3, Tighten the b4,o screws,

_10-
