Brother PR-600 Manual de usuario

Home Sewing Machine

PARTS REFERENCE LIST

OPTIONAL ACCESSORIES

PR-1000

PR-650/PR-650C

PR-620/PR620C

PR-600II/PR-600IIC

PR-600/PR-600C

Published: Jul.,2010

Revised: Dec.,2011

- 1 -

CONTENTS

EMBROIDERY FRAMES (SQUARE) ........................................... 2

EMBROIDERY FRAMES (SQUARE) for PR-1000 ...................... 4

EMBROIDERY FRAMES (ROUND) for PR-1000 ........................ 6

CAP FRAMES............................................................................... 8

CAP FRAMES for PR-1000/650/620.......................................... 10

CAP FRAMES for PR-1000........................................................ 12

CYLINDER FRAMES for PR-1000/650/620............................... 14

BORDER FRAMES for PR-1000................................................ 16

BOBBIN WINDER SET............................................................... 18

OTHERS ..................................................................................... 20

- 2 -

EMBROIDERY FRAMES (SQUARE)

- 3 -

EMBROIDERY FRAMES (SQUARE)

No. CODE NAME REMARKS

EMBROIDERY FRAMES (SQUARE)

1 S32798001 COLLAR

2 S32799001 NUT, M4

3 XC5957051 SCREW, M4

4 S36043000 SPRING, COMPRESSION 5.3X47.7

5 XC5958051 HOLDER 30X20

6 062401416 SCREW, PAN M4X14

7 021400206 NUT, 2 M4

8 X60224051 BAG 350X700H

9 XC7166151 CARTON

10 XC5704051 EMBROIDERY SHEET 30X20 ASSY

11 XC5963051 HOLDER 18X13

12 XC7167051 CARTON

13 XC5721051 EMBROIDERY SHEET 18X13 ASSY

14 XC5968051 HOLDER 10X10

15 060300516 SCREW, BIND M3X5

16 025030236 WASHER, PLAIN M 3

17 XZ0197051 BAG 180X470

18 XC7168051 CARTON

19 XC5759051 EMBROIDERY SHEET 10X10 ASSY

20 XC5973051 HOLDER 06X04

21 XC7169051 CARTON

22 XC5761051 EMBROIDERY SHEET 06X04 ASSY

23 XE2090001 HOLDER 30X20

24 062401216 SCREW, PAN M4X12

25 XE2280001 SQUARE FRAME INSERTION

- 4 -

EMBROIDERY FRAMES (SQUARE)

*For PR-1000

- 5 -

EMBROIDERY FRAMES (SQUARE)

No. CODE NAME REMARKS *For PR-1000

EMBROIDERY FRAMES (SQUARE)

26 S32798001 COLLAR

27 S32799001 NUT, M4

28 XC5957051 SCREW, M4

29 S36043000 SPRING, COMPRESSION 5.3X47.7

30 XC5958051 HOLDER 30X20

31 062401416 SCREW PAN M4X14

32 021400206 NUT 2 M4

33 X60224051 BAG 350X700H

34 XE7441001 CARTON

35 XE7158001 EMBROIDERY SHEET 36X20 ASSY

36 XE8476001 SQUARE FRAME INSERTION

37 130800051 BAG 230X310H

38 XE7171001 EMBROIDERY SHEET 20X20 ASSY

39 XE7173001 HOLDER 20X20

40 062401216 SCREW PAN M4X12

41 XE7415001 SEAL B

42 XC7166151 CARTON

43 XE7187001 HOLDER 36X36

44 X60439151 BAG 630X630T

45 XE7440001 CARTON

46 XE8478001 SQUARE FRAME 36 INSERTION

47 130800051 BAG 230X310H

- 6 -

EMBROIDERY FRAMES (ROUND)

*For PR-1000

- 7 -

EMBROIDERY FRAMES (ROUND)

No. CODE NAME REMARKS *For PR-1000

EMBROIDERY FRAMES (ROUND)

1 S32798001 COLLAR

2 S32799001 NUT, M4

3 XC5957051 SCREW, M4

4 S36043000 SPRING, COMPRESSION 5.3X47.7

5 XE7119001 HOLDER

6 060300516 SCREW BIND M3X5

7 025030236 WASHER PLAIN M 3

8 XZ0197051 BAG 180X470

9 XE7416001 SEAL C

10 XE7442001 CARTON

11 XE8492001 INSERTION

12 130800051 BAG 230X310H

13 XE2641001 BAG 280X470H

- 8 -

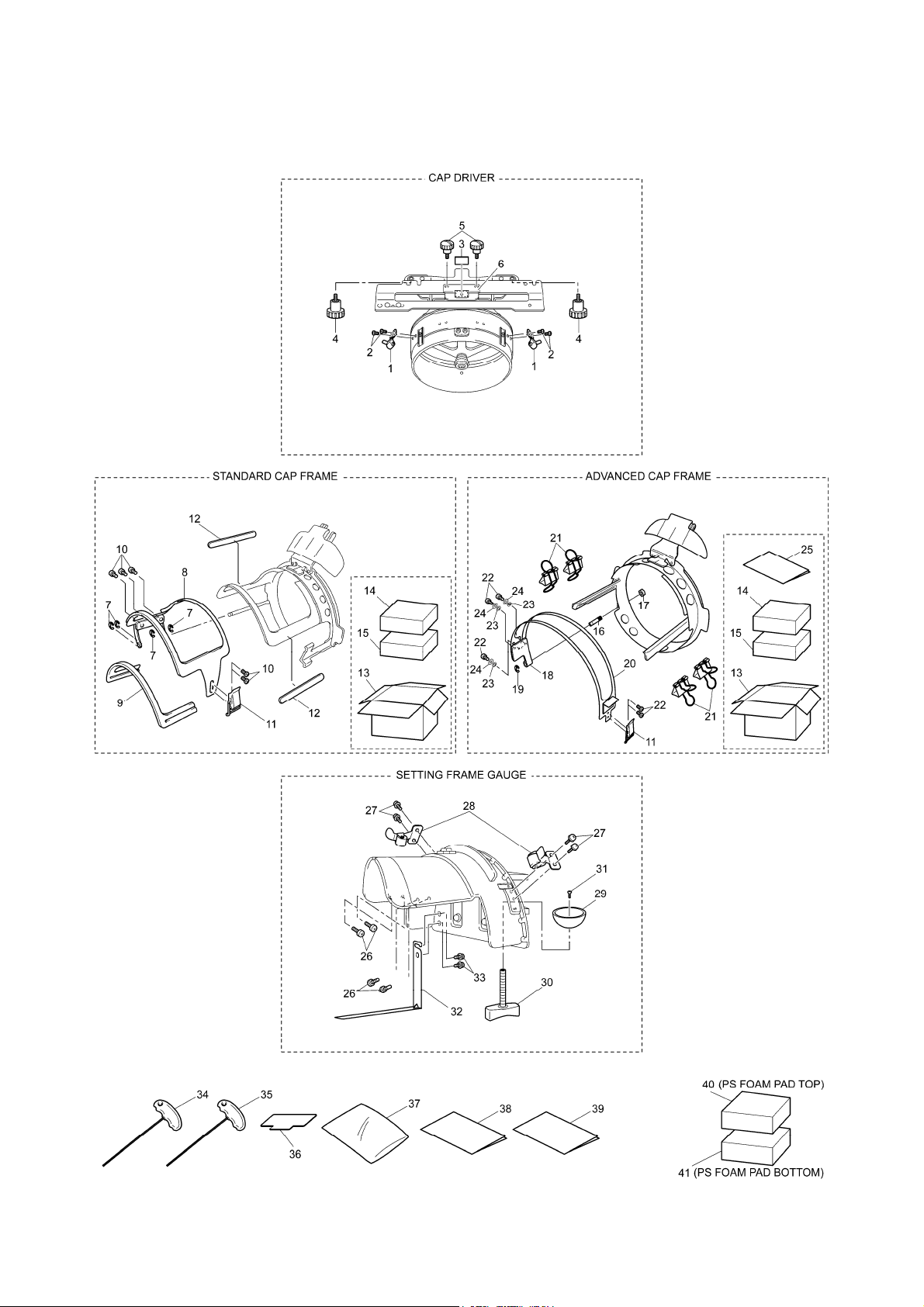

CAP FRAMES

- 9 -

CAP FRAMES

No. CODE NAME REMARKS No. CODE NAME REMARKS

CAP DRIVER SETTING FRAME GAUGE

1 XC7235051 ROLLER BASE B ASSY

1000022560

26 0A5400606 SCREW, PAN (S/P WASHER) M4X6

2 0A5300606 SCREW, PAN (S/P WASHER) M3X6 27 0A5300806 SCREW, PAN (S/P WASHER) M3X8

3 XC5550051 SHEET 28 XC7235051 ROLLER BASE B ASSY

4 XC5553051 THUMB BOLT M4 L 29 XC5576051 WASHER

5 XC5817051 SCREW, KNOB M4S 30 XC5577051 THUMB BOLT M6

6 XC5574001 STOPPER ADD 31 004261214 SCREW, FLAT (M2.6) X12

STANDARD CAP FRAME 32 XC6227051 FRAME COVER STOPPER

7 048050346 RETAINING RING, E5 33 062400613 SCREW, PAN M4X6

8 XC5561051 FRAME COVER

9 XC5562051 RUBBER 34 XC7148051 T-TYPE HEXGONAL WRENCH, 3

10 060300516 SCREW, BIND M3X5 35 XC7149051 T-TYPE HEXGONAL WRENCH, 2.5

11 S32897000 SNAP LOCK 36 XC7150051 SHEET

12 XC6974051 HOLD TAPE 37 130800051 BAG 230X310H

13 XC7163151 CARTON 38 XE2893001 INSERTION SHEET

14 XC7164051 POLYSTYRENE FOAM PAD TOP 39 XE2272001 SETTING GAUGE INSERTION

15 XC7165151 POLYSTYRENE FOAM PAD DOWN 40 XC7146150 POLYSTYRENE FOAM PAD TOP

ADVANCED CAP FRAME 41 XC7147250 POLYSTYRENE FOAM PAD DOWN

16 XC7485051 PIN

17 021400203 NUT, 2 M4

18 XC7484051 HINGE

19 048050343 RETAINING RING, E5

20 XC7486051 FRAME COVER B

21 S39460100 BINDER CLIP

22 060300513 SCREW, BIND M3X5

23 026030233 WASHER, PLAIN M 3

24 028030243 WASHER, SPRING 2-3

25 XC8943151 CAP FRAME USER'S GUIDE,ENG
