Reference Guide
Brief explanations for routine operations
HL-L8260CDW
HL-L8360CDW
HL-L9310CDW
Brother recommends keeping this guide next to your Brother machine for quick reference.
Online User's Guide
This Reference Guide contains basic instructions
and information for your Brother machine.
For more advanced instructions and information,
see the Online User's Guide at
solutions.brother.com/manuals
User's Guides and Where to Find Them
Which Guide? What's in It? Where Is It?
Product Safety Guide Read this Guide first. Please read the Safety
Instructions before you set up your machine.
See this Guide for trademarks and legal
limitations.
Printed / In the box
Quick Setup Guide Follow the instructions for setting up your
machine, and installing the drivers and
software for the operating system and
connection type you are using.
Printed / In the box
Reference Guide Learn the basic operations and basic
machine maintenance. See troubleshooting
tips.
Printed / In the box
Online User's Guide In addition to information about the Print
operations, mobile device functions,
troubleshooting, and other useful information
is included about using the machine on a
network.
Brother Solutions
Center 1
Mobile Print/Scan Guide
for Brother iPrint&Scan
This Guide provides useful information about
printing from your mobile device when
connected to a Wi-Fi® network.
Brother Solutions
Center 1
1Visit solutions.brother.com/manuals.
1
The Online User's Guide Helps You Get the Most
Out of Your Machine
We hope that you find this guide helpful. To learn more about your machine's features, please
take a look at our Online User's Guide. It offers:
Quicker Navigation!
Search box
Navigation index in a separate panel
Comprehensive Format!
Every topic in one guide
Simplified Layout!
Step-by-step instructions
Feature summary at the top of the page
1
2
3
4
1. Search Box
2. Navigation
3. Summary
4. Step-by-Step Instructions
To View Online User's Guides
To view the Online User's Guide and other available guides, visit solutions.brother.com/manuals.
(Windows®)
You can also access your machine's guides using Brother Utilities. The Brother Utilities tool is
included in the standard installation and, when installed, you can find it either as a shortcut on
your desktop, or from the Windows® Start menu.
2
Questions or Problems? Take a Look at our FAQs,
Solutions, and Videos Online.
Go to your model's FAQs & Troubleshooting page on the Brother Solutions Center at
support.brother.com
•Provides several ways to search
•Displays related questions for more information
•Receives regular updates based on customer feedback
3
Control Panel Overview
The control panel may vary depending on your model.
HL-L8260CDW
1. Liquid Crystal Display (LCD)
Displays messages to help you set up and use the machine.
Wireless Network Models
A four-level indicator shows the wireless signal strength if you are using a wireless
connection.
0 Max
2. Data LED
The Data LED blinks depending on the machine’s status.
When the Data LED is on, data is in the machine’s memory. When the Data LED blinks, the
machine is receiving or processing data.
1General Information
4
3. Error LED
The Error LED blinks when the LCD displays an error or an important status message.
4. Menu Buttons
OK
Press to store your machine’s settings. After you change a setting, the machine returns to
the previous menu level.
Back
• Press to go back one level in the menu.
• Press to select the previous digit when entering numbers.
a or b (+ or -)
• Press to scroll through menus and options.
• Press to enter a number or to increase or decrease the number. Hold down a or b to
scroll faster. When you see the number you want, press OK.
5. Secure
Press to print jobs saved in the machine’s memory when you enter your four-digit password.
6. Go
• Press to clear certain error messages. To clear all other errors, follow the LCD instructions.
• Press to print any data remaining in the machine's memory.
• Press to select the displayed option. After you change a setting, the machine returns to
Ready Mode.
7. Cancel
• Press to cancel the current setting.
• Press to cancel a programmed print job and clear it from the machine’s memory. To cancel
multiple print jobs, hold down Cancel until the LCD displays [Cancel All Jobs].
8. Power On/Off
• Turn the machine on by pressing .
• Turn the machine off by pressing and holding down .
9. WiFi or Network buttons
• Wired Network Models:
Network
Press the Network button to set up wired network settings.
• Wireless Network Models:
WiFi
Press to configure a wireless network.
When the WiFi light is on, your Brother machine is connected to a wireless access point.
When the WiFi light blinks, the wireless connection is down, or your machine is in the
process of connecting to a wireless access point.
1General Information
5

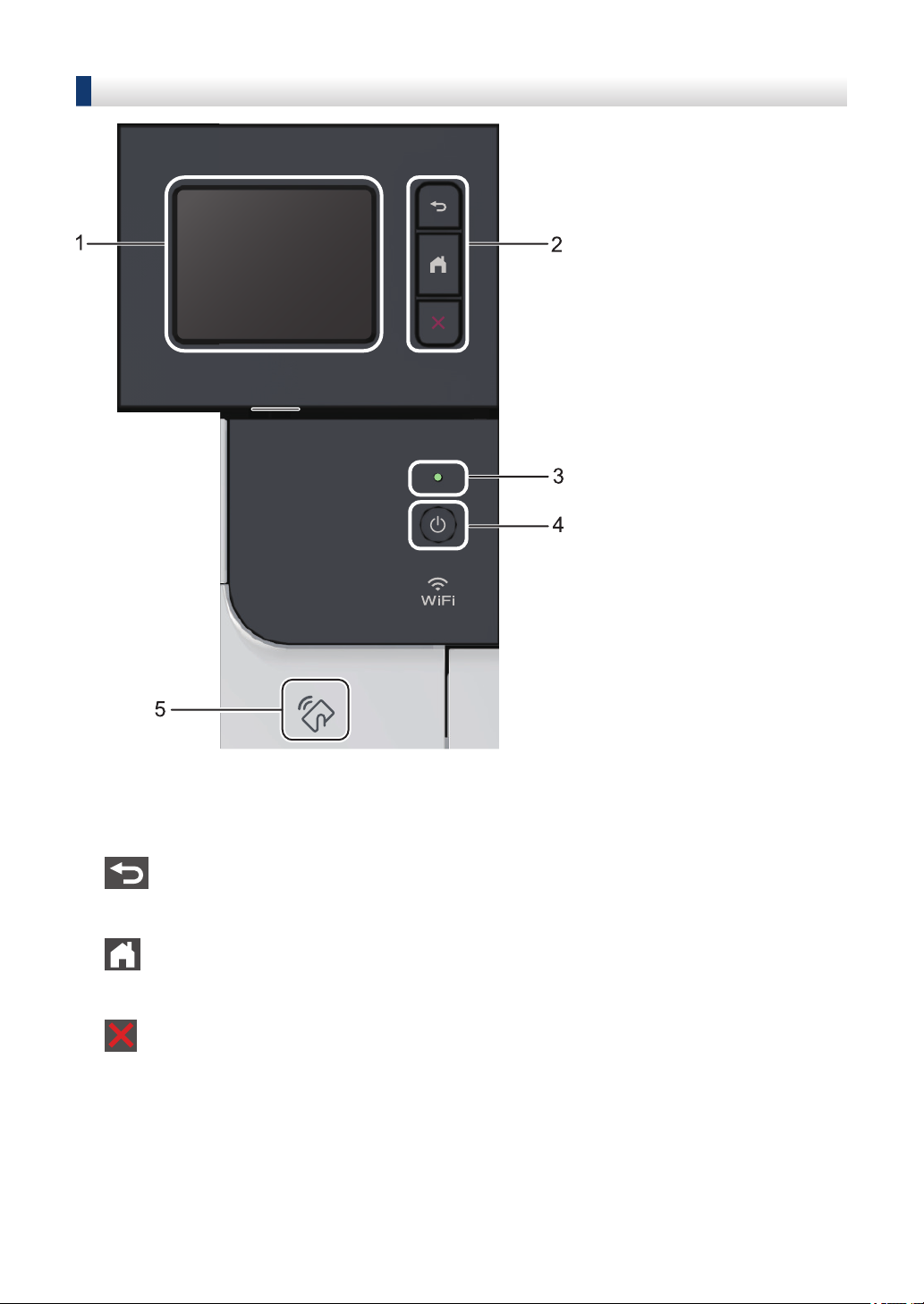

HL-L8360CDW/HL-L9310CDW
1. Touchscreen Liquid Crystal Display (LCD)
Access menus and options by pressing them on the Touchscreen.
2. Menu buttons
(Back)
Press to go back to the previous menu.
(Home)
Press to return to the Home screen.
(Cancel)
Press to cancel an operation.
3. LED Power Indicator
The LED lights up depending on the machine’s power status.
6
4. Power On/Off
• Turn the machine on by pressing .
• Turn the machine off by pressing and holding down .
5. Near Field Communication (NFC) Reader
You can use card authentication by touching the IC card to the NFC Reader on the control
panel.
If your Android™ device supports the NFC feature, you can print from your device in the same
way.
1General Information
7
Touchscreen LCD
Overview
Related Models:
HL-L8360CDW/HL-L9310CDW
From the Home screen, access the WiFi
setup, Toner level, Settings, and Functions
screens.
The Home screen displays the machine's
status when the machine is idle. When
displayed, this screen indicates that your
machine is ready for the next command.
If Active Directory® Authentication or LDAP
Authentication is enabled, the machine's
control panel is locked.
The available features vary depending on
your model.
1. (Wireless Status )
If you are using a wireless connection, a
four-level indicator in the Home screen
displays the current wireless signal
strength.
0 Max
• If you see at the top on the
screen, press to select a wireless
connection method, or edit an existing
wireless connection.
2. (Toner)
Displays the remaining toner life. Press to
access the [Toner] menu.
3. [(Settings)]
Press to access the [Settings] menu.
Use the Settings menu to access all of
your Brother machine's settings.
If Setting Lock has been turned on, a lock
icon appears on the LCD. You must
unlock the machine to change any
settings.
4. [Functions]
Press to access the Functions screen.
•[Secure Print]
Press to access the Secure Print
option.
•[Web]
Press to connect the Brother machine
to an Internet service.
8
Warning icon
The warning icon appears when there
is an error or maintenance message; press
to view it, and then press to
return to Ready Mode.
This product adopts the font of ARPHIC
TECHNOLOGY CO.,LTD.
NOTE
1General Information
9
