Quick Setup Guide

How to use the printer, see the User’s Guide on the CD-ROM.

Setting Up the Machine

Installing the Printer Driver

Laser Printer

HL-2035

Before you can use the printer, you must set up the hardware and install the driver. Please

read this ‘Quick Setup Guide’ for proper set up and installation instructions.

Keep this ‘Quick Setup Guide’ and the supplied CD-ROM in a convenient place for quick and

easy reference at all times.

Version 0

EEU-ENG

Symbols used in this guide

Trademarks

The Brother logo is a registered trademark of Brother Industries, Ltd.

Apple and Macintosh are registered trademarks and Safari is a trademark of Apple Inc.

Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corporation in the U.S. and other

countries.

Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or

other countries.

All other terms and brand and product names mentioned in this Quick Setup Guide are registered trademarks of

their respective companies.

Compilation and Publication

This manual has been compiled and published, under the supervision of Brother Industries Ltd., covering the latest

product descriptions and specifications.

The contents of this manual and the specifications of this product are subject to change without notice.

Brother reserves the right to make changes without notice in the specifications and materials contained herein and

shall not be responsible for any damages (including consequential) caused by reliance on the materials presented,

including but not limited to typographical and other errors relating to the publication.

This product is designed for use in a professional environment.

Warning

Electrical Hazard

Hot Surface

Caution

Warnings tell you what to do

to prevent possible personal

injury.

Electrical Hazard icons alert

you to a possible electrical

shock.

Hot Surface icons warn you

not to touch machine parts

that are hot.

Cautions specify procedures

you must follow or avoid to

prevent possible damage to

the printer or other objects.

Improper Setup

Note

User's Guide

Improper Setup icons alert

you to devices and

operations that are not

compatible with the printer.

Notes tell you how you should

respond to a situation that

may arise or give tips about

how the current operation

works with other features.

Indicates reference to the

User's Guide which is on the

CD-ROM we have supplied.

Table of Contents

Safety Precautions ....................................................................................................................................... 4

To Use the Printer Safely ........................................................................................................................ 4

Regulations ............................................................................................................................................. 5

Getting Started

Carton Components ..................................................................................................................................... 7

Control panel................................................................................................................................................ 8

Printer LED Indications ................................................................................................................................ 8

Supplied CD-ROM ....................................................................................................................................... 9

STEP 1—Setting Up the Machine

Put the CD-ROM into the CD-ROM drive................................................................................................... 10

Installing the drum unit and toner cartridge assembly................................................................................ 11

Loading paper in the paper tray ................................................................................................................. 11

Printing a test page .................................................................................................................................... 12

STEP 2—Installing the Printer Driver

Windows®

For USB interface cable users .................................................................................................................. 14

Macintosh®

For USB interface cable users .................................................................................................................. 16

For Mac OS®X 10.2.4 or greater users............................................................................................... 16

For Mac OS®9.1 to 9.2 users.............................................................................................................. 17

............................................................................................................................................................... 17

Other Information

Consumables ............................................................................................................................................. 18

Shipment of the printer............................................................................................................................... 18

Troubleshooting

Chapter 6 of the User’s Guide on the CD-ROM

Safety Precautions

To Use the Printer Safely

Warning

There are high voltage electrodes inside the printer. Before you clean the inside of the printer, make sure that

you have turned off the power switch and unplugged the printer from the AC power outlet.

DO NOT handle the plug with wet hands. Doing this might cause an electrical shock.

After you have just used the printer, some internal parts of the printer will be extremely hot. DO NOT touch the

shaded parts shown in the illustration when you open the front or back cover of the printer.

DO NOT remove or damage the caution label located on or around the fuser.

DO NOT use a vacuum cleaner to clean up scattered toner. Doing this might cause the toner dust to ignite

inside the vacuum cleaner, potentially starting a fire. Please carefully clean the toner dust with a dry, lint-free

cloth and dispose of it according to local regulations.

Inside the printer

(Front View)

Inside the printer

(Back View)

Safety Precautions

DO NOT use flammable substances or any type of spray to clean the inside or outside of the machine. Doing

this may cause a fire or electrical shock. Refer to the User's Guide for how to clean the machine.

Regulations

Important

A shielded interface cable should be used in order to

ensure compliance with the limits for a Class B digital

device.

Changes or modifications not expressly approved by

Brother Industries, Ltd. could void the user's authority

to operate the equipment.

Radio interference (220-240 volt model only)

This printer follows EN55022 (CISPR Publication

22)/Class B.

Before you use this product, make sure that you use

the following interface cable.

1. A USB cable.

The cable must not be more than 2 meters long.

EC Declaration of Conformity

International ENERGY STAR®Compliance

Statement

The purpose of the International ENERGY STAR®

Program is to promote the development and

popularization of energy-efficient office equipment.

As an ENERGY STAR®Partner, Brother Industries,

Ltd. has determined that this product meets the

ENERGY STAR®guidelines for energy efficiency.

IEC 60825-1 specification (220 to 240 volt model

only)

This printer is a Class 1 laser product as defined in

IEC 60825-1 specifications. The label shown below is

attached in countries where it is needed.

This printer has a Class 3B laser diode which

produces invisible laser radiation in the scanner unit.

You should not open the scanner unit under any

circumstances.

Varning

Use of controls or adjustments or performance of

procedures other than those specified herein may

result in hazardous radiation exposure.

CLASS 1 LASER PRODUCT

APPAREIL À LASER DE CLASSE 1

LASER KLASSE 1 PRODUKT

Safety Precautions

Internal laser radiation

IMPORTANT - For Your Safety

To ensure safe operation, the supplied three-pin plug

must be inserted only into a standard three-pin power

outlet that is properly grounded through the normal

household wiring.

Extension cords used with this printer must be three-

pin plug type and correctly wired to provide proper

grounding. Incorrectly wired extension cords may

cause personal injury and equipment damage.

The fact that the equipment operates satisfactorily

does not imply that the power is grounded and that

the installation is completely safe. For your safety, if

in any doubt about the effective grounding of the

power, call a qualified electrician.

Disconnect device

You must install this printer near a power outlet that is

easily accessible. In case of an emergency, you must

disconnect the power cord from the power outlet to

shut off the power completely.

Warning - This printer must be earthed.

The wires in the mains lead are coloured in line with

the following code:

If in any doubt, call a qualified electrician.

Maximum radiation power: 10 mW

Wave length: 780 - 800 nm

Laser class: Class 3B

Green and Yellow: Earth

Blue: Neutral

Brown: Live

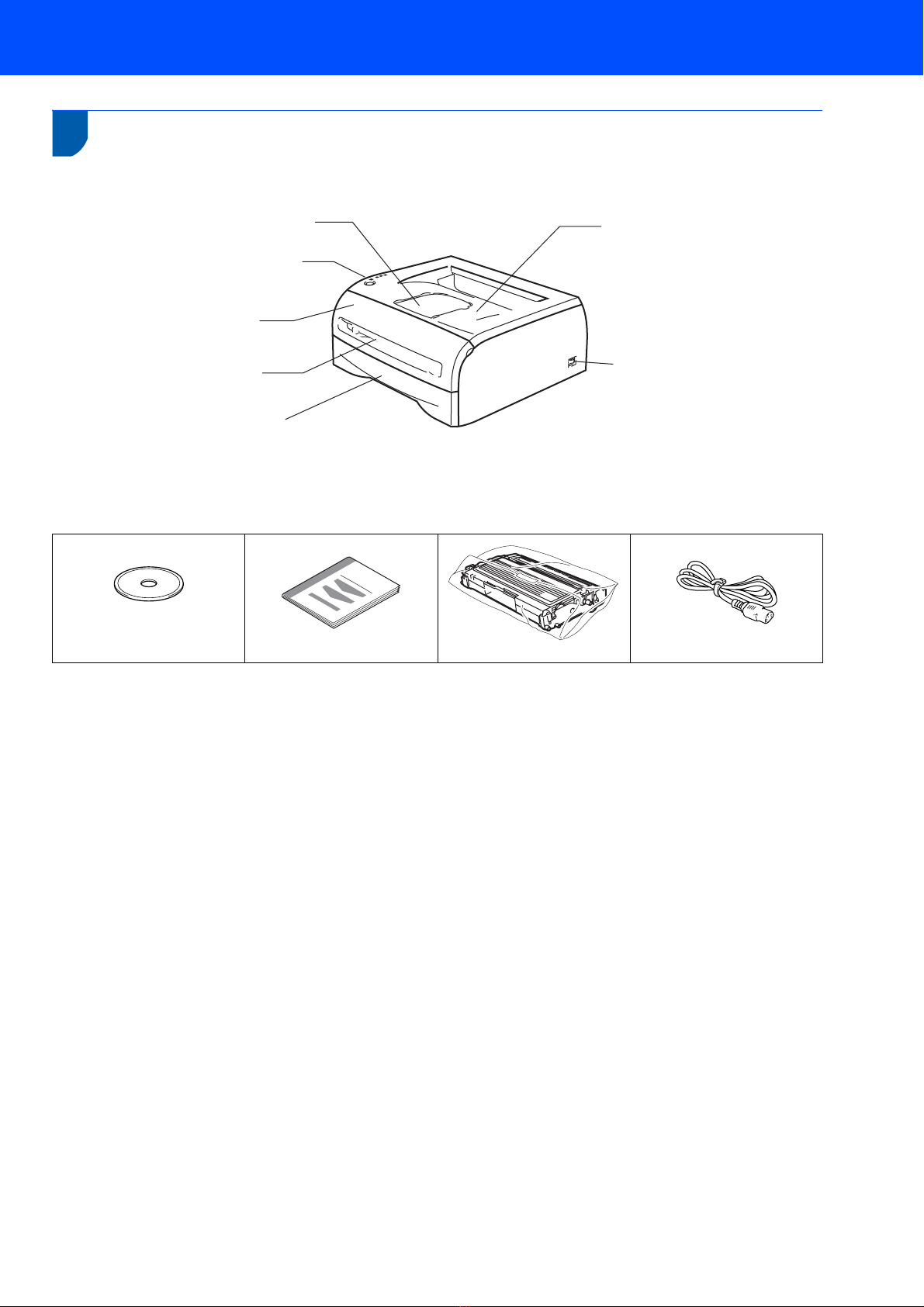

Carton Components

Carton components may vary from one country to another.

Save all packing materials and the printer carton in case for any reason you must ship your printer.

1 Face-down Output Tray Support Flap (Support Flap)

2 Control panel

3 Front Cover

4 Manual feed slot

5 Paper Tray

6 Power Switch

7 Face-down Output Tray (Top Output Tray)

The interface cable is not a standard accessory. Buy the appropriate cable for the interface you are going to use.

USB cable

• Please make sure you use a USB 2.0 interface cable that is no longer than 6 feet (2 meters).

• DO NOT connect the interface cable at this time. Connecting the interface cable is done during the printer

driver installation process.

When you use a USB cable, make sure you connect it to the USB port of your computer and not to a USB

port on a keyboard or non-powered USB hub.

• USB is not supported under Windows®95 or Windows NT®4.0.

CD-ROM

(including User’s Guide)

Quick Setup Guide

Drum unit assembly

AC power cord

Control panel

For the details of the control panel, see Chapter 3 of the User’s Guide on the CD-ROM.

Printer LED Indications

1The LED will blink in a pattern of ON for 2 seconds and then OFF for 3 seconds.

1Toner LED

The Toner LED indicates when the toner is low or at the end of its life.

2Drum LED

The Drum LED indicates when the drum is nearing the end of its life.

3Error LED

The Error LED indicates when the printer is in one of the following

states:

No paper / Paper jam / Cover open

4Ready LED

The Ready LED indicates when the printer is ready or if Data is

remaining.

5Go button

Wake-up / Error recovery / Form feed / Job Cancel / Reprint

: Blinking : ON : OFF

Printer LED Sleep/OFF Warming up Ready Receiving data Print Data

remaining

Toner

Drum

Error

Ready

(Green)

Printer LED Toner low 1Toner life

end

Drum near

end of life 1

Cover open

Paper jam

No paper Drum Error Service call

Toner

(Yellow)

Drum

(Yellow)

Error

(Red)

Ready

(Green)

User's Guide

Chapter 5 Chapter 5 Chapter 5 Chapter 6 Chapter 1 Chapter 3 Chapter 3

Supplied CD-ROM

You can find a variety of information on the CD-ROM.

Initial Setup

Instructional movie for printer setup.

Install Printer Driver

Install the printer driver.

Install Other Driver or Utilities (For Windows®users)

Install optional driver.

Documentation

View the Printer User’s Guide in HTML format.

You can also view the User’s Guide in PDF format by accessing the Brother Solutions Center.

The User’s Guide in HTML format will be installed automatically when you install the driver. (For Windows®users

only) Click the Start button, Programs 1, your printer (e.g. Brother HL-2035), and then User’s Guide. If you do not

want to install the User’s Guide, choose Custom setup from Install Printer Driver, and uncheck User’s Guide

in HTML format when you install the driver.

1All Programs for Windows®XP users

On-Line Registration

Brother Solutions Center

The Brother Solutions Center (http://solutions.brother.com) is a one-stop resource for all your printer needs.

Download the latest drivers and utilities for your printers, read FAQs and troubleshooting tips, or learn about printer

solutions.

Note

For visually impaired users, we have prepared an HTML file

on the supplied CD-ROM: readme.html. This file can be read

by Screen Reader ‘text-to-speech’ software.

Windows®Macintosh®

1Mac OS®X 10.2.4 or greater Users

2Mac OS®9.1 to 9.2 Users

The menu screen is not supported by

Mac OS®9.1 to 9.2.

3View the User’s Guide in HTML

format.(See Documentation

below.)

Setting Up the Machine

STEP 1

1 Put the CD-ROM into the CD-ROM drive

For Windows®users

Improper Setup

DO NOT connect the interface cable.

Connecting the interface cable is done when

installing the driver.

1Put the supplied CD-ROM into your CD-ROM

drive. The opening screen will appear

automatically.

Choose your language.

2Click Initial Setup on the menu screen.

3You can view the initial setup instructions and

follow along with the steps on pages 11 to 12.

For Macintosh®users

Improper Setup

DO NOT connect the interface cable.

Connecting the interface cable is done when

installing the driver.

1For Mac OS®9.1 to 9.2 Users, go to next page.

For Mac OS®10.2.4 or greater Users, put the

supplied CD-ROM into your CD-ROM drive,

and then double-click the HL2000 icon on your

desktop. Double-click the Start Here OS X

icon. Choose your language.

2Click Initial Setup on the menu screen.

3You can view the initial setup instructions and

follow along with the steps on pages 11 to 12.

Otros manuales para HL-2035

Tabla de contenidos

Otros manuales de Impresora de Brother

Brother

Brother HL 1030 - B/W Laser Printer Guía de inicio rápido

Brother

Brother HL-2700CN Series Manual de usuario

Brother

Brother HL-1660 Series Manual de usuario

Brother

Brother GTX pro Bulk Manual de usuario

Brother

Brother HL-6050 Manual de usuario

Brother

Brother GTX Series Manual de usuario

Brother

Brother 2700CN - HL Color Laser Printer Guía de inicio rápido

Brother

Brother HL-3400CN Series Manual de usuario

Brother

Brother DCP-L3517CDW Manual de usuario

Brother

Brother HL-8050N Manual de usuario

Brother

Brother m-PRINT MW-100 Manual de usuario

Brother

Brother DCP-585CW Manual de usuario

Brother

Brother m-PRINT MW-100 Manual de usuario

Brother

Brother DCP-L3520CDW Manual de usuario

Brother

Brother HL-1060 Series Manual de usuario

Brother

Brother DCP-130C Manual de usuario

Brother

Brother HL-2400Ce Series Manual de usuario

Brother

Brother HL-2400Ce Series Manual de usuario

Brother

Brother HL 760 - B/W Laser Printer Manual de usuario

Brother

Brother HL-L8260CDN Manual de usuario

Brother

Brother HL-4570CDW Manual de usuario

Brother

Brother m-PRINT MW-260 Manual de usuario

Brother

Brother HL-5340D Manual de usuario

Brother

Brother DCP-J572DW Manual técnico

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series Manual de usuario

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Canon

Canon LASER SHOT LBP-1210 Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Canon

Canon PIXMA PRO-1 Series Manual de usuario

Canon

Canon PIXMA G3560 Guía de configuración

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Canon

Canon CLBR 460ps Manual de usuario

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

Canon

Canon imagePASS-A2 Manual de usuario

Canon

Canon S820D Manual de usuario
