COPYBOARD
SERVICE MANUAL
MODEL: CP1800/CP2000/CB200
© Copyright Brother 2000
All rights reserved.
No part of this publication may be reproduced in any form or by any means without permission in writing
from the publisher.
Specifications are subject to change without notice.
All products and company names mentioned in this manual are trademarks or registered trademarks of their
respective holders.
PREFACE
This publication is a Service Manual covering the specifications, construction, theory of operation,
and maintenance of the Brother copyboard. It includes information required for field
troubleshooting and repair--disassembly, reassembly, and lubrication--so that service personnel
will be able to understand machine function, to rapidly repair the machine and order any necessary
spare parts.
To perform appropriate maintenance so that the machine is always in best condition for the
customer, the service personnel must adequately understand and apply this manual.
This manual is made up of five chapters and appendix.
CHAPTER I.GENERAL DESCRIPTION
CHAPTER II.THEORY OF OPERATION
CHAPTER III.DISASSEMBLY/REASSEMBLY AND LUBRICATION
CHAPTER IV. MAINTENANCE MODE
CHAPTER V. ERROR INDICATION AND TROUBLESHOOTING
Appendix. Circuit Diagrams
This manual describes the models and their versions to be destined for major countries. The specifications
and functions are subject to change depending upon each destination.
CHAPTER I.
GENERAL DESCRIPTION
CHAPTER I. GENERAL DESCRIPTION
CONTENTS
1.1 MACHINE OUTLINE............................................................................................. I-1
1.1.1 External Appearance and Weight.............................................................. I-1
1.1.2 Components ............................................................................................. I-1
1.2 SPECIFICATIONS................................................................................................ I-2
I- 1
1.1 MACHINE OUTLINE
1.1.1 External Appearance and Weight
The figure below shows the machine appearance and approximate dimensions.
CP2000/CB200 CP1800
Weight: Machine proper 14.5 kg (32.0 lbs.) 11.8 kg (26.0 lbs.)
In package 23.0 kg (50.7 lbs.) 19.5 kg (43.0 lbs.)
1.1.2 Components
The machine consists of the following major components:
I- 2
1.2 SPECIFICATIONS
Model CP2000 CB200 CP1800
MACHINE SPECIFICATIONS
INPUT Screen Size (H) x (W) 35.43 x 23.62 inches
900 x 600 mm
Effective Scanning Area (H) x (W) 34.57 x 23.39 inches
878 x 594 mm
Ratio of Scanning Area 96.60%
Scanning Method CIS Same as left. Same as left.
Number of Screens 2 (Endless)
Number of Screens for Copy 2
Writing Dry-erase markers
OUTPU
TPrinting Method Thermal
Copy Size Letter Letter/A4 Letter
Copy Speed Monochrome: 18 sec
R&B: N/A
Continuous Copy 1 sheet
Paper Therma PLUS, 30 m
Anti-Curl System (ACS) Yes
Print Density 8 dots/mm
USE Easel Stand Portrait Same as left. Same as left.
Wall Mount Portrait/landscape
Partition Hanger Portrait/landscape
POWER Power Source AC adapter supplied,
100 to 240 VAC,
50/60 Hz
Power Consumption Standby 5W
Operating 30W
SIZE Size (H x W x D) In package inch 54.5 x 33.6 x 11.0 49.9 x 38.3 x 10.0
mm 1383 x 852 x 280 1267 x 973 x 255
Use with easel stand inch 75.9 x 28.5 x 27.0 N/A
mm 1929 x 725 x 687
Use without easel stand inch 49.9 x 28.5 x 5.8 N/A
(Portrait) mm 1268 x 725 x 147 Same as left.
Use without easel stand inch 33.3 x 45.2 x 5.8 Same as left.
(Landscape) mm 846 x 1147 x 147
Weight Net 14.5 kg (32.0 lbs) 11.8 kg (26.0 lbs)
Gross 23 kg (50.7 lbs) 19.5 kg (43.0 lbs)
PC I/F Yes Yes for Canada Option
CHAPTER II.
THEORY OF OPERATION
CHAPTER II. THEORY OF OPERATION
CONTENTS
2.1 OVERVIEW........................................................................................................... II-1
2.2 MECHANISMS...................................................................................................... II-2
2.2.1 Scanner mechanism.................................................................................... II-2
2.2.2 Thermal printing mechanism....................................................................... II-4
2.2.3 Sensors....................................................................................................... II-5
2.3 CONTROL ELECTRONICS.................................................................................. II-6
II - 1

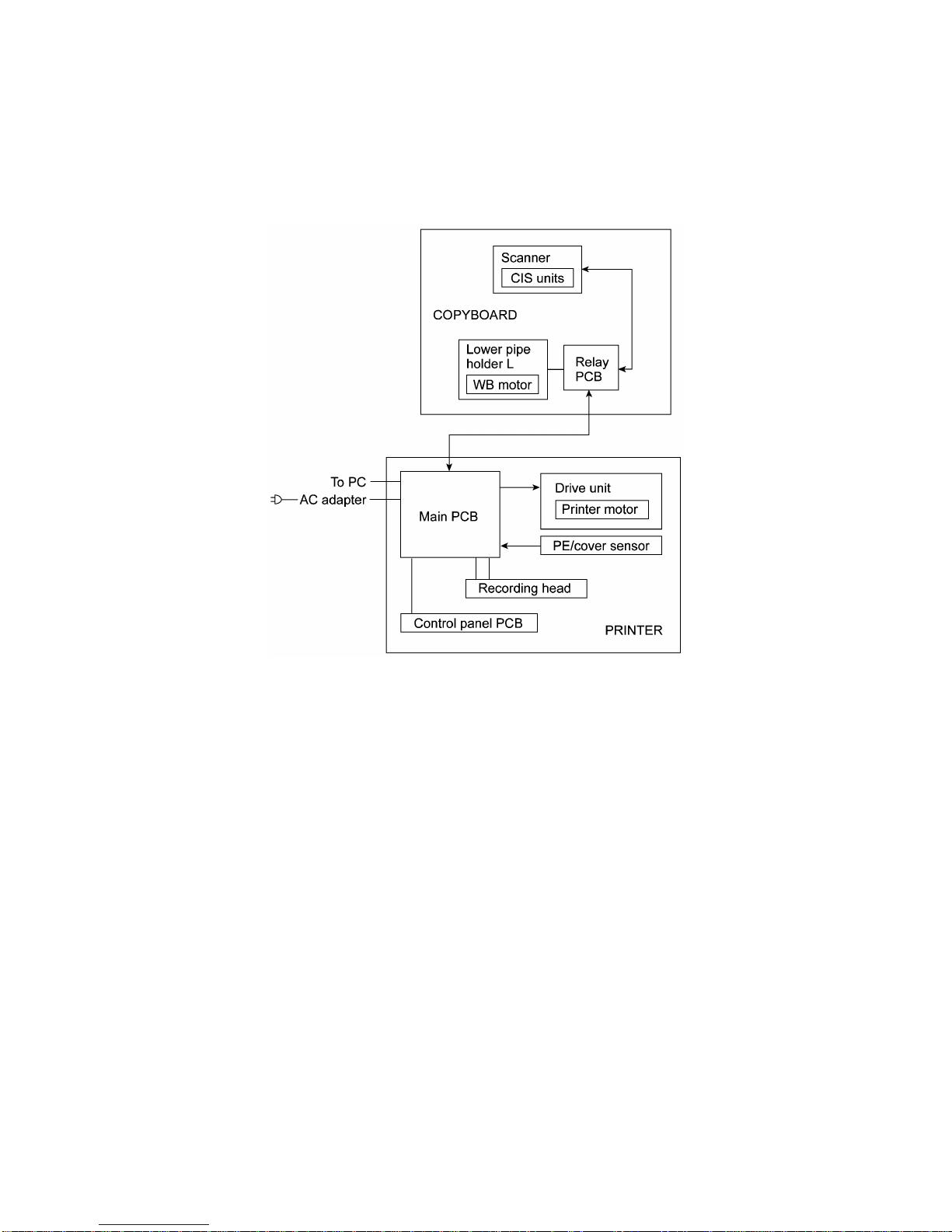

2.1 OVERVIEW
