Brother PT-9200PC Manual de usuario

PARTS REFERENCE LIST

MODEL: PT-9200PC (For Europe / China / Hong-Kong

Taiwan / Australia)

NOTES FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:

(1) Code

(2) Q'ty

(3) Description

(4) Symbol (PCB No., Revision , and Parts location mounted on the PCB.)

Note : No orders without Parts Code or Tool No. can be accepted.

[ Example ]

(4) (1) (2) (3)

REF. NO. SYMBOL CODE Q’TY DESCRIPTION REMARKS

Revision No. : marked on the printed circuit board.

B48J300 - 101 A

Design change indication

Specification No.

Pattern alteration No.

Circuit board No.

2. Design-changed parts:

When the parts are changed, any one of the following symbols is indicated in the REMARKS column.

CHNG#A : compatible between old and new

CHNG#B : replaceable from old to new

CHNG#D : incompatible

ADD : newly established

3. The original of this list was made based on the information available in September,1998.

4. Parts are subject to change in design without prior notice.

CONTENTS

1 . PRINT MECHANISM................................................................................1

2 . COVERS..................................................................................................3

3 . MAIN PCB................................................................................................5

4 . DETECTORS............................................................................................7

5 . POWER SUPPLY PCB.............................................................................7

6 . ATTACHMENTS.......................................................................................9

7 . PRINTED MATTERS................................................................................9

8 . PACKING MATERIALS...........................................................................11

-1-

MODEL PT-9200PC (Europe) 5V2-601-045

1 . PRINT MECHANISM PT99021

-2-

1 . PRINT MECHANISM PT2000026

REF.NO. CODE Q'TY DESCRIPTION REMARKS

LA2072001

MAIN FRAME PP ASSY

Z26576001

TAPE FEED MOTOR, BP242516M08 (OLD : Refer to the T/I #.PT2000020)

Z26581001

TAPE FEED MOTOR, BP242516M12-PP (NEW : From APR. 2000. Refer to the T/I

#.PT2000020)

UB3848001

SCREW, PAN M2.6X3.5

LA0014001

ROLLER HOLDER ASSY (SP) (OLD : Refer to the T/I #.PT2000020)

LA2031001

ROLLER HOLDER ASSY (SP) (NEW : From APR. 2000. Refer to the T/I #.PT2000020)

UT0895001

ROLLER HOLDER SHAFT

048025346

RETAINING RING, E2.5

UT0591001

HEAD ASSY KSH384 BW (SP) (OLD : Refer to the T/I #.PT2000020)

LA2071001

HEAD ASSY KSH384 BW3 (SP) (NEW : From APR. 2000. Refer to the T/I #.PT2000020)

UT0901001

ROLLER HOLDER RELEASE SPRING

UT0902001

RELEASE CAM

UT0903001

ROLLER RELEASE ROD

UB5507000

RELEASE ROD ROLLER

048025346

RETAINING RING, E2.5

UT0872001

RELEASE LEVER SPRING PP

0A4301005

SCREW, PAN (S/P WASHER) M3X10

UT0904001

HALF FRAME ASSY

UT0917001

HALF ROCK GEAR

UT0958001

HALF CUTTER SENSOR ASSY

UT0961001

FULL CUTTER SENSOR ASSY

UT0855001

SCREW, PAN M1.7X6

UT0918001

CUTTER HELICAL GEAR ASSY

048040346

RETAINING RING, E4

UT0921001

HALF CUTTER ASSY

LA4063001

CUTTER ASSY (SP) CHNG#A

UT0932001

HALF SPACER

UT1401001

EJECT UNIT ASSY

0A4401205

SCREW, PAN (S/P WASHER) M4X12

UT0933001

FULL CUTTER MOTOR ASSY

UB3848001

SCREW, PAN M2.6X3.5

UT0934001

HALF CUTTER MOTOR ASSY

UB3848001

SCREW, PAN M2.6X3.5

0A3300605

SCREW, PAN WASHER M3X6D

U62189000

PLATEN PROTECT PAD

UN7937000

GREASE G501, 1KG

MODEL PT-9200PC EU/HKG/TWN/CHN 5V2-601-045

-3-

MODEL PT-9200PC EU 5V2-601-061

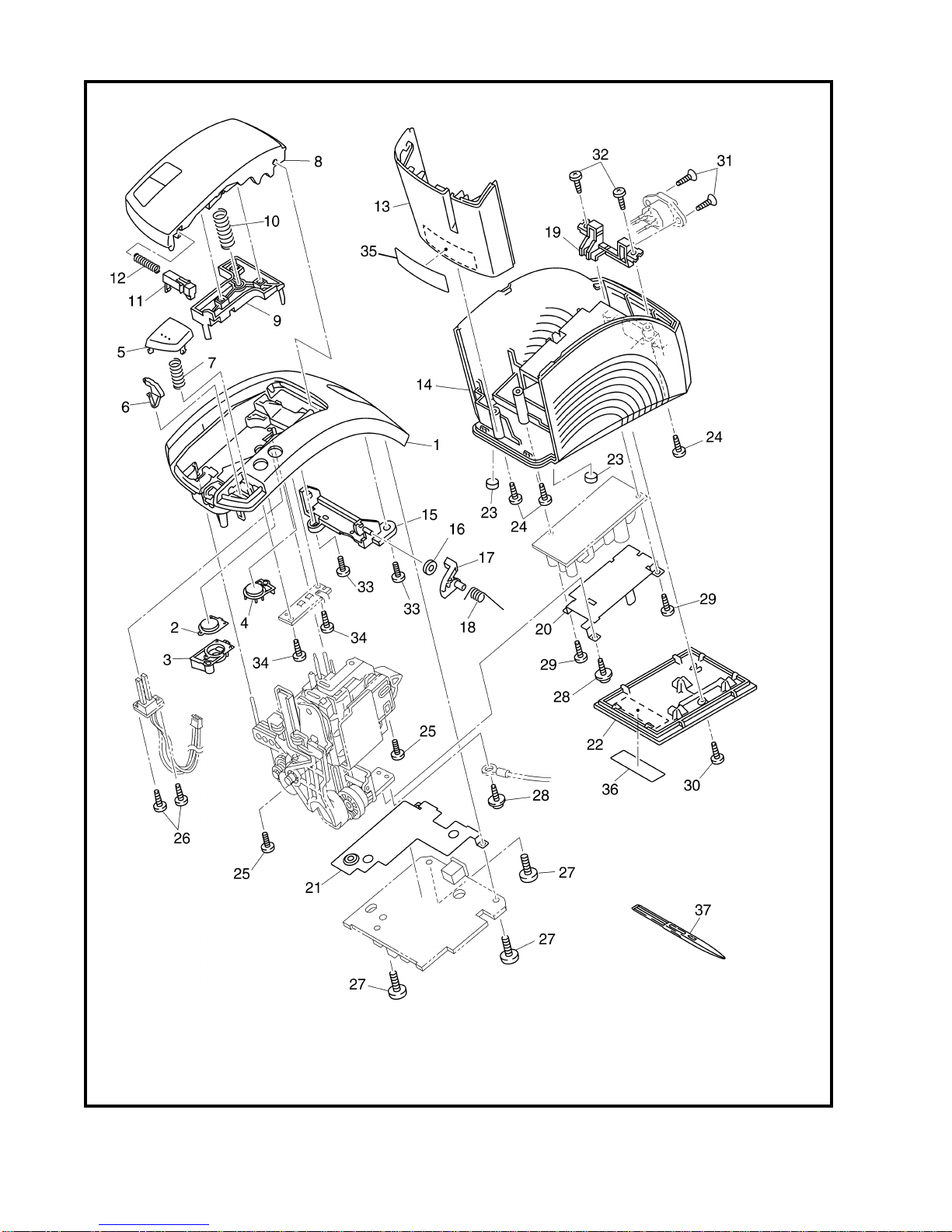

2 . COVERS PT99001

-4-

2 . COVERS PT2000024

REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS

LA3931001

BODY COVER CHNG#A

UT0937001

POWER SUPPLY SWITCH BUTTON

UT0938001

POWER SUPPLY ACTUATOR

UT0939001

CUT FEED BUTTON, BLUE6189

UT0940001

COVER LOCK BUTTON, GRAY1395

UT0941001

COVER BUTTON ACTUATOR

UT0942001

LOCK LEVER SPRING

UT0551001

CASSETTE COVER PP EC, GRAY1463

UT0944001

CASSETTE PRESSER, GRAY1395

UT0945001

CASSETTE SPRING

UT0995001

COVER LOCK ACTUATOR, GRAY1395

UT0996001

COVER LOCK SPRING

UT0946001

FRONT COVER PP US, GRAY1395

UT0947001

BOTTOM COVER PP US, GRAY1395

UT0948001

CASSETTE COVER BRACKET, GY1395

UT0997001

DAMPER RUBBER

UT0998001

COVER OPEN CAM

UT0949001

COVER OPEN SPRING

UT0951001

INLET BRACKET

UT0952000

SHIELD PLATE B

UT0953000

SHIELD PLATE A

UT0955001

LOWER COVER, GRAY1395

UB4431001

LOWER FOOT

085271017

TAPTITE, BIND B M2.6X10

085270815

TAPTITE, BIND B M2.6X8

085270815

TAPTITE, BIND B M2.6X8

085270815

TAPTITE, BIND B M2.6X8

0A5400805

SCREW, PAN (S/P WASHER) M4X8

085270815

TAPTITE, BIND B M2.6X8

085271017

TAPTITE, BIND B M2.6X10

084311016

SCREW, FLAT B M3X10

085270815

TAPTITE, BIND B M2.6X8

085270815

TAPTITE, BIND B M2.6X8

085270815

TAPTITE, BIND B M2.6X8

35 A

UT0578001

TAPE CAUTION LABEL PP EC

LJ4421001

MARKING LABEL N/S (EXCEPT TAIWAN)

UT0267001

LETTERING STICK TZ36 (EXCEPT TAIWAN)

MODEL PT-9200PC EU/HKG/TWN/CHN/AUS 5V2-601-061

-5-

MODEL PT-9200PC (Europe) 5V2-601-101

3 . MAIN PCB PT2000020

-6-

3 . MAIN PCB PT2000020

REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS

1-2 B55L024-1

UT0839001

MAIN PCB ASSY PROPC (SP) (OLD : Refer to the T/I #. PT2000020)

1-2 B55L024-1

CODE LABEL 01

LA2068001

MAIN PCB ASSY PROPC (SP) (NEW:FromAPR.2000.RefertotheT/I

#. PT2000020) ADD

1 #5

UT0550001

MCU:M30622M8-186 (OLD : Refer to the T/I #. PT2000020)

1 #5

LA2028001

MCU:M30622M8-773 ) (NEW : From APR. 2000. Refer to the T/I #.

PT2000020) ADD

2#1,#2

UT0804001

SRAM:51008BFP55

MODEL PT-9200PC EU/HKG/TWN/CHN 5V2-601-101

-7-

MODEL PT-9200PC (Europe) 5V2-601-102

4 . DETECTORS

MODEL PT-9200PC (Europe) 5V2-601-100

5 . POWER SUPPLY PCB
