Start Here MFC-J220

MFC-J410

Quick Setup Guide

CEE-ENG Version 0

Before you can use the machine, please read this Quick Setup Guide for the correct setup and installation.

Unpack the machine and check the components

WARNING

Plastic bags are used in the packaging of your machine. To avoid danger of suffocation, please keep

these bags away from babies and children.

Most of the illustrations in this Quick Setup Guide show the MFC-J410.

aRemove the protective tape and film covering the machine, and also from the LCD.

bRemove the plastic bag acontaining the ink cartridges from on top of the paper tray.

WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death

or serious injuries.

CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor

or moderate injuries.

Load plain A4 paper

aPull the paper tray completely out of the

machine.

bLift the output paper tray cover.

cWith both hands, gently press and slide the

paper side guides aand then the paper length

guide bto fit the paper size.

Make sure that the triangular marks con the

paper side guides aand paper length guide b

line up with the mark for the paper size you are

using.

dFan the stack of paper well to avoid paper jams

and misfeeds.

eCheck that the paper is flat in the tray.

fGently adjust the paper side guides to the

paper with both hands.

gClose the output paper tray cover.

hSlowly push the paper tray completely into the

machine.

iWhile holding the paper tray in place, pull out

the paper support until it clicks, and then unfold

the paper support flap.

IMPORTANT

DO NOT push the paper in too far.

Connect the power cord

and telephone line

aConnect the power cord.

WARNING

The machine must be fitted with an earthed

plug.

WARNING

Since the machine is grounded through the

power outlet, you can protect yourself from

potentially hazardous electrical conditions on

the telephone network by keeping the power

cord connected to your machine when you

connect it to a telephone line. Similarly, you

can protect yourself when you want to move

your machine by disconnecting the telephone

line first and then the power cord.

Install the ink cartridges

CAUTION

If ink gets in your eyes, wash them out with water

at once, and if irritation occurs consult a doctor.

aMake sure that the power is turned on.

bOpen the ink cartridge cover.

cRemove the green protective part.

dUnpack the ink cartridge.

IMPORTANT

DO NOT connect the USB cable yet.

IMPORTANT

The telephone line cord MUST be connected

to the socket on the machine marked LINE.

Note

Make sure you install the Inbox Ink Cartridges

included with your machine first.

fTake care to match the colour of the lever with

the cartridge colour.

gInstall each ink cartridge in the direction of the

arrow on the label.

hGently push the ink cartridge until it clicks. After

all the ink cartridges are installed close the ink

cartridge cover.

Check the print quality

aWhen the preparation process has finished, the

LCD shows Set Paper and Press Start.

Press Colour Start.

bCheck the quality of the four colour blocks on

the sheet. (black/yellow/cyan/magenta)

cIf all lines are clear and visible, press 1(Yes)

on the dial pad to finish the quality check and

go to step 6.

If you can see missing short lines, press 2(No)

on the dial pad and follow the steps on the

LCD.

Choose your language

aPress Menu.

bPress aor bto select Initial Setup.

Press OK.

cPress aor bto select Local Language.

Press OK.

dPress aor bto select your language.

Press OK.

ePress Stop/Exit.

Choose a Receive Mode

There are four possible receive modes: Fax Only,

Fax/Tel, Manual and External TAD.

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Receive Mode.

Press OK.

dPress aor bto choose the receive mode.

Press OK.

ePress Stop/Exit.

Do you want to use the telephone features of your

machine (if available) or an external telephone or

external telephone answering device connected on the

same line as the machine?

Your machine

automatically answers

every call as a fax.

Your machine controls

the line and

automatically answers

every call. If the call is

not a fax, the telephone

will ring for you to pick

up the call.

Your external telephone

answering device (TAD)

automatically answers

every call. Voice

messages are stored

on the external TAD.

Fax messages are

printed.

You control the

telephone line and must

answer every call

yourself.

Do you want the machine to

answer fax and telephone calls

automatically?

Manual

Fax Only

Fax/Tel

External TAD

Yes

Are you using the voice message

function of an external telephone

answering device?

Set the date and time

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Date&Time.

Press OK.

dEnter the last two digits of the year on the dial

pad, and then press OK.

eRepeat for month/day/time in 24-hour format.

fPress Stop/Exit.

Enter personal

information (Station ID)

You should store your name and fax number to be

printed on all fax pages that you send.

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Station ID.

Press OK.

dEnter your fax number (up to 20 digits) on the

dial pad, and then press OK. To enter a “+” for

international codes, press l.

eEnter your name (up to 20 characters) using

the dial pad, and then press OK.

fPress Stop/Exit.

Set Tone or Pulse dialling

mode

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Tone/Pulse.

Press OK.

dPress aor bto choose Pulse (or Tone).

Press OK.

ePress Stop/Exit.

Set the telephone line

type

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Phone Line Set.

Press OK.

dPress aor bto choose Normal, PBX or ISDN.

Press OK.

ePress Stop/Exit.

Note

If you make a mistake and want to start again,

press Stop/Exit and go back to a.

Set the phone line

compatibility

If you are connecting the machine to a VoIP service

(over the Internet) you need to change the

compatibility setting.

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Compatibility.

Press OK.

dPress aor bto choose Basic(for VoIP).

Press OK.

ePress Stop/Exit.

For Windows®Users:

Now go to

Page 7

For Macintosh Users:

Now go to

Page 9

Note

If you are using an analogue telephone line you

can skip this step.

Windows®

USB

Windows®Macintosh

USB

For USB interface users

(Windows

2000 Professional/XP/XP Professional x64 Edition/

Windows Vista

/Windows

Before you install

aMake sure that your computer is ON and you

are logged on with Administrator rights.

Install MFL-Pro Suite

aPut the supplied installation CD-ROM into your

CD-ROM drive. Follow the on-screen

instructions.

bThe CD-ROM Top Menu will appear. Click

Install MFL-Pro Suite and click Yes if you

accept the license agreements. Follow the

on-screen instructions.

cChoose Standard, and then click Next. The

installation continues.

dWhen this screen appears, go to the next step.

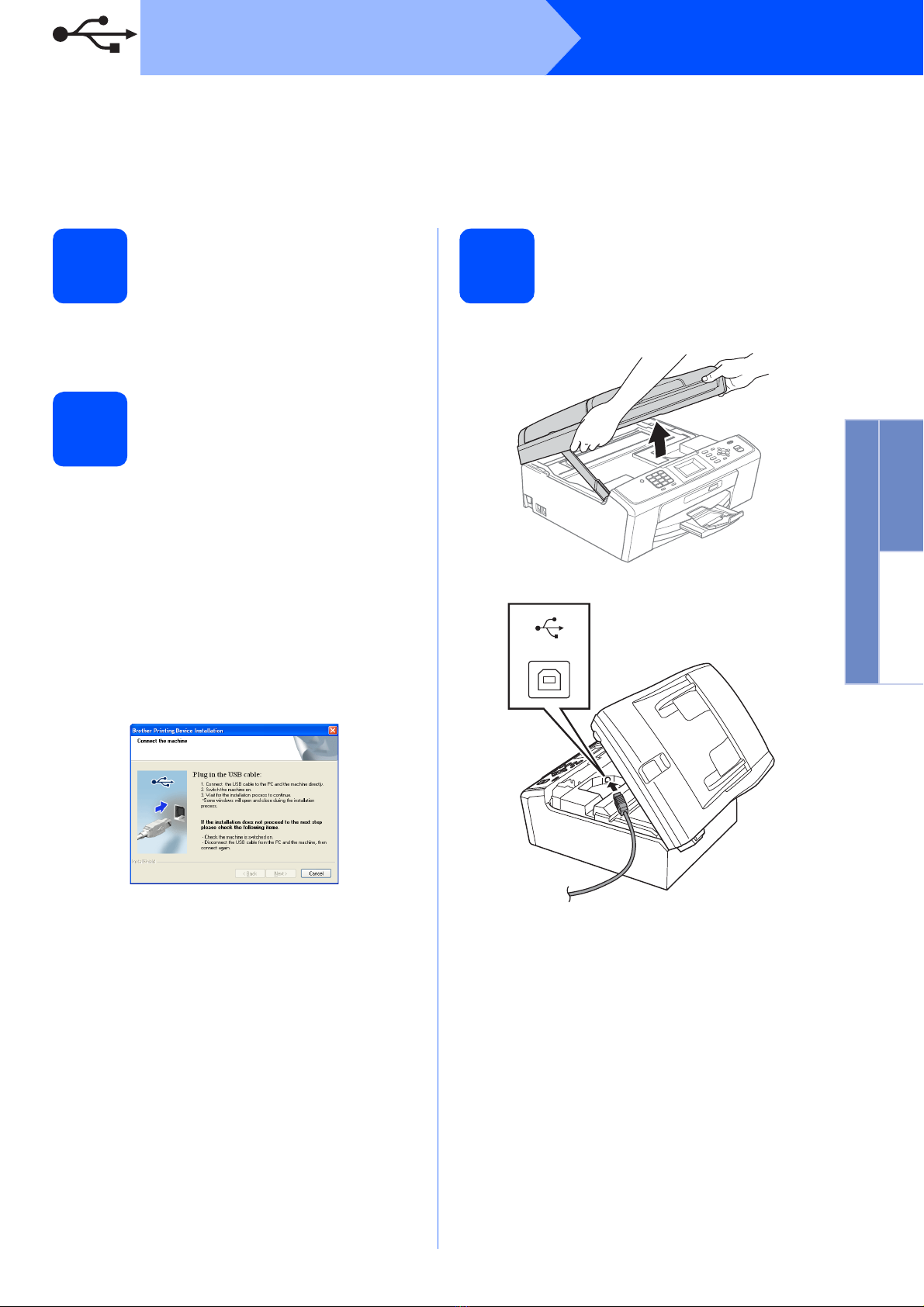

Connect the USB cable

USB

Windows®

USB

eThe installation will continue automatically.

The installation screens appear one after

another.

fWhen the User’s Guides screen is displayed,

click View Manuals on the Web if you want to

download the manuals and follow the

on-screen instructions. You can also view the

manuals on the documentation CD-ROM.

gWhen the On-Line Registration screen is

displayed, make your selection and follow the

on-screen instructions.

hIf you do not want to set your machine as the

Default printer, uncheck Set as Default

Printer.

Finish and restart

aClick Finish to restart your computer.

After restarting the computer, you must be

logged on with Administrator rights.

bIn the Check for Firmware Updates screen,

choose the firmware update setting you want

and click OK.

Now go to

Proceed to Install Optional Applications on

page 11.

IMPORTANT

Make sure that the cable does not restrict the

cover from closing, or an error may occur.

IMPORTANT

DO NOT cancel any of the screens during the

installation. It may take a few seconds for all

screens to appear.

Note

Internet access is required for the firmware

update.

Finish

The installation is now

complete.

Note

XML Paper Specification Printer Driver

The XML Paper Specification Printer Driver is the

most suitable driver when printing from

applications that use the XML Paper Specification

documents. Please download the latest driver by

accessing the Brother Solutions Center at

http://solutions.brother.com/

Macintosh

USB

Windows®Macintosh

USB

For USB interface users (Mac OS X 10.4.11, 10.5.x, 10.6.x)

Before you install

aMake sure your machine is connected to the

power and your Macintosh is ON. You must be

logged on with Administrator rights.

Connect the USB cable

IMPORTANT

• DO NOT connect the machine to a USB port

on a keyboard or a non-powered USB hub.

• Connect the machine directly to your

Macintosh.

USB

IMPORTANT

Make sure that the cable does not restrict the

cover from closing, or an error may occur.

Macintosh

USB

Install MFL-Pro Suite

aPut the supplied installation CD-ROM into your

CD-ROM drive.

bDouble-click the Start Here OSX icon to install.

cPlease wait, it will take a few seconds for the

software to install. After the installation, the

Brother software will search for the Brother

device.

dChoose the machine from the list, and then

click OK.

eWhen this screen appears, click Next.

fWhen the Brother Support screen appears,

click Close.

Finish

The installation is now

complete.

Otros manuales para MFC-J220

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Impresora todo en uno de Brother

Brother

Brother MFC-6890CDW - Color Inkjet - All-in-One Manual de usuario

Brother

Brother Airprint MFC-J460DW Manual de usuario

Brother

Brother MFC-J6920DW Instrucciones de montaje

Brother

Brother DCP-9045CDN Manual de usuario

Brother

Brother DCP 165C - Color Inkjet - All-in-One Manual de lista de piezas

Brother

Brother MFC-9660 Manual de usuario

Brother

Brother MFC-5840CN Manual de usuario

Brother

Brother 8220 - MFC - Multifunction Guía de inicio rápido

Brother

Brother MFC-7420 Manual de usuario

Brother

Brother P2500 Manual de usuario

Brother

Brother MFC8440D Manual de usuario

Brother

Brother MFC-7320 Manual de usuario

Brother

Brother MFC-J680DW Manual de instrucciones

Brother

Brother MFC-J3720 Manual de funcionamiento

Brother

Brother DCP-8070D Manual de usuario

Brother

Brother MFC 7345N - Laser Multifunction Center Guía del usuario

Brother

Brother MFC-J4310DW Manual de funcionamiento

Brother

Brother DCP-J4120DW Manual de operación y mantenimiento

Brother

Brother MFC-7360 Manual de usuario

Brother

Brother MFC-7360N Manual de usuario

Brother

Brother MFC-J615 Manual de usuario

Brother

Brother DCP-135C Manual de usuario

Brother

Brother MFC-1816 Manual de usuario

Brother

Brother HL-2260D Manual de funcionamiento

Manuales populares de Impresora todo en uno de otras marcas

Triumph Adler

Triumph Adler DC 2016 Manual

Epson

Epson WorkForce WF-2510 Guía del usuario

Epson

Epson Stylus Scan 2000 Manual de instalación y operación

Epson

Epson PictureMate Snap PM 240 Manual de instrucciones

Konica Minolta

Konica Minolta bizhub C35 Manual de usuario

Konica Minolta

Konica Minolta BIZHUB 558 Manual de usuario

Lexmark

Lexmark MX710 Series Manual

Lexmark

Lexmark XC8155 Manual de usuario

Lexmark

Lexmark X642E Manual de usuario

Sharp

Sharp MX-2310U Guía

Aficio

Aficio 200 Manual de usuario

Canon

Canon ImageCLASS 2300 Manual

Ricoh

Ricoh Pro C900 Manual de usuario

Lexmark

Lexmark X925 Manual de usuario

Epson

Epson Stylus CX8400 Series Manual de usuario

Oce

Oce VarioLink 5022 Manual de usuario

Copystar

Copystar CS 4551ci Manual de usuario

Konica Minolta

Konica Minolta Magicolor 4650EN Manual de usuario
