FACSIMILE EQUIPMENT

PARTS REFERENCE LIST

MODEL: FAX-8650P

(For Germany / United Kingdom / France /

Norway / Belgium / Netherlands /

Switzerland / Sweden)

©Copyright Brother 1998

No part of this publication may be reproduced in any form

or by any means without permission in writing from the

publisher.

Specifications are subject to change without prior notice.

NOTES FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:

(1) Code

(2) Q' ty

(3) Description

Note: No orders without Parts Code or Tool No. can be accepted.

[Example] (1) (2) (3)

REF.NO. CODE Q' TY DESCRIPTION REMARKS

2. Parts change will be informed by the technical information.

COUNTRIES

GERMANY ----- GER

UNITED KINGDOM ----- UK

FRANCE ----- FRA

NORWAY ----- NOR

BELGIUM ----- BEL

NETHERLANDS ----- NLD

SWITZERLAND ----- CHE

SWEDEN ----- SWE

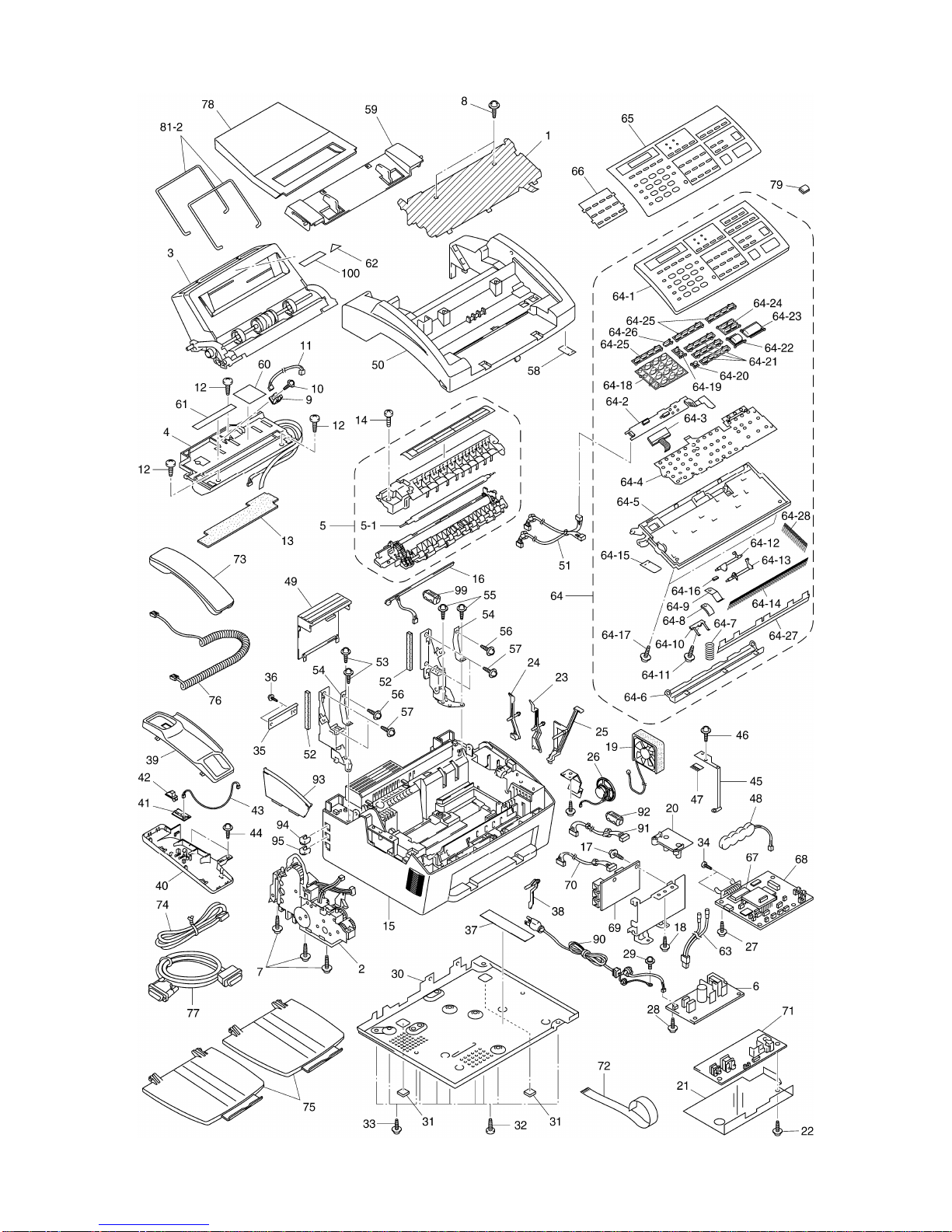

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1SCANNER FRAME ATTACHMENT

2 LH0698001 1GEAR DRIVE UNIT

(2-1) LH0695001 1PAPER FEED SOLENOID ASSY

3UL6300004 1 MULTI-PURPOSE SHEET FEEDER, WHITE(1138)

4UU7134001 1LASER UNIT

5UU7442001 1HEAT-FIXING UNIT, 240V

5-1 UL6880001 1FU LAMP, 240V

(5-2) UL6667001 1THERMISTOR ASSY

(5-3) UL6681001 1PINCH ROLLER ASSY

(5-4) UL6682001 4PINCH ROLLER SPRING

6UG4557001 1LOW-VOLTAGE POWER SUPPLY PCB ASSY, 230V(WITHOUT AC CORD)

7 087412016 3 TAPTITE, CUP B M4X20

8 087311016 2 TAPTITE, CUP B M3X10

9UG4220001 1TONER SENSOR PCB ASSY

10 087310815 1 TAPTITE, CUP B M3X8

11 UG4635001 1TONER SENSOR HARNESS

12 085411215 3 TAPTITE, BIND B M4X12

13 UU7043001 1SCANNER SPONGE

14 085411215 1 TAPTITE, BIND B M4X12

15 UU7044001 1MAIN COVER ASSY, WHITE(1138)

16 UL6887001 1EL BOARD

17 087320616 1 TAPTITE, CUP S M3X6

18 085411215 1 TAPTITE, BIND B M4X12

19 UU7051001 1FAN

20 UU7054001 1FAN SUPPORT

21 UU7055001 1INSULATION FILM

22 085411215 1 TAPTITE, BIND B M4X12

23 UU7056001 1REGISTRATION SENSOR ACTUATOR

24 UU7057001 1SHEET FEEDER COVER SENSOR ACTUATOR

25 UU7058001 1TOP COVER SENSOR ACTUATOR

26 UG4509001 1SPEAKER

27 085411215 1 TAPTITE, BIND B M4X12

28 087320616 1 TAPTITE, CUP S M3X6

29 UF6559001 1SCREW, PAN (WASHER) M4X8DB

30 UU7062001 1BOTTOM PLATE

31 UD4019001 2RUBBER FOOT

32 085411215 7 TAPTITE, BIND B M4X12

33 087320616 3 TAPTITE, CUP S M3X6

34 002300616 2 SCREW, PAN M3X6

35 UU7064001 1OPTION COVER

36 0A5300805 2SCREW, PAN (S/P WASHER) M3X8

37 UU7322001 1SPACER 30X145

38 UL6717001 1PAPER EJECTION SENSOR ACTUATOR

39 ----- NOT USED

40 ----- NOT USED

41 ----- NOT USED

42 ----- NOT USED

43 ----- NOT USED

44 087311016 2 TAPTITE, CUP B M3X10

45 UU7065001 1SCANNER GROUNDING PLATE

46 087310815 1 TAPTITE, CUP B M3X8

47 UF7676001 1ANTI-STATIC BRUSH

48 UG3732001 1BATTERY ASSY

49 UU7006001 1ROM COVER, WHITE(1138)

FAX8650P, Ver.G

REF.NO. CODE Q'TY DESCRIPTION REMARKS

50 UU7001001 1TOP COVER, WHITE(1138)

51 UG4502001 1CIS & PANEL-MAIN HARNESSES

52 UU7168001 2HARNESS SUPPORT SPONGE

53 087411215 2 TAPTITE, CUP B M4X12

54 UU7170001 2TOP COVER STOPPER 12

55 087411215 2 TAPTITE, CUP B M4X12

56 087320616 2 TAPTITE, CUP S M3X6

57 085411215 4 TAPTITE, BIND B M4X12

58 UF7187001 1SHIELD FILM

59 UU7090001 1DOCUMENT GUIDE BASE, WHITE(1138)

60 UL6740001 1LASER CAUTION LABEL

61 UL6741001 1TONER CAUTION LABEL

62 ----- NOT USED

63 UG4634001 1HEARTER HARNESS (BROWN AND BLUE WIRES)

64 UU1480001 1CONTROL PANEL ASSY, WHITE(1138)

64-1 UU7003001 1CONTROL PANEL, WHITE(1138)

64-2 UG4519001 1CONTROL PANEL PCB ASSY

64-3 UG4552000 1LCD

64-4 UG4553001 1FPC KEY

64-5 UU7004001 1PANEL REAR COVER

64-6 UU7101001 1DOCUMENT PRESSURE BAR

64-7 UU7147001 1DOCUMENT PRESSURE BAR SPRING

64-8 UU7521001 1SEPARATION RUBBER

64-9 UU7105001 1ADF SPRING PLATE

64-10 UU7106001 1SPRING PLATE, ADF FRONT

64-11 UF6116001 1TAPTITE, PAN B M3X6

64-12 UU7107001 1DOCUMENT FRONT SENSOR ACTUATOR

64-13 UU7108001 1DOCUMENT REAR SENSOR ACTUATOR

64-14 UU7505001 1ANTI-STATIC BRUSH 1

64-15 UF7187001 1SHIELD FILM

64-16 UU7285001 1ANTI-VIBRATION RUBBER

64-17 087310815 2 TAPTITE, CUP B M3X8

64-18 UF4393003 1KEY, TEL, WHITE(1138)

64-19 UU7099001 1KEY, VOLUME, WHITE(1138)

64-20 UF4576003 1KEY, SHIFT, WHITE(1138)

64-21 UF8176003 3KEY, ONE TOUCH, WHITE(1138)

64-22 UF8173002 1KEY, STOP, ORANGE(3172)

64-23 UF8172004 1KEY, START, BLUE(6238)

64-24 UU7100001 1KEY, COPY 2, WHITE(1138)

64-25 UF9118001 3KEY, FUNCTION 1, WHITE(1138)

64-26 UF5581005 1KEY, FUNCTION 2, WHITE(1138)

64-27 UU1477001 1CIS SHIELD FILM

64-28 UU7506001 1ANTI-STATIC BRUSH 2

65 UU7451001 1PANEL SHEET FOR GER

65 UU7452001 1PANEL SHEET FOR UK/CHE

65 UU7453001 1PANEL SHEET FOR FRA

65 UU7454001 1PANEL SHEET FOR NOR

65 UU7455001 1PANEL SHEET FOR BEL

65 UU7456001 1PANEL SHEET FOR NLD

65 UU7457001 1PANEL SHEET FOR SWE

66 UU7139001 1ADDRESS LABEL

67 UG4633001 1MASK ROM-PC/LAN

68 UG4639001 1MAIN PCB ASSY

69 UG4668003 1NCU PCB ASSY FOR GER

FAX8650P, Ver.G

REF.NO. CODE Q'TY DESCRIPTION REMARKS

69 UG4669004 1NCU PCB ASSY FOR UK

69 UG4672005 1NCU PCB ASSY FOR FRA

69 UG4677007 1NCU PCB ASSY FOR NOR

69 UG4670008 1NCU PCB ASSY FOR BEL

69 UG4671009 1NCU PCB ASSY FOR NLD

69 UG4668010 1NCU PCB ASSY FOR CHE

69 UG4669026 1NCU PCB ASSY FOR SWE

(69-1) UG6776000 1ARRESTER:RA102 (LOCATION:A1)

(69-2) UG6775000 1ARRESTER:RA311 (LOCATION:A2)

(69-3) UG6798000 2PHOTO COUPLER:TLP621 (LOCATION:PH2,PH4)

(69-4) UG3272000 1IC:THS-65 (LOCATION:T3)

(69-5) ----- NOT USED

70 UG4505001 1NCU HARNESS

71 UG4527001 1HIGH-VOLTAGE POWER SUPPLY PCB ASSY

72 UG4507001 1HV FLAT CABLE 12

73 ----- NOT USED

74 UG3625001 1TELEPHONE LINE CORD FOR GER

74 UG3626001 1TELEPHONE LINE CORD FOR UK

74 UG3627001 1TELEPHONE LINE CORD FOR FRA

74 UG3629001 1TELEPHONE LINE CORD FOR NOR

74 UG1575001 1TELEPHONE LINE CORD FOR BEL

74 UG3631001 1TELEPHONE LINE CORD FOR NLD

74 UG3469000 1TELEPHONE LINE CORD FOR CHE

74 UG3635001 1TELEPHONE LINE CORD FOR SWE

75 UU7114001 2PAPER EJECTION TRAY, WHITE(1138)

76 ----- NOT USED

77 ----- NOT USED

78 UU7117001 1DUST COVER

79 UU7110001 1KEY, COPY 1, WHITE(1138)

80 ----- NOT USED

(81) UU7497001 1OWNER'S MANUAL ASSY FOR GER

(INCLUDING OWNER'S MANUAL(REF.NO.81-1),

WARRANTY CARD AND TRAY EXTENSION ASSY(REF.NO.81-2))

(81) UU7238001 1OWNER'S MANUAL ASSY FOR UK

(INCLUDING OWNER'S MANUAL(REF.NO.81-1),

3 WARRANTY CARDS, CAUTION LABEL AND

TRAY EXTENSION ASSY(REF.NO.81-2))

(81) UU7239001 1OWNER'S MANUAL ASSY FOR FRA

(INCLUDING OWNER'S MANUAL(REF.NO.81-1),

2 WARRANTY CARDS AND TRAY EXTENSION (REF.NO.81-2))

(81) UU7240001 1OWNER'S MANUAL ASSY FOR NOR

(INCLUDING OWNER'S MANUAL(REF.NO.81-1),

2 WARRANTY CARDS AND TRAY EXTENSION (REF.NO.81-2))

(81)

UU7503001

OWNER'S MANUAL ASSY FOR BEL

(INCLUDING 2 OWNER'S MANUALS(REF.NO.81-1),

WARRANTY CARD AND TRAY EXTENSION ASSY(REF.NO.81-2))

(81)

UU7195001

OWNER'S MANUAL ASSY FOR NLD

(INCLUDING OWNER'S MANUAL(REF.NO.81-1),

2 WARRANTY CARDS AND TRAY EXTENSION (REF.NO.81-2))

(81) UU7242001 1OWNER'S MANUAL ASSY FOR CHE

(INCLUDING 2 OWNER'S MANUALS(REF.NO.81-1),

WARRANTY CARD AND TRAY EXTENSION ASSY(REF.NO.81-2))

FAX8650P, Ver.G

REF.NO. CODE Q'TY DESCRIPTION REMARKS

(81) UU7243001 1OWNER'S MANUAL ASSY FOR SWE

(INCLUDING OWNER'S MANUAL(REF.NO.81-1),

WARRANTY CARD AND TRAY EXTENSION ASSY(REF.NO.81-2))

(81-1) UU7498003 1OWNER'S MANUAL FOR GER

(81-1) UU7244004 1OWNER'S MANUAL FOR UK

(81-1) UU7244005 1OWNER'S MANUAL FOR FRA

(81-1) UU7244007 1OWNER'S MANUAL FOR NOR

(81-1) UU7498008 1OWNER'S MANUAL FOR BEL(DUTCH)

(81-1) UU7201008 1OWNER'S MANUAL FOR BEL/CHE (FRENCH)

(81-1) UU7198009 1OWNER'S MANUAL FOR NLD

(81-1) UU7244010 1OWNER'S MANUAL FOR CHE (GERMAN)

(81-1) UU7244026 1OWNER'S MANUAL FOR SWE

(81-2) UL7157001 2TRAY EXTENSION ASSY (WITH TUBE)

(82) ----- NOT USED

(83) UU7248001 1DISK UNIT FOR UK/FRA/BEL/NLD/CHE

(83) UU7248002 1DISK UNIT FOR NOR/SWE

(84) UE1888001 1CARTON, BROTHER

(85) UE1852001 1STYROFOAM ASSY

(86) UE2136001 1BAG, 700X1000H (FOR MACHINE)

(86) UE2136002 1BAG, 700X1000H, ONLY FOR FRA

(87) UE1855001 1CARTON (FOR MANUAL)

(88) UU0456001 1PROTECTION PAPER

(82) ----- NOT USED

90 UG4575001 1AC CORD ASSY FOR GER/FRA/NOR/BEL/NLD/SWE

90 UG4576001 1AC CORD ASSY FOR UK

90 UG4578001 1AC CORD ASSY FOR CHE

91 UG4636001 1NCU HARNESS B

92 UG4641001 1FERRITE CORE NF-80

93 UU7165001 1SIDE COVER, WHITE(1138)

94 UF7095000 1MJ COVER, H/S

95 UF5745000 1MJ COVER, EXT

(96) ----- NOT USED

(97) UF2978001 1ECOLOGY STICKER FOR CHE <Eliminated>

(98) LE0019001 1FERRITE CORE BAG ASSY

99 UG4640001 1FERRITE CORE NF-50

(100) ----- NOT USED

(101) ----- NOT USED

FAX8650P, Ver.G

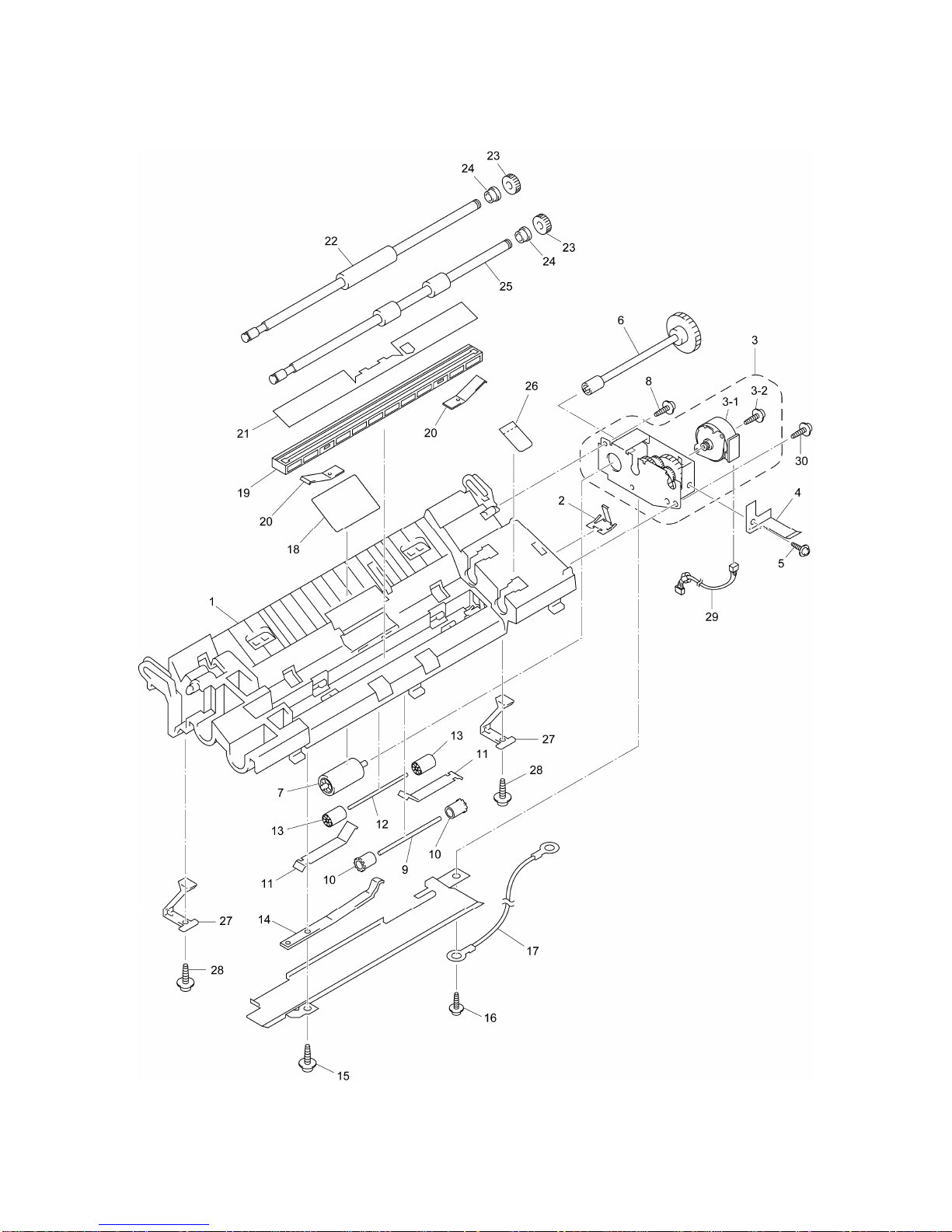

1. SCANNER FRAME ATTACHMENT

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1UU7002001 1SCANNER FRAME

2UU7012001 1CIS SIDE SPRING

3UU7434001 1SCANNER DRIVE UNIT

3-1 UU7490001 1SCANNER MOTOR

3-2 0A4300605 1SCREW, PAN (S/P WASHER) M3X6

4UU7029001 1SCANNER GROUNDING LEAF SPRING

5 087320616 1 TAPTITE, CUP S M3X6

6UU7030001 1SEPARATION ROLLER GEAR

7UU7031001 1SEPARATION ROLLER

8 087311016 1 TAPTITE, CUP B M3X10

9UF4369000 1ROLLER SHAFT

10 UL6244002 2PINCH ROLLER

11 UU7032001 2PRESSURE ROLLER LEAF SPRING

12 UF4369000 1ROLLER SHAFT

13 UF9009001 2PRESSURE ROLLER

14 UU7033001 1PINCH ROLLER LEAF SPRING

15 087310815 1 TAPTITE, CUP B M3X8

16 087320616 1 TAPTITE, CUP S M3X6

17 UG4595001 1GROUNDING WIRE

18 UU7364001 1ROLLER FILM

19 UG4630001 1CIS UNIT

20 UU7035001 2CIS LEAF SPRING

21 UU7036001 1CIS FILM

22 UU7037001 1DOCUMENT FEED ROLLER

23 UU7039001 2GEAR 27

24 UU7284001 2BUSHING 6

25 UU7040001 1DOCUMENT EJECTION ROLLER

26 UF7187001 1SHIELD FILM

27 UU7013001 2CONTROL PANEL LOCK (LEAF SPRING)

28 087310815 2 TAPTITE, CUP B M3X8

29 UG4501001 1SCANNER MOTOR HARNESS

30 087310815 1 TAPTITE, CUP B M3X8

FAX8650P, Ver.A

Otros manuales para FAX-8650P

Otros manuales de Impresora todo en uno de Brother

Brother

Brother Business Smart MFC-J4510dw Manual de operación y mantenimiento

Brother

Brother MFC-J4410DW Manual de lista de piezas

Brother

Brother DCP-7055 Manual de operación y mantenimiento

Brother

Brother MFC 795CW - Color Inkjet - All-in-One Manual de usuario

Brother

Brother Work Smart MFC-J875dw Manual

Brother

Brother MFC 495CW - Color Inkjet - All-in-One Manual de usuario

Brother

Brother MFC-265C Manual de usuario

Brother

Brother DCP-L5500DN Manual de operación y mantenimiento

Brother

Brother MFC-8220 Guía de seguridad

Brother

Brother MFC 685CW - Color Inkjet - All-in-One Manual de usuario

Brother

Brother MFC-9450CDN Manual de usuario

Brother

Brother MFC-8440 Manual de usuario

Brother

Brother MFC-6890CDW - Color Inkjet - All-in-One Manual de usuario

Brother

Brother Business Smart MFC-J4510dw Manual de usuario

Brother

Brother MFC-J4310DW Manual de usuario

Brother

Brother DCP-J562DW Manual de funcionamiento

Brother

Brother MFC-8880DN Manual de usuario

Brother

Brother MFC-8950DW Manual de usuario

Brother

Brother MFC-7420 Manual de usuario

Brother

Brother DCP-J125 Manual de operación y mantenimiento

Brother

Brother MFC-J825DW Manual de operación y mantenimiento

Brother

Brother MFC 845CW - Color Inkjet - All-in-One Hoja de especificaciones

Brother

Brother MFC-J425W Manual de usuario

Brother

Brother Airprint MFC-J460DW Manual de funcionamiento

Manuales populares de Impresora todo en uno de otras marcas

Triumph Adler

Triumph Adler DC 2016 Manual

Epson

Epson WorkForce WF-2510 Guía del usuario

Epson

Epson Stylus Scan 2000 Manual de instalación y operación

Epson

Epson PictureMate Snap PM 240 Manual de instrucciones

Konica Minolta

Konica Minolta bizhub C35 Manual de usuario

Konica Minolta

Konica Minolta BIZHUB 558 Manual de usuario

Lexmark

Lexmark MX710 Series Manual

Lexmark

Lexmark XC8155 Manual de usuario

Lexmark

Lexmark X642E Manual de usuario

Sharp

Sharp MX-2310U Guía

Aficio

Aficio 200 Manual de usuario

Canon

Canon ImageCLASS 2300 Manual

Ricoh

Ricoh Pro C900 Manual de usuario

Lexmark

Lexmark X925 Manual de usuario

Epson

Epson Stylus CX8400 Series Manual de usuario

Oce

Oce VarioLink 5022 Manual de usuario

Copystar

Copystar CS 4551ci Manual de usuario

Konica Minolta

Konica Minolta Magicolor 4650EN Manual de usuario
