Start Here DCP-8070D

Quick Setup Guide

UK/IRE Version 0

Before you can use the machine, read this Quick Setup Guide for the correct setup and installation.

To help you get your machine ready for use as soon as possible this guide leaves most of your machine's features

at their factory default settings. For detailed information on how to use all the features, change the default settings,

or to troubleshoot your machine please refer to the User’s Guide.

To view the Quick Setup Guide in other languages, please visit http://solutions.brother.com/.

Unpack the machine and check the components

WARNING

Plastic bags are used in the packaging of your machine. To avoid danger of suffocation, please keep

these bags away from babies and children.

IMPORTANT

DO NOT connect the interface cable yet.

Drum Unit Assembly

(including Starter Toner Cartridge)

CD-ROMs

(Windows®)

(Macintosh)

AC Power Cord Quick Setup Guide

Note

• The components included in the box may differ depending on your country.

• Save all packing materials and the box in case for any reason you must ship your machine.

• The interface cable is not a standard accessory. Buy the appropriate interface cable for the interface you

want to use (USB).

USB cable

• Please make sure you use a USB 2.0 cable (Type A/B) that is no longer than 2 metres.

• DO NOT connect the interface cable at this time. Connecting the interface cable is done during MFL-Pro

installation process.

• When you use a USB cable, make sure you connect it to the USB port of your computer and not to a USB

port on a keyboard or non-powered USB hub.

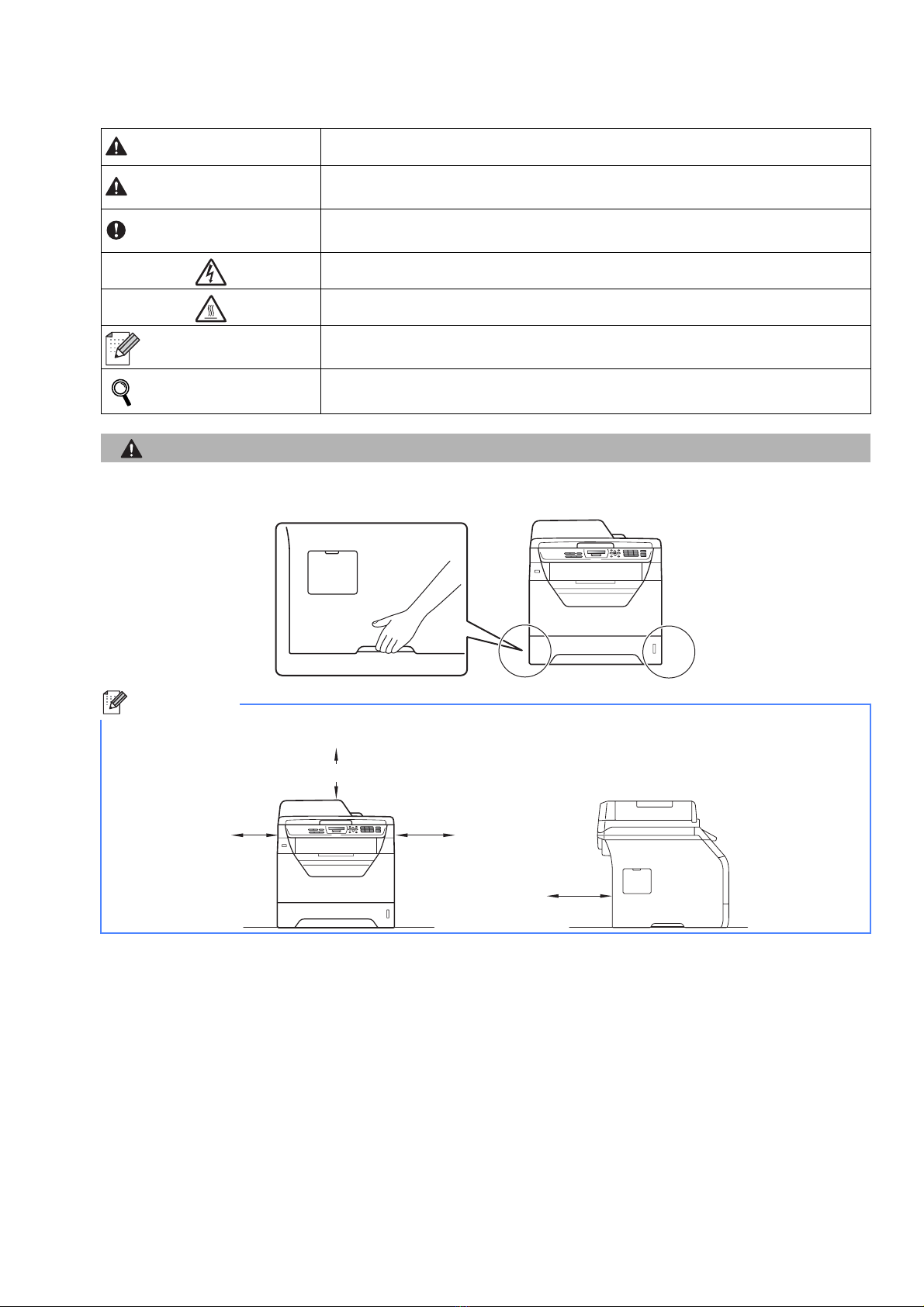

Symbols used in this guide

CAUTION

When you move the machine, grasp the side hand holds that are located at the bottom of the machine. DO

NOT carry the machine by holding the scanner unit.

WARNINGs tell you what to do to prevent possible personal injury.

CAUTIONs specify procedures you must follow or avoid to prevent possible

minor injuries.

IMPORTANT describes procedures you must follow or avoid to prevent

possible machine problems or machine damage, or damage to other objects.

Electrical Hazard icons alert you to a possible electrical shock.

Hot Surface icons warn you not to touch machine parts that are hot.

Note Notes tell you how you should respond to a situation that may arise or give tips

about how the current operation works with other features.

User’s Guide

Software User’s Guide

Indicates reference to the User’s Guide or Software User’s Guide.

Note

Keep a minimum gap around the machine as shown in the illustration.

WARNING

CAUTION

IMPORTANT

130 mm

500 mm

200 mm

300 mm

Install the drum unit and

toner cartridge assembly

aRemove the protective tape and film covering

the scanner glass.

bPress the front cover release button and open

the front cover a.

cUnpack the drum unit and toner cartridge

assembly.

dGently shake it from side to side several times

to distribute the toner evenly inside the

assembly.

ePut the drum unit assembly into the machine

until it clicks into place.

fClose the front cover of the machine.

IMPORTANT

DO NOT connect the interface cable yet.

Load paper in the paper

tray

aPull the paper tray completely out of the

machine.

bWhile pressing the blue paper-guide release

lever a, slide the paper guides to fit the paper

size you are loading in the tray. Make sure that

the guides are firmly in the slots.

cFan the stack of paper well to avoid paper jams

and misfeeds.

dPut paper in the tray, and make sure that the

paper is below the maximum paper mark a.

The side to be printed on must be face down.

ePut the paper tray firmly back in the machine.

Make sure that it is completely inserted into the

machine.

fUnfold the support flap ato prevent paper

from sliding off the face-down output tray.

IMPORTANT

Make sure the paper guides touch the sides of

the paper so it will feed correctly.

Connect the power cord

aMake sure that the machine power switch is off.

Connect the AC power cord to the machine.

bPlug the AC power cord into an AC outlet. Turn

the power switch on.

Choose your language

aAfter turning the power switch on, the LCD

shows:

Select Language

Press OK Key

Press OK.

bPress or to choose your language and

press OK.

Select ab or OK

English

cThe LCD prompts you to confirm your

selection.

English?

1.Yes 2.No

If the LCD shows the correct language, press

—OR—

Press 2to go back to step ato choose the

language again.

IMPORTANT

DO NOT connect the interface cable yet.

Note

If you have set the wrong language, you can

change the language from the control panel menu

of the machine. (Menu, 1, 0)

Set the LCD contrast

(if needed)

If you are having difficulty reading the LCD, try

changing the contrast setting.

aPress Menu.

bPress 1.

cPress 5.

dPress to increase the contrast.

—OR—

Press to decrease the contrast.

Press OK.

ePress Stop/Exit.

Set the date and time

This setting allows the machine to name files created

when using the Scan to USB feature.

aPress Menu.

bPress 5.

cPress 1.

dEnter the last two digits of the year on the dial

pad, and then press OK.

Date&Time

Year:2009

(e.g. Enter 0, 9for 2009.)

eEnter the two digits for the month on the dial

pad, and then press OK.

Date&Time

Month:03

(e.g. Enter 0, 3for March.)

fEnter the two digits for the day on the dial pad,

and then press OK.

Date&Time

Day:25

(e.g. Enter 2, 5.)

gEnter the time in 24-hour format on the dial

pad, and then press OK.

Date&Time

Time:15:25

(e.g. Enter 15, 25for 3:25 P.M.)

hPress Stop/Exit.

Automatic Daylight

Savings Time

You can set the machine to change automatically for

daylight savings time. It will reset itself forward one

hour in the Spring and backward one hour in the

Autumn.

aPress Menu.

bPress 5.

cPress 2.

dPress or to choose On (or Off).

Press OK.

ePress Stop/Exit.

Windows®

USB

Macintosh

Choose your connection type

For USB Interface Users

Windows

, go to page 8

Macintosh, go to page 12

Windows®

USB

For USB Interface Users

(Windows

2000 Professional/XP/XP Professional x64 Edition/

Windows Vista

)

Before you install

aMake sure that your computer is ON and you

are logged on with Administrator rights.

bTurn off and unplug the machine from the AC

outlet and disconnect it from your computer, if

you already connected an interface cable.

Install MFL-Pro Suite

aPut the supplied CD-ROM into your CD-ROM

drive. If the model name screen appears,

choose your machine. If the language screen

appears, choose your language.

bThe CD-ROM top menu will appear. Click

Initial Installation.

cClick Install MFL-Pro Suite.

IMPORTANT

• DO NOT connect the USB cable yet.

• If there are any programs running, close

them.

• Make sure a USB Flash memory drive is not

inserted into the machine.

• The screen may differ depending on the

operating system.

• The supplied CD-ROM includes ScanSoft™

PaperPort™ 11SE. This software supports

Windows®2000 (SP4 or greater), XP (SP2 or

greater), XP Professional x64 Edition and

Windows Vista®. Update to the latest

Windows®Service Pack before installing

MFL-Pro Suite.

Note

If the Brother screen does not appear

automatically, go to My Computer (Computer),

double-click the CD-ROM icon, and then

double-click Start.exe.

Windows®

USB

Windows®

USB

Macintosh

dWhen the ScanSoft™ PaperPort™ 11SE

License Agreement window appears, click

Yes if you agree to the Software

License Agreement.

eThe installation of ScanSoft™ PaperPort™

11SE will automatically start and is followed by

the installation of MFL-Pro Suite.

fWhen the Brother MFL-Pro Suite Software

License Agreement window appears, click

Yes if you agree to the Software

License Agreement.

gChoose Standard, and then click Next. The

installation continues.

hIf you do not want to monitor the machine

status and error notifications from your

computer, uncheck Enable Status Monitor

and then click Next.

iWhen this screen appears, go to the next step.

Note

• If the installation does not continue

automatically, open the top menu again by

ejecting and then reinserting the CD-ROM or

double-click the Start.exe program from the

root folder, and continue from step cto install

MFL-Pro Suite.

• For Windows Vista®, when the

User Account Control screen appears, click

Allow.

Note

If you want to install the PS driver (Brother’s

BR-Script Driver), choose Custom and then

follow the on-screen instructions. When the

Select Features screen appears, check

PS Printer Driver, and then continue following

the on-screen instructions.

Windows®

USB

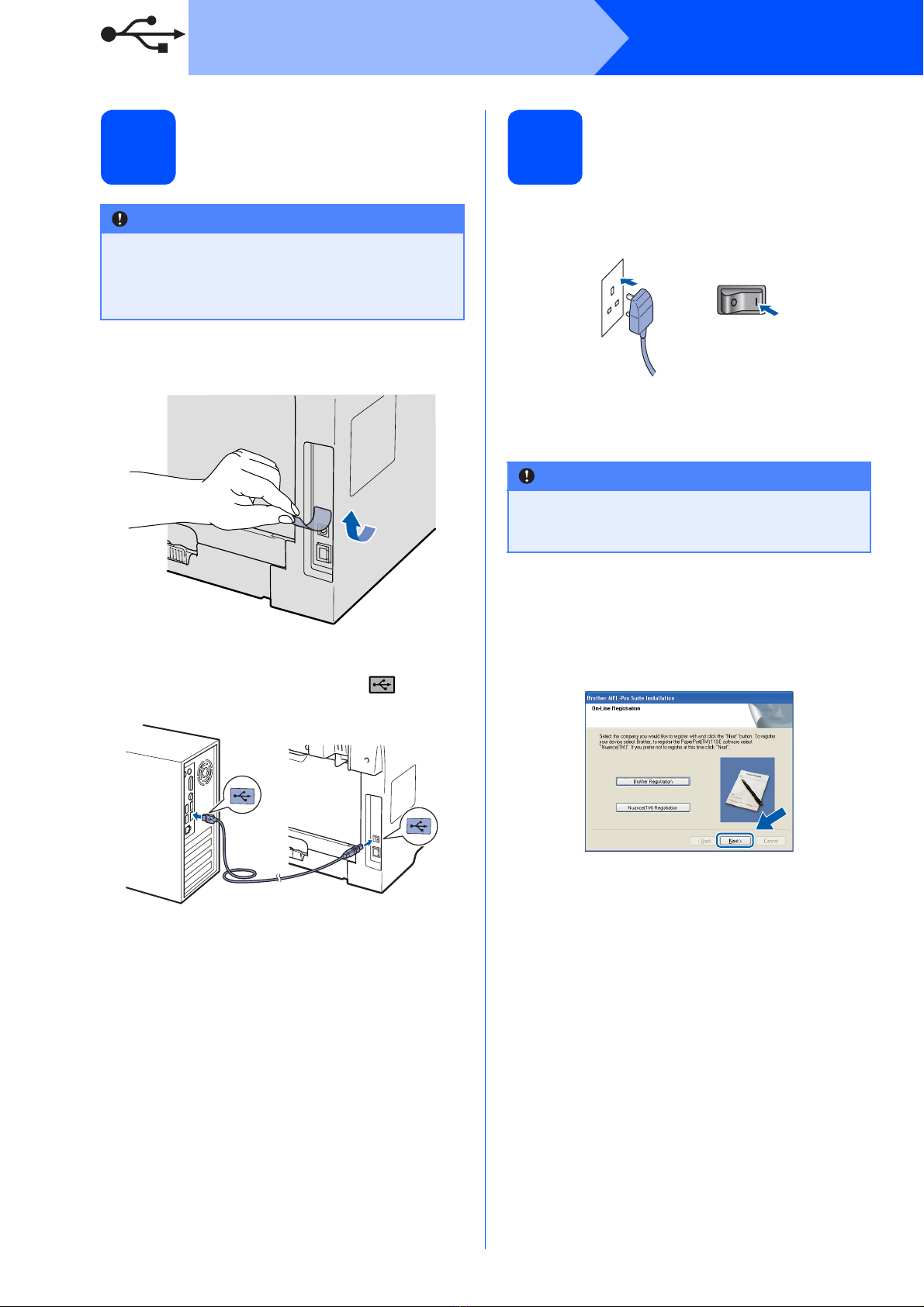

Connect the USB cable

aRemove the label covering the USB interface

connector.

bConnect the USB cable to the USB connector

on the machine marked with the symbol.

Then connect the cable to your computer.

Connect the power cord

aPlug the AC power cord into an AC outlet. Turn

the power switch on.

The installation of the Brother drivers will

automatically start.

The screens appear one after another.

bWhen the On-Line Registration screen is

displayed, make your selection and follow the

on-screen instructions. Once you have

completed the registration process, close your

web browser to return to this window.

Then click Next.

IMPORTANT

• DO NOT connect the machine to a USB port

on a keyboard or a non-powered USB hub.

• Connect the machine directly to your

computer.

IMPORTANT

DO NOT cancel any of the screens during the

installation. It may take a few seconds for all

screens to appear.

Otros manuales para DCP-8070D

Tabla de contenidos

Otros manuales de Impresora todo en uno de Brother

Brother

Brother MFC-7860DW Manual de usuario

Brother

Brother MFC 795CW - Color Inkjet - All-in-One Manual de usuario

Brother

Brother MFC-L5755DW Manual de operación y mantenimiento

Brother

Brother DCP120C - Flatbed Multifunction Photo Capture... Manual de usuario

Brother

Brother MFC-265C Manual de usuario

Brother

Brother MFC-6890CDW - Color Inkjet - All-in-One Manual de usuario

Brother

Brother MFC-J4310DW Instrucciones de montaje

Brother

Brother FAX-2840 Manual de usuario

Brother

Brother MFC-J4310DW Manual de usuario

Brother

Brother MFC 3360C - Color Inkjet - All-in-One Manual de usuario

Brother

Brother MFC-9560CDW Manual de operación y mantenimiento

Brother

Brother MFC-J4610DW Manual de funcionamiento

Brother

Brother 1920CN - Color Inkjet - Fax Manual de usuario

Brother

Brother MFC 240C - Color Inkjet - All-in-One Manual de usuario

Brother

Brother MFC-J4310DW Manual de operación y mantenimiento

Brother

Brother DCP-8070D Manual de usuario

Brother

Brother MFC-1816 Manual de usuario

Brother

Brother HL-2270DW Manual de usuario

Brother

Brother MFC-J4310DW Manual de usuario

Brother

Brother MFC-8670DN Manual de usuario

Brother

Brother MFC-5460CN Manual de usuario

Brother

Brother DCP-117C Manual de usuario

Brother

Brother MFC-J280W Manual de usuario

Brother

Brother MFC 495CW - Color Inkjet - All-in-One Manual de usuario

Manuales populares de Impresora todo en uno de otras marcas

Triumph Adler

Triumph Adler DC 2016 Manual

Epson

Epson WorkForce WF-2510 Guía del usuario

Epson

Epson Stylus Scan 2000 Manual de instalación y operación

Epson

Epson PictureMate Snap PM 240 Manual de instrucciones

Konica Minolta

Konica Minolta bizhub C35 Manual de usuario

Konica Minolta

Konica Minolta BIZHUB 558 Manual de usuario

Lexmark

Lexmark MX710 Series Manual

Lexmark

Lexmark XC8155 Manual de usuario

Lexmark

Lexmark X642E Manual de usuario

Sharp

Sharp MX-2310U Guía

Aficio

Aficio 200 Manual de usuario

Canon

Canon ImageCLASS 2300 Manual

Ricoh

Ricoh Pro C900 Manual de usuario

Lexmark

Lexmark X925 Manual de usuario

Epson

Epson Stylus CX8400 Series Manual de usuario

Oce

Oce VarioLink 5022 Manual de usuario

Copystar

Copystar CS 4551ci Manual de usuario

Konica Minolta

Konica Minolta Magicolor 4650EN Manual de usuario
