TIERTM LIGHT OWNER’S MANUAL

ASSEMBLY AND OPERATING INSTRUCTIONS

ENDURA

™

EXTRA-LONG RUNNING SOLAR POWERED ACCENT LIGHTS

822-0439-6_Tier light Resize 2 4/19/02 5:28 PM Page 1

HOW YOUR TIERTM

SOLAR-POWERED LIGHTS WORK

BEFORE FIRST USE – Pull out to remove the clear

plastic strip with orange sticker in the light

fixture to charge battery.

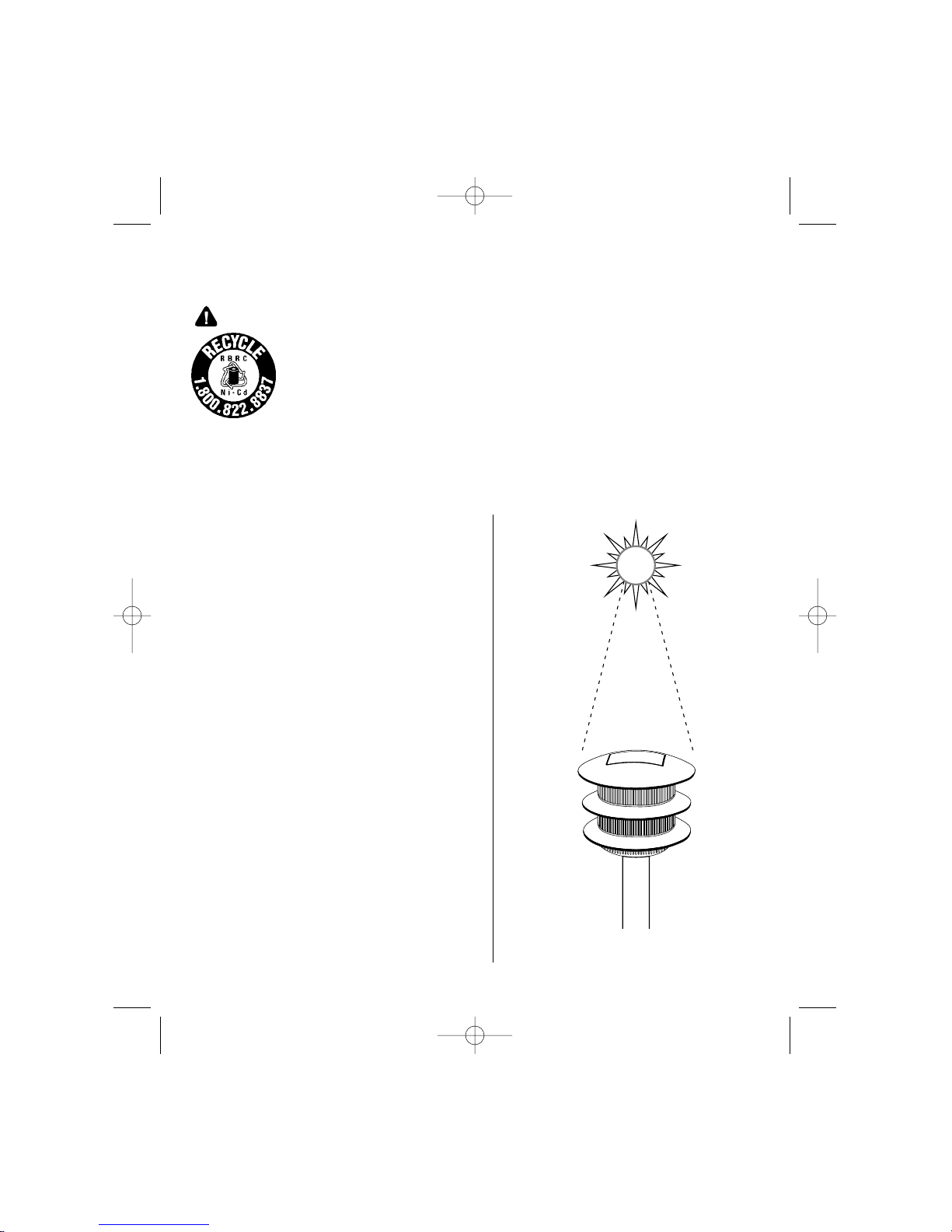

Install your Tier solar light in direct sunlight and

charge for 10-12 FULL, SUNNY DAYS. The light will

turn on automatically at night. Allow at least 10-12

cycles (i.e., 10-12 days and nights of charging and

discharging) for the battery to charge to its full

capacity.

The rechargeable Ni-Cd battery must be allowed

to fully charge to operate properly. Partially

charging the battery on a consistent basis will

drastically reduce the life of the battery.

During the day, the solar panel converts sunlight

into electricity and recharges the battery. At night,

the light turns on automatically using the electricity

stored during that day.

The number of hours the light will stay on is

dependent on your geographical location, weather

conditions and seasonal lighting availability.

Solar lights do not receive as much direct sunlight

in winter months. Therefore, the number of hours

the light will stay on will be reduced during winter.

IMPORTANT: The EPA Certified RBRC®Battery Recycling Seal on the nickel-cadmium

(Ni-Cd) battery contained in our product indicates The Brinkmann Corporation is

voluntarily participating in an industry program to collect and recycle these batteries

at the end of their useful life, when taken out of service in the United States or

Canada. The RBRC®program provides a convenient alternative to placing used Ni-Cd batteries into

the trash or the municipal waste stream, which may be illegal in your area. Please call

1-800-8-BATTERY™ for information on Ni-Cd battery recycling and disposal bans/restrictions in your

area. The Brinkmann Corporation’s involvement in this program is part of our commitment to

preserving our environment and conserving our natural resources.

READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING YOUR SOLAR LIGHT.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

822-0439-6_Tier light Resize 2 4/19/02 5:28 PM Page 2

ASSEMBLY INSTRUCTIONS

Inspect contents of the box to ensure all parts are included and undamaged.

Select a location with full, direct

sunlight. Shady locations will not

allow the battery to charge fully and

will reduce the hours of nighttime light.

NOTE: The rechargeable Ni-Cd battery

must be allowed to fully charge

to operate properly. Partially

charging the battery on a

consistent basis will drastically

reduce the life of the battery.

The selected location should not be near

a nighttime light source such as a porch

light or street light, as these might keep

the solar lights from automatically

turning on. The solar lights should not

be placed closer than 5 feet from one

another. This could cause the solar lights

to flicker from the adjacent light source.

PARTS LIST:

Top Housing

Lens

Tier Rings

Ground Stake

Ground Stake Tip

822-0439-6_Tier light Resize 2 4/19/02 5:28 PM Page 3

Step 1

Working from the bottom of the lens,

place tier ring between the two ridges

near the top of the lens.

Step 2

Place second tier ring between the

two ridges near the bottom of the

lens. Attach the lens by aligning the

slots with the grooves in top housing.

Turn clockwise to lock in place and

set aside until Step 4.

Step 3

Attach the ground stake to the

ground stake tip. Push approximately

3" of the ground stake into the

ground. If the ground is too hard,

soak area with water to soften.

Step 4

Insert light head into ground stake.

The solar panel should be positioned

away from other nighttime light

sources.

Step 5

Charge in direct sunlight for 10-12

FULL, SUNNY DAYS. The light will

turn on automatically at night. Allow

at least 10-12 cycles (i.e., 10-12 days

and nights of charging and

discharging) for the battery to

charge to its full capacity.

OPERATING INSTRUCTIONS

READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING YOUR SOLAR LIGHT.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

822-0439-6_Tier light Resize 2 4/19/02 5:28 PM Page 4

Changing Battery

It is important that the solar panel

is kept free of dirt and debris. A

dirty solar panel will not allow the

battery to fully charge. This will

shorten the life of the battery and

cause the light to malfunction.

Clean regularly with a dampened

cloth or paper towel.

Cleaning

Step 1

Remove lens from top housing by

turning lens counter-clockwise.

Step 2

With top housing upside down

(solar panel facing down), push tab

on battery compartment lid and

remove lid.

Step 3

Remove battery. Replace with new

Ni-Cd rechargeable battery.

Step 4

Replace battery compartment lid.

Step 5

Attach the lens by aligning the slots

with the grooves in top housing.

Turn clockwise to lock in place.

NOTE:These lights utilize L.E.D. (Light

Emitting Diode) technology.

There are no bulbs to replace.

IMPORTANT: The EPA Certified

RBRC®Battery Recycling Seal on the

nickel-cadmium (Ni-Cd) battery

contained in our product indicates

The Brinkmann Corporation is

voluntarily participating in an industry program to

collect and recycle these batteries at the end of their

useful life, when taken out of service in the United

States or Canada. The RBRC®program provides a

convenient alternative to placing used Ni-Cd

batteries into the trash or the municipal waste

stream, which may be illegal in your area. Please

call 1-800-8-BATTERY™ for information on Ni-Cd

battery recycling and disposal bans/restrictions in

your area. The Brinkmann Corporation’s involvement

in this program is part of our commitment to

preserving our environment and conserving our

natural resources.

Battery Compartment Lid

Top Housing

Lens

Battery

822-0439-6_Tier light Resize 2 4/19/02 5:28 PM Page 5

If your solar light does not turn on at night, it may be

caused by one the following conditions:

• Battery is not fully charged or needs replacement:

a.Make sure your light is located in an area where

the solar panel gets the maximum amount of

full, direct sunlight every day. Allow sunlight to

recharge the battery for 10 to 12 FULL, SUNNY

DAYS.

b.If the weather has been cloudy or overcast

during the day, the battery will not be recharged

for operation at night. The solar light must have

direct sunlight every day to fully charge the

battery. If the solar light does not receive enough

sunlight one day, it will recharge the next sunny

day and resume normal operation.

Troubleshooting

Information

Solar lights can be left outside year round, even in

cold weather. However, if you wish to store your light

indoors for more than two or three days, follow

these steps to prevent damage to rechargeable

batteries:

• Store at room temperature in a dry location.

• Store solar light where it can receive some

sunlight or room light each day. The batteries

needs light to maintain a charge during storage.

• During prolonged storage, units must be fully

discharged and charged once every month or

remove batteries and replace with new Ni-Cd

rechargeable battery when ready for use. Check

and replace batteries periodically throughout the

year.

• Do not store solar lights in a box, or a dark room

without a source of light on the solar panel. This

will damage the batteries and prevent their ability

to hold a charge.

• For best performance, do not store for prolonged

periods.

Storage Tips

822-0439-6_Tier light Resize 2 4/19/02 5:28 PM Page 6

• Clean snow and debris off the solar panel to allow

battery to recharge.

• Check and replace battery periodically throughout

the year, especially after winter months.

Wintertime

Tips

c.Check and replace the battery periodically

throughout the year, especially after winter

months. Replacement batteries may be

purchased from The Brinkmann Corporation

Customer Service Department by calling

1-800-468-5252.

• Other light sources: If your solar lights are located

too close to a street light, porch light or another

solar light, it may not turn on automatically at night.

The solar panel is reacting to the other light source.

Eliminate the other light source or relocate your

solar lights.

• Dirty solar panel: A dirty solar panel will not allow

the battery to fully charge. This will shorten the life

of the battery and cause the light to malfunction.

Clean regularly with a dampened cloth or paper

towel.

After correcting the problem, check the light operation

immediately after dark or in a dark room. If the light

will only operate for a short time, the battery needs

recharging.

Troubleshooting

Information (Cont.)

822-0439-6_Tier light Resize 2 4/19/02 5:28 PM Page 7

For 1-year from date of purchase, The Brinkmann Corporation warrants the Tier solar light against defects due

to workmanship or materials to the original purchaser. The Brinkmann Corporation’s obligations under this

warranty are limited to the following guidelines:

• This warranty does not extend to the L.E.D. or battery.

• This warranty does not cover solar lights that have been altered or damaged due to: normal wear, abuse,

improper maintenance, improper use, disassembly of parts and/or attempted repair by anyone other than

an authorized employee of The Brinkmann Corporation.

• This warranty does not cover surface scratches or weathering as this is considered normal wear.

• Warranty service is limited to repair or replacement of solar lights which prove defective under normal

use and which upon examination shall indicate to Brinkmann’s satisfaction, they are defective. If

Brinkmann confirms the defect and approves the claim, Brinkmann will elect to repair or replace the solar

light as covered by the terms of this warranty.

• This warranty extends to the original purchaser only and is not transferable or assignable to subsequent

purchasers.

The Brinkmann Corporation requires reasonable proof of purchase. Therefore, we strongly recommend that

you retain your sales receipt or invoice. To obtain repair or replacement of your Tier solar light under the

terms of this warranty, please call Customer Service Department at 1-800-527-0717 for a Return

Authorization Number and further instructions. A receipt or proof of purchase will be required. Solar lights

returned to Brinkmann must include your name, address and telephone number. Please make sure the light is

properly packed, postage prepaid, and insured. A Return Authorization Number must be clearly marked on

the outside of the box. Brinkmann cannot be responsible for any solar lights forwarded to us without a

Return Authorization Number.

EXCEPT AS ABOVE STATED, THE BRINKMANN CORPORATION MAKES NO OTHER EXPRESS WARRANTY. THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN

DURATION TO 1-YEAR FROM THE DATE OF PURCHASE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW

LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

ANY LIABILITY FOR INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE FAILURE OF

THE TIER SOLAR LIGHT TO COMPLY WITH THIS WARRANTY OR ANY IMPLIED WARRANTY IS EXCLUDED.

CUSTOMER ACKNOWLEDGES THAT THE PURCHASE PRICE CHARGED IS BASED UPON THE LIMITATIONS

CONTAINED IN THE WARRANTY SET OUT ABOVE. SOME STATES DO NOT ALLOW THE EXCLUSION OR

LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION

MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO

HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

1-YEAR LIMITED WARRANTY

140-0439-0

4/02 Owner’s Manual for Model:

822-0439-6

Dallas, Texas 75244 U.S.A

www.brinkmanncorp.com

822-0439-6_Tier light Resize 2 4/19/02 5:28 PM Page 8

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Iluminación de paisajes de Brinkmann

Brinkmann

Brinkmann Solar Max 822-B504-2 Manual de usuario

Brinkmann

Brinkmann Metal Manual de usuario

Brinkmann

Brinkmann Emperor Solar Garden Accent Lights Manual de usuario

Brinkmann

Brinkmann Modern Tier Light Manual de usuario

Brinkmann

Brinkmann Solar Gallery 822-1506-B Manual de usuario

Brinkmann

Brinkmann Solar Gallery Manual de usuario

Brinkmann

Brinkmann 822-0429-0 Manual de usuario

Brinkmann

Brinkmann Solar Max Solar Powered L.E.D. Garden Accent... Manual de usuario

Brinkmann

Brinkmann 822-0408-0 Manual de usuario

Brinkmann

Brinkmann Solar Max 822-2507-8 Manual de usuario

Brinkmann

Brinkmann ENDURA Manual de usuario

Brinkmann

Brinkmann Endura 822-2502-2 Manual de usuario

Brinkmann

Brinkmann Solar Gallery Manual de usuario

Brinkmann

Brinkmann ENDURA Manual de usuario

Brinkmann

Brinkmann HANGING MISSION Manual de usuario

Brinkmann

Brinkmann Solar Max Solar Powered L.E.D. Garden Accent... Manual de usuario

Brinkmann

Brinkmann Solar Gallery Manual de usuario

Brinkmann

Brinkmann Endure Manual de usuario

Manuales populares de Iluminación de paisajes de otras marcas

Intex

Intex SL1006 Manual de usuario

LED Group

LED Group ROBUS R2IN13W Manual de usuario

Patriot Lighting

Patriot Lighting 343-1484 Manual de usuario

Hess

Hess SERA G: SERA S Manual de usuario

LIGMAN

LIGMAN JET 44 Manual de usuario

LIGMAN

LIGMAN MALTA 1 Manual de usuario

Cooper Lighting

Cooper Lighting MCGRAW-EDISON WBG Manual de usuario

Cooper Lighting

Cooper Lighting Invue 42 - 175W Manual de usuario

Saxby Lighting

Saxby Lighting Islay 68784 Manual

LIGMAN

LIGMAN EU-10016-3 Manual de usuario

Cooper Lighting

Cooper Lighting McGraw-Edison ZD Credenza Manual de usuario

LIGMAN

LIGMAN KI-60475 Manual de usuario

Cooper Lighting

Cooper Lighting Generation CLB25MWW5C373 Manual de usuario

Malibu Boats

Malibu Boats CL905K Manual de usuario

LIGMAN

LIGMAN NYB-30161 Manual de usuario

LIGMAN

LIGMAN SI-80021 Manual de usuario

Volt

Volt 2-in-1 Tiki-Brass Torch Light Manual de usuario

Malibu Boats

Malibu Boats CM110P Manual de usuario
