BRINKMANN PUMPS KC21 Series Manual de usuario

BE7105 Operating Instructions

(Translation of original)

©Brinkmann Pumpen Edition 10/2021 Page 1 of 10

BRINKMANN-Miniature Centrifugal Pumps Series

KC21…KC45

Brinkmann Pumpen

K. H. Brinkmann GmbH & Co. KG

Friedrichstraße 2 D-58791 Werdohl

Tel.: +49-2392 / 5006-0 www.brinkmannpumps.de

Fax.: +49-2392 / 5006-180 sales@brinkmannpumps.de

Subject to change without prior notice. Order - No.: BE7105 ENGLISH

BE7105 Edition 10/2021 Page 2 of 10

Brinkmann-Miniature Centrifugal Pumps Series KC21 ... KC45

Contents

1Indication to the manual ....................................2

2Description of product ....................................2-3

3Safety instructions.............................................3

4Transport and storage.......................................4

5Installation and Connection............................4-5

6Start up / Shut down..........................................5

7Operation...........................................................5

8Servicing and Maintenance...............................5

9Trouble shooter’s guide..................................... 6

10 Spare part ......................................................... 7

11 Repair ............................................................8-9

12 Disposal ............................................................ 9

13 EC declaration of conformity........................... 10

1 Indication to the manual

This operating manual gives basic instructions

which are to be observed during installation, opera-

tion and maintenance of the pump. It is therefore

imperative that this manual be read by the respon-

sible personnel and operator prior to assembly and

commissioning. It is always to be kept available at

the installation site.

1.1 Identification of safety instructions in the

operating manual

Safety instructions given in this manual non-

compliance with which would affect safety are

identified by the following symbol

Safety sign according with

ISO 3864 –B.3.1

or where electrical safety is involved, with:

Safety sign according with

ISO 3864 –B.3.6

Where non-compliance with the safety instructions

may cause a risk to the machine and it’s function

the word

ATTENTION

is inserted.

2 Description of product

2.1 General description of the pump

The miniature centrifugal pump operate according

to the bypass duct principle, with self-priming

function following the initial priming.

Pump and motor form a complete unit. The impeller

is fixed on the driving shaft extension. The shaft

sealing is effected with two rotary shaft seals in

standard versions and a rotary mechanical seal and

a shaft seal in special versions -UO12. The sealing

for the case is effected with two gaskets in KC21 to

KC31 and with a gasket and O-ring in KC35 to

KC45.

The pump is to be protected against coarse parti-

cles.

The KC pumps are mounted next to or on top of the

tank. The pumps are foot mounted and must be

screwed down in order to ensure a secure stance.

2.2 Intended use

The pumps KC are suitable for pumping thin-bodied

fluids within the limiting application in accordance

with table 1.

Limit of Application (Table 1)

ATTENTION

The pumps are to be operated within their design

limits. Applications outside of these limits are not

approved. The manufacturer is not responsible for

any damages resulting from use of the pumps in

such applications.

Type

KC21...KC45

Mediums

Industry water, coolants, fuel oil

Kinetic viscosi-

ty of the medi-

...12 mm2/s

Temperature of

medium

0 ... 80 °C

Suction height

2 m without check valve

6 m with check valve

Particle-size in

the medium

1 mm

min. delivery

volume

1% of Q max.

Dry running

The pumps are not suitable for dry

running.

Switching-on

frequency per

hour

Motors less 3 kW max. 200

Ambient tem-

perature

40 °C

Set-up altitude

1000 m

BE7105 Edition 10/2021 Page 3 of 10

2.3 Technical data

3 Safety instructions

When operating the pump, the safety instructions

contained in this manual, the relevant national

accident prevention regulations and any other

service and safety instructions issued by the plant

operator are to be observed.

3.1 Hazards in the event of non-compliance

with the safety instructions

Non-compliance with the safety instructions may

produce a risk to the personnel as well as to the

environment and the machine and results in a loss

of any right to claim damages.

For example, non-compliance may involve the

following hazards:

•Failure of important functions of the ma-

chines/plant

•Failure of specified procedures of maintenance

and repair

•Exposure of people to electrical, mechanical and

chemical hazards

•Endangering the environment due to hazardous

substances being released

3.2 Unauthorized modes of operation

•Pump may not be used in potentially explosive

environments!

•Pump and discharge piping are not designed to

hold any weight and may not be used as a step

ladder.

3.3 Remaining Risk

Risk of Injury!

Risk of squeezing or crushing body parts when

installing or removing the pump exists. Proper and

secured lifting tools must be used.

Risk of burns!

The pump must have cooled down sufficiently prior

to commencing any repair, maintenance or installa-

tion.

3.4 Qualification and training of operating

personnel

The personnel responsible for operation, mainte-

nance, inspection and assembly must be adequate-

ly qualified. Scope of responsibility and supervision

of the personnel must be exactly defined by the

plant operator. If the staff does not have the neces-

sary knowledge, they must be trained and instruct-

ed, which may be performed by the machine manu-

facturer or supplier on behalf of the plant operator.

Moreover, the plant operator is to make sure that

the contents of the operating manual are fully

understood by the personnel.

3.5 Safety instructions relevant for operation

•If hot or cold machine components involve

hazards, they must be guarded against acci-

dental contact.

•Guards for moving parts (e.g. coupling) must not

be removed from the machine while in opera-

tion.

•Any leakage of hazardous (e.g. explosive, toxic,

hot) fluids (e.g. from the shaft seal) must be

drained away so as to prevent any risk to per-

sons or the environment. Statutory regulations

are to be complied with.

•Hazards resulting from electricity are to be

prevented (see for example, the VDE Specifica-

tions and the bye-laws of the local power supply

utilities).

•The pumps are only secured safely if properly

attached to the floor or top of the tank.

3.6 Safety instructions relevant for mainte-

nance, inspection and assembly work

Any work on the machine shall only be performed

when it is at a standstill, it being imperative that the

procedure for shutting down the machine described

in this manual be followed.

Pumps and pump units which convey hazardous

media must be decontaminated.

On completion of work all safety and protective

facilities must be re-installed and made operative

again.

Prior to restarting the machine, the instructions

listed under “Start up” are to be observed.

Type

Max. del.

pressure

bar / spec.

weight 1

Max. del.

volume

l/min

Height1)

H mm

Pipe con-

nection1)

Weight

Power

Noise

level2)

dBA / 50 Hz

KC21

2.1

269

G ½

6.0

0.22

KC31

2.9

295

G ½

6.5

0.32

KC35

3.5

269

G ½

6.0

0.22

KC45

4.5

295

G ½

7.0

0.32

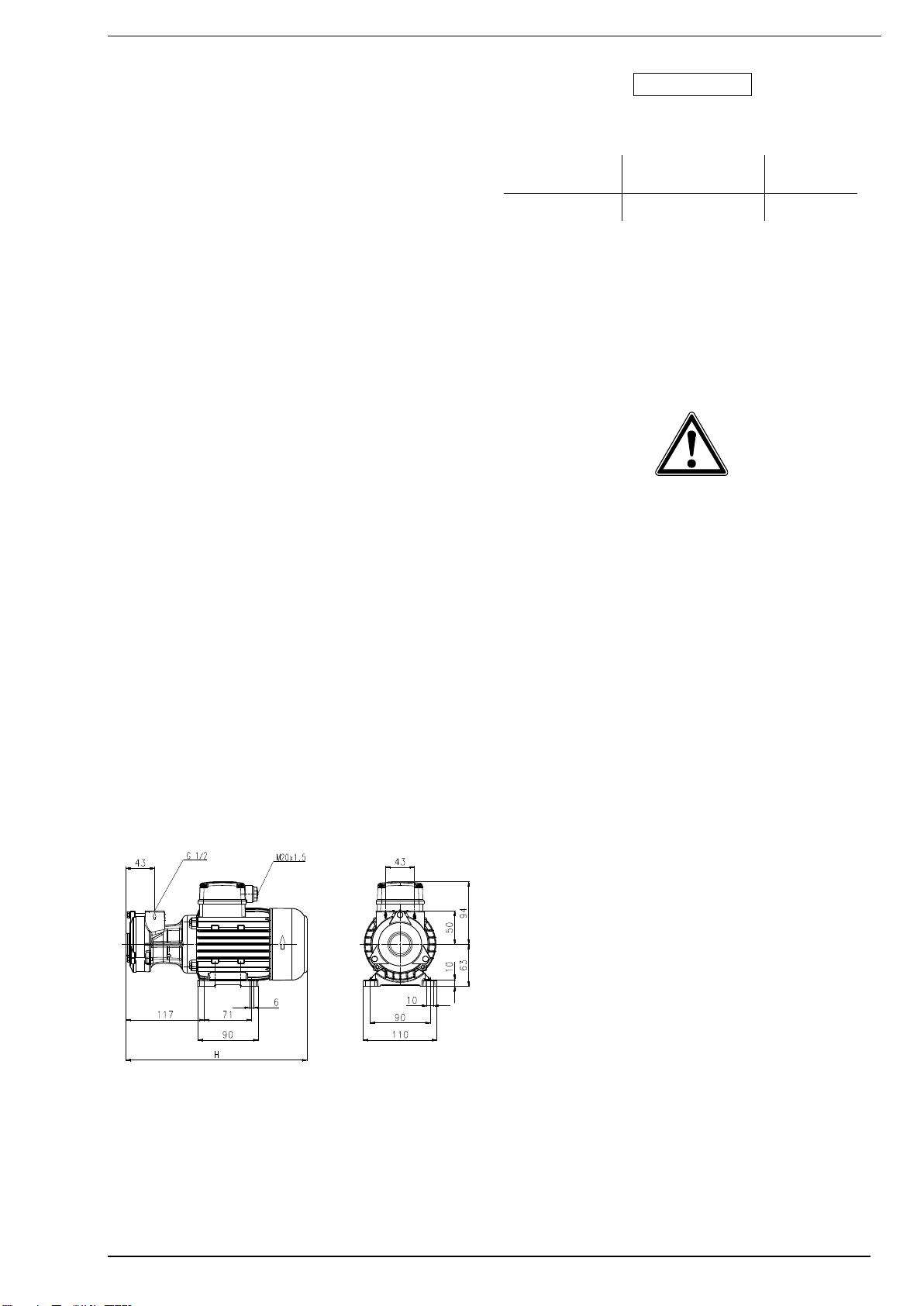

1) Dimensions in accordance with page 4

2) Noise emissions measured in accordance with DIN 45635 at a distance of 1 m

The motor is surface-cooled and compliant with

DIN IEC 34 and EN 60034 (protection degree IP 55).

BE7105 Edition 10/2021 Page 4 of 10

3.7 Signs on the pump

It is imperative that signs affixed to the machine,

e.g.:

•arrow indicating the direction of rotation

•symbols indicating fluid connections

be observed and kept legible.

3.8 Unauthorized alterations and production

of spare parts

Any modification may be made to the machine only

after consultation with the manufacturer. Using

spare parts and accessories authorized by the

manufacturer is in the interest of safety. Use of

other parts may exempt the manufacturer from any

liability.

4 Transport and storage

Protect the pump against damage when transport-

ing. The pumps may only be transported in a hori-

zontal position.

Pumps must be drained prior to their storage.

Store pump in dry and protected areas and protect

it against penetration of foreign bodies.

Always store pump above the freezing point!

5 Installation and Connection

5.1 Mechanical installation

The pumps can be mounted horizontally or vertical-

ly. Be sure that the pipe connections are on the top

in the case of horizontal installation. For vertical

installation the pump unit must be lower than the

motor.

Pumps must be mounted securely. Piping, tank and

pumps must be mounted without any tension.

The suction and pressure connections are marked

with arrows of the pump body.

To obtain the full flow rate it is recommended to

choose for the pipework the nominal bore diameter

of the pumps cross section for connection. There-

fore pipe bends should be used, not pipe angles!

The pipework must be qualified for occurring hy-

draulic pressure.

ATTENTION

Pay attention of the max. tightening torque for

piping connection

Type

Pipe

connection

Brass

KC21…45

G ½

35 Nm

When installed the space around the pump

must be large enough to provide sufficient

cooling of the motor.

Do not prop up the pressure line via the joining

socket.

Start up the pump only if it is connected to the

tank or to the piping!

KC21...KC45

BE7105 Edition 10/2021 Page 5 of 10

5.2 Electric wiring

All service work must be carried out by quali-

fied service personnel. Pump must be discon-

nected from the power source and all rotating

parts must stand still. Reassure that pump is

disconnected from power source and cannot be

switched on. Verify that there is no voltage at

the terminal board!

According to the European Standard EN809 a

motor overload must be installed and properly set

to the full load amps stated on the pump name

plate.

It is the responsibility of the machine operator to

decide whether or not an additional emergency

switch must be installed.

5.2.1 Circuit

Tension voltage and frequency must correspond

with the shown specification on the nameplate.

The pump must be wired so that a solid long term

electrical connection is ensured. Establish a solid

ground connection.

The electrical wiring must be performed accord-

ing to the wiring diagram shown inside the

terminal box cover. (Please see above sample

wiring diagrams)

Wiring diagram e.g.

There may be no foreign objects such as dirt,

particles or humidity inside the terminal board.

Mount terminal board cover to motor tight against

dust and humidity and close up all unused wiring

ports.

ATTENTION

When Variable Frequency Drives are used interfer-

ing signals might occur.

Non-sinus shaped supply voltage from a variable

frequency drive might result in elevated motor

temperatures.

6 Start up / Shut down

6.1 Start up

ATTENTION

Switch off at the mains.

After connection the electrical wires, close the

terminal box. Briefly start the motor (max. 30 sec.)

and check the rotation according to the arrow on

the top of the motor.

If the direction is incorrect change over two of the

power leads.

6.2 Shut down

All service work must be carried out by qualified

service personnel. Pump must be disconnected

from the power source and all rotating parts must

stand still. Reassure that pump is disconnected

from power source and cannot be switched on.

Verify that there is no voltage at the terminal board!

Open terminal box and disconnect the power leads.

Empty out the pump.

7 Operation

Liquid level

Filling of the pump: The pumps are self-priming

after initial filling.

Suction height is 2 m without check valve and 6 m

with check valve.

Pump must be protected from contamination.

If the pump should lock up and cease, shut

pump down (see 6.2) and disconnect from

power supply. Pump must be uninstalled and

removed from the system prior to its repair.

8 Servicing and Maintenance

ATTENTION

The surface of the motor must be kept free of dirt.

The motor shaft is spinning in permanently greased

ball bearings (with special grease and increased

bearing play) and does not require any special

maintenance.

Star connection

3 x 400 V, 50 Hz

resp. 380-420 V, 50 Hz

Delta connection

3 x 230 V, 50 Hz

resp. 220-240 V, 50 Hz

BE7105 Edition 10/2021 Page 6 of 10

9 Trouble shooter’s guide

Fault

Cause

Remedy

Motor does not start, no motor

noise

At least two of the power supply

leads have failed

Overload has tripped

Check fuses, terminals and supply

leads .

Inspect overload

Motor does not start, humming noise

One of the supply leads has failed

Impeller faulty

Motor bearing faulty

See above

Replace impeller

Replace bearing

Overload trips

Pump locked up mechanically

High on/of cycling frequency

Inspect pump hydraulics

Check application

Power consumption is too high

Wrong direction of rotation of

impeller

Lime or other deposits

mechanical friction

See above

Clean pump mechanism

repair pump

Motor overheats

High on/off cycling frequency

Wrong power supply (voltage or

cycles)

Insufficient cooling

See above

Power supply must correspond with

name plate rating

Check air flow at motor fan

Pump does not pump

liquid level too low

Pump mechanism faulty

Pipe blocked

Fill up liquid

replace pump mechanism

Clean pipe

The pump does not sucking

Suction pipe leaking

Suction height to high

Air cannot escape from the dis-

charge pipe

No fluid in pump

Seal suction pipe

Place pump at lower level or move

suction tank up

Inspect, check valve for leaks and

refill pump.

Refill pump

Insufficient flow and pressure

Wrong direction of rotation of

impeller

Pump mechanism silted up

Worn pump mechanism

Change over two power supply

leads

Clean pump mechanism

Replace pump mechanism

Incorrect flow or pressure

Wrong power supply (voltage or

cycles)

Power supply must correspond with

name plate rating

Running noise/Vibration

Foreign objects in pump end

Impeller damaged

Bearing/Bushing broken

Cavitation

Remove foreign objects

Replace impeller

Replace bearing/bushing

Reduction of pump on pressure

side

BE7105 Edition 10/2021 Page 7 of 10

10Spare part

10.1 Spare part list for the miniature

centrifugal pumps series KC21...KC45

10.2 Indications to the spare part order

Spare parts are available from the supplier.

Standard commercially available parts are to be

purchased in accordance with the model type.

The ordering of spare parts should contain the

following details:

1. Pumptype

e.g. KC60

2. Pump No.

e.g. 01207105

The date of the construction year is a compo-

nent of the pumps type number.

3. Voltage, Frequency and Power

Take item 1, 2 and 3 from the nameplate

4. Spare part with item No.

e.g. Impeller item No. 6

Item Description

1 Stator with terminal board

2 Pump body

3 Thing annexed

4 Canal cover

5 Intake cover

6 Impeller

7 End shield

8 Terminal box

9 Shaft with rotor

10 Fan

11 Fan cover

12 Stator base

13 Stud bolt with bond

14 Socket head cap screw DIN 84

15 Slotted cheese head screw DIN 912

Item Description

16 Hexagon head cap screw DIN 931

17 Spring washer DIN 127

18 Spring washer DIN 127

19 Woodruff key DIN 6888

20 Ball bearing DIN 625

22 Locking ring DIN 472

23 Rotary shaft seal

24 Supporting ring

25 Rotary shaft seal

26 Gasket

27 Gasket

28 Gasket / KC21…KC31

28 O-ring / KC35…KC45

In the special version –UO12, a rotary mechanical seal is used instead in positions 23 and 24.

Tightening torques for screwed connections

Thread - 

Strength

classes

4.8

A2-80

8.8

Tightening

torque (Nm)

1Nm

Item 14

2Nm

Item 13

3 Nm

Item 16

2 Nm

Item 15

BE7105 Edition 10/2021 Page 8 of 10

11Repair

Brinkmann miniature centrifugal pumps

series KC21...KC45

11.1 Exchange the rotary shaft seals:

1) Disconnect the pump from the power supply.

Check up the marks on the pump unit.

2) Loosen hexagon head cap screws (16).

3) Loosen and remove intake cover (5) from canal

cover (4). Remove the gasket (28) at KC21 and

KC31, or the O-ring at KC35 to KC45.

4) Push impeller (6) with help of two screwdrives

from the shaft (9). Set the screwdrivers between

the impeller (6) and the canal cover (4).

5) Remove woodruff key (19) from the shaft (9)

and remove the canal cover (4). Remove the

gasket (27).

6) Remove fan cover (11) and fan (10) from shaft

(9).

7) Loosen stud bolts (13) and remove stator (1)

with end shield (7).

8) Push shaft (9) with ball bearing (20) out of pump

body (3).

9) Remove the rotary shaft seal (25).

10)Take locking ring (22) and the supporting ring

(24) out of pump body (3).

11)Remove rotary shaft seal (23).

Clean pump components before re-assembling.

Position of the rotary shaft seal (23) may be ex-

changed with the supporting ring (24), if neces-

sary, to ensure contact of the new sealing lip

with unused surface.

12)Fill the rotary shaft seal (23) with grease (1/3 of

the volume) and press it, with a drift, flat into the

pump body (3).

13)The remaining assembly occurs in reverse order

of item 3) to 9). If required, exchange the O-ring

(28), gaskets (27,28) and impeller (6).

14)Screw the hexagon head cap screws (16).

Check up the tightening torque!

15)After having completed the assembly, possible

distortions can be eliminated by light tap upon

intake cover (5) with a plastic hammer.

16)Reconnect pump to the electrical supply. Fill up

the pump!

Check direction of rotation!

BE7105 Edition 10/2021 Page 9 of 10

Brinkmann miniature centrifugal pumps

series KC21...KC45-UO12 (special make)

11.2 Exchange the rotary mechanical seal:

1) Disconnect the pump from the power supply.

Check up the marks on the pump unit.

2) Loosen hexagon head cap screws (16).

3) Loosen and remove intake cover (5) from canal

cover (4). Remove the gasket (28) at KC21 and

KC31, or the O-ring at KC35 to KC45.

4) Push impeller (6) with help of two screwdrives

from the shaft (9). Set the screwdrivers between

the impeller (6) and the canal cover (4).

5) Remove woodruff key (19) from the shaft (9)

and remove the canal cover (4). Remove the

gasket (27). Remove locking ring (22) and the

rotating mechanical seal assembly (24a-24d).

6) Remove the stationary mechanical seal part

(24e-24f) from the pump body (3).

Clean pump parts and seat surfaces of all seals!

The rotary mechanical seal (24) shoud be re-

placed completely. If required, renew gasket

(27, 28) or O-ring (28) and impeller (6).

7) Fit new rotary mechanical seal:

The running surfaces of the rotary mechanical

seal must be free from dirt and grease.

Wet the packing (24f) with water containing

washing-up liquid and press the stationary rotary

mechanical seal part (24e-24f) into the pump

body (3). Push the rotary mechanical seal part

(24a-24d) onto the pump shaft (9) and secure

with locking ring (22).

8) The remaining assembly occurs in reverse order

of item 3) to 5).

9) Screw the hexagon head cap screws (16).

Check up the tightening torque!

10) After having completed the assembly, possible

distortions can be eliminated by light tap upon

intake cover (5) with a plastic hammer.

11) Reconnect pump to the electrical supply. Fill

up the pump!

Check direction of rotation!

12Disposal

When disposing of the pump or the packaging

materials the local and national regulation for

proper disposal must be complied with.

Prior to its disposal, the pump must be completely

drained and decontaminated if necessary.

BE7105 Edition 10/2021 Page 10 of 10

13EC declaration of conformity

DEUTSCH / ENGLISH /FRANÇAIS / ESPAÑOL

EG-Konformitätserklärung

EC declaration of conformity / Déclaration de conformité CE / Declaração de conformidade CE

Hersteller / Manufacturer / Constructeur / Fabricante

Brinkmann Pumpen, K. H. Brinkmann GmbH & Co. KG

Friedrichstraße 2, D-58791 Werdohl

Produktbezeichnung / Product name / Désignation du produit / Designação do produto

Kleinkreiselpumpen / Miniature Centrifugal Pumps / Petites pompes centrifuges / Bombas centrifugas

Typ / Type / Tipo KC21 … KC45

Das bezeichnete Produkt stimmt mit den folgenden Richtlinien des Rates zur Angleichung der Rechtsvorschriften der

EG-Mitgliedsstaaten überein:

The named product conforms to the following Council Directives on approximation of laws of the EEC Member States:

Le produit sus-mentionné est conforme aux Directives du Conseil concernant le rapprochement des législations des

Etats membres CEE:

O produto designado cumpre as Diretivas do Conselho relativas à aproximação das legislações

dos Estados-Membros, nomeadamente:

2006/42/EG Richtlinie für Maschinen

2006/42/EC Council Directive for machinery

2006/42/CE Directive du Conseil pour les machines

2006/42/CE Diretiva respeitante às máquinas

2014/30/EU Richtlinie für elektromagnetische Verträglichkeit

2014/30/EU Council Directive for Electromagnetic compatibility

2014/30/UE Directive du Conseil pour Compatibilité électromagnétique

2014/30/UE Diretiva da Compatibilidade Eletromagnética

2011/65/EU und 2015/863/EU RoHS Richtlinien

2011/65/EU and 2015/863/EU RoHS Directives

2011/65/UE et 2015/863/UE Directives RoHS

2011/65/UE e 2015/863/UE Diretivas RoHS

Folgende Ausnahmen gem. Anhang III RoHS (2011/65/EU) werden in Anspruch genommen: 6a, 6b, 6c.

The following exceptions in accordance with appendix III RoHS (2011/65/ EU) are claimed: 6a, 6b, 6c.

Les exceptions suivantes selon l'annexe III RoHS (2011 / 65 / UE) sont revendiquées : 6a, 6b, 6c.

É feito uso das seguintes exceções de acordo com o Anexo III da Diretiva RoHS (2011/65/UE): 6a, 6b, 6c.

Hinsichtlich der elektrischen Gefahren wurden gemäß Anhang I Nr. 1.5.1 der Maschinenrichtlinie 2006/42/EG die Schutzziele der

Niederspannungsrichtlinie 2014/35/EU eingehalten.

With respect to potential electrical hazards as stated in appendix І No. 1.5.1 of the machine guide lines 2006/42/EC all safety

protection goals are met according to the low voltage guide lines 2014/35/EU.

Conformément à l'annexe I N° 1.5.1 de la Directive "Machines" (2006/42/CE) les objectifs de sécurité relatifs au

matériel électrique de la Directive "Basse Tension" 2014/35/UE ont été respectés.

No respeitante aos perigos elétricos, indicados no anexo I N.º 1.5.1 da diretiva respeitante às máquinas 2006/42/CE, foram

respeitadas as metas de proteção da diretiva de baixa tensão 2014/35/UE.

Die Übereinstimmung mit den Vorschriften dieser Richtlinien wird nachgewiesen durch die vollständige Einhaltung folgender

Normen:

Conformity with the requirements of this Directives is testified by complete adherence to the following standards:

La conformité aux prescriptions de ces Directives est démontrée par la conformité intégrale avec les normes suivantes:

A conformidade com os regulamentos constantes destas diretivas é comprovada pelo total cumprimento das seguintes normas:

HarmonisierteEurop.Normen /Harmonised Europ.Standards/ Normeseurop.harmonisées/NormaseuropeiasHarmonizadas

EN 809 :1998+A1 :2009+AC :2010 EN ISO 12100 :2010 EN 60204-1 :2018 EN 61000-3-2 :2014 EN 61000-3-3 :2013

EN 61000-6-2 :2005/AC :2005 EN 61000-6-3 :2007/A1 :2011/AC :2012 EN IEC 63000 :2018

Nationale Normen / National Standards / Normes nationales / Normas nacionais: EN 60034-1 :2010/AC :2010

Die Hinweise in der Betriebsanleitung für den Einbau und die Inbetriebnahme der Pumpe sind zu beachten.

The instructions contained in the operating manual for installation and start up the pump have to be followed.

Les indications d’installation / montage et de mise en service de la pompe prévues dans l’instruction d’emploi doivent

être suivies.

Observar as instruções do manual de operação para a montagem e colocação em funcionamento da bomba.

Brinkmann Pumpen, K. H. Brinkmann GmbH & Co. KG

Werdohl, 12.10.2021

.....................................................................

Reimund Gidde

Geschäftsführer

Managing Director

Dr. H. Abou Dayé

K. H. Brinkmann GmbH & Co. KG

Friedrichstraße 2, D-58791 Werdohl

Dokumentationsbevollmächtigter / Representative of

documentation/ Mandataire de documentation /

Responsável pela documentação

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Bomba de agua de BRINKMANN PUMPS

BRINKMANN PUMPS

BRINKMANN PUMPS TAA140 Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS TFL250 Series Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS TA302 Series Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS SPC820 Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS SBC1520 Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS SZG701 1002 Series Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS SBA401-V Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS STA301 Series Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS TH11 Series Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS FH Series Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS STA1600 Series Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS SFT Series Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS SXC2824 Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS SFT1554-C Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS TL50 Series Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS KC60 Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS SFL650S Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS STH17 Series Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS BE8082 Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS SXC2824-R Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS TFL550 Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS TH2 Series Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS FH11 Series Manual de usuario

Manuales populares de Bomba de agua de otras marcas

Neptun

Neptun NPHW 5500 Manual de usuario

Sensidyne

Sensidyne Gilian BDX-II Instrucciones de instalación y funcionamiento

Draper

Draper 47808 Manual de usuario

Trolla

Trolla 12820 Manual de usuario

Sunfab

Sunfab SVH Series Manual de usuario

WilTec

WilTec 50740 Manual de usuario

Fieldmann

Fieldmann FVC 5015 EK Manual de usuario

Everbilt

Everbilt EFSUB5-122HD Manual de usuario

Graco

Graco Husky 3300e Manual de usuario

esotec

esotec 101018 Manual de usuario

moyno

moyno 2000 CC Manual de usuario

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manual de usuario

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guía de solución de problemas

DUROMAX

DUROMAX XP WX Series Manual de usuario

Franklin Electric

Franklin Electric IPS Manual de usuario

Xylem

Xylem e-1532 Series Manual de usuario

Milton Roy

Milton Roy PRIMEROYAL Manual de usuario

STA-RITE

STA-RITE ST33APP Manual de usuario
