Brighter FW 300 Manual de usuario

FW 300

300W LED-based Fresnel Lamp

This product manual contains important information about the

safe installation and use of this projector. Please read and follow

these instructions carefully and keep this manual in a safe place

User manual

Please read the instructions carefully before use

Thanks for your choosing our product, which adopts the latest light source-LED. It

overcomes the disadvantages of traditional light source (Such as high electricity

consumption, short life, high temperature, etc.) LED can save much energy, with

long life, high brightness, bright colours. It is the ideal product on all kinds of lighting

fields at present.

SAFTY INFORMATION

1. This unit belongs to class 1 protective lights, so the lights must be

grounded well. Should be grounded by the professional.

2. Please confirm the voltage is among the proper value.

3. Please confirm the power cord is undamaged.

4. Please cut off the power before cleaning the lights.

5. Only permitted to connect the power cord with the plug.

6. Don't use knife to drag the power cord when unplugging.

7. Be careful when installing the light. Don’t touch the bare wire, to avoid the electric

shock.

8. Don't look straight at the light source when the light is on, otherwise your eyes can

be hurt.

9. When choosing the installing position, please confirm the light is not exposed to the

high temperature, moist or dusty place.

10. Please use proper, applicable and safe wires to connect the light.

11. Please don’t operate it until you know the light's function well.

Note: The light should be operated only by the professional engineer.

12. Please don't modify the light at will, which can cause short circuit, burn, electric

shock, etc. Otherwise the manufacturer won't consider warranty.

Technical Specifications:

•Light source: 300W COB LED

•Luminous Flux: 30000lm-33000lm

•Color Temperature: 3200K or 5600K

•CRI: >85Ra or >95Ra

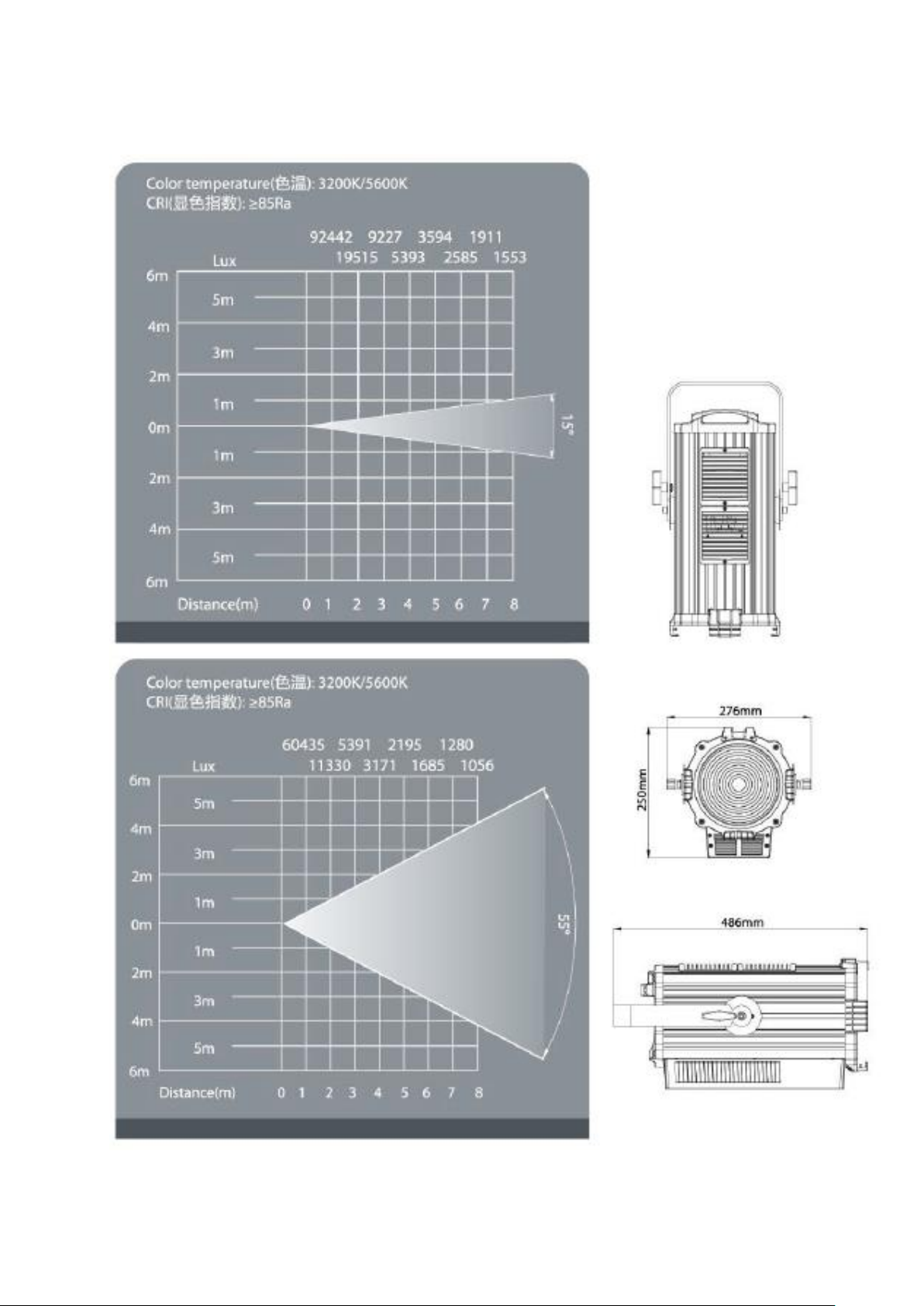

•Beam Angle 15-55 degrees

•Electronic Zoom

•Strobe 1-20Hz

•Temperature controlled fan

•DMX: 2 or 3 channels

•Dimmer: linear 0-100%

•IP 20

•N.W.: 8.4kg

•Dimensions (LxWxH): 520x315x320mm

DMX-512 control

(1) DMX 3 Channels:

CHANNEL

FUNCTION

VALUE

FUNCTION

Dimmer

0-255

Master Dimmer

Zoom

0-255

Zoom, from wide to narrow

Strobe

0-255

Strobe, from slow to fast

(2) DMX 2 Channels:

CHANNEL

FUNCTION

VALUE

FUNCTION

CH1

Dimmer

0-255

Master Dimmer

CH2

Zoom

0-255

Zoom, from wide to narrow
