Briggs & Stratton 030211-1 Guía de configuración

Illustrated Parts List

Las Partes ilustradas Listan

Manual No. 195529B

Revision A (09/05/2007)

Questions? Help is just a moment away!

Preguntas? La ayuda es justa un momento lejos!

Call: Generator Helpline - 1-800-743-4115 M-F 8-5 CT

Llamada: Generador Helpline - 1-800-743-4115 M-F 8-5 CT

030211-1

(6200W)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

6200W Portable Generator

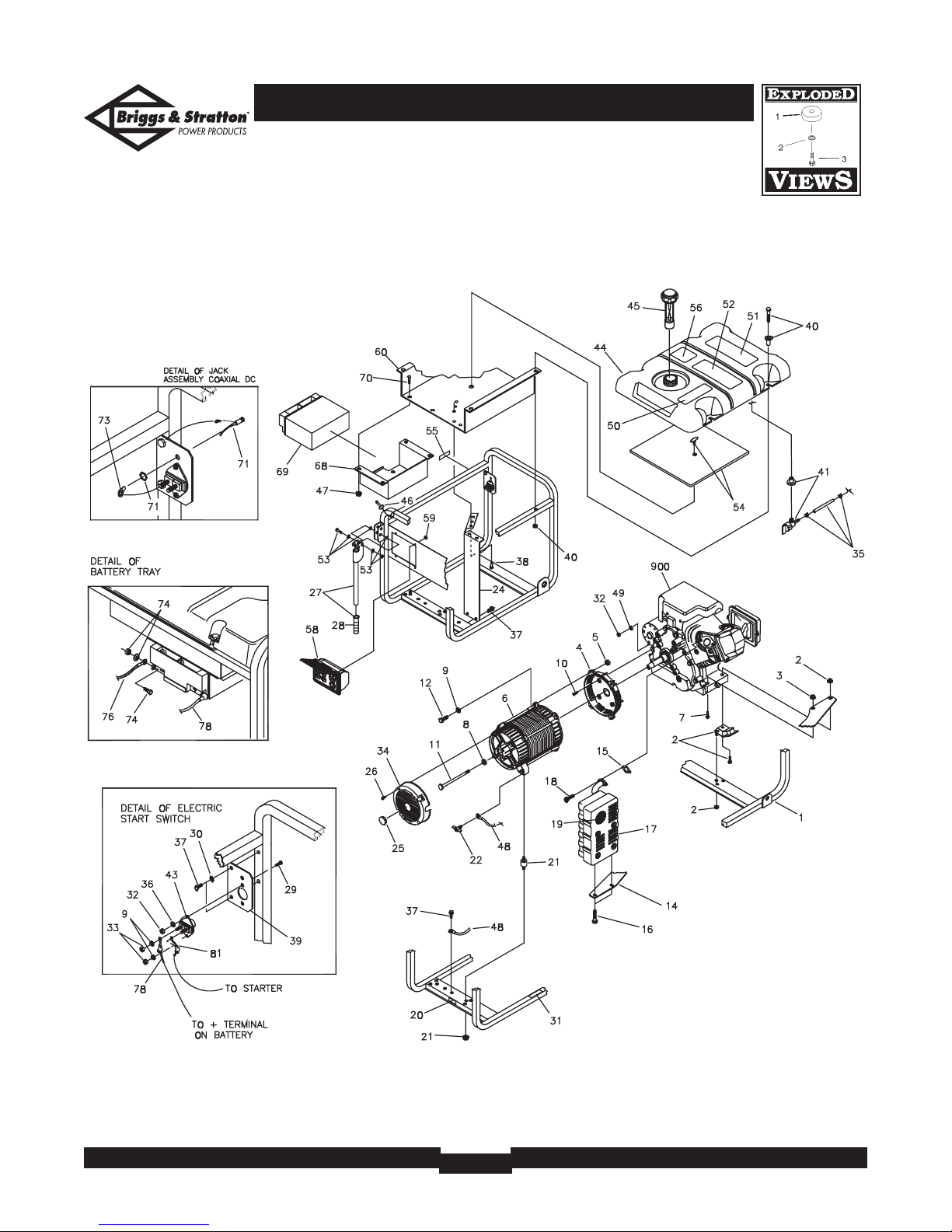

EXPLODED VIEW - MAIN UNIT

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

6200W Portable Generator

EXPLODED VIEW - PARTS LIST

Item Part # Description

1 M197464GS CRADLE (Includes Items 20, 31 &

55)

2 194150GS KIT, Vibration Mount

3 * NUT, M8 Flange Serrated

4 190220GS HOUSING, Engine Adapter

5 * NUT, Hex, M8-1.25

6 NSP ASSY, Alternator (see page 4)

7 * TPHMS, M8 - 1.25 x 35

8 96796GS WASHER, 8.4 x 22.2 x 3

9 * WASHER, Lock M8

10 190274DGS SBHCS, 3/8-16 x 7/8

11 187365FGS HHCS, 5/16-24 x 7.44

12 * HHCS, M8 1.25 x 25

14 189009GS BRACKET, Muffler

15 695398 GASKET, Exhaust

16 * HHCS, M6-1.0 x 12

17 189008GS MUFFLER

18 * SHCS, 5/16 - 18 x 7/8"

19 83083GS SCREEN, Spark Arrest

20 B4986GS DECAL, Ground

21 194153GS KIT, Vibration, Mount

22 86494GS SCREW, Wing M6 - 1.0 x 16

24 194390GS SHIELD, Heat

25 191190GS CAP

26 74908GS TAPTITE, M5-0.8 x 10

27 B193200GS ASSY, Handle/Grip

28 198669GS GRIP

29 * HHCS, 1/4-20 x 3/4

30 * WASHER, Shakeproof, Ext #10

31 196830GS DECAL, Hot Muffler

32 * NUT, 1/4 – 20

33 * NUT, 5/16-24

34 195422GS COVER, RBC w/Cap

35 791745 KIT, Fuel Hose (cut to fit)

36 * WASHER, Lock, 1/4

37 B2153GS SCREW, 12-14 x 7/8 Self Drilling

38 56893GS SCREW, 10-24 x 1/2 Crimptite

39 188987GS PLATE, Mounting Switch

40 195477GS KIT, Hardware Tank Fuel (Includes

Qty 4)

41 192980GS KIT, Valve, Tank

Item Part # Description

43 77282GS SWITCH, Starter

44 194217GS ASSY., Tank, Fuel (Includes Items

41, 50, 51, 52 & 56)

45 B4363GS CAP, Fuel Gauge

46 B4135GS PIN

47 77395GS NUT, M6 Flange Lock

48 195373GS WIRE, Ground

49 * WASHER, M6 Shakeproof

50 188333GS DECAL, Instruction, Fuel Level

51 194799GS DECAL, Danger

52 189235GS DECAL, Start Instructions

53 194034GS KIT, Handle Fold-down Hardware

54 194448GS KIT, Insulation with Clip

55 197798GS DECAL, Fuel Shut-off

56 202997GS DECAL, CO Warning

58 191757GS ASSY, Control Panel

59 * NUT, Palnut, 3/16"

60 194389GS SHIELD, Heat

68 195680GS TRAY, Battery

69 193043GS BATTERY

70 * HHCS, M6 - 1.0 x 12

71 192531GS ASM, Jack, DC

73 58359GS LUG, 5/16 #22/18 I-S

74 193347GS KIT, Battery Hardware

76 185939KGS WIRE ASM, #55

78 189302CGS WIRE ASM, #13

81 189302GGS WIRE ASM, #16

900 § ENGINE

Parts Not Illustrated

MS3430 MANUAL, Engine, B&S

195529GS MANUAL, Operator’s

BB3061GS BOTTLE, Oil

B4177GS CHARGER, Battery

202180GS DECAL, Family, CA EVP

195578GS KIT, Decals Service

* - Items without part numbers are common fasteners and

are available at your local hardware store.

§ - Contact Engine Manufacturer

6200W Portable Generator

EXPLODED VIEW AND PARTS LIST - ALTERNATOR

Item Part # Description

1 186059GS ADAPTER, Mounting, Alternator

2 191876GS ROTOR (Includes Item 13)

3 194006AGS STATOR

4 186060GS RBC, (with O-Ring, p/n 189197GS)

5 86308HGS HHCS, M6 - 1.0 x 140 SEMS

6 66386GS ASSY, Holder, Brush

7 66849GS TAPTITE, M5 - 0.8 x 16

8 22694GS RECEPTACLE, 6 pin

9 81917GS PIN, Roll, 4mm x 10

10 193428AGS ASSY, Wire, Ground

11 189769GS REGULATOR, Voltage, AVR

12 194274GS HARNESS, Wire, Power

13 65791GS BEARING

6200W Portable Generator

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL

Item Part # Description

1 195112GS KIT, Control Panel Lid

2 191450GS CONTROL PANEL, Compact

6 68759GS OUTLET, 120V, 20Amp, Duplex

7 * NUT, Palnut, 5/32

8 84198GS CAP, Circuit Breaker

9 75207AGS CIRCUIT BREAKER, 30A

10 43437GS OUTLET, 120/240 Locking, 30A

11 * NUT, Palnut, 3/16

12 * PPPHS, M3- 0.5 x 18

13 93857GS BAR, Retaining

14 188890GS COVER, Back, Control Panel

15 82308GS SCREW, Tapping, STC 3 x 18

16 22694GS HOUSING, Receptacle

17 192241GS SCREW, Tapping, 3.5 x 14

18 75207PGS CIRCUIT BREAKER, 25A

* - Items without part numbers are common fasteners and are

available at your local hardware store.

6200W Portable Generator

EXPLODED VIEW AND PARTS LIST - WHEEL KIT

Item Part # Description

1 * WASHER, 5/8

2 B4966GS WHEEL

3 191267GGS AXLE

4 191265GS E-RING

5 * HHCS, M8 - 1.25 x 20

6 204536GS ASSY, Support w/Mounts

9 67989GS NUT, M8 - Flange Serrated

Parts Not Illustrated

187046GS SUBKIT, Hardware

* - Items without part numbers are common fasteners and are

available at your local hardware store.
