Briggs & Stratton 49G500 Series Guía de configuración

in any form or by any means, electronic or mechanical, including photocopying,

recording or by any information storage and retrieval system, without permission

in writing from Briggs & Stratton Corporation.

PRINTED IN U.S.A.

FORM MS--10194--09/27/2010

REPLACES FORM MS--10194--06/17/2010

FILE IN SECT. 2 OF SERVICE MANUAL

49G500

Illustrated Parts List

Model Series

49G500

TYPE NUMBERS

0110.

TABLE OF CONTENTS

Air Cleaner 6.........................

Blower Housing/Shrouds 6............

Camshaft 3...........................

Carburetor 5..........................

Controls 7............................

Crankshaft 3..........................

Cylinder 2............................

Cylinder Head 4.......................

Electric Starter 8......................

Engine Sump 2.......................

Flywheel 7............................

Ignition 8.............................

Gasket Set -- Engine 2.................

Gasket Set -- Valve 4..................

Lubrication 3.........................

Kit--Carburetor Overhaul 5.............

Piston, Rings, Connecting Rod 3.......

Valves 4..............................

Not for

Reproduction

49G500

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

10194--2 Assemblies include all parts shown in frames. 09/27/2010

1017A

718

1027

742

552

616

552A

404

552A

691

15A

965A

943A

1058 OPERATOR’S MANUAL

1319 WARNING LABEL

REQUIRED when replacing parts

with warning labels affixed.

883

943A

1022

358 ENGINE GASKET SET

868

842

691

524

163

51E

239

51F

252

250

850

1024A

220

615

219

221

750A

Not for

Reproduction

49G500

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

10194--3 Assemblies include all parts shown in frames. 09/27/2010

287

842

524

523

525

847

741

146 46

829

601B

1366

1374

1028

448

1373

400

305

703

Not for

Reproduction

49G500

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

10194--4 Assemblies include all parts shown in frames. 09/27/2010

654

337

383

798

192

1022

1100

1029

868

798

883

1022

1100

1029

36 35

868

192

1023A

1022

868

1095 VALVE GASKET SET

163

883

1026

1026A

914

212

163

51E

635

51F

415

1022

Not for

Reproduction

49G500

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

10194--5 Assemblies include all parts shown in frames. 09/27/2010

121 CARBURETOR OVERHAUL KIT

987

163

51E

51F

125

51E

117

117A

Not for

Reproduction

49G500

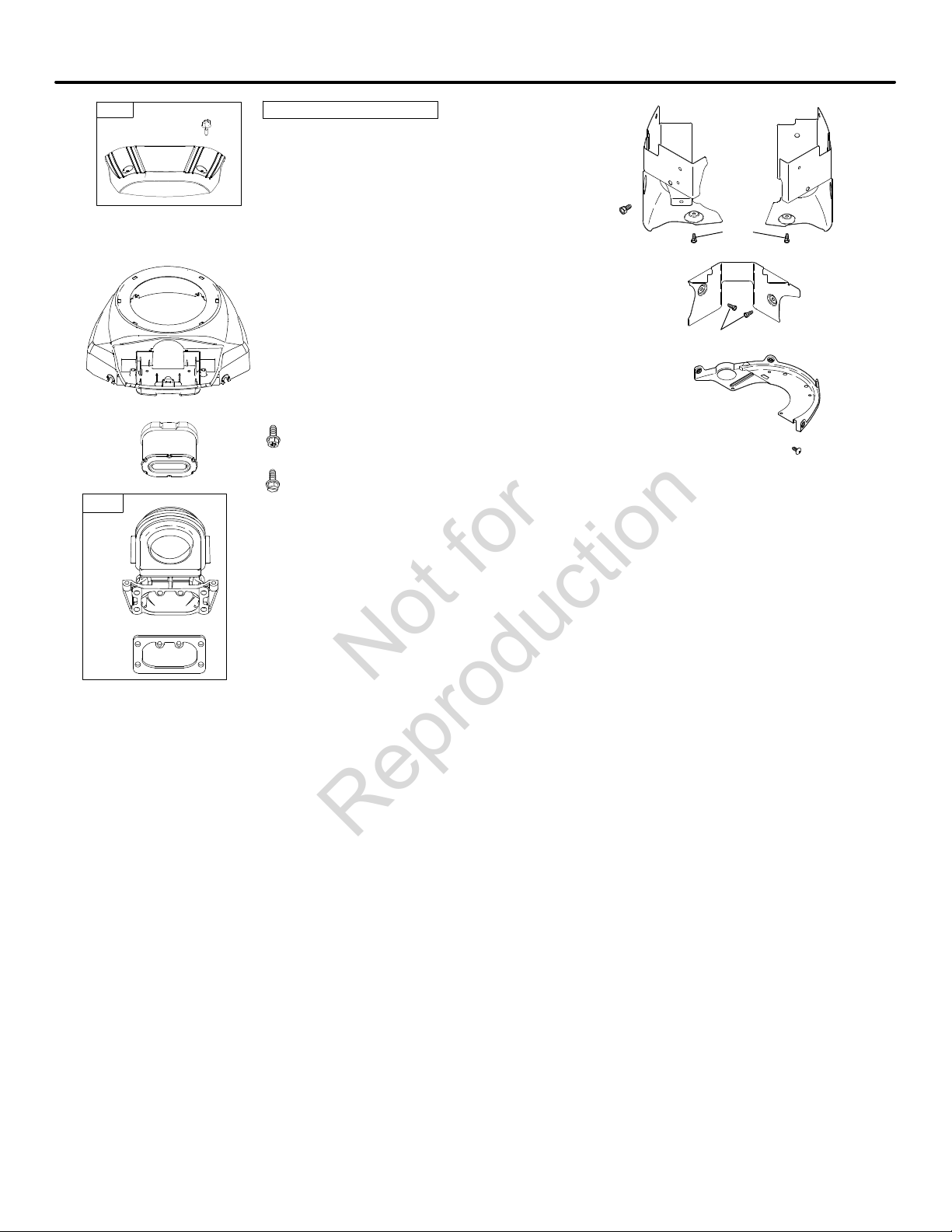

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

10194--6 Assemblies include all parts shown in frames. 09/27/2010

163

1036 EMISSIONS LABEL

431E

467A

968F

307A

306

573

306A

307

865B

447

405A

304C

445C

305

305B

Not for

Reproduction

49G500

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

10194--7 Assemblies include all parts shown in frames. 09/27/2010

363

934

332

73 209

188

222F

165

726

1005

695

562

505

227

278

212

1006

Not for

Reproduction

49G500

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

10194--8 Assemblies include all parts shown in frames. 09/27/2010

851

334

635 333

1090

797

311

579

802

310

801

1051

783

513

309

510

697

503

462

1054

703

Not for

Reproduction

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

49G500

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

10194--9 Assemblies include all parts shown in frames. 09/27/2010

1 796908 Cylinder Assembly

2 797673 Kit--Bushing/Seal

(Magneto Side)

3 391086s Seal--Oil

(Magneto Side)

4 798743 Sump--Engine

5 798742 Head--Cylinder

(Cylinder #1)

5A 798741 Head--Cylinder

(Cylinder #2)

7 796851 Gasket--Cylinder Head

8 792185 Breather Assembly

9 690937 Gasket--Breather

10 697551 Screw

(Breather Assembly)

11 792184 Tube--Breather

12 697227 Gasket--Crankcase

13 793988 Screw

(Cylinder Head)

15 691680 Plug--Oil Drain

15A 690946 Plug--Oil Drain

16 798737 Crankshaft

20 795387 Seal--Oil

(PTO Side)

22 694966 Screw

(Crankcase

Cover/Sump)

23 691054 Flywheel

24 796335 Key--Flywheel

25 796909 Piston Assembly

(Standard)

-- -- -- -- -- -- N o t e -- -- -- -- -- --

796910 Piston

Assembly

(.020” Oversize)

26 796911 Ring Set

(Standard)

-- -- -- -- -- -- N o t e -- -- -- -- -- --

796912 Ring Set

(.020” Oversize)

27 690975 Lock--Piston Pin

28 696581 Pin--Piston

29 796209 Rod--Connecting

32 690976 Screw

(Connecting Rod)

33 798740 Valve--Exhaust

34 793556 Valve--Intake

35 694865 Spring--Valve

(Intake)

36 694865 Spring--Valve

(Exhaust)

42 499586 Keeper--Valve

45 690977 Tappet--Valve

46 796853 Camshaft

50 798752 Manifold--Intake

51E 690949 Gasket--Intake

51F 798759 Gasket--Intake

(Carburetor Spacer

Included)

53 690951 Stud

(Carburetor)

54 699816 Screw

(Intake Manifold)

73 798767 Screen--Rotating

74 698425 Screw

(Rotating Screen)

75 691056 Washer

(Flywheel)

98 699721 Kit--Idle Speed

117 798867 Jet--Main

(Natural Gas)

117A 798868 Jet--Main

(Liquid Propane)

121 798762 Kit--Carburetor

Overhaul

125 798761 Carburetor

146 690979 Key--Timing

163 798751 Gasket--Air Cleaner

165 693148 Nut

(Ring Gear)

188 697551 Screw

(Control Bracket)

192 690083 Adjuster--Rocker Arm

209 798713 Spring--Governor

212 695238 Link--Throttle

219 793338 Gear--Governor

220 690412 Washer

(Governor Gear)

221 841026 Cup--Governor

222F 798744 Bracket--Control

227 798856 Lever--Governor

Control

239 694115 Switch

250 690957 Retainer--Breather

252 794389 Collector--Oil

278 792651 Washer

(Governor Control

Lever)

287 697820 Screw

(Dipstick Tube)

304C 798745 Housing--Blower

305 691005 Screw

(Blower Housing)

305B 790690 Screw

(Blower Housing to

Intake Elbow)

306 796852 Shield--Cylinder

(Cylinder #1)

306A 798855 Shield--Cylinder

(Cylinder #2)

(Used After Code Date

10052300).

-- -- -- -- -- -- N o t e -- -- -- -- -- --

796541 Shield--

Cylinder

(Cylinder #2)

(Used Before Code

Date 10052400).

307 691003 Screw

(Cylinder Shield)

307A 697551 Screw

(Cylinder Shield)

309 795121 Motor--Starter

310 691263 Screw

(Starter Motor)

311 497608 Brush Set

332 691059 Nut

(Flywheel)

333 691060 Armature--Magneto

334 691061 Screw

(Magneto Armature)

337 692051 Plug--Spark

358 798753 Gasket Set--Engine

363 19203 Puller--Flywheel

383 19576S Wrench--Spark Plug

400 796862 Cooler--Oil

404 690442 Washer

(Governor Crank)

405A 697820 Screw

(Backplate)

415 794903 Plug

431E 798749 Elbow--Intake

445C 798748 Filter--Air Cleaner

Cartridge

447 691003 Screw

(Air Guide Cover)

448 796865 Bracket--Oil Cooler

462 691261 Washer

(Starter Cable)

467A 790697 Knob--Air Cleaner

503 691532 Strap--Starter

505 691029 Nut

(Governor Control

Lever)

Not for

Reproduction

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

49G500

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

10194--10 Assemblies include all parts shown in frames. 09/27/2010

510 696541 Drive--Starter

513 692024 Clutch--Drive

523 691036 Dipstick

524 691032 Seal--Dipstick Tube

525 691037 Tube--Dipstick

552 796638 Bushing--Governor

Crank

552A 690553 Bushing--Governor

Crank

562 690311 Bolt

(Governor Control

Lever)

573 790444 Plate--Back

579 691029 Nut

(Starter Cable)

601B 841597 Clamp--Hose

615 698290 Retainer--Governor

Shaft

616 691045 Crank--Governor

635 692076 Boot--Spark Plug

654 690958 Nut

(Carburetor)

691 790574 Seal--Governor Shaft

695 693149 Screw

(Ring Gear)

697 791680 Screw

(Drive Cap)

703 691010 Clip

718 690959 Pin--Locating

726 499612 Gear--Ring

741 690980 Gear--Timing

742 690328 Retainer--E Ring

750A 796208 Screw

(Oil Pump Cover)

783 695708 Gear--Pinion

797 693167 Nut

(Brush Retainer)

798 697890 Screw

(Rocker Arm)

801 691283 Cap--Drive

802 691286 Cap--End

829 796867 Hose--Oil Cooler

842 691031 Seal--O Ring

(Dipstick)

847 499602 Dipstick/Tube

Assembly

850 100106 Sealant--Liquid

851 493880s Terminal--Spark Plug

865B 792286 Cover--Air Guide

(Valley)

868 690968 Seal--Valve

883 690970 Gasket--Exhaust

914 691127 Screw

(Rocker Cover)

934 791680 Screw

(Fan Retainer)

943A 796222 Seal--O Ring

(Oil Pump Cover)

965A 796221 Cover--Oil Pump

968F 798852 Cover--Air Cleaner

1005 791236 Fan--Flywheel

1006 798750 Fan--Retainer

1017A 796214 Screen--Oil Pump

1022 690971 Gasket--Rocker Cover

1023A 499600 Cover--Rocker

1024A 796220 Pump--Oil

1026 690981 Rod--Push

(Steel)

1026A 690982 Rod--Push

(Aluminum)

1027 696854 Filter--Oil

(Premium)

1028 796864 Adapter--Oil Filter

1029 690972 Arm--Rocker

(Includes Reference

192)

1036 Label--Emissions

(Available from a

Briggs and Stratton

Authorized Dealer)

1051 691265 Ring--Retaining

1054 280275 Tie--Cable

1058 279144 Operator’s Manual

1090 691293 Retainer--Brush

1095 798754 Gasket Set--Valve

1100 791959 Pivot--Rocker Arm

(Carburetor Nozzle)

1319 794467 Label--Warning

1366 796866 Diverter--Oil Cooler

1373 695629 Screw

(Oil Cooler Bracket)

1374 796863 Seal--O--Ring

(Oil Cooler Diverter)

Not for

Reproduction

Otros manuales de Motor de Briggs & Stratton

Briggs & Stratton

Briggs & Stratton Vanguard 540000 Series Manual de usuario

Briggs & Stratton

Briggs & Stratton 090000 Manual de usuario

Briggs & Stratton

Briggs & Stratton Vanguard 610000 Manual de instalación y operación

Briggs & Stratton

Briggs & Stratton 440000 Intek Extended Life Series Manual de usuario

Briggs & Stratton

Briggs & Stratton 09000 Manual de usuario

Briggs & Stratton

Briggs & Stratton 110400 Manual de instalación y operación

Briggs & Stratton

Briggs & Stratton 110400 Instrucciones de instalación

Briggs & Stratton

Briggs & Stratton 613200 - Guía de configuración

Briggs & Stratton

Briggs & Stratton Prestige 500 Series Manual de usuario

Briggs & Stratton

Briggs & Stratton 281H00 Series Guía de configuración

Briggs & Stratton

Briggs & Stratton Vanguard 540000 Series Manual de usuario

Briggs & Stratton

Briggs & Stratton Vanguard 300000 Manual de usuario

Briggs & Stratton

Briggs & Stratton 19D Instrucciones de funcionamiento

Briggs & Stratton

Briggs & Stratton Vanguard 290000 Manual de instalación y operación

Briggs & Stratton

Briggs & Stratton 120000 Manual de usuario

Briggs & Stratton

Briggs & Stratton DOV InStart 100600 Manual de usuario

Briggs & Stratton

Briggs & Stratton 120000 Manual de usuario

Briggs & Stratton

Briggs & Stratton Sno/Gard 170400 Series Manual

Briggs & Stratton

Briggs & Stratton 150000 HORIZONTAL SERIES Manual de usuario

Briggs & Stratton

Briggs & Stratton Vanguard 540000 Series Instrucciones de funcionamiento e instalación

Briggs & Stratton

Briggs & Stratton 194700 Series Manual de instalación y operación

Briggs & Stratton

Briggs & Stratton 150000 HORIZONTAL SERIES Manual de usuario

Briggs & Stratton

Briggs & Stratton Sno/Gard 170400 Series Instrucciones de instalación

Briggs & Stratton

Briggs & Stratton 90000 series Manual de instalación y operación

Manuales populares de Motor de otras marcas

Rotax

Rotax 125 senior MAX evo Manual de usuario

Kohler

Kohler K361 Manual de usuario

MTD

MTD OHV Series Manual de usuario

Kohler

Kohler COMMAND CH18-745 Manual de usuario

Mercury

Mercury D4.2L D-Tronic Manual de usuario

Selve

Selve SE Plus-RC Series Manual de usuario

Perkins

Perkins 1206E-E66TA Manual de usuario

Skov

Skov DA 174 Manual

Rossi

Rossi TX11 Series Manual de usuario

Siemens

Siemens SIMOTICS T-1FW3 Hoja de instrucciones

AL-KO

AL-KO PRO 350 Manual de usuario

MTU

MTU 12 V 4000 Lx4 Manual de usuario

Nanni

Nanni N3.30 Manual de instrucciones

Nanni

Nanni N5.160 CR2 Manual de usuario

KSB

KSB SuPreme Series Instrucciones de instalación

Hiwin

Hiwin EM1 Series Manual de usuario

Rotax

Rotax 912 i series Instrucciones de funcionamiento

Siemens

Siemens SIMOTICS XP 1MB1 Manual de usuario
