44Q700

Illustrated Parts List

Model Series

44Q700

TYPE NUMBERS

0025 through 0505.

TABLE OF CONTENTS

Air Cleaner 6. . . . . . . . . . . . . . . . . . . . . . . . .

Alternators 8. . . . . . . . . . . . . . . . . . . . . . . . .

Blower Housing/Shrouds 6. . . . . . . . . . . .

Camshaft 3. . . . . . . . . . . . . . . . . . . . . . . . . . .

Carburetor 5. . . . . . . . . . . . . . . . . . . . . . . . . .

Controls 7. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Crankshaft 3. . . . . . . . . . . . . . . . . . . . . . . . .

Cylinder 2. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cylinder Head 4. . . . . . . . . . . . . . . . . . . . . .

Electric Starter 7. . . . . . . . . . . . . . . . . . . . . .

Engine Sump 2. . . . . . . . . . . . . . . . . . . . . . .

Exhaust System 5. . . . . . . . . . . . . . . . . . . .

Flywheel 7. . . . . . . . . . . . . . . . . . . . . . . . . . .

Ignition 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Kit/Gasket Set −Carburetor 5. . . . . . . . . .

Gasket Set −Engine 2. . . . . . . . . . . . . . . . .

Gasket Set −Valve 4. . . . . . . . . . . . . . . . . .

Lubrication 3. . . . . . . . . . . . . . . . . . . . . . . . .

Piston, Rings, Connecting Rod 3. . . . . . .

Valves 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

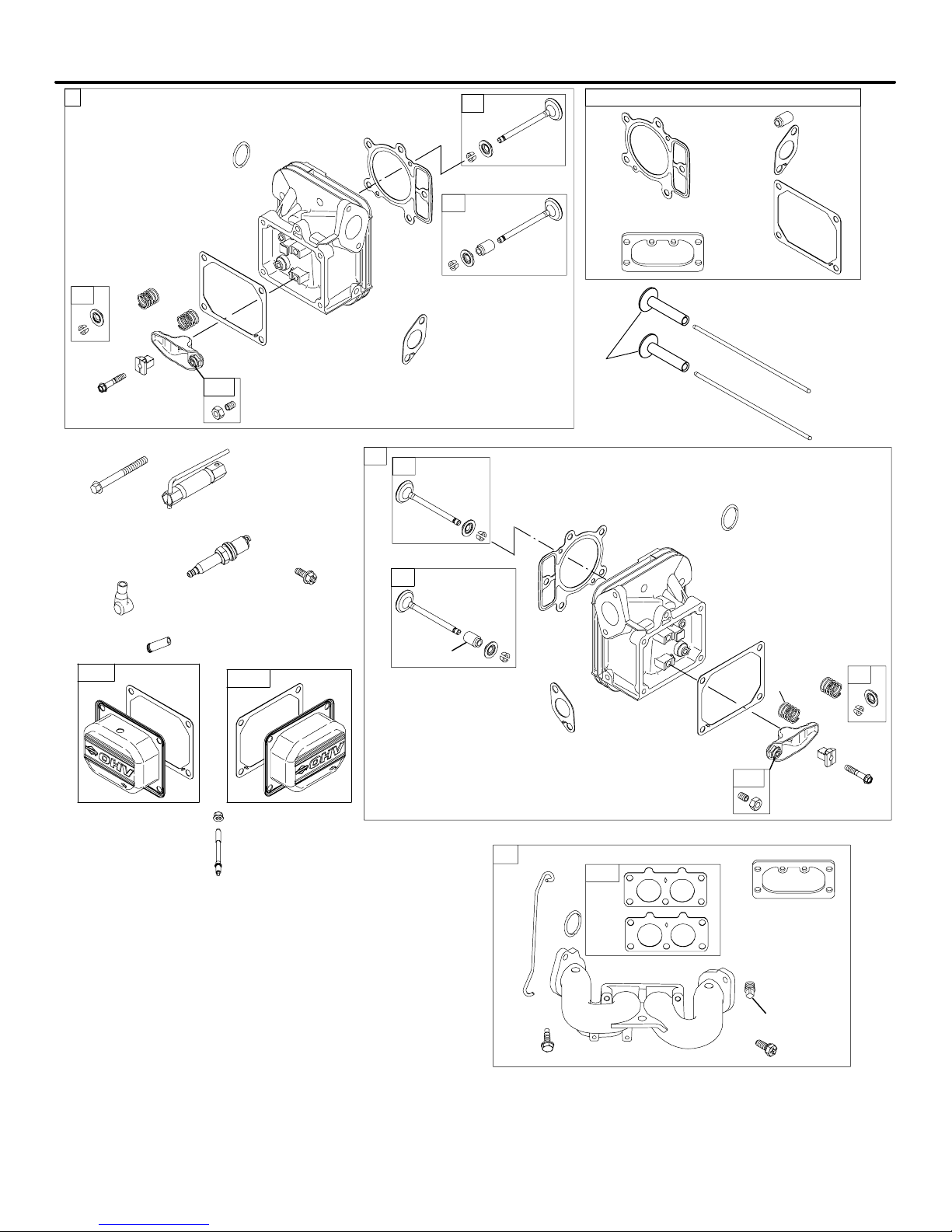

44Q700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3533−2Assemblies include all parts shown in frames. 04/10/2007

1013

691 552

1017

252

718

31058 OPERATOR’S MANUAL

250

239 22

ÚÚ

943

750

1035

1024

965

1027

718

1330 REPAIR MANUAL

883

943

1022

358A ENGINE GASKET SET

868

842

691

524

163

415

51A

1024A

44Q700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3533−3Assemblies include all parts shown in frames. 04/10/2007

741

146

287

842

524

523

525

847

44Q700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3533−4Assemblies include all parts shown in frames. 04/10/2007

654

337

635

383

798

192

1022

1100

1029

868

798

883

1022

1100

1029

36 35

868

192

1023A

1023

1022

868

1095 VALVE GASKET SET

163

883

1022

1026

1026A

929

212

163

914

415

617

918

51A

617

44Q700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3533−5Assemblies include all parts shown in frames. 04/10/2007

387

628

788A

240

385

276

1127

137

104

987

150

1128

105

1126

1124

1123

276

633

108

672

418

163

135

231

130

947

141

125

975

133

131

142

601601

187

601

187A

601601601

187B

121 CARBURETOR OVERHAUL KIT

104

276

1124

150

987 633

672

105

1123

137

300

613

613A

883883

51A

117

117A

118

118A

788

44Q700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3533−6Assemblies include all parts shown in frames. 04/10/2007

447

865

573

163

304

967

445

865A

447A

865B

447A

405A

703

729

1036 EMISSIONS LABEL

431

305

1040

305B

467A

968

467A

44Q700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3533−7Assemblies include all parts shown in frames. 04/10/2007

363

1070

332

668

742

552

616

213

216

220

615

209

211 267

265

188

222

219

265

552A

404

552A

691

267A

1090

797

311

579

802

310

801

1051

783

513

309

510

697

267

165

726

1005

695

544

803

562

505

227

278

44Q700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3533−8Assemblies include all parts shown in frames. 04/10/2007

729

1054

851

334

635 333

501B

526B

877B

10 −16 AMP

474B

789A

789B

1059

578A

NOTE: All stators use a No. mounting screw.

1119

NOTE: The proper flywheel part number and/or the alternator magnet size will

determine the alternator type or output. See repair instruction manual

for additional information.

789E

789C

789A

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

44Q700

KIncluded in Engine Gasket Set−Ref. No.358.

DIncluded in Carburetor Overhaul Kit−Ref. No. 121.

ΔIncluded in Valve Gasket Set−Ref. No 1095.

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3533−9Assemblies include all parts shown in frames. 04/10/2007

1 793564 Cylinder Assembly

2 499585 Kit−Bushing/Seal

(Magneto Side)

3K391086s Seal−Oil

(Magneto Side)

4 699747 Sump−Engine

5 793558 Head−Cylinder

(Cylinder 1)

5A 793559 Head−Cylinder

(Cylinder 2)

7KΔ693997 Gasket−Cylinder Head

8 792185 Breather Assembly

9K690937 Gasket−Breather

10 691108 Screw

(Breather Assembly)

11 792184 Tube−Breather

12 K697227 Gasket−Crankcase

13 791130 Screw

(Cylinder Head)

15 690946 Plug−Oil Drain

16 790132 Crankshaft

−−−−−− Note −−−−−−

790136 Crankshaft

Used on Type No(s).

0025.

790132 Crankshaft

Used on Type No(s).

0026, 0111.

20 K791892 Seal−Oil

(PTO Side)

22 694966 Screw

(Crankcase

Cover/Sump)

23 691053 Flywheel

24 222698s Key−Flywheel

25 793560 Piston Assembly

(Standard)

−−−−−− Note −−−−−−

793563 Piston

Assembly

(.020” Oversize)

26 793561 Ring Set

(Standard)

−−−−−− Note −−−−−−

792073 Ring Set

(.020” Oversize)

27 690975 Lock−Piston Pin

28 690229 Pin−Piston

(Standard)

29 699699 Rod−Connecting

(Standard)

32 690976 Screw

(Connecting Rod)

33 793557 Valve−Exhaust

34 793556 Valve−Intake

35 694865 Spring−Valve

(Intake)

36 694865 Spring−Valve

(Exhaust)

42 499586 Keeper−Valve

45 690977 Tappet−Valve

46 792555 Camshaft

−−−−−− Note −−−−−−

793663 Camshaft

Used on Type No(s).

0111.

50 695241 Manifold−Intake

51A K791677 Gasket−Intake

53 690951 Stud

(Carburetor)

54 699816 Screw

(Intake Manifold)

73 494439 Screen−Rotating

74 698425 Screw

(Rotating Screen)

75 691056 Washer

(Flywheel)

95 690718 Screw

(Throttle Valve)

98 699721 Kit−Idle Speed

104 D694918 Pin−Float Hinge

105 D698537 Valve−Float Needle

108 699723 Valve−Choke

117 792296 Jet−Main

(Standard)

(Left)(Nikki)

117A 842627 Jet−Main

(Standard)

(Right)(Nikki)

118 699457 Jet−Main

(High Altitude)

(Left)(Nikki)

118A 699733 Jet−Main

(High Altitude)

(Right)(Nikki)

121 792455 Kit−Carburetor

Overhaul

125 792295 Carburetor

130 690993 Valve−Throttle

131 499805 Kit−Throttle Shaft

133 699724 Float−Carburetor

135 699729 Tube−Fuel Transfer

137 D690994 Gasket−Float Bowl

141 699722 Kit−Choke Shaft

142 699726 Nozzle−Carburetor

(Standard)

146 690979 Key−Timing

150 D690995 Gasket−Nozzle

163 KΔ691001 Gasket−Air Cleaner

165 693148 Nut

(Ring Gear)

187 791881 Line−Fuel

(Molded)

187A 791801 Line−Fuel

(Molded)

187B 791766 Line−Fuel

(Cut to Required

Length)

188 691108 Screw

(Control Bracket)

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

44Q700

KIncluded in Engine Gasket Set−Ref. No.358.

DIncluded in Carburetor Overhaul Kit−Ref. No. 121.

ΔIncluded in Valve Gasket Set−Ref. No 1095.

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3533−10 Assemblies include all parts shown in frames. 04/10/2007

192 690083 Adjuster−Rocker Arm

209 793340 Spring−Governor

(Orange)

(Used After Code Date

06081400).

Used on Type No(s).

0025, 0026, 0027.

−−−−−− Note −−−−−−

697674

Spring−Governor

(Brown)

(Used Before Code

Date 06081500).

Used on Type No(s).

0025, 0026, 0027.

793340

Spring−Governor

(Orange)

Used on Type No(s).

0111.

793342

Spring−Governor

(Used After Code Date

06081400).

(Dark Blue)

Used on Type No(s).

0505.

691018 Spring−

Governor

(No Color)

(Used Before Code

Date 06081500).

Used on Type No(s).

0505.

211 691019 Spring−Governed Idle

212 695238 Link−Throttle

213 691021 Bracket−Choke

Control

216 691022 Link−Choke

219 793338 Gear−Governor

(Used After Code Date

06081400).

−−−−−− Note −−−−−−

698231

Gear−Governor

(Used Before Code

Date 0608100).

220 690412 Washer

(Governor Gear)

222 698761 Bracket−Control

−−−−−− Note −−−−−−

698757

Bracket−Control

Used on Type No(s).

0884.

227 792492 Lever−Governor

Control

231 690718 Screw

(Choke Valve)

239 792028 Switch−Oil Pressure

−−−−−− Note −−−−−−

697049 Switch−Oil

Pressure

Used on Type No(s).

0111.

240 695666 Filter−Fuel

250 690957 Retainer−Breather

252 690956 Collector−Oil

265 691024 Clamp−Casing

267 691044 Screw

(Casing Clamp)

Used on Type No(s).

0025, 0027, 0111.

267A 695134 Screw

(Casing Clamp)

Used on Type No(s).

0026, 0505.

276 D695410 Washer−Sealing

278 792651 Washer

(Governor Control

Lever)

287 691108 Screw

(Dipstick Tube)

300 626226 Muffler

304 792301 Housing−Blower

305 691005 Screw

(Blower Housing)

305B 790690 Screw

(Blower Housing to

Intake Elbow)

309 499521 Motor−Starter

310 691263 Screw

(Starter Motor)

311 497608 Brush Set

332 691059 Nut

(Flywheel)

333 691060 Armature−Magneto

334 691061 Screw

(Magneto Armature)

337 491055s Plug−Spark

−−−−−− Note −−−−−−

691043 Plug−Spark

Used on Type No(s).

0505.

358A 694012 Gasket Set−Engine

363 19203 Puller−Flywheel

383 19374s Wrench−Spark Plug

385 691108 Screw

(Fuel Pump)

387 808656 Pump−Fuel

404 690442 Washer

(Governor Crank)

405A 697820 Screw

(Backplate)

415 690283 Plug

418 690999 Plate−Carburetor

431 792297 Elbow−Intake

445 792105 Filter−Air Cleaner

Cartridge

447 691003 Screw

(Air Guide Cover)

447A 691108 Screw

(Air Guide Cover)

467A 790697 Knob−Air Cleaner

474B 696458 Alternator

(10−16 Amp

Regulated)

501B 691185 Regulator

(10−16 Amp

Regulated)

Otros manuales de Motor de Briggs & Stratton

Briggs & Stratton

Briggs & Stratton 080000 Manual de usuario

Briggs & Stratton

Briggs & Stratton Vanguard EFI 380000 Instrucciones de funcionamiento

Briggs & Stratton

Briggs & Stratton 42A700 Series Manual de instalación y operación

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Manual de usuario

Briggs & Stratton

Briggs & Stratton 28W700 Series Guía de configuración

Briggs & Stratton

Briggs & Stratton 126600 Manual de usuario

Briggs & Stratton

Briggs & Stratton 272147 Instrucciones de funcionamiento

Briggs & Stratton

Briggs & Stratton 12J800 Series Guía de configuración

Briggs & Stratton

Briggs & Stratton 356400 Series Guía de configuración

Briggs & Stratton

Briggs & Stratton 150000 HORIZONTAL SERIES Manual de usuario

Briggs & Stratton

Briggs & Stratton 120000 Manual de funcionamiento

Briggs & Stratton

Briggs & Stratton 205300 Series Guía de configuración

Briggs & Stratton

Briggs & Stratton 90000 series Manual de usuario

Briggs & Stratton

Briggs & Stratton DOV InStart 100600 Manual de usuario

Briggs & Stratton

Briggs & Stratton Professional Series 775 Series 110000 Manual de usuario

Briggs & Stratton

Briggs & Stratton 310000 Intek Manual de usuario

Briggs & Stratton

Briggs & Stratton 490000 Manual de usuario

Briggs & Stratton

Briggs & Stratton 215800 Series Guía de configuración

Briggs & Stratton

Briggs & Stratton 133200 Series Manual de instalación y operación

Briggs & Stratton

Briggs & Stratton Vanguard 350000 Manual de usuario

Briggs & Stratton

Briggs & Stratton 120000 Manual de instalación y operación

Briggs & Stratton

Briggs & Stratton 90000 series Manual de usuario

Briggs & Stratton

Briggs & Stratton 309006 00A Series Manual de usuario

Briggs & Stratton

Briggs & Stratton 280000 Series Manual de instalación y operación

Manuales populares de Motor de otras marcas

Rotax

Rotax 125 senior MAX evo Manual de usuario

Kohler

Kohler K361 Manual de usuario

MTD

MTD OHV Series Manual de usuario

Kohler

Kohler COMMAND CH18-745 Manual de usuario

Mercury

Mercury D4.2L D-Tronic Manual de usuario

Selve

Selve SE Plus-RC Series Manual de usuario

Perkins

Perkins 1206E-E66TA Manual de usuario

Skov

Skov DA 174 Manual

Rossi

Rossi TX11 Series Manual de usuario

Siemens

Siemens SIMOTICS T-1FW3 Hoja de instrucciones

AL-KO

AL-KO PRO 350 Manual de usuario

MTU

MTU 12 V 4000 Lx4 Manual de usuario

Nanni

Nanni N3.30 Manual de instrucciones

Nanni

Nanni N5.160 CR2 Manual de usuario

KSB

KSB SuPreme Series Instrucciones de instalación

Hiwin

Hiwin EM1 Series Manual de usuario

Rotax

Rotax 912 i series Instrucciones de funcionamiento

Siemens

Siemens SIMOTICS XP 1MB1 Manual de usuario
