in any form or by any means, electronic or mechanical, including photocopying,

recording or by any information storage and retrieval system, without permission

in writing from Briggs & Stratton Corporation.

PRINTED IN U.S.A.

FORM MS--3346--12/18/2008

REPLACES FORM MS--3346--05/13/2008

FILE IN SECT. 2 OF SERVICE MANUAL

445600

Illustrated Parts List

Model Series

445600

TYPE NUMBERS

0110 through 1274.

TABLE OF CONTENTS

Air Cleaner 6.........................

Alternator 8..........................

Blower Housing 6.....................

Camshaft 2...........................

Carburetor 5..........................

Controls 7............................

Crankshaft 2..........................

Cylinder 2............................

Cylinder Head 4.......................

Electric Starter 7......................

Engine Sump 3.......................

Exhaust System 7.....................

Flywheel 7............................

Fuel Supply 6.........................

Gasket Set -- Engine 5.................

Gasket Set -- Valve 4..................

Governor Spring 7....................

Ignition 8.............................

Kit -- Carburetor Overhaul 5............

Lubrication 2.........................

Piston, Rings, Connecting Rod 2.......

Valves 4..............................

Not for

Reproduction

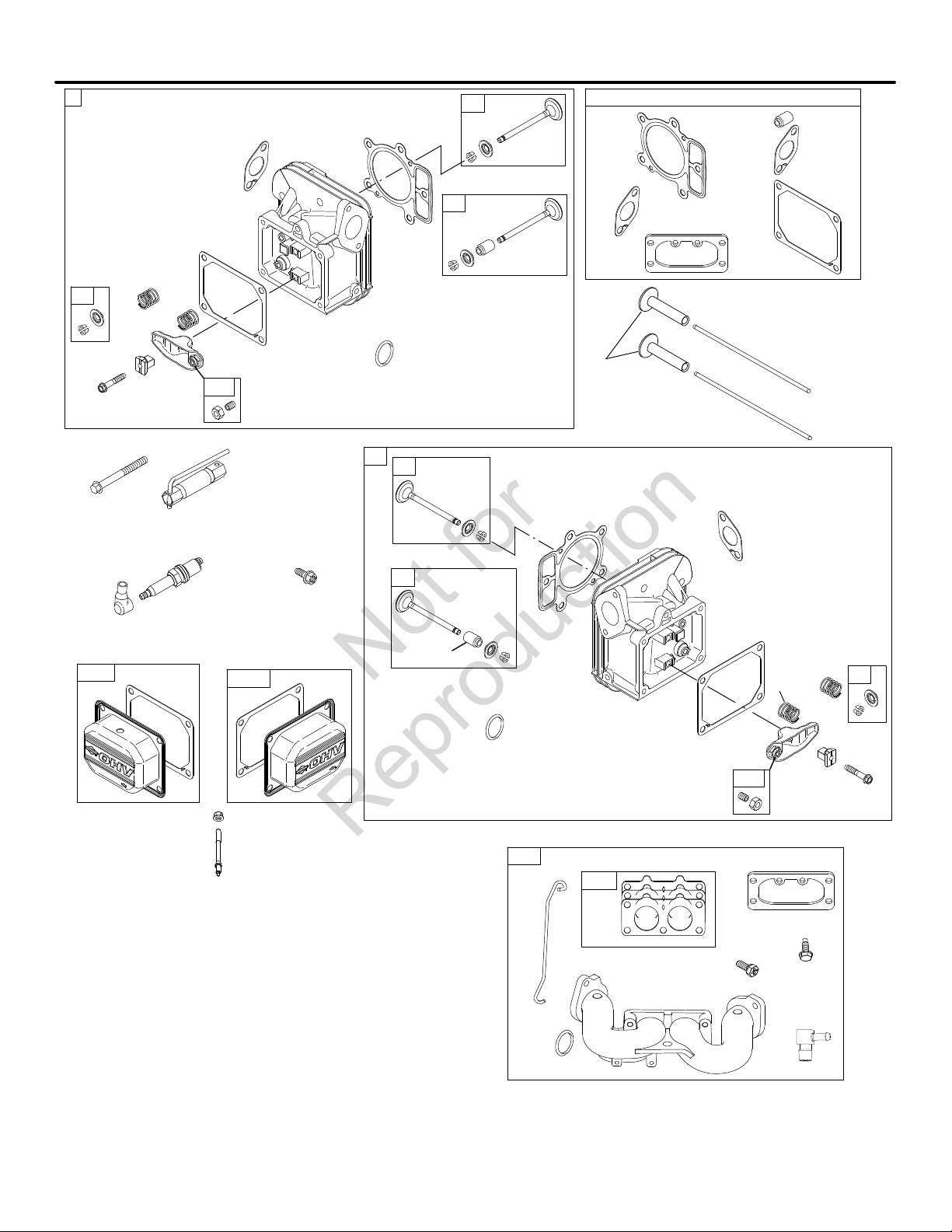

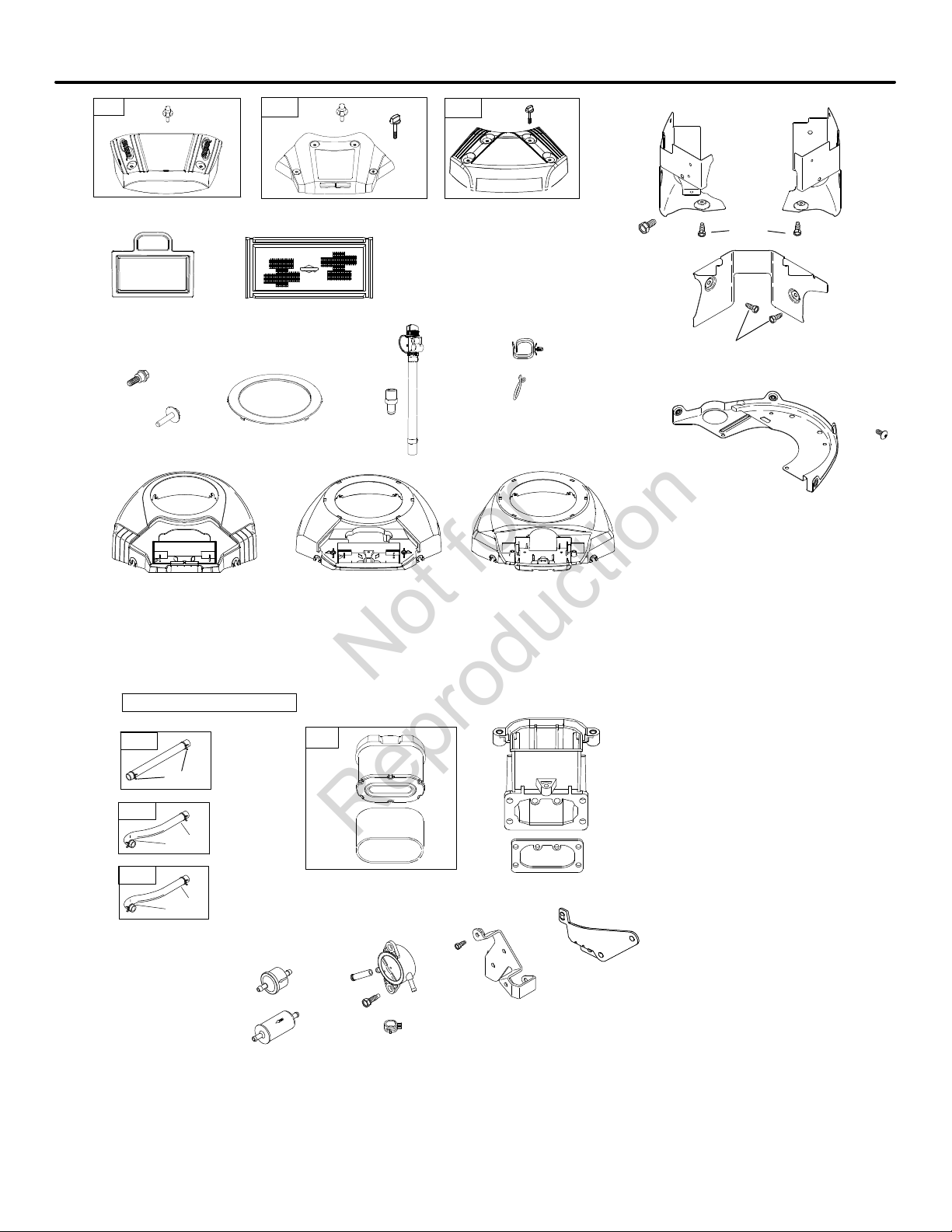

445600

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3346--2 Assemblies include all parts shown in frames. 12/18/2008

252

718

250

718

741

146

287

842

524

523

525

847

1330 REPAIR MANUAL

1058 OPERATOR’S MANUAL

1319 WARNING LABEL

REQUIRED when replacing parts

with warning labels affixed.

850

Not for

Reproduction

445600

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3346--3 Assemblies include all parts shown in frames. 12/18/2008

415

1013

691 552

1017

943

750

1035

965 1027

239

1024A

15A

415

1013

552A

15A

552

691

404

742

616

1017A

1024B

965A

943A

750B

Not for

Reproduction

445600

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3346--4 Assemblies include all parts shown in frames. 12/18/2008

654

337

635

383

798

192

1022

1100

1029

868

798

883

1022

1100

1029

36 35

868

192

1023A

1023

1022

868

1095 VALVE GASKET SET

163

883

1022

1026

1026A

914

617

51E

50A

929

212

163

617

186

51A

Not for

Reproduction

445600

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3346--5 Assemblies include all parts shown in frames. 12/18/2008

276A

1127

137

104

987

150

1128

105

1126

1124

160

1123

276A

672

418

163

135

130

947

125

975

133

131

142

276

117A117

142

51E

1342A

1123

121 CARBURETOR OVERHAUL KIT

104

105

137

987

633

1123

276A

672

1124

150

276A

1123A

163

118A118

51A

633

108

231

141 217

1123A

883

943

1022

358A ENGINE GASKET SET

868

842

691

524

276

163

51E

51A

943A

Not for

Reproduction

445600

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3346--6 Assemblies include all parts shown in frames. 12/18/2008

163

1036 EMISSIONS LABEL

431B

918

387 628

788

240

385

788A

467A 467

968A 968C 467

967

445

304 304A

1040

305

305B

447

865 865A

447A

865B

447A

573 405A

512

186A

968 467A

304C

445B

967B

240A

601

187D

601

187E

187A

601A

703

729

Not for

Reproduction

445600

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3346--7 Assemblies include all parts shown in frames. 12/18/2008

363

1070

332

1005

668

165

695

726

742

552

616

213

216

220

615

209

211

265

188

222

219

265

552A

404

552A

691

1090

797

311

579

802

310

801

1051

783

513

309

510

697

188

300

883

613

613A

267

271

269 268

270

562

505

227

278

267A

267B

Not for

Reproduction

445600

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3346--8 Assemblies include all parts shown in frames. 12/18/2008

1119

851

334

635 333

789A

789B

789A

1054

NOTE: All stators use a No. mounting screw.

1119

NOTE: The proper flywheel part number and/or the alternator magnet size will

determine the alternator type or output. See repair instruction manual

for additional information. 501A

526A

578A

474C 474A

877A877C

DUAL

CIRCUIT TRI CIRCUIT

501B

526B

877B

10 -- 16 AMP

474B1059 1059 1059

578A

789C

Not for

Reproduction

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

445600

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3346--9 Assemblies include all parts shown in frames. 12/18/2008

1 793564 Cylinder Assembly

2 499585 Kit--Bushing/Seal

(Magneto Side)

3 391086s Seal--Oil

(Magneto Side)

4 699747 Sump--Engine

4B 796307 Sump--Engine

Used on Type No(s).

0127, 0128, 1113,

1188, 1198, 1199,

1201, 1262, 1274.

5 792299 Head--Cylinder

(Cylinder #1)

-- -- -- -- -- -- N o t e -- -- -- -- -- --

796632 Head--Cylinder

(Cylinder #1)

Used on Type No(s).

0127, 0128, 1113,

1188, 1198, 1199,

1201, 1262.

5A 792300 Head--Cylinder

(Cylinder #2)

-- -- -- -- -- -- N o t e -- -- -- -- -- --

796633 Head--Cylinder

(Cylinder #2)

Used on Type No(s).

0127, 0128, 1113,

1188, 1198, 1199,

1201, 1262.

7 693997 Gasket--Cylinder Head

8 792185 Breather Assembly

9 690937 Gasket--Breather

10 691108 Screw

(Breather Assembly)

11 792184 Tube--Breather

12 697227 Gasket--Crankcase

13 791130 Screw

(Cylinder Head)

-- -- -- -- -- -- N o t e -- -- -- -- -- --

793988 Screw

(Cylinder Head)

Used on Type No(s).

0127, 0128, 1113,

1188, 1198, 1199,

1201, 1262.

15 691680 Plug--Oil Drain

16 699700 Crankshaft

-- -- -- -- -- -- N o t e -- -- -- -- -- --

790132 Crankshaft

Used on Type No(s).

0476, 0759, 1145.

796256 Crankshaft

Used on Type No(s).

0127, 1201.

796237 Crankshaft

Used on Type No(s).

0128, 1113, 1188,

1198.

20 795387 Seal--Oil

(PTO Side)

22 694966 Screw

(Crankcase

Cover/Sump)

23 691053 Flywheel

-- -- -- -- -- -- N o t e -- -- -- -- -- --

691054 Flywheel

Used on Type No(s).

0128, 0827, 1188,

1274.

24 222698s Key--Flywheel

25 792023 Piston Assembly

(Standard)

-- -- -- -- -- -- N o t e -- -- -- -- -- --

792072 Piston

Assembly

(.020” Oversize)

26 792026 Ring Set

(Standard)

(Used After Code Date

05071800).

-- -- -- -- -- -- N o t e -- -- -- -- -- --

694004 Ring Set

(Standard)

(Used Before Code

Date 05071900).

792073 Ring Set

(.020” Oversize)

(Used After Code Date

05071800).

694008 Ring Set

(.020” Oversize)

(Used Before Code

Date 05071900).

27 690975 Lock--Piston Pin

28 690229 Pin--Piston

(Standard)

-- -- -- -- -- -- N o t e -- -- -- -- -- --

696581 Pin--Piston

(Standard)

Used on Type No(s).

0127, 0128, 1113,

1188, 1198, 1199,

1201, 1262.

29 699699 Rod--Connecting

(Standard)

-- -- -- -- -- -- N o t e -- -- -- -- -- --

796209 Rod--

Connecting

(Standard)

Used on Type No(s).

0127, 0128, 1113,

1188, 1198, 1199,

1201, 1262.

32 690976 Screw

(Connecting Rod)

Not for

Reproduction

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

445600

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3346--10 Assemblies include all parts shown in frames. 12/18/2008

33 697576 Valve--Exhaust

-- -- -- -- -- -- N o t e -- -- -- -- -- --

499596 Valve--Exhaust

Used on Type No(s).

0127, 0128, 1113,

1188, 1198, 1199,

1201, 1262.

34 792220 Valve--Intake

35 694865 Spring--Valve

(Intake)

36 694865 Spring--Valve

(Exhaust)

42 499586 Keeper--Valve

45 690977 Tappet--Valve

46 792555 Camshaft

(Used After Code Date

06081300).

-- -- -- -- -- -- N o t e -- -- -- -- -- --

790562 Camshaft

(Used Before Code

Date 06081400).

50A 695241 Manifold--Intake

51A 795123 Gasket--Intake

51E 690949 Gasket--Intake

53 690951 Stud

(Carburetor)

54 699816 Screw

(Intake Manifold)

73 494439 Screen--Rotating

74 698425 Screw

(Rotating Screen)

75 691056 Washer

(Flywheel)

95 690718 Screw

(Throttle Valve)

98 699721 Kit--Idle Speed

104 694918 Pin--Float Hinge

105 698537 Valve--Float Needle

108 699723 Valve--Choke

117 791501 Jet--Main

(Standard)

(Left)(Nikki)

-- -- -- -- -- -- N o t e -- -- -- -- -- --

792296 Jet--Main

(Standard)

(Left)(Nikki)

Used on Type No(s).

1188, 1199, 1274.

117A 791502 Jet--Main

(Standard)

(Right)(Nikki)

-- -- -- -- -- -- N o t e -- -- -- -- -- --

842627 Jet--Main

(Standard)

(Right)(Nikki)

Used on Type No(s).

1188, 1199, 1274.

118 695415 Jet--Main

(High Altitude)

(Left)(Nikki)

-- -- -- -- -- -- N o t e -- -- -- -- -- --

699457 Jet--Main

(High Altitude)

(Left)(Nikki)

Used on Type No(s).

1188, 1199, 1274.

118A 843099 Jet--Main

(High Altitude)

(Right)(Nikki)

-- -- -- -- -- -- N o t e -- -- -- -- -- --

699733 Jet--Main

(High Altitude)

(Right)(Nikki)

Used on Type No(s).

1188, 1199, 1274.

121 792455 Kit--Carburetor

Overhaul

125 791230 Carburetor

-- -- -- -- -- -- N o t e -- -- -- -- -- --

796227 Carburetor

Used on Type No(s).

1188, 1199, 1274.

130 690993 Valve--Throttle

131 499805 Kit--Throttle Shaft

133 699724 Float--Carburetor

135 699729 Tube--Fuel Transfer

137 Dz690994 Gasket--Float Bowl

141 699722 Kit--Choke Shaft

-- -- -- -- -- -- N o t e -- -- -- -- -- --

796228 Kit--Choke

Shaft

Used on Type No(s).

0128, 1188, 1198,

1199, 1201, 1274.

142 699726 Nozzle--Carburetor

(Standard)

146 690979 Key--Timing

150 D690995 Gasket--Nozzle

160 699727 Retainer--Solenoid

163 K∆691001 Gasket--Air Cleaner

165 693148 Nut

(Ring Gear)

186 795985 Hose--Connector

186A 796532 Hose--Connector

187A 791766 Line--Fuel

(Cut to Required

Length)

187D 791744 Line--Fuel

(Formed)(Cut to

Required Length)

187E 797801 Line--Fuel

(Formed)(Cut to

Required Length)

188 691108 Screw

(Control Bracket)

Not for

Reproduction

Tabla de contenidos

Otros manuales de Motor de Briggs & Stratton

Briggs & Stratton

Briggs & Stratton 190000 Series Manual de usuario

Briggs & Stratton

Briggs & Stratton 128800 Series Guía de configuración

Briggs & Stratton

Briggs & Stratton 90000 series Manual de instalación y operación

Briggs & Stratton

Briggs & Stratton 700 DOV Series Instrucciones de funcionamiento

Briggs & Stratton

Briggs & Stratton Classic 100000 Series Manual de usuario

Briggs & Stratton

Briggs & Stratton 101120 Series Manual de instalación y funcionamiento

Briggs & Stratton

Briggs & Stratton Vanguard 290000 Manual de usuario

Briggs & Stratton

Briggs & Stratton Vanguard 540000 Series Manual de usuario

Briggs & Stratton

Briggs & Stratton 490000 - REV A Manual de usuario

Briggs & Stratton

Briggs & Stratton 090600 Manual de usuario

Briggs & Stratton

Briggs & Stratton VH-300 Manual de instrucciones

Briggs & Stratton

Briggs & Stratton 277110TRI Manual de usuario

Briggs & Stratton

Briggs & Stratton 133400 Manual de instalación y operación

Briggs & Stratton

Briggs & Stratton Intek 825 Series Manual de usuario

Briggs & Stratton

Briggs & Stratton 83100 Manual de usuario

Briggs & Stratton

Briggs & Stratton 110400 Instrucciones de instalación

Briggs & Stratton

Briggs & Stratton VANGUARD Series Manual de instalación y operación

Briggs & Stratton

Briggs & Stratton PROFESSIONAL SERIES 110000 Manual

Briggs & Stratton

Briggs & Stratton Classic 100000 Series Manual de instalación y operación

Briggs & Stratton

Briggs & Stratton 110400 Manual de instalación y operación

Briggs & Stratton

Briggs & Stratton Vanguard 540000 Series Manual de usuario

Briggs & Stratton

Briggs & Stratton Vanguard 290000 Manual de instalación y operación

Briggs & Stratton

Briggs & Stratton Sno/Gard 170400 Series Manual de funcionamiento

Briggs & Stratton

Briggs & Stratton 310000 VERTICAL SERIES Manual de usuario

Manuales populares de Motor de otras marcas

Rotax

Rotax 125 senior MAX evo Manual de usuario

Kohler

Kohler K361 Manual de usuario

MTD

MTD OHV Series Manual de usuario

Kohler

Kohler COMMAND CH18-745 Manual de usuario

Mercury

Mercury D4.2L D-Tronic Manual de usuario

Selve

Selve SE Plus-RC Series Manual de usuario

Perkins

Perkins 1206E-E66TA Manual de usuario

Skov

Skov DA 174 Manual

Rossi

Rossi TX11 Series Manual de usuario

Siemens

Siemens SIMOTICS T-1FW3 Hoja de instrucciones

AL-KO

AL-KO PRO 350 Manual de usuario

MTU

MTU 12 V 4000 Lx4 Manual de usuario

Nanni

Nanni N3.30 Manual de instrucciones

Nanni

Nanni N5.160 CR2 Manual de usuario

KSB

KSB SuPreme Series Instrucciones de instalación

Hiwin

Hiwin EM1 Series Manual de usuario

Rotax

Rotax 912 i series Instrucciones de funcionamiento

Siemens

Siemens SIMOTICS XP 1MB1 Manual de usuario
