31Q700

Illustrated Parts List

Model Series

31Q700

TYPE NUMBERS

0036 Through 0592.

TABLE OF CONTENTS

Air Cleaner 5.........................

Alternator 7..........................

Blower Housing 5.....................

Camshaft 2...........................

Carburetor 4..........................

Controls 7............................

Crankshaft 2..........................

Cylinder 2............................

Cylinder Head 3.......................

Electric Starter 7......................

Engine Sump 2.......................

Exhaust System 6.....................

Flywheel 6............................

Fuel Supply 4.........................

Gasket Set -- Engine 2.................

Gasket Set -- Valve 3..................

Governor Spring 7....................

Ignition 7.............................

Kit -- Carburetor Overhaul 4............

Lubrication 3.........................

Operator’s Manual 2..................

Piston, Rings, Connecting Rod 2.......

Valves 3..............................

Warning Label 2......................

Not for

Reproduction

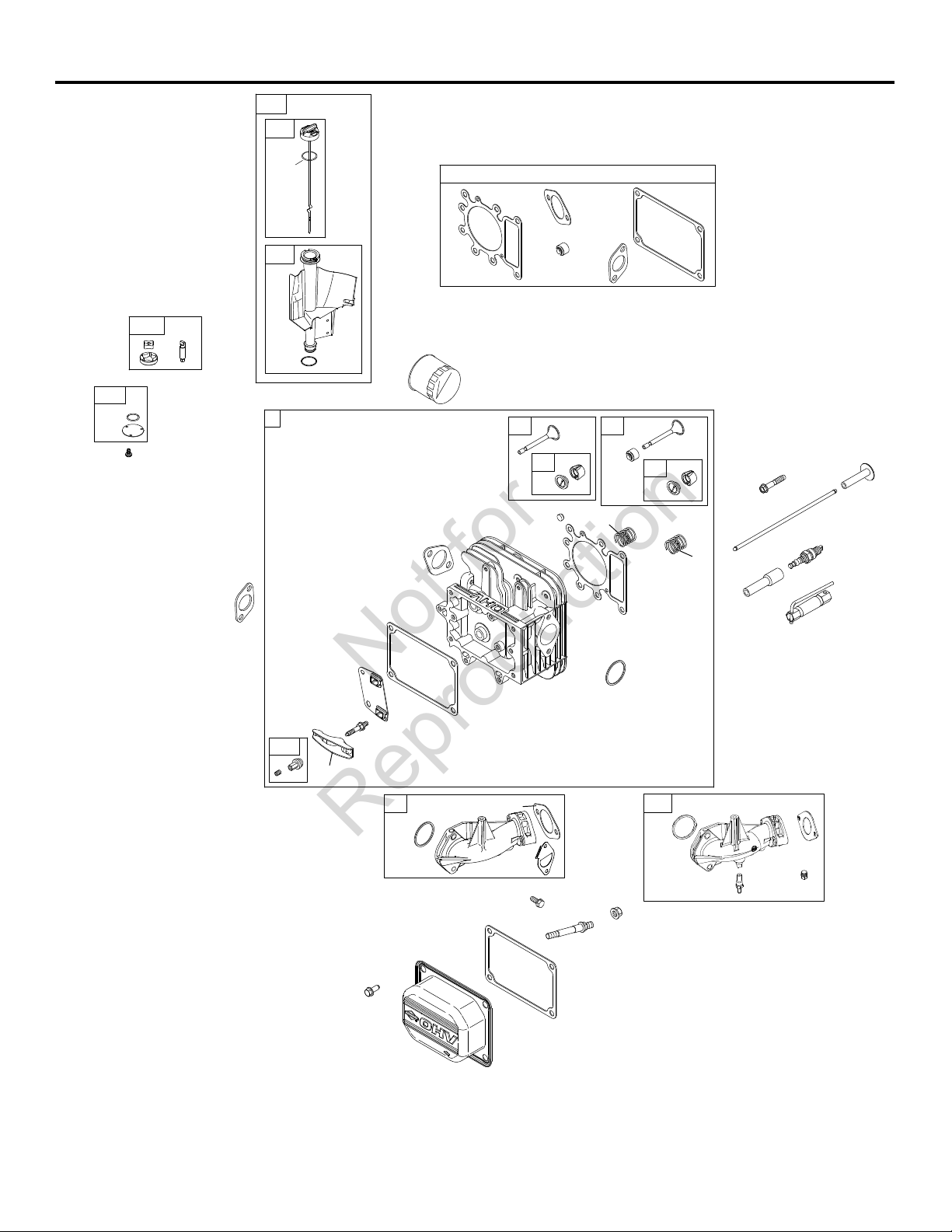

31Q700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5767--2 Assemblies include all parts shown in frames. 10/13/2008

29 32

307

306

718

691

552

10 11

584

1263

1264

1270

758

759

757

741

146

1017

415

239

1058 OPERATOR’S MANUAL 1319 WARNING LABEL

REQUIRED when replacing parts

with warning labels affixed.

850

358 ENGINE GASKET SET

524

1022

943

868

842

691

617

1266

883

51A 1266A

Not for

Reproduction

31Q700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5767--3 Assemblies include all parts shown in frames. 10/13/2008

617

830

1034

1022

238 36

868

1029

534

192

1027

383

337

635

1026

1022

1023

914

1022

868

1095 VALVE GASKET SET

654

847

523

842

525

524

750

943

965

883

1024A

50D 51

617

186 415

883

51A

Not for

Reproduction

31Q700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5767--4 Assemblies include all parts shown in frames. 10/13/2008

133

276

137

104

105

142 1091

987

130

947

975

125A

141

131

LMT / PART

NUMBER

LOCATIONS

108

117

106

121 CARBURETOR OVERHAUL KIT

977 CARBURETOR GASKET SET

51 137 276

104

105

106

137

142

987

634

276

127

1266A

1266

617

950

431 1266A

1266

240

692

385

387 385A

918

601

187

601

118

344

WALBRO

187

601

240A

104A

105A

634B

987A

95A

130A

NIKKI

98A

133A

94A

117A

141B

131A

127A

108B 118A

634

135

137A

1127

975A

137A

276A

1266

431A

276A

947A

1091

121A CARBURETOR OVERHAUL KIT

95A

104A

105A

127A

987A

634B

137A

617

633

98A

1266A

1266

51A

276A

387A

773

1139

Not for

Reproduction

31Q700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5767--5 Assemblies include all parts shown in frames. 10/13/2008

445

1267

967

305

643

968

304D

305A

1036 EMISSIONS LABEL

1265

1279

1040A

1040B

1265A

445A

967A

968A

304A

305B

1040

304 1267

967

643

968

445 187D

601

187A

601

773

1139

773

1139

187D

601

187A

601

304B

Not for

Reproduction

31Q700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5767--6 Assemblies include all parts shown in frames. 10/13/2008

783

1051

1070

363

1005B

1044

1005

415A

1070

73B

73A

668A

613

613B

883

864

883

300A

823

613

677

676

Not for

Reproduction

31Q700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5767--7 Assemblies include all parts shown in frames. 10/13/2008

356

851

334

333

1054

729

789B

216 202

232

268

269

271

270

267

265

209

222

188

616

404

614

562

505

227

559

697

729A

1051

510

513

783

802

462

579

503

310

803

544

801

309

1090 311

797

789

521

NOTE: All stators use a No. mounting screw.

1119

NOTE: The proper flywheel part number and/or the alternator magnet size will

determine the alternator type or output. See repair instruction manual

for additional information.

729B

501

526

878 578

474B 474D

877C

877

DUAL

CIRCUIT 10 AMP

1059 1059

878A

474C

877B

TRI

CIRCUIT

501A 526

5/9 AMP

REGULATED

1059

10/16 AMP

REGULATED

789A

Not for

Reproduction

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

31Q700

KIncluded in Engine Gasket Set--Ref. No.358.

DIncluded in Carburetor Overhaul Kit--Ref. No. 121 or 121A.

zIncluded in Carburetor Gasket Set--Ref. No. 977.

∆Included in Valve Gasket Set--Ref. No 1095.

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5767--8 Assemblies include all parts shown in frames. 10/13/2008

1 796010 Cylinder Assembly

-- -- -- -- -- -- N o t e -- -- -- -- -- --

796010 Cylinder

Assembly

(Used Before Code

Date 08042800)

Must Be Used With

The After 08042700

Cylinder Shield, Ref

306.

2 399265 Kit--Bushing/Seal

(Magneto Side)

3K391086s Seal--Oil

(Magneto Side)

4A 697188 Sump--Engine

(Used After Code Date

05100200).

-- -- -- -- -- -- -- N o t e -- -- -- -- --

795938 Sump--Engine

(Used Before Code

Date 05100300).

(Must Use Kit 795938,

Includes Sump And

Counterweight).

5K796025 Head--Cylinder

(Used After Code Date

08042700).

-- -- -- -- -- -- N o t e -- -- -- -- -- --

794223 Head--Cylinder

(Used Before Code

Date 08042800).

6 690310 Washer

(Used After Code Date

07070900).

7K∆794114 Gasket--Cylinder Head

9K697109 Gasket--Breather

(Used Before Code

Date 07071900).

(After Date Code Use

Liquid Sealant

Reference 850)

10 697157 Screw

(Breather Assembly)

11 794683 Tube--Breather

(Used After Code Date

07071800).

-- -- -- -- -- -- N o t e -- -- -- -- -- --

697113 Tube--Breather

(Used Before Code

Date 07071900).

12 K697110 Gasket--Crankcase

13 793988 Screw

(Cylinder Head)

(Used After Code Date

07010900).

-- -- -- -- -- -- -- N o t e -- -- -- -- --

690360Screw

(Cylinder Head)

(Used Before Code

Date 07011000).

15 690946 Plug--Oil Drain

(Square Head)

-- -- -- -- -- -- N o t e -- -- -- -- -- --

691680 Plug--Oil Drain

(Square Socket)

16 793410 Crankshaft

20 K690947 Seal--Oil

(PTO Side)

22 692125 Screw

(Crankcase

Cover/Sump)

23 693556 Flywheel

Used on Type No(s).

0215, 0298.

-- -- -- -- -- -- N o t e -- -- -- -- -- --

693557 Flywheel

Used on Type No(s).

0215, 0298.

24 222698s Key--Flywheel

25 796172 Piston Assembly

(Standard)

(Used After Code Date

08042700).

-- -- -- -- -- -- N o t e -- -- -- -- -- --

791937 Piston

Assembly

(Standard)

(Used Before Code

Date 08042800).

796173 Piston

Assembly

(.020” Oversize)

(Used After Code Date

08042700).

793019 Piston

Assembly

(.020” Oversize)

(Used Before Code

Date 08042800).

26 791936 Ring Set

(Standard)

-- -- -- -- -- -- N o t e -- -- -- -- -- --

792649 Ring Set

(.020” Oversize)

27 698469 Lock--Piston Pin

28 796007 Pin--Piston

(Standard)

(Used After Code Date

08042700).

-- -- -- -- -- -- N o t e -- -- -- -- -- --

697099 Pin--Piston

(Standard)

(Used Before Code

Date 08042800).

29 794571 Rod--Connecting

(Standard)

-- -- -- -- -- -- N o t e -- -- -- -- -- --

697264 Rod--

Connecting

(.020” Undersize)

(Used Before Code

Date 05040400).

32 791118 Screw

(Connecting Rod)

33 792868 Valve--Exhaust

(Used After Code Date

06011900).

-- -- -- -- -- -- N o t e -- -- -- -- -- --

698370 Valve--Exhaust

(Used Before Code

Date 06012000).

34 791935 Valve--Intake

(Used After Code Date

06011900).

-- -- -- -- -- -- N o t e -- -- -- -- -- --

695761 Valve--Intake

(Used Before Code

Date 06012000).

35 691279 Spring--Valve

(Intake)

36 691279 Spring--Valve

(Exhaust)

37 699832 Guard--Flywheel

-- -- -- -- -- -- N o t e -- -- -- -- -- --

697352 Guard--

Flywheel

Used on Type No(s).

0113.

Not for

Reproduction

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

31Q700

KIncluded in Engine Gasket Set--Ref. No.358.

DIncluded in Carburetor Overhaul Kit--Ref. No. 121 or 121A.

zIncluded in Carburetor Gasket Set--Ref. No. 977.

∆Included in Valve Gasket Set--Ref. No 1095.

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5767--9 Assemblies include all parts shown in frames. 10/13/2008

42 499586 Keeper--Valve

43 691968 Slinger--Governor/Oil

45 690564 Tappet--Valve

46 793880 Camshaft

50 690193 Manifold--Intake

50D 699029 Manifold--Intake

Used on Type No(s).

0036G1, 0136G1.

51K∆Dz692137Gasket--Intake

53 690227 Stud

(Carburetor)

54 691148 Screw

(Intake Manifold)

73 796309 Screen--Rotating

-- -- -- -- -- -- N o t e -- -- -- -- -- --

796308 Screen--

Rotating

(Used After Code Date

08082600).

Used on Type No(s).

0113.

796309 Screen--

Rotating

(Used After Code Date

08082600).

Used on Type No(s).

0115, 0116, 0136,

0592.

73A 494439 Screen--Rotating

73B 794437 Screen--Rotating

(Used Before Code

Date 08082700).

Used on Type No(s).

0113.

-- -- -- -- -- -- N o t e -- -- -- -- -- --

794357 Screen--

Rotating

(Used Before Code

Date 08082700).

Used on Type No(s).

0115, 0116, 0136,

0592.

74 691674 Screw

(Rotating Screen)

78 691003 Screw

(Flywheel Guard)

81 691178 Lock--Muffler Screw

93 D690602 Bushing--Throttle Shaft

94 498030 Kit--Idle Mixture

94A 793610 Kit--Idle Mixture

95 D691636 Screw

(Throttle Valve)

95A D690718 Screw

(Throttle Valve)

98 495800 Kit--Idle Speed

98A 695408 Kit--Idle Speed

104 D690525 Pin--Float Hinge

104A D694918 Pin--Float Hinge

105 D231855s Valve--Float Needle

105A D696136 Valve--Float Needle

106 D690577 Seat--Inlet

(Gravity Feed)

-- -- -- -- -- -- N o t e -- -- -- -- -- --

D691780 Seat--Inlet

(Pump Feed)

108 692344 Valve--Choke

108B 695419 Valve--Choke

117 694352 Jet--Main

(Standard)

117A 843099 Jet--Main

(Standard)

(Used After Code Date

08042700).

Used on Type No(s).

0215.

-- -- -- -- -- -- N o t e -- -- -- -- -- --

699732 Jet--Main

(Standard)

(Used Before Code

Date 08042800).

Used on Type No(s).

0215.

843099 Jet--Main

(Standard)

(Used After Code Date

08051300).

Used on Type No(s).

0036, 0113, 0115,

0119, 0136.

699732 Jet--Main

(Standard)

(Used Before Code

Date 08051400).

Used on Type No(s).

0036, 0113, 0115,

0136.

699732 Jet--Main

(Standard)

118 697228 Jet--Main

(High Altitude)

118A 790890 Jet--Main

(High Altitude)

(Used After Code Date

08042700).

Used on Type No(s).

0215.

-- -- -- -- -- -- N o t e -- -- -- -- -- --

843099 Jet--Main

(High Altitude)

(Used Before Code

Date 08042800).

Used on Type No(s).

0215.

790890 Jet--Main

(High Altitude)

(Used After Code Date

08051300).

Used on Type No(s).

0036, 0113, 0115,

0119, 0136.

843099 Jet--Main

(High Altitude)

(Used Before Code

Date 08051400).

Used on Type No(s).

0036, 0113, 0115,

0136.

843099 Jet--Main

(High Altitude)

121 697241 Kit--Carburetor

Overhaul

(Walbro)

121A 699521 Kit--Carburetor

Overhaul

(Nikki)

Not for

Reproduction

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

31Q700

KIncluded in Engine Gasket Set--Ref. No.358.

DIncluded in Carburetor Overhaul Kit--Ref. No. 121 or 121A.

zIncluded in Carburetor Gasket Set--Ref. No. 977.

∆Included in Valve Gasket Set--Ref. No 1095.

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5767--10 Assemblies include all parts shown in frames. 10/13/2008

125A 796109 Carburetor

(Nikki)(Gravity Feed)

(Used After Code Date

08042700).

Used on Type No(s).

0215.

-- -- -- -- -- -- N o t e -- -- -- -- -- --

792358 Carburetor

(Nikki)(Gravity Feed)

(Used Before Code

Date 08042800).

Used on Type No(s).

0215.

796109 Carburetor

(Nikki)(Gravity Feed)

(Used After Code Date

08051300).

Used on Type No(s).

0036, 0113, 0115,

0119, 0136.

792358 Carburetor

(Nikki)(Gravity Feed)

(Used Before Code

Date 08051400).

Used on Type No(s).

0036, 0113, 0115,

0136.

792358 Carburetor

(Nikki)(Gravity Feed)

127 695005 Plug--Welch

127A D690727 Plug--Welch

130 691750 Valve--Throttle

130A 699500 Valve--Throttle

131 790901 Kit--Throttle Shaft

131A 699501 Kit--Throttle Shaft

133 494381 Float--Carburetor

133A 694914 Float--Carburetor

135 698780 Tube--Fuel Transfer

(Nikki)(Gravity Feed)

-- -- -- -- -- -- N o t e -- -- -- -- -- --

792022 Tube--Fuel

Transfer

(Nikki)(Pump Feed)

137Dz281165s Gasket--Float Bowl

137A D698781 Gasket--Float Bowl

141 790902 Kit--Choke Shaft

141B 695420 Kit--Choke Shaft

142 D697140 Nozzle--Carburetor

(Standard)

146 691639 Key--Timing

186 794873 Hose--Connector

187 791805 Line--Fuel

(Formed)

(10--1/4 Inches

Long)(Cut to Required

Length)

187A 791806 Line--Fuel

(Formed)

(21 Inches Long)(Cut

to Required Length)

187D 791744 Line--Fuel

(Formed)

(14 Inches Long)(Cut

to Required Length)

188 691693 Screw

(Control Bracket)

192 691986 Adjuster--Rocker Arm

202 691841 Link--Mechanical

Governor

209 692208 Spring--Governor

-- -- -- -- -- -- N o t e -- -- -- -- -- --

792602 Spring--

Governor

Used on Type No(s).

0112, 0113, 0115,

0116, 0117, 0119.

216 691840 Link--Choke

222 694042 Bracket--Control

227 691374 Lever--Governor

Control

232 691842 Spring--Governor Link

238 691843 Cap--Valve

239 697049 Switch--Oil Pressure

Used on Type No(s).

0112, 0115, 0116,

0117, 0119, 0136,

0592.

240 394358s Filter--Fuel

(White, 75 Microns)

Used on Type No(s).

0215.

240A 691035 Filter--Fuel

(Includes 30 Micron

Paper Element)

Used on Type No(s).

0036, 0110, 0112,

0113, 0115, 0116,

0117, 0119, 0136,

0298, 0305, 0466,

0592.

265 691024 Clamp--Casing

267 794904 Screw

(Casing Clamp)

268 691025 Casing--Control Wire

(Cut To Required

Length)

269 691026 Wire--Control

(Cut To Required

Length)

270 691027 Nut

(Control Wire Casing)

271 691028 Lever--Control

276 Dz692255 Washer--Sealing

276A 695410 Washer--Sealing

300A 795997 Muffler

(Used After Code Date

08042700).

Used on Type No(s).

0110, 0112, 0115.

-- -- -- -- -- -- N o t e -- -- -- -- -- --

697349 Muffler

(Used Before Code

Date 08042800).

Used on Type No(s).

0110, 0112, 0115.

304 796416 Housing--Blower

(Black)

(Used After Code Date

08082400).

Used on Type No(s).

0113.

Not for

Reproduction

Otros manuales de Motor de Briggs & Stratton

Briggs & Stratton

Briggs & Stratton 11000B Manual de usuario

Briggs & Stratton

Briggs & Stratton PowerBuilt Snow 120000 Series Manual de instalación y operación

Briggs & Stratton

Briggs & Stratton 90000 series Manual de instalación y operación

Briggs & Stratton

Briggs & Stratton 12V800 Series Guía de configuración

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Manual de instalación y operación

Briggs & Stratton

Briggs & Stratton 205400 Series Guía de configuración

Briggs & Stratton

Briggs & Stratton 91400 Manual de instalación y operación

Briggs & Stratton

Briggs & Stratton Vanguard 540000 Series Manual de usuario

Briggs & Stratton

Briggs & Stratton Vanguard Diesel 432447 Manual de usuario

Briggs & Stratton

Briggs & Stratton Intekt 825 Series Manual de usuario

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Manual de instalación y operación

Briggs & Stratton

Briggs & Stratton Vanguard 130000 Manual de usuario

Briggs & Stratton

Briggs & Stratton Vanguard 380000 Manual de usuario

Briggs & Stratton

Briggs & Stratton 190000 Series Manual de usuario

Briggs & Stratton

Briggs & Stratton 194700 Series Manual de instalación y operación

Briggs & Stratton

Briggs & Stratton Vanguard 10V300 Instrucciones de funcionamiento

Briggs & Stratton

Briggs & Stratton 290700 Series Manual de instalación y operación

Briggs & Stratton

Briggs & Stratton 543200 Series Guía de configuración

Briggs & Stratton

Briggs & Stratton 210000 Series Manual de usuario

Briggs & Stratton

Briggs & Stratton 120000 Manual de usuario

Briggs & Stratton

Briggs & Stratton 405700, 406700, 407700, 445700 Instrucciones de instalación

Briggs & Stratton

Briggs & Stratton 194700 Series Manual de usuario

Briggs & Stratton

Briggs & Stratton Vanguard 290000 Manual de usuario

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Manual de usuario

Manuales populares de Motor de otras marcas

Rotax

Rotax 125 senior MAX evo Manual de usuario

Kohler

Kohler K361 Manual de usuario

MTD

MTD OHV Series Manual de usuario

Kohler

Kohler COMMAND CH18-745 Manual de usuario

Mercury

Mercury D4.2L D-Tronic Manual de usuario

Selve

Selve SE Plus-RC Series Manual de usuario

Perkins

Perkins 1206E-E66TA Manual de usuario

Skov

Skov DA 174 Manual

Rossi

Rossi TX11 Series Manual de usuario

Siemens

Siemens SIMOTICS T-1FW3 Hoja de instrucciones

AL-KO

AL-KO PRO 350 Manual de usuario

MTU

MTU 12 V 4000 Lx4 Manual de usuario

Nanni

Nanni N3.30 Manual de instrucciones

Nanni

Nanni N5.160 CR2 Manual de usuario

KSB

KSB SuPreme Series Instrucciones de instalación

Hiwin

Hiwin EM1 Series Manual de usuario

Rotax

Rotax 912 i series Instrucciones de funcionamiento

Siemens

Siemens SIMOTICS XP 1MB1 Manual de usuario
