21A400
Illustrated Parts List
Model Series
21A400
TYPE NUMBERS
0017 through 0701.
TABLE OF CONTENTS
Alternator 8..........................
Blower Housing/Shrouds 6............
Camshaft 2...........................
Carburetor 4..........................
Controls 7............................
Crankcase Cover 2....................
Crankshaft 2..........................
Cylinder 2............................
Cylinder Head 3.......................
Electric Starter 8......................
Exhaust System 5.....................
Flywheel 6............................
Fuel Supply 8.........................
Gasket Set -- Engine 3.................
Gasket Set -- Valve 3..................
Governor Spring 7....................
Ignition 8.............................
Kit -- Carburetor Overhaul 4............
Lubrication 2.........................
Operator’s Manual 2..................
Piston/Rings/Connecting Rod 2........
Rewind Starter 6......................
Valves 3..............................
Warning Label 2......................
Not for
Reproduction

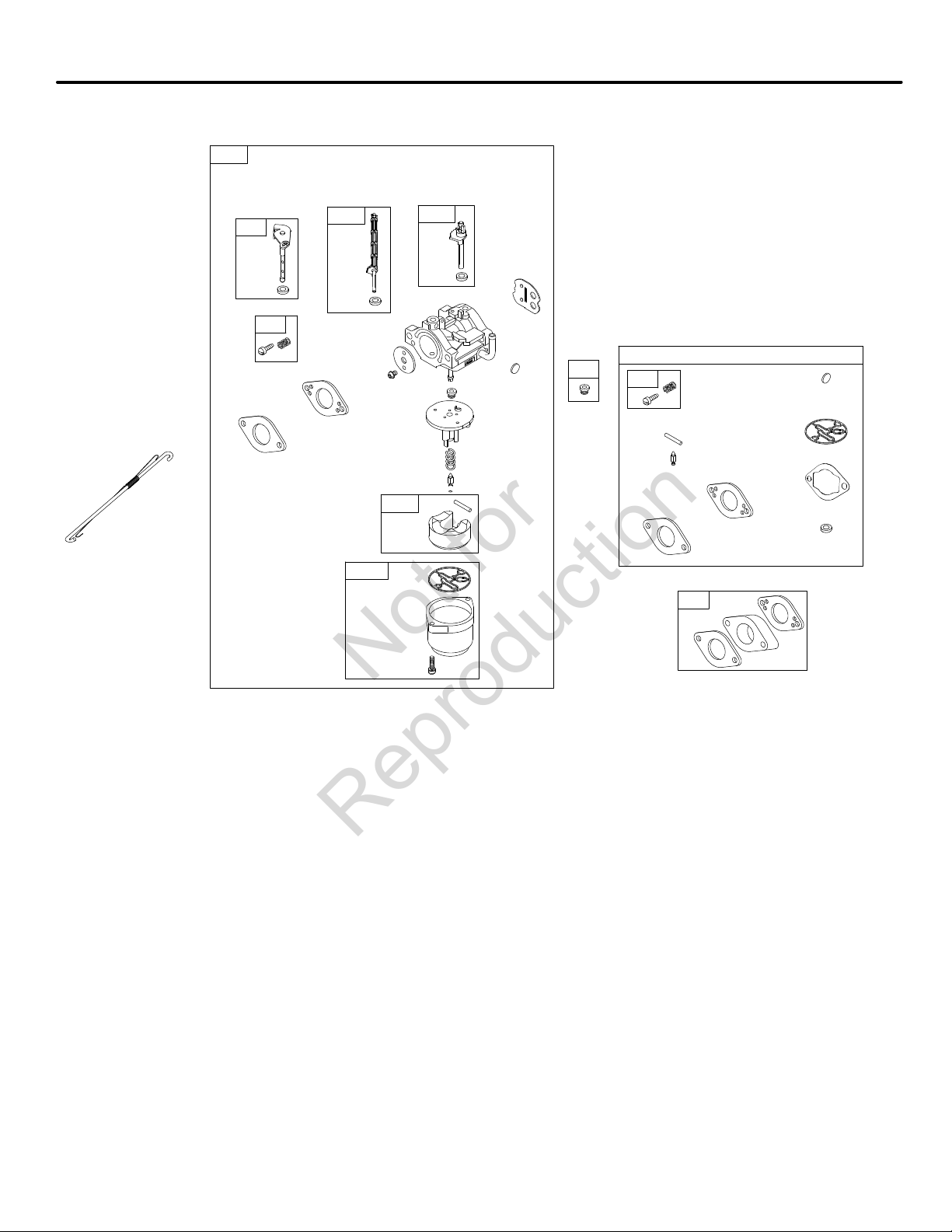

21A400
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
5317--2 Assemblies include all parts shown in frames. 10/07/2008
2
21
17
20
1221
1194
18
19
415
1058 OPERATOR’S MANUAL 1319 WARNING LABEL
REQUIRED when replacing parts
with warning labels affixed.
524
287 842
847 523
525
1351
306A
3
552
15
718
718A
27
30
32
46
741
146
24
742
746
220
22
725
1
16
219
29
2
27
26
25
28
30
32
29
307
15B
998A
529
306
1352
170
Not for
Reproduction
21A400
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
5317--3 Assemblies include all parts shown in frames. 10/07/2008
3
45
1026
383
337
914
13
1171
1022
635
1023A
35
883
868
7
1100 798
1022
36
51
51A
34
33 42
192
1029
5
42
812
362
358 ENGINE GASKET SET
51
51A
7
1022
883
868
163
20
12
3
7
1095 VALVE GASKET SET
1022
868
51 51A
883
358 ENGINE GASKET SET
Not for
Reproduction
21A400
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
5317--4 Assemblies include all parts shown in frames. 10/07/2008
4
108C
118
130A
135
117
369
127A
51
51A
104A
105A
137A
1127A
975A
125B
133A
95A
632
633B
97A
633B
109E
633B
109F
98A
121A CARBURETOR OVERHAUL KIT
105A
104A 137A
127A
633B
51
51A 163
98A
51
51A
122
Not for
Reproduction
21A400
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
5317--5 Assemblies include all parts shown in frames. 10/07/2008
5
832
613 613B
883
300A
836
613 613B
883
300B
NOTE: This muffler is intended for replacement
purposes only and is not to be used
for retrofitting to engines with different
exhaust systems.
883C
832C 836C
300C
863C
740
740A
819
355
436C
437
1177
676D
676C
677
Not for
Reproduction
21A400
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
5317--6 Assemblies include all parts shown in frames. 10/07/2008
6
731
53C
610
668B
163
305
304
732
727A
332
4551070
1005
65
592 55A
1211
1210
58
459
689
456
597
60A
930
608A
1036 EMISSIONS LABEL
363
23
78A
37A
695
731E
731D
976
990A
892A
1196A
1252
1251
472
1196
11B
1288
528
976
472A
1011
1230
1318
1352
1251A
1224
Not for
Reproduction
21A400
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
5317--7 Assemblies include all parts shown in frames. 10/07/2008
7
268
269
265
270
271
267
604A
211
209
632
616
615
505
562
564
227
616
485
663B
663A
281A
703
1148
579
278
281
663C
621
410
188
668
271B
773
1138
222A
504
621
410
188
668
271A
773
1138
504
222
Not for
Reproduction
21A400
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
5317--8 Assemblies include all parts shown in frames. 10/07/2008
8
972A
190
958
601
601
187 187A
697
309A
309B
474A
DC ONLY
474B
DUAL
CIRCUIT
501
526
10 -- 16 AMP
474D
NOTE: All stators use a No. mounting screw.
1119
NOTE: The proper flywheel part number and/or the alternator magnet size will
determine the alternator type or output. See repair instruction manual
for additional information.
318
356C
493
356E
503
493A
310
442
501C
526C
813
187D
601
990A
892A
415A
851
334
333
474H
DUAL
CIRCUIT
957A
474E474C
5--9AMP
878
578
356G
20 AMP
309C
697
727A
732
957
356J
Not for
Reproduction
21A400
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
5317--9 Assemblies include all parts shown in frames. 10/07/2008
9
1 793617 Cylinder Assembly
2 698340 Kit--Bushing/Seal
(Magneto SIde)
3K391086S Seal--Oil
(Magneto Side)
5 793305 Head--Cylinder
7K∆697690 Gasket--Cylinder Head
11B 696750 Tube--Breather
12 K694953 Gasket--Crankcase
13 690360 Screw
(Cylinder Head)
15 691686 Plug--Oil Drain
(Square Head)
15B 695757 Plug--Oil Drain
16 794716 Crankshaft
Used on Type No(s).
0019, 0100, 0105.
-- -- -- -- -- -- -- N o t e -- -- -- -- --
794720 Crankshaft
Used on Type No(s).
0017, 0112, 0113,
0115, 0117, 0119,
0133, 0134, 0135,
0136, 0163, 0164,
0166, 0168, 0205,
0215, 0371, 0540,
0701.
794717 Crankshaft
Used on Type No(s).
0111, 0116.
17 695434 Bearing--Ball
18 791412 Cover--Crankcase
Used on Type No(s).
0111, 0116.
-- -- -- -- -- -- -- N o t e -- -- -- -- --
791965 Cover--
Crankcase
Used on Type No(s).
0017, 0019, 0100,
0105, 0112, 0113,
0115, 0117, 0119,
0133, 0134, 0135,
0136, 0163, 0164,
0166, 0168, 0205,
0215, 0371, 0540,
0701.
19 698340 Kit--Bushing/Seal
(PTO Side)
20 K391086S Seal--Oil
(PTO Side)
21 281658S Cap--Oil Fill
22 695174 Screw
(Crankcase Cover/
Sump)
23 695485 Flywheel
Used on Type No(s).
0017, 0019, 0100,
0105, 0111, 0112,
0113, 0115, 0117,
0119, 0133, 0134,
0135, 0136, 0163,
0164, 0166, 0168,
0205, 0215, 0371,
0540, 0701.
-- -- -- -- -- -- -- N o t e -- -- -- -- --
793664 Flywheel
Used on Type No(s).
0116.
24 222698S Key--Flywheel
25 793794 Piston Assembly
(Standard)
(Used After Code Date
06102900).
-- -- -- -- -- -- -- N o t e -- -- -- -- --
793318 Piston
Assembly
(Standard)
(Used Before Code
Date 06103000).
697694 Piston
Assembly
(.010” Oversize)
(Used Before Code
Date 06103000).
793797 Piston
Assembly
(.020” Oversize)
(Used After Code Date
06102900).
697695 Piston
Assembly
(.020” Oversize)
(Used Before Code
Date 06103000).
697696 Piston
Assembly
(.030” Oversize)
(Used Before Code
Date 06103000).
26 793319 Ring Set
(Standard)
(Used After Code Date
06061800).
-- -- -- -- -- -- -- N o t e -- -- -- -- --
697692 Ring Set
(Standard)
(Used Before Code
Date 06061900).
697697 Ring Set
(.010” Oversize)
(Used Before Code
Date 06061900).
793324 Ring Set
(.020” Oversize)
(Used After Code Date
06061800).
697698 Ring Set
(.020” Oversize)
(Used Before Code
Date 06061900).
697699 Ring Set
(.030” Oversize)
(Used Before Code
Date 06061900).
27 690975 Lock--Piston Pin
28 696581 Pin--Piston
29 694691 Rod--Connecting
30 694692 Dipper--Connecting
Rod
32 690976 Screw
(Connecting Rod)
33 499596 Valve--Exhaust
34 795199 Valve--Intake
35 694865 Spring--Valve
(Intake)
36 694865 Spring--Valve
(Exhaust)
37A 699047 Guard--Flywheel
42 499586 Keeper--Valve
45 690977 Tappet--Valve
46 790958 Camshaft
51 KD∆694874 Gasket--Intake
51A KD∆694875 Gasket--Intake
53C 794542 Stud
(Carburetor)
55A 696710 Housing--Rewind
Starter
58 693389 Rope--Starter
Cut to Required
Length)
KIncluded in Engine Gasket Set--Ref. No. 358.
DIncluded in Carburetor Overhaul Kit--Ref. No. 121A.
∆Included in Valve Gasket Set--Ref. No. 1095.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
21A400
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
5317--10 Assemblies include all parts shown in frames. 10/07/2008
10
60A 699334 Grip--Starter Rope
65 697725 Screw
(Rewind Starter)
78A 695724 Screw
(Flywheel Guard)
95A 690718 Screw
(Throttle Valve)
97A 696387 Shaft--Throttle
98A D695408 Kit--Idle Speed
104A D694918 Pin--Float Hinge
105A D696136 Valve--Float Needle
108C 696736 Valve--Choke
109E 696735 Shaft--Choke
109F 793162 Shaft--Choke
117 D696134 Jet--Main
(Standard)
118 696135 Jet--Main
(High Altitude)
121A 696146 Kit--Carburetor
Overhaul
(Nikki Carburetor)
122 694876 Spacer--Carburetor
125B 794593 Carburetor
127A D690727 Plug--Welch
130A 696139 Valve--Throttle
133A 694914 Float--Carburetor
135 696142 Tube--Fuel Transfer
137A D695426 Gasket--Float Bowl
146 690979 Key--Timing
163 KD692277 Gasket--Air Cleaner
170 695296 Stud
(Crankcase Cover/
Sump)
187 791766 Line--Fuel
(15 Inches Long)
(Cut To Required
Length)
187A 791869 Line--Fuel
(Used After Code Date
05063000).
-- -- -- -- -- -- -- N o t e -- -- -- -- --
695429 Line--Fuel
(Used Before Code
Date 05070100).
187D 791879 Line--Fuel
(Used After Code Date
05063000).
-- -- -- -- -- -- -- N o t e -- -- -- -- --
698080 Line--Fuel
(Used Before Code
Date 05070100).
188 690877 Screw
(Control Bracket)
190 692127 Screw
(Fuel Tank)
192 690083 Adjuster--Rocker Arm
209 694867 Spring--Governor
211 695307 Spring--Governor Idle
219 693578 Gear--Governor
220 691724 Washer
(Governor Gear)
222 698161 Bracket--Control
Used on Type No(s).
0111, 0116.
222A 698034 Bracket--Control
Used on Type No(s).
0017, 0019, 0100,
0105, 0112, 0113,
0115, 0117, 0119,
0133, 0134, 0135,
0136, 0163, 0164,
0166, 0168, 0205,
0215, 0371, 0540,
0701.
227 694864 Lever--Governor
Control
265 691024 Clamp--Casing
Used on Type No(s).
0111, 0116.
267 692577 Screw
(Casing Clamp)
268 691025 Casing--Control Wire
(Cut to Required
Length)
269 691026 Wire--Control
(Cut to Required
Length)
270 691027 Nut
(Control Wire Casing)
271 691028 Lever--Control
271A 695381 Lever--Control
Used on Type No(s).
0111, 0116.
271B 698035 Lever--Control
278 792008 Washer
(Governor Control
Lever)
281 697268 Panel--Control
281A 697400 Panel--Control
(Used After Code Date
01102800).
-- -- -- -- -- -- -- N o t e -- -- -- -- --
696703 Panel--Control
(Used Before Code
Date 01102900).
698081 Panel--Control
Used on Type No(s).
0134, 0163, 0164,
0205, 0371, 0701.
287 691693 Screw
(Dipstick/Tube)
300A 794694 Muffler
Used on Type No(s).
0019, 0100, 0134.
300B 794695 Muffler
-- -- -- -- -- -- -- N o t e -- -- -- -- --
794695 Muffler
(Used After Code Date
03033000).
Used on Type No(s).
0111.
794695 Muffler
(Used After Code Date
03041300).
Used on Type No(s).
0112, 0113, 0163,
0164, 0205.
698160 Muffler
(Used Before Code
Date 03033100).
Used on Type No(s).
0111.
698160 Muffler
(Used Before Code
Date 03041400).
Used on Type No(s).
0112, 0113, 0163,
0164, 0205.
300C 793701 Muffler
(This muffler is
intended for replace-
ment purposes only
and is not to be used
for retrofitting to
engines with different
exhaust systems)
KIncluded in Engine Gasket Set--Ref. No. 358.
DIncluded in Carburetor Overhaul Kit--Ref. No. 121A.
∆Included in Valve Gasket Set--Ref. No. 1095.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
Otros manuales de Motor de Briggs & Stratton
Briggs & Stratton
Briggs & Stratton Vanguard 540000 Series Manual de usuario
Briggs & Stratton
Briggs & Stratton 130G00 Instrucciones de funcionamiento
Briggs & Stratton
Briggs & Stratton 120000 Manual
Briggs & Stratton
Briggs & Stratton Vanguard EFI 61E600 Manual de usuario
Briggs & Stratton
Briggs & Stratton Vanguard 540000 Series Manual de usuario
Briggs & Stratton
Briggs & Stratton 310000 VERTICAL SERIES Manual de usuario
Briggs & Stratton
Briggs & Stratton 130000 950 Series Manual de usuario
Briggs & Stratton
Briggs & Stratton Classic 100000 Series Manual de usuario
Briggs & Stratton
Briggs & Stratton 120000 Manual
Briggs & Stratton
Briggs & Stratton 490000 Manual de usuario
Briggs & Stratton
Briggs & Stratton P0820B Manual de usuario
Briggs & Stratton
Briggs & Stratton 11A600 Manual de instalación y operación
Briggs & Stratton
Briggs & Stratton 195700 Series Instrucciones de instalación
Briggs & Stratton
Briggs & Stratton 210400 Series Guía de configuración
Briggs & Stratton
Briggs & Stratton 150000 HORIZONTAL SERIES Manual de usuario
Briggs & Stratton
Briggs & Stratton 400400 Series Manual de usuario
Briggs & Stratton
Briggs & Stratton 54000 Series Manual de instalación y operación
Briggs & Stratton
Briggs & Stratton Intekt 825 Series Manual de usuario
Briggs & Stratton
Briggs & Stratton 12H800 Series Guía de configuración
Briggs & Stratton
Briggs & Stratton IS2000Z 5900619 Manual de usuario
Briggs & Stratton
Briggs & Stratton 12A800 Series Manual de usuario
Briggs & Stratton
Briggs & Stratton Vanguard 50000 Manual de usuario
Briggs & Stratton
Briggs & Stratton Vanguard 540000 Series Instrucciones de funcionamiento e instalación
Briggs & Stratton
Briggs & Stratton 90000 series Manual de usuario
