Air Compressor
Illustrated Parts List
Manual No. 203719A Revision - (01/21/08)

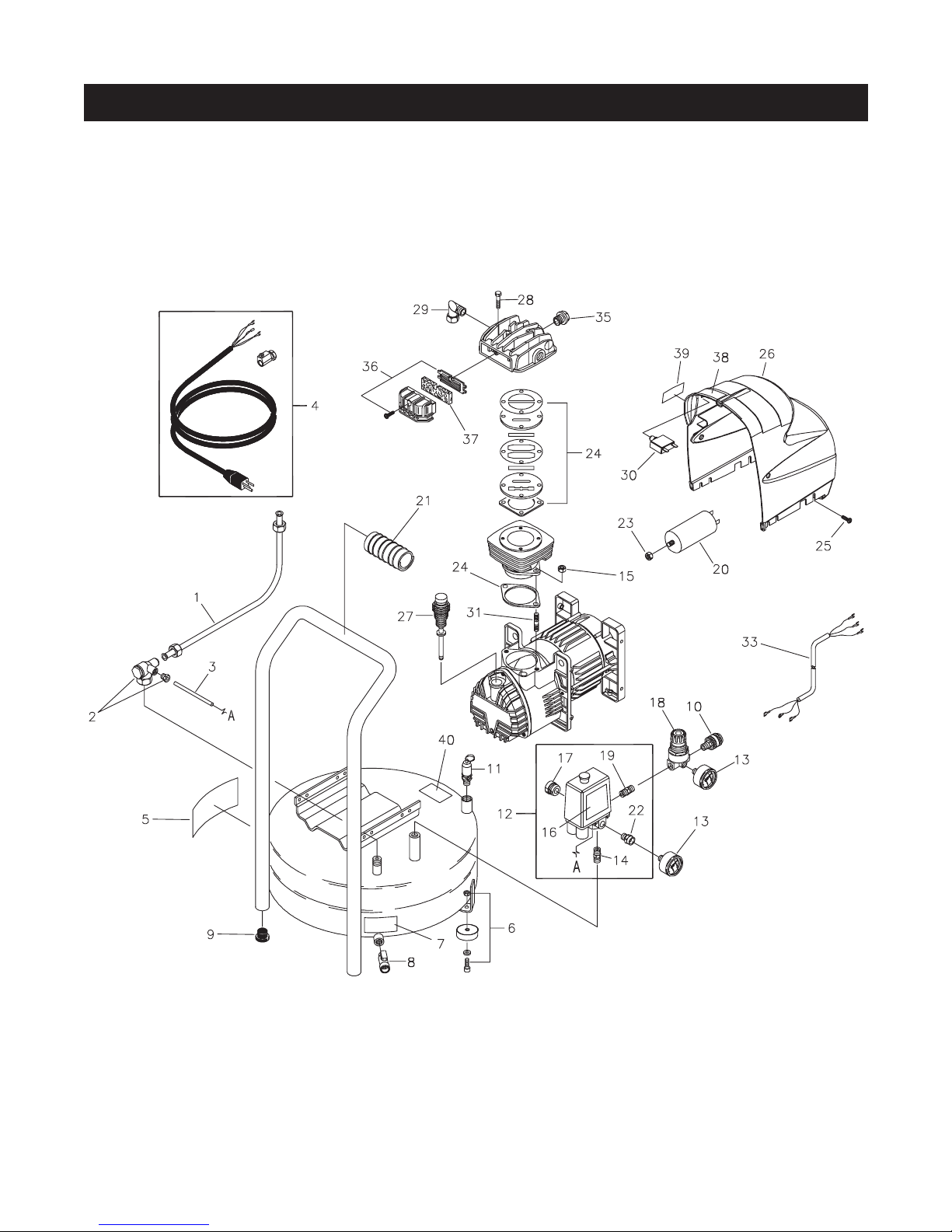

EXPLODED VIEW
Copyright © 2008 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be
reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power
Products Group, LLC.
2BRIGGSandSTRATTON.COM
PARTS LIST
Item Part # Description
1 200673GS TUBE, Infeed
2 200674GS VALVE, Relief
3 199961GS HOSE, Rilsan
4 200720GS ASSY, Cable, Power
5 199172GS DECAL, Warning
6 192310GS KIT, Vib Mount
7 199739GS DECAL, Tank Drain
8 200675GS VALVE, Drain
9 200676GS RUBBER FOOT
10 200677GS COUPLER, Quick Connect
11 200678GS VALVE, Safety
12 200679GS ASSY, Pressure Switch
13 200680GS GAUGE, Pressure
14 201697GS ADAPTER
15 * NUT, M8
16 199176GS DECAL, Electric Shock
17 200364GS PLUG
18 200681GS PRESSURE REGULATOR
19 201059GS ADAPTER
20 200692GS CAPACITOR, 60μF
21 200682GS HANDLE
22 200683GS COUPLING
23 * NUT, M8
Item Part # Description
24 200689GS KIT, Valve Plate
25 * SCREW, Taptite M5 x 20
26 200690GS KIT, Shroud, Plastic (Includes #38 &
39)
27 200691GS DIPSTICK, Oil
28 200684GS SCREW, M6 x 40
29 200685GS CONNECTOR, Elbow
30 200717GS BREAKER,Circuit, 17A
31 * STUD BOLT
33 200910GS WIRE HARNESS
35 200688GS VALVE, Start
36 200687GS KIT, Air Filter
37 200697GS FILTERING ELEMENT
38 199174GS DECAL, Hot Surface
39 201731GS DECAL, Reset
40 201732GS DECAL, Important
Parts Not Illustrated
203719GS MANUAL, Operator’s
201765GS OIL, Compressor
203884GS DECAL, Logo
* - Items without part numbers are common fasteners and
can be found at your local hardware store.
