Brickcom NR-1604 \ Manual de usuario

Network Video Recorder

NR-1604

User’s Manual

Quality Service Group

Product name: Network Video Recorder (NR-1604)

Release Date: 2010/

Manual Revision: V1.10

Web site: www.brickcom.com

Email: tech[email protected]

[email protected]

Before You Use This Product

When you first open the product’s package, verify that all the accessories listed on the

“Package Contents” are included. Before installing the Network Camera, read the

warnings in the “Quick Installation Guide” to avoid misuse. When installing the Network

Camera, carefully read and follow the instructions in the “Installation” chapters to avoid

damages due to faulty assembly or installation.

Package Contents

NR-1604 Network Video Recorder

Power Cord

Ethernet Cable

Printed Quick Installation Guide

Printed Warranty Card



CD-ROM(Quick Installation Guide, User’s Manual, Setup Wizard)

Network Video Recorder Overview

The Brickcom NR-1604 network video recorder (NVR) is an ARM9-based recording

solution for SMB and SOHO users to effectively grow and navigate their network

surveillance systems. This NVR is equipped with an embedded Linux operating

system to allow users to remotely monitor, record, and view live video feed from up

to 16 Brickcom network cameras. With the support of megapixel resolution and

H.264 compression, it uses less bandwidth while offering the optimal recording

quality and image viewing.

Easy installment and management is central to operation of the NR-1604. For easy

set up and scalability, the NVR is able to automatically search and access the

available cameras on the network. Operation of the IP cameras and NVR is

managed through Brickcom’s EasyConfig software and GUI. A maximum of four

PCs are able to concurrently access the NVR and view live or recorded video feed

using Microsoft Internet Explorer and the Brickcom GUI.

The NR-1604 is designed for long-term recording and video storage with a Gigabit

Ethernet port and two SATA hard disks with a maximum capacity of 2 terabytes.

The external UPS systems ensure that the NVR will provide uninterrupted recording

in the event of a power failure.

System Requirements

The following are minimum system requirements for a system to operate the NR-

1604:

Operating System

Microsoft Windows 2000 Professional,

Windows XP Professional (32 bit)

Windows Server 2003 (32 bit)

Browser

Microsoft Internet Explorer 6 or above

CPU

Minimum Intel Pentium 4 2.4 GHz or higher (Dual Core is recommended)

RAM

Minimum 1 GB of RAM, 2GB or above is recommended

Network

Minimum 10/100 Ethernet (Gigabit Ethernet is recommended)

Graphics Adapter

AGP or PCI-Express, minimum 1024×768, 16 bit colors.

*Note: It is highly recommended to use a graphics adaptor that provides higher

than 1024 x 768 resolution in order to experience the full benefits of the software.

Make sure the display DPI setting is set to default at 96DPI

To set DPI value, right-click on desktop, choose “Settings” tab >>

“Advanced” >> “General”

CD-ROM Drive:

It is necessary to read the operating instructions in the provided CD-ROM.

Adobe Reader:

It is necessary to read the operating instructions in the provided CD-ROM.

The audio function will not work if a sound card is not installed in the PC. Audio

may be interrupted depending on network traffic.

Install Hard Disk

1. Start by removing the screws on the side of the NR-1604.

2. Push the top housing forward

3. Lift it up.

4. Remove the hard drive cover plate.

5. Pull out the hard drive tray holder.

6. Place the hard drive on the tray. Secure it by pushing it into place.

7. Connect the SATA cable to the hard drive.

8. Put the hard drive tray cover plate back.

9. Place the top housing back and secure it with the bottom

housing with the screws.

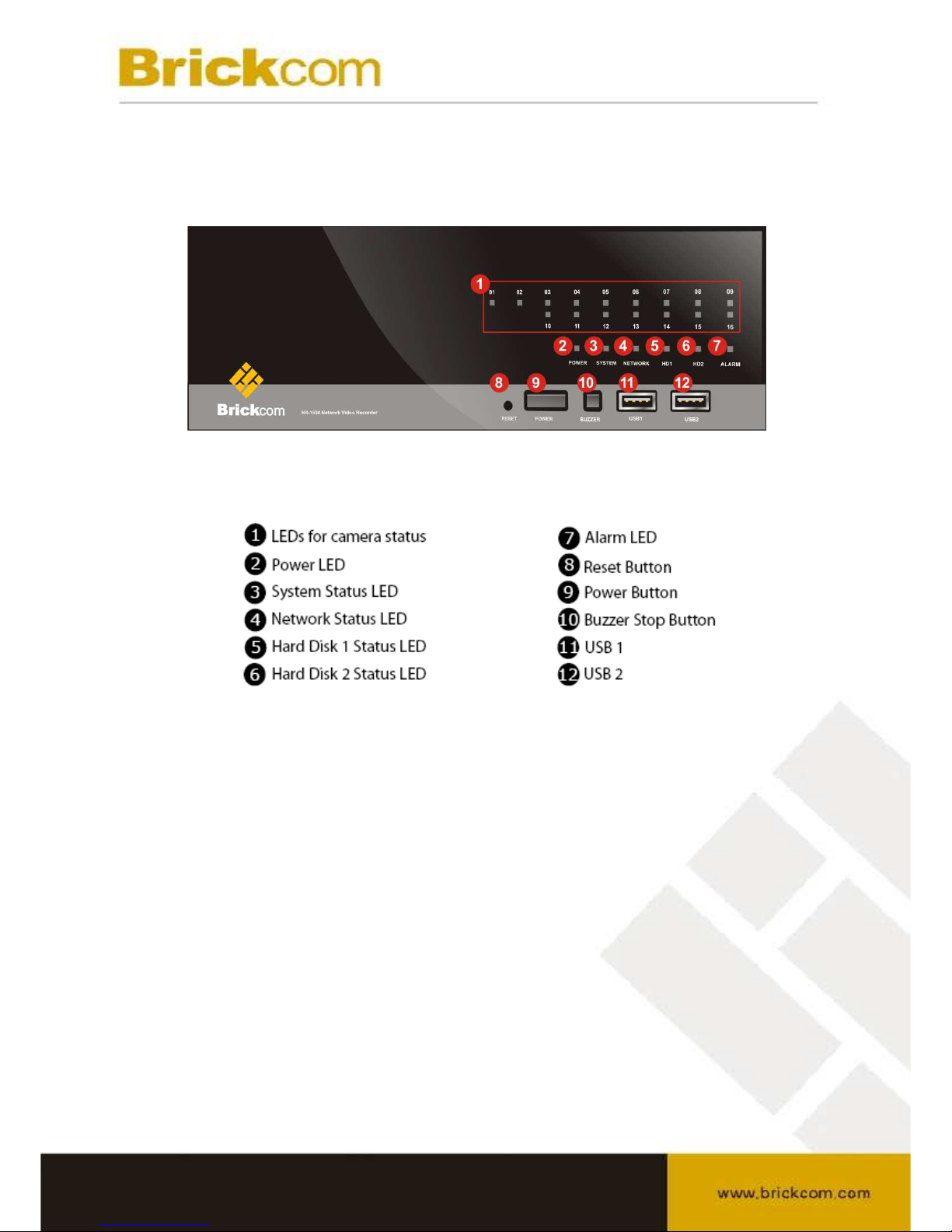

Hardware Illustration (Front)

16 Channels
