INSTRUCTION MANUAL

Weather Station

ClimaTemp WS + Thermo-Hygrosensor

1. Features

1.1 Weather Forecast - Sunny, Slightly Cloudy, Cloudy, Rainy and Snow (animation)

1.2 Time - Radio Controlled Time

- Perpetual Calendar Up to Year 2099

- Day of week in 8 languages user selectable

-Daily Alarm Function

1.3 Humidity - Indoor & Outdoor measurable range: 20 ~ 99%

- Outdoor Humidity Record from Start-Up/Reset, and the corresponded time

-24 Hours Min/Max Display for Outdoor Humidity

1.4 Temperature -Indoor measurable range: -10 ~ 50°C

-Measures °C / °F user selectable

- Outdoor measurable range: -20 ~ 50°C

- Outdoor Temperature Record from Start-Up/Reset, and the corresponded time

-24 Hours Min/Max Display for Outdoor Temperature

-Comfort Indicator Bar

1.5 Wireless Outdoor Sensor - Low-battery indicator for Outdoor Thermo Sensor

- Wall Mount or Table Stand

- One Wireless Thermo Sensor Included

- 433MHz RF transmitting frequency

- 70 meter transmission range in an open area

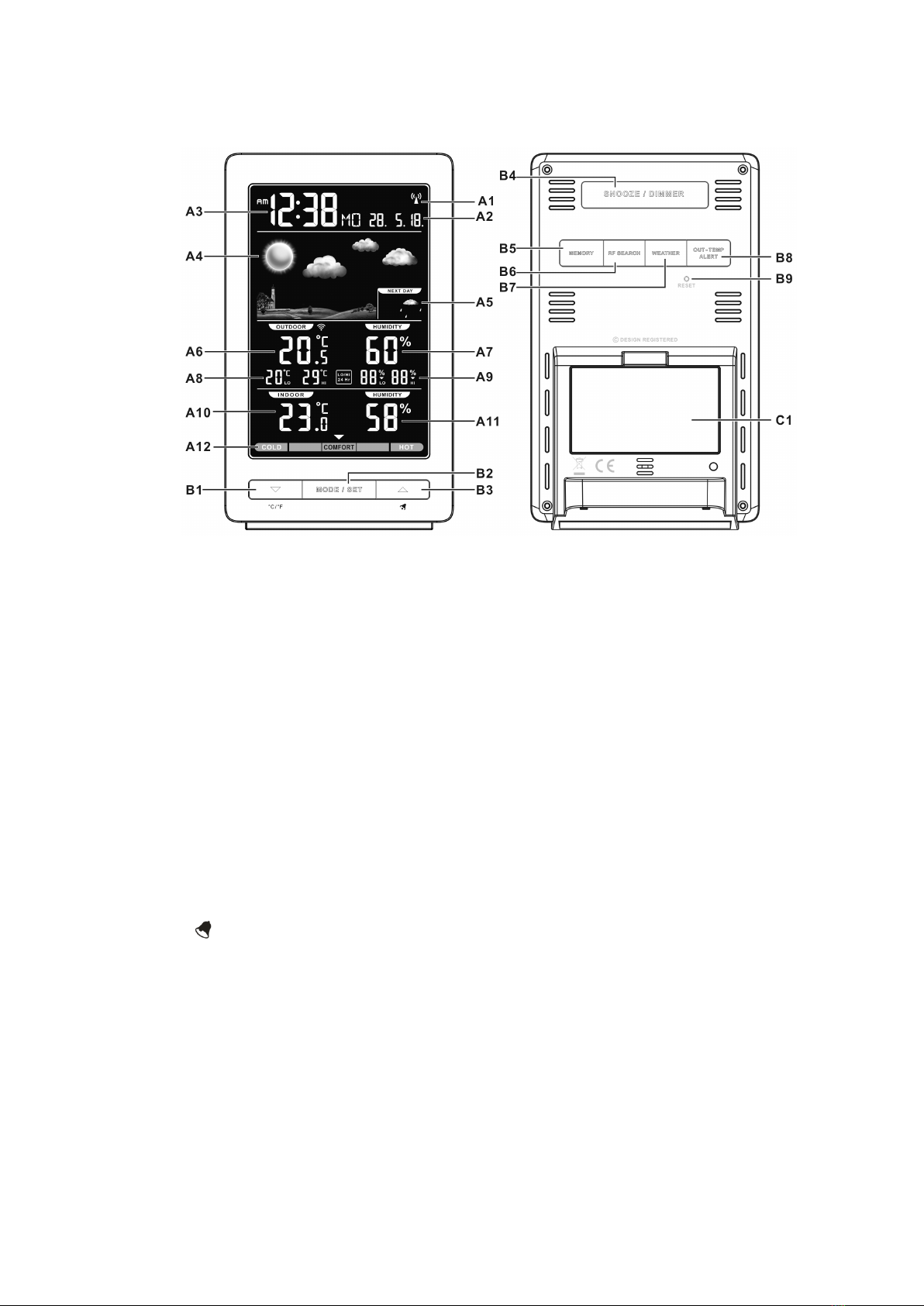

2. Main Unit Appearance

2.1 Part A- LCD

A1: Radio control icon

A2: Date

A3: Time

A4: Current weather condition

A5: Weather forecast

A6: Outdoor temperature

A7: Outdoor humidity

A8: Past 24 hours highest & lowest temperature record

A9: Past 24 hours highest & lowest humidity record

A10: Indoor temperature

A11: Indoor humidity

A12: Comfort indicator

2.2 Part B- Buttons

B1: “▼/ (C/F) ” button

B2: “MODE/SET” button

B3: “▲/” button

B4: “SNOOZE/DIMMER” button

B5: “MEMORY” button

B6: “RF SEARCH” button

B7: “WEATHER” button

B8: “OUT-TEMP ALERT

” button

B9: “RESET” button

2.3 Part C- Structure

C1: Battery Cover

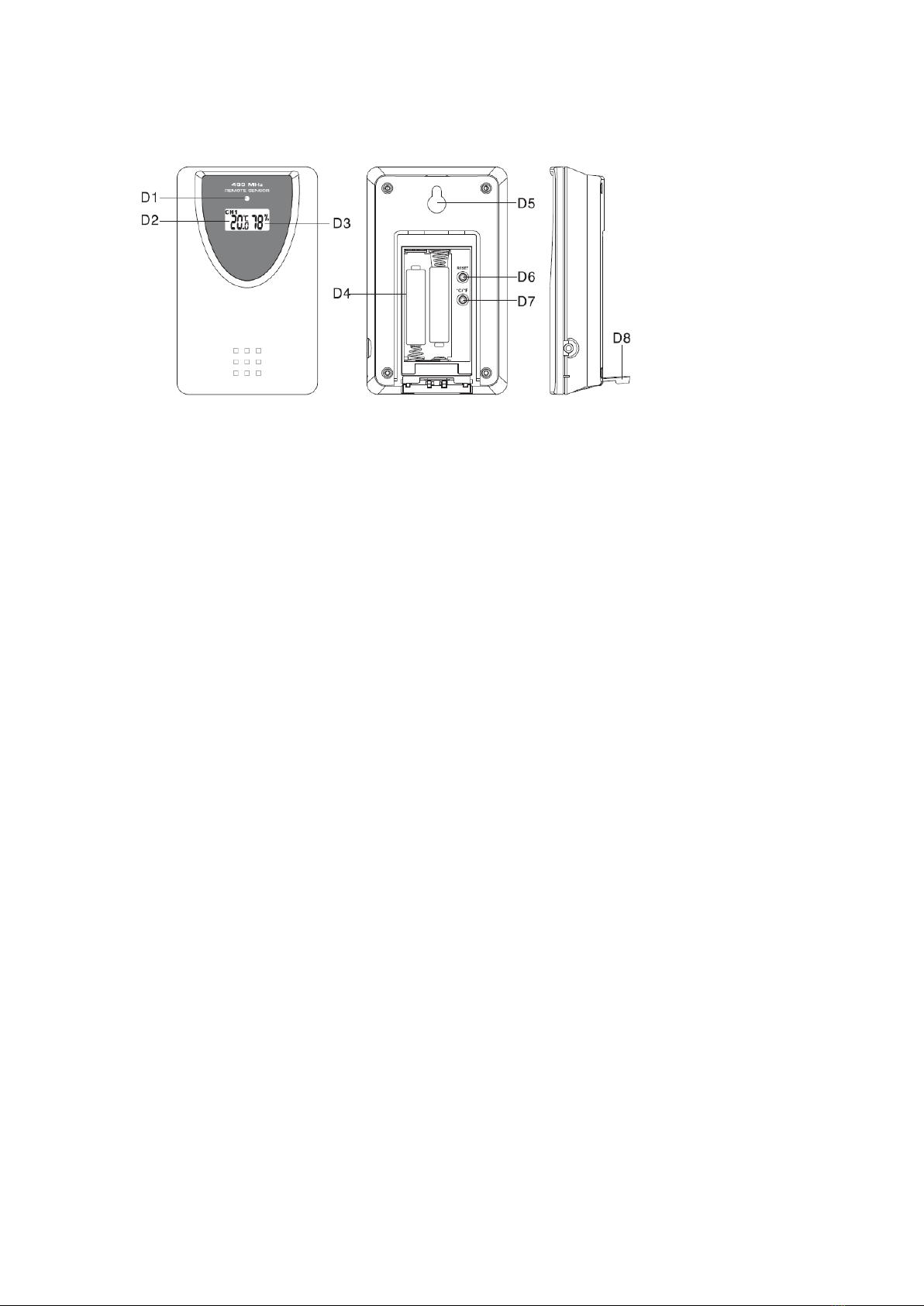

3. Outdoor Thermo Sensor

D1: Transmission Indication LED

D2: Outdoor Temperature display

D3: Outdoor Humidity display

D4: Battery Compartment

D5: Wall Mount Hole

D6: “RESET” button

D7: “C/F” button

D8: Stand

4.1 Main Unit:

Remove battery compartment door and insert 2pcs AA size battery.

Or connect the power cord to the wall outlet. Before connecting the unit to power,

please make sure your local voltage is the same as marked on the adaptor.

Note:

When powered by battery only, backlight would be off. Press snooze button,

backlight will last for around 5 seconds.

When connecting with the adaptor on the premise that batteries have been

installed correctly, this product will switch to the external power supply

automatically.

4.2 Outdoor Thermo Sensor

Batteries compartment (D4) of thermo sensor is locating behind the back cover,

Insert 2 x AAA batteries observing polarity [ “+” and “–“ marks]

5. Weather Forecast Function

5.1 Operation

After power on, or holding “WEATHER” button (B7) for 3 seconds, weather icon

flash on the LCD. Enter the current weather by pressing “▼” or “▲“button. Press

“WEATHER” button to confirm the setting. The weather forecast may not be

accurate if the current weather entered is not correct. The weather station will

start the first forecast at 6 hours later after the current weather status is entered.

The current weather status should be entered again if the altitude of the main

unit is changed. (Barometric pressure is lower at higher altitude location.

Therefore, altitude change will affect the weather forecast).

There are two weather icons, the upper one indicates current weather condition,

the next day forecasts the weather in terms of getting better or worse. The

weather station will start the first forecast at around 6 hours later after the

current weather status is entered.

5.2 Weather Conditions

There are totally 5 different weather status animations in the weather forecast.

Sunny

Slightly Cloudy

Cloudy

Rain

Freezing or Snow

Note:

“Freezing or Snow” i

s shown if the weather forecast is Rainy and outdoor

temperature (any channel) under 0

Frost Alert: “ ” is shown if the outdoor temperature is between -2°C ~ +3 °C

If there is any inconsistency of weather forecast between local weather station and this

unit, the local weather station's forecast should prevail. The manufacture will not hold

responsible for any trouble that may come up due to wrong forecasting from this unit.

6. Thermometer

6.1 RF Transmission Procedure:

The main unit automatically starts receiving transmission from outdoor thermo

sensor for outdoor temperature & humidity after weather condition setting.

The outdoor sensor will automatically transmit temperature and humidity signal

to the main unit after batteries inserted.

If main unit failed to receive transmission from outdoor thermo sensor in first 3

minutes after the batteries inserted (“- - . –”display on the LCD), hold “RF

SEARCH” button (B6) for 3 seconds to receive transmission manually. RF icon

“”flashes on the LCD.

6.2 Temperature & Humidity

(1) Past 24 Hours Highest/Lowest outdoor temperature and humidity

After start up, the unit automatically shows past 24 hours the highest & lowest

outdoor temperature and humidity record. “HI” & “LO” show on the LCD

(2) Recorded Maximum/Minimum Outdoor Temperature and Humidity from

Start-up/Reset.

Press “MEMORY” button to view the lowest and highest temperature and

humidity record from start-up or reset. “MEM” display on the LCD.

When viewing the memory record, hold “MEMORY” button for 3 seconds to

clear the maximum and minimum record.

When viewing the memory record, press “MEMORY” button again to check the

corresponded time and date for the memory of highest and lowest temperature

& humidity record. The memory record value and corresponded time and date

flash. Press “MEMORY” button select to view:

Time & date for lowest temperature memory record, Time and date for highest

temperature memory record, Time & date for lowest humidity memory record,

Time and date for highest humidity memory record.

(3) Celsius / Fahrenheit

Press “°C /°F” button (B1) to select Indoor/Outdoor Temperature in Celsius mode

or Fahrenheit mode.

If the temperature is out of the measurable range, LL.L (beyond the minimum

temperature) or HH.H (beyond the maximum temperature) will be shown on the

LCD.

(4) Humidity

The humidity measurable range is 20% ~ 99%. If the current humidity

measurement is lower than 20%, the LCD would display .

(5) Outdoor Temperature Alert Function

Press “OUT-TEMP ALERT” button (B8) to select to activate or deactivate outdoor

temperature alert function.

press ALERT button select to:

Active outdoor upper temperature alert, the icon “ ” besides outdoor

temperature digit would display.

Active outdoor upper& lower temperature alert, the icon “ ” besides outdoor

temperature digit would display.

Active outdoor lower temperature alert, the icon “ ” besides outdoor

temperature digit would display.

Deactivate outdoor temperature alert, alert icon disappear.

Hold “OUT-TEMP ALERT” button (B8) for 3 seconds to enter outdoor

temperature alert setting. Icon “ ” or “ ” beside temperature’s digits flash.

Press “▼” or “▲“button (B1 or B3 button) to adjust the setting value, press

“OUT-TEMP ALERT” button to confirm the setting. Setting Sequence as follow:

Upper limit of temperature, Lower limit of Temperature.

When it’s alert, the corresponding icon “ ” or “ ” and temperature digit

would flash on the LCD. Press any buttons to stop the alert sound, otherwise, it

will sound for 2 minutes, and stop automatically.

(6) Comfort Indicator Bar: for the display of pleasant/unpleasant climate.

7. Time and Alarm Setting

7.1 Radio Controlled Clock:

After batteries inserted and main unit finishes receiving the transmission from

outdoor sensor, the clock automatically starts to scan the DCF time signal. Radio

Control Icon“ ” flashes on the LCD.

flashes，

Indicating now is receiving

DCF signal

turns on,

Indicating signal received

successfully

disappear,

Indicating signal reception

failed

The clock automatically scans the time signal at 3.00 a.m. every day to maintain

accurate timing. If reception fail, scanning stops (“ ” on LCD disappear)

The clock can be set to scan the time signal manually by holding “▼” and

“▲“button for 3 seconds. Each reception takes about 5 minutes. If receptions

fail, scanning stops.

Stop scanning by holding “▼” and “▲“button for 3 seconds.

“DST” shown on the LCD if it is in daylight saving time mode.

7.2 Manual Time Setting:

Hold “MODE” button (B2) for 3 seconds to enter Clock/Calendar setting mode.

Press “▲” or “▼” button to adjust the setting and press “MODE” button to confirm

each setting.

(By keeping the “▲” or “▼” button pressed, could accelerate the process and reach

the desired value more quickly)

The setting sequence is shown as follow: 12/24 Hour, Time Zone, Hour, Minute,

Second, Year, Month, Day, Day-of-week language.

8 languages can be selected in Day-of-week, they are: German, French, Spanish,

Italian, Dutch, Denmark, Russian, and English.

The languages and their selected abbreviations for each day of the week are

shown in the following table.

Language

Sunday

Monday

Tuesday

Wednesday

Thursday

Friday

Saturday

German, GE

English, EN

Russian, RU

ПН

ЧТ

ПТ

СБ

Denmark, DA

Dutch, NE

Italian, IT

Spanish, ES

French, FR

Note:

(1) Second adjusted to zero only.

(2) The time setting mode will automatically exit in 15 seconds without any

adjustment.

(3) The time zone is used for the countries where can receive the DCF time signal but

the time zone is different from the German time. When the country time is faster

than the German time for 1 hour, the zone should be set to 1. Then the clock will

set 1 hour faster from the signal time received automatically.

7.3 Daily Alarm Function:

Press “ MODE/SET” button to select to view:

When viewing the alarm time, hold “MODE” button for 3 seconds to enter alarm

time setting. Press “▲” or “▼” button to adjust the alarm time. Press “MODE”

button to confirm the setting.

Press “ ” button (B3) to switch alarm on or off. If it is on, “ ” shown on the

LCD.

When Alarming, alarm icon “ ” flash. Press “SNOOZE” button to activate the

snooze alarm, (“ ” flash on the LCD). The alarm will snooze for around 5

Time Time & Day of Week Alarm Time ( “AL” shown on the LCD)

minutes, then it alarms again. This snooze function can be enabled for maximum

7 times.

Except “SNOOZE” button, press any buttons to stop the snooze alarm. Otherwise,

the alarm signal sounds for about 2 minutes, and then stops automatically.

8. Light

Press “DIMMER” button (B4) to adjust the LED brightness.

9. Low battery indication:

The low battery icon “ ”will appear and indicating that thermo sensor is in

low battery status. The batteries should be replaced.

10. Precautions

Use a pin to press the reset button if the unit does not work properly.

Avoid placing the clock near interference sources/metal frames such as computer or TV sets.

The clock loses its time information when the battery is removed.

Do not expose it to direct sunlight, heavy heat, cold, high humidity or wet areas

The outdoor sensor must not be set up and installed under water. Set it up in away direct

sunlight and Rain

Never clean the device using abrasive or corrosive materials or products. Abrasive cleaning

agents may scratch plastic parts and corrode electronic circuits

If there is any inconsistency of weather forecast between Local Weather Station and this unit,

the Local Weather Station's forecast should prevail. The manufacturer will not take

responsible for incorrect forecasting from this unit

11. EC Declaration of Conformity

Hereby, Bresser GmbH declares that the equipment type with part number: 7007320

is in compliance with Directive: 2014/53/EU. The full text of the EU declaration of

conformity is available at the following internet address:

www.bresser.de/download/7007320/CE/7007320_CE.pdf

Otros manuales para ClimaTemp WS

Tabla de contenidos

Otros manuales de Estación meteorológica de Bresser

Bresser

Bresser MeteoTemp Proj 7004405 Manual de usuario

Bresser

Bresser Temeo MC Manual de usuario

Bresser

Bresser TemeoTrend LB Manual de usuario

Bresser

Bresser WEATHER CENTER Manual de usuario

Bresser

Bresser BR-7002530 Manual de usuario

Bresser

Bresser 7002531 Manual de usuario

Bresser

Bresser 7002571 Manual de usuario

Bresser

Bresser 7007410000000 Manual de usuario

Bresser

Bresser ClimaTemp FSX Manual de usuario

Bresser

Bresser WIFI 4Cast Manual de usuario

Bresser

Bresser TemeoTrend P Manual de usuario

Bresser

Bresser Meteo Temp Manual de usuario

Bresser

Bresser MyTemp WTM Manual de usuario

Bresser

Bresser MyTime Meteotime LCD Manual de usuario

Bresser

Bresser ClimaTemp Hygro DLX Manual de usuario

Bresser

Bresser NATIONAL GEOGRAPHIC 90-68000 Manual de programación

Bresser

Bresser Weather Center WTW 5in1 Manual de usuario

Bresser

Bresser ClimaTrend Hygro Quadro Manual de usuario

Bresser

Bresser Weather Center XXL JC + sensor 5in1 Manual de usuario

Bresser

Bresser 4Cast 95-01100 Manual de usuario

Bresser

Bresser Hygrometer MA Manual de usuario

Bresser

Bresser MyClimate Thermo-Hygro Manual de usuario

Bresser

Bresser 7002530 Manual de usuario

Bresser

Bresser Temeo Hygro Quadro DLX Manual de usuario

Manuales populares de Estación meteorológica de otras marcas

Auriol

Auriol AHFL 433 A1 Manual de usuario

NexSens

NexSens G2-HYDROMET Manual de usuario

Hyundai

Hyundai WS 2202 Manual de usuario

IROX

IROX HBVR761 UV-X Manual de usuario

La Crosse Technology

La Crosse Technology C86371 Manual de usuario

ADE

ADE WS 1711 Manual de usuario

Auriol

Auriol z29592 Manual de usuario

Auriol

Auriol 296289 Manual de usuario

Hyundai

Hyundai WS 2266 Manual de usuario

La Crosse Technology

La Crosse Technology WS-2210 Manual de usuario

La Crosse Technology

La Crosse Technology WS-811561 Manual de usuario

Ventus

Ventus W177 Manual de usuario

National Geographic

National Geographic VA Colour RC Manual de usuario

Renkforce

Renkforce 1208067 Manual de usuario

Levenhuk

Levenhuk Discovery Report WA40 Manual de usuario

Instant Transmission

Instant Transmission MA 10410 Manual de usuario

Lutron Electronics

Lutron Electronics PHB-318 Manual de usuario

WAREMA

WAREMA EWFS Weather station eco Manual de usuario
