Braun NL MILLENIUM 05 Series Manual de usuario

Millennium

RNING

Read manual

before installing

or servicing lift.

Failure to do so

may result in

serious bodily

injury and/or

property damage.

ual

Man

"Providing Access to the World"

International Corporate Hdqrs: P.O. Box 310 Winamac, IN 46996 USA

1-800-THE LIFT®(574) 946-6153 FAX: (574) 946-4670

Braun NL Series

DOT — Public Use Lift

“DOT — Public Use Lift” verifies that this platform lift meets the

“public use lift” requirements of FMVSS No. 403. This lift may be

installed on all vehicles appropriate for the size and weight of the

lift, but must be installed on buses, school buses, and multi-

purpose passenger vehicles other than motor homes with a gross

vehicle weight rating (GVWR) that exceeds 4,536 kg (10,000 lb).

CA

HZg^Zh

CA

HZg^Zh

Public Use Wheelchair Lifts

Series 05

Service Manual for:

33126 Rev. A

January

2008

Patent #5,261,779

Patent #6,065,924

Patent #6,238,169

Patent #6,464,447

Patent #6,599,079

Patent #6,692,217

Patent #6,739,824

Patents Pending

Patent #5,261,779

Patent #6,065,924

Patent #6,238,169

Patent #6,464,447

Patent #6,599,079

Patent #6,692,217

Patent #6,739,824

Patents Pending

Patent #5,261,779

Patent #6,065,924

Patent #6,238,169

Patent #6,464,447

Patent #6,599,079

Patent #6,692,217

Patent #6,739,824

Patents Pending

Patent #5,261,779

Patent #6,065,924

Patent #6,238,169

Patent #6,464,447

Patent #6,599,079

Patent #6,692,217

Patent #6,739,824

Patents Pending

NL917IB

e5*72/245*95/54*0110*00

1-800-THE LIFT™

BRAUNLIFT.COM™

The Braun Corporation

DOT Public Use Lift MODEL#

Max. Lifting Capacity - 800 lbs.

PATE NT

PENDING- 5,261,779-6,065,924-6,238,169-6,46

4,447-6,599,079-6,692,217-6,739,824

MFG DATE

56 14CG

PUMP CODE CYLINDER

05-00025

SERIAL NUMBER

06/19/06

OWNER'S WARRANTY REGISTRATION

PURCHASED FROM

DATE INSTALLED

NAME

ADDRESS

CITY

TELEPHONE

TO VALIDATE WARRANTY

REGISTRATION CARDS MUST BE RETURNED TO THE BRAUN CORPORATION.

OWNER

STATE ZIP

Sample Warranty/Registration Card

Two Braun Serial No./Series No. identiﬁcation tags (shown below) are posted on the lift.

One I.D. tag is posted on the opposite pump side vertical arm. A second I.D. tag is located

on the opposite pump side tower. Both I.D. tags provide the product identiﬁcation infor-

mation provided on the warranty/registration card. Record the information in the space

provided (or document on a copy). This information must be provided when ﬁling

a warranty claim or ordering parts.

Warranty and Registration Instructions

Immediately upon receiving the lift, examine the

unit for any damage. Notify the carrier at once

with any claims.

Two warranty/registration cards (shown right) are

located in the lift-mounted manual storage pouch.

The sales representative must process one of the

cards. The consumer must ﬁll out the other card

and mail it to The Braun Corporation. The war-

ranty is provided on the back cover of this manual.

The warranty cards must be processed to

activate the warranty.

Congratulations

Model No.

Series No.

Serial No.

Pump Code

Cylinder Code

Date of Manufacture

Sample Serial No./Series No. Identiﬁcation Tag

NL917IB-05-00025-56-14CG

Serial No.Model No. Cylinder Code

Series No. Pump Code

We at The Braun Corporation wish to express our fullest appreciation

on your new purchase. With you in mind, our skilled craftsmen have designed and

assembled the ﬁnest lift available.

This manual provides service-related material. Refer to the FMVSS No. 403

Quick Reference Installation Sheet for installation instructions, operating instructions

and maintenance procedures.

Braun Millennium Series™lifts are built for dependability and will provide years

of pleasure and independence as long as the lift is installed and serviced as speciﬁed

by a Braun certiﬁed technician, and the lift is operated by an instructed person.

Sincerely,

THE BRAUN CORPORATION

Ralph W. Braun

Chief Executive Ofﬁcer

Page 1

Contents

Troubleshooting and Maintenance

Lift Terminology ............................................................ 2

Switch and Sensor Locations ..................................... 3

Certiﬁcation Checklist Diagnostic Procedures ......... 4

Platform Fold Pressure Adjustment ............................ 5

Outer Barrier Fold Pressure Adjustment .................... 5

Platform Angle Adjustment ...................................... 6-7

Platform Stop Blocks ................................................... 7

Platform Floor Level Adjustment ................................ 8

Bridging Microswitch Adjustment .............................. 9

LCD Lift Codes ....................................................... 10-11

Lubrication Diagram ................................................... 12

Maintenance and Lubrication Schedule .............. 13-15

Notes ............................................................................ 16

Lift Electrical Schematic ............................................ 17

Lift Wiring Diagram .................................................... 18

Hydraulics

Hydraulic Schematic .................................................. 19

Hydraulics Parts List .................................................. 20

Hydraulics Diagram .................................................... 21

Repair Parts

Pump Module

Pump Module Parts List ....................................... 22

Pump Module Diagram ......................................... 23

Lift Exploded Views

42"Floor-to-Ground Lift Models

(NL915IB, NL915FIB, NL918IB, and NL918FIB)

Repair Parts List ................................................... 24

Exploded View........................................................ 25

48"Floor-to-Ground Lift Models

(NL916IB, NL916FIB, NL917IB, NL917FIB,

NL919IB and NL919FIB)

Exploded View ....................................................... 26

Repair Parts List .................................................... 27

Notes....................................................................... 28

Page 2

DOWN

32819

FOLD

UNFOLD

32820

Hand-Held

Pendant

Control

Top Parallel Arms (2)

Adjustable Quiet-Ride Stow Blocks (2)

Main Cylinders (2)

Vertical Arm Covers (4)

Opposite Pump Side Vertical Arm

Handrails (2)

Outer Barrier Cylinder

(not visible -underside of platform)

Outer Barrier

(Automatic Outboard Roll Stop)

Rotating Pivot

Slide Arms (2)

Platform Pivot Arms (2)

Pump Side Vertical Arm

Bottom Parallel

Arms (2)

Platform Lights

Outboard

Right

Lift-Tite™Latches (2)

Unfold Assist Compression Springs (2)

Outer Barrier Latch

Platform Side Plates (2)

Platform

Left

Inboard

Towers (2)

Threshold

Warning

Plate

Audible

Threshold

Warning

Visual

Threshold

Warning

Inner Roll Stop

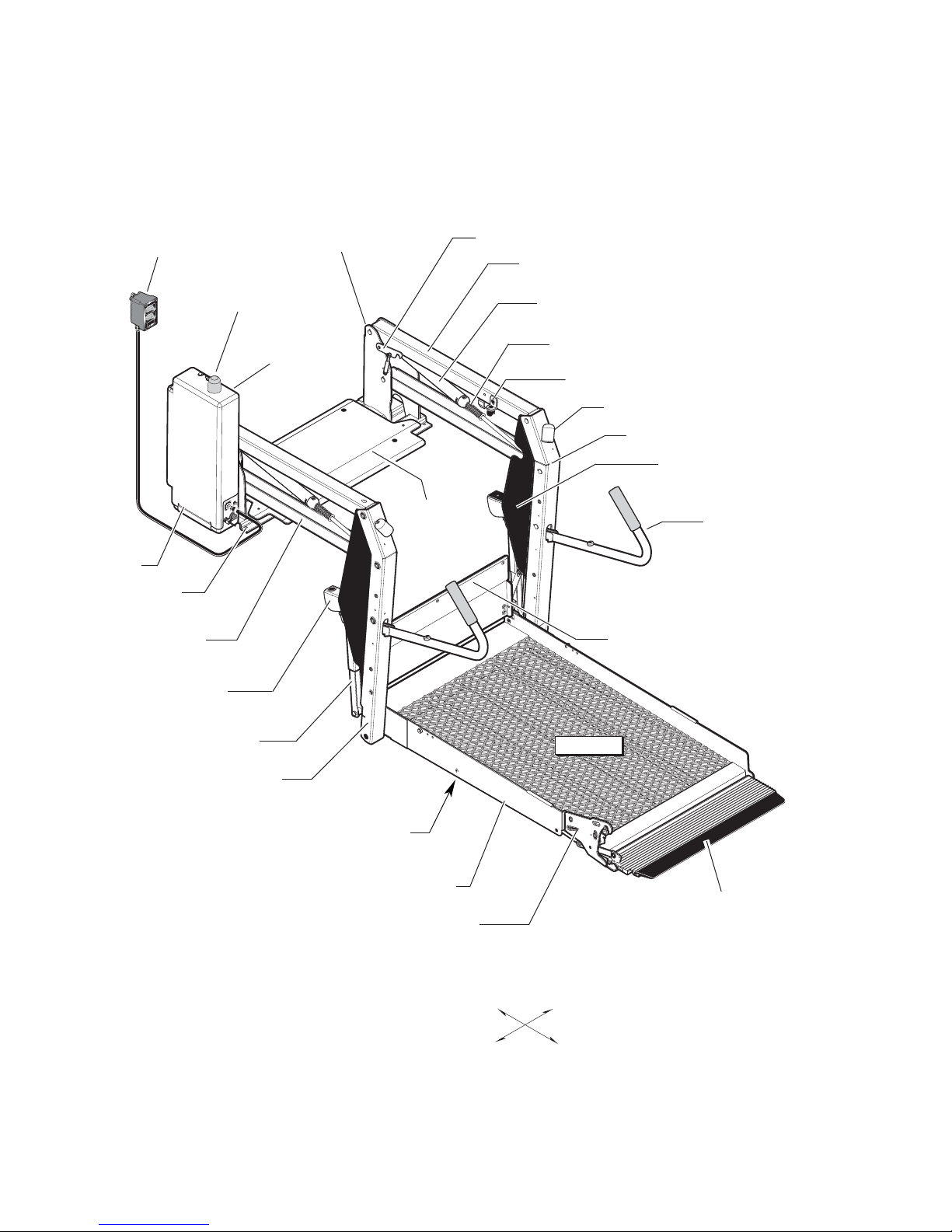

Lift Terminology

Pump

Module

(Rear) Base

Plate

Page 3

Switch and Sensor Locations

*Bridging

Microswitch

31010FA

Pressure Switch

31199

Threshold Strip Switch

31221A (Qty. 2)

Outer Barrier Raised

Magnetic Sensor

32645NA60

Outer Barrier Latched

Magnetic Sensor

32645NA60

Outer Barrier Raised

Magnet

31664

Outer Barrier Latched

Magnet

31664

*Note: Mirror image for

right (front) pump lifts.

Inboard

Outboard

Right

Left

*IB Occupancy

Microswitch Assy.

32642A

*Rotary

Position

Sensor

31094A

*Stow

Microswitch

23184 (Qty. 2)

DOWN

32819

FOLD

UNFOLD

32820

Page 4

The following operations and conditions must be functionally veriﬁed in order for the lift to be FMVSS

403/404 compliant. If an operation does not function as described or a condition is not met, follow the refer-

enced procedures to correct the problem or contact a Braun Corporation Product Support representative at

1-800-THE LIFT®.

• Vehicle movement is prevented unless the platform is fully stowed.

1. Verify lift stowed signal - pin 7 on the pump module has a +12 volt signal OR pin 9 has a ground

signal (depends on interlock used).

2. Refer to the interlock installation instructions.

• Lift operation shall be inhibited unless the vehicle is stopped and vehicle movement is prevented.

1. Verify vehicle secure signal (pin 6) has a +12 volt signal.

2. Refer to the interlock installation instructions.

• The platform will not fold/stow when occupied.

- Refer to Platform Fold Pressure Adjustment procedures.

• The inner rollstop will not raise if occupied.

- Call Product Support

• The outer barrier will not raise if occupied.

- Refer to Outer Barrier Fold Pressure Adjustment

• Verify platform lighting when lift is deployed.

1. Replace bulb(s) in the light housing.

2. Check fuse (5 amp fuse on circuit board; F13)

• An audio warning (and visual warning for public lifts) will activate if the threshold area is occupied when

the platform is a least 1" below ﬂoor level.

1. Remove the threshold warning plate

2. Verify the threshold strip switch connectors are connected (see illustration on Page 3)

3. Replace the threshold strip switch

4. Reinstall the threshold warning plate

• Platform movement is prohibited beyond the position where the inner rollstop is fully deployed.

- Call Product Support.

• Lift platform movement shall be interrupted unless the outer barrier is deployed.

- Call Product Support.

Certiﬁcation Checklist Diagnostic Procedures

Page 5

1. Lower the platform to the ground level loading position.

2. Remove the pump cover.

3. Turn the adjustment screw (shown below) counter clockwise until the outer barrier does not raise

when the Up button is pressed.

4. Turn the adjustment screw clockwise in 1/4 turn increments until the outer barrier raises and fully

locks in position when the Up button is pressed. DO NOT turn the adjustment screw beyond this

position.

5. Verify the outer barrier will not raise when occuppied.

6. Reattach the pump cover.

DOWN

32819

FOLD

UNFOLD

32820

1. Position the platform at the ﬂoor level loading

position.

2. Loosen the hex nut on the adjustment screw (do

not remove hex nut).

3. Turn the adjustment screw counter clockwise

until the platform does not fold when the Fold

button is pressed.

4. Turn the adjustment screw clockwise in 1/4 turn

increments and press the Fold button until the

platform folds completely (Note: return the plat-

form to ﬂoor level position after each attempt to

fold the platform).

5. Turn the adjustment screw an additional 1/8 turn

after the platform folds successfully.

6. Tighten the hex nut without moving the adjust-

ment screw.

7. Verify the platform will not stow while occupied.

Platform Fold Pressure Adjustment

Outer Barrier Fold Pressure Adjustment

Platform Fold

Adjustment

Allen Screw

Note: Secure adjustment

screw and tighten hex

nut following adjustment.

Outer Barrier

Fold Adjustment

Allen Screw

Page 6

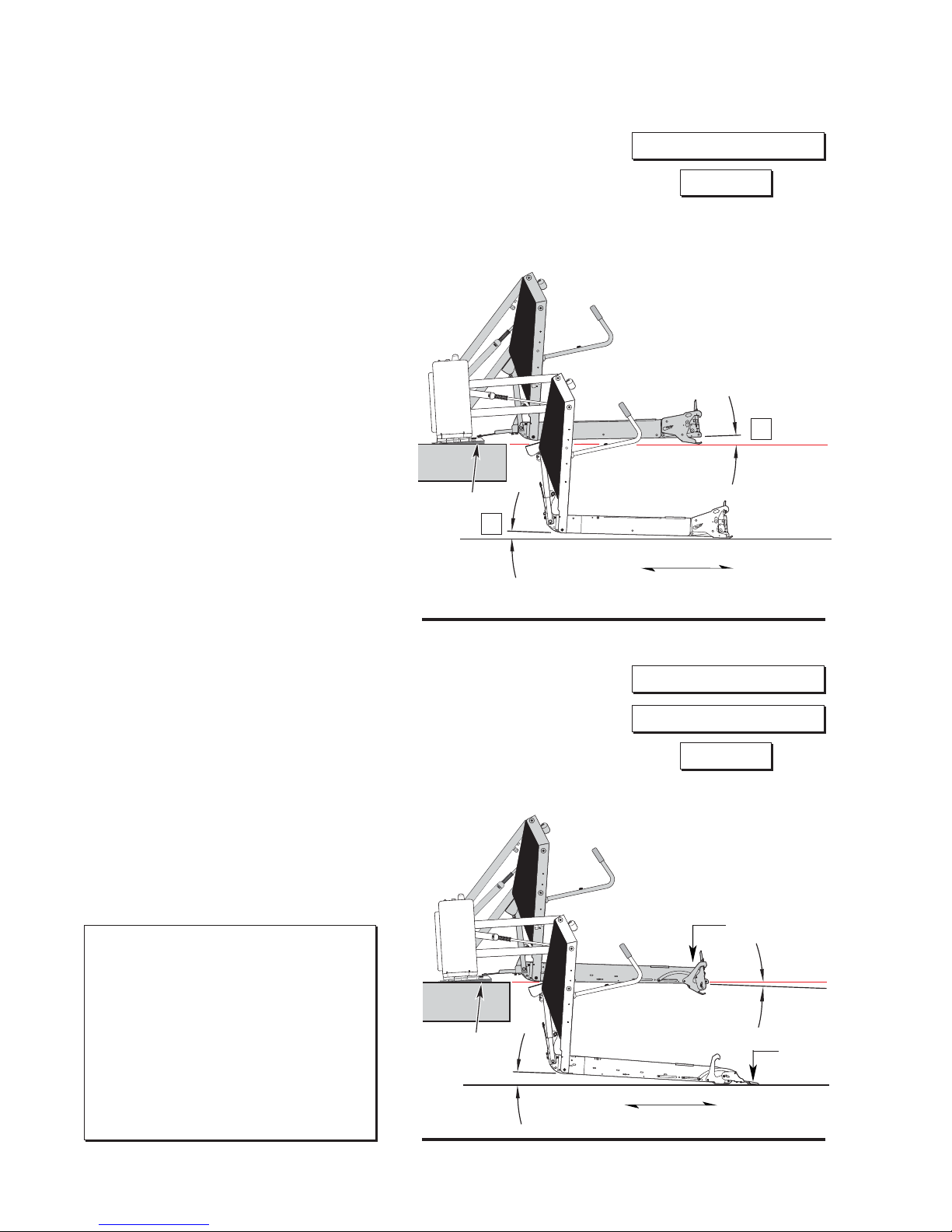

Platform Angle Adjustment

Wedges

Angle A

equals

Angle B.

✓

Figure C

Approximately

1” Clearance

Figure D

Millennium “NL” Series

Century “NCL” Series

Vista “NVL” Series

Inboard Outboard

Wedges

Toe must

angle

down

slightly.

Barrier

must

unfold

fully.

Adjusting the platform angle based on the

relationship of the platform at ground level

directly affects the angle of the platform

when positioned at ﬂoor level.

Unfold the lift and visually examine the

angle of the platform when positioned at

ﬂoor level. Lower the platform fully and

note the angle of the platform when it

reaches ground level also. The outboard

end of the platform (toe) must contact

the ground ﬁrst when the platform is

lowered (all lift models).

Millennium “NL” Series:

The platform angle should be adjusted so

there is a balance between the angle at

both positions (equal amount of angle).

Angle A should equal angle B as shown

in Figure C.

Century “NCL” Series:

Vista “NVL” Series:

The platform angle must be adjusted so

the outboard end of the platform (toe) is

angled down slightly when positioned at

ﬂoor level. See Figure D. The outboard

end of the platform must contact the

ground ﬁrst to ensure the spring-loaded

outer barrier unfolds fully.

Adjustment Procedures: Adjustment

Allen screws are provided on each side of

the lift platform for adjusting the platform

angle. Details and photos are provided

on the opposite page.

Base Plate Wedges: Installations where

base plate wedges are used require more

platform angle adjustment than normal.

Platform Stop Blocks: When ad-

justing platform angle, ensure both

stop blocks are making full contact

with the vertical arms (details on

opposite page).

Floor Level Adjustment: Follow-

ing platform angle adjustment, set

ﬂoor level positioning as detailed in

Platform Floor Level Adjustment

(details on page 8).

Page 7

Platform Angle

Adjustment Screws

Adjustment Screw Allen Head

Platform Angle Adjustment

Adjustment Allen screws are

provided on each side of the lift

platform for adjusting the platform

angle. Adjust platform angle as

speciﬁed on previous page.

Platform Stop Blocks

Must make full contact.Gapnot permitted.

Both stop blocks must

make full contact with

the edge of vertical arms.

Stop Block Guideline

All Lift Models

Right Wrong

Turn

clockwise

to raise

outboard

end of

platform

When adjusting platform

angle, setting ﬂoor level

position or adjusting

bridging microswitch -

ensure both stop blocks

are making full contact

with the vertical arms.

Stop

Block

Vertical

Arm Stop

Block

Vertical

Arm

Turn

counter-

clockwise

to lower

outboard

end of

platform

To raise the outboard end

of platform - turn adjustment

screw clockwise.

To lower the outboard end

of platform - turn adjustment

screw counterclockwise.

Note: Both adjustment screws

must be adjusted equally.

Apply Loctite®to adjustment

screws following adjustment.

Page 8

Platform Floor Level Adjustment

Diagnostics: Diagnostic codes

have been established in event

the lift platform ﬂoor position

does not set (the lift does not

sound three “beeps” - see Step

5 above). The control board

located inside the pump hous-

91 – The platform position is out of a prede-

termined acceptable range

92 – The Bridging Microswitch is not activat-

ed (adjust switch or lower the platform)

93 – The Inner Roll Stop Occupied switch is

not activated (adjust switch)

94 – The Outer Barrier Up switch is not acti-

vated (adjust switch)

95 – The Outer Barrier Latched sensor is

not activated (Century and Vista: Verify

jumper is installed on the outboard

barrier latch switch – see photo at right;

Millennium: Check latch)

LCD Screen

Floor Level Set Button

Floor Level Adjustment:

1. Position platform at desired

ﬂoor level position (passenger

loading/unloading height).

Position platform such that:

a. the inner roll stop is laying

ﬂat on the threshold plate

b. platforrm has not begun to

fold

Note: Use hand pump to po-

sition platform at proper posi-

tion if unable to stop platform

when powering lift.

2. Turn Lift Power switch Off.

3. Press Floor Position Set but-

ton (located between pump

housing and lift tower).

4. While pressing the Floor Po-

sition Set button, turn the Lift

Power switch On.

5. Continue pressing the Floor

Position Set button until the

lift sounds three “beeps.”

6. Release the Floor Position

Set button.

7. Cycle lift to verify that plat-

form stops at the set ﬂoor

level position. Note: If

platform does not stop at

Before setting ﬂoor level position:

• Adjust platform angle as detailed

on page 6.

• Ensure both stop blocks are

making full contact with verti-

cal arms (details on page 7).

the intended position - repeat

adjustment procedures. If re-

peating procedures fails - refer

to Diagnostics section below.

ing is equipped with an LCD

screen. Remove the pump

cover to access the LCD

screen. The following diagnos-

tic codes will help resolve ﬂoor

position setting problems:

Century/Vista Jumper

Tabla de contenidos

Otros manuales de Sistema de elevación de Braun

Braun

Braun UVL SERIES Under-Vehicle Lift NUVL855SM Manual de usuario

Braun

Braun CENTURY NCL 05 Series Manual de usuario

Braun

Braun NVL Vista 02 Series Manual de usuario

Braun

Braun NCL Century 2 Series Manual de usuario

Braun

Braun Century NCL Series Manual de usuario

Braun

Braun NUVL855ESM Manual de usuario

Braun

Braun 06 Series L915 Manual de usuario

Braun

Braun NL Millennium Series Manual de usuario

Braun

Braun Millennium NL-2 Series Manual de usuario

Braun

Braun NVL Vista 2 Series Manual de usuario

Braun

Braun RA300 Manual

Braun

Braun 04 Series Manual de usuario

Braun

Braun Millennium 2 AD NL Series Manual de usuario

Braun

Braun VISTA Series Suplemento

Braun

Braun NVL Vista A3 Series Manual de usuario

Braun

Braun Under-Vehicle Lift NUVL603C Manual de usuario

Braun

Braun NL501 Series Manual de usuario

Braun

Braun NVL Vista B5 Series Manual de usuario

Braun

Braun NL502 Series Manual de usuario

Braun

Braun NVL Vista 03 Series Manual de usuario

Braun

Braun FMVSS 403 Manual de usuario

Braun

Braun UVL Series Manual de usuario

Braun

Braun L200UARS Ultra Series 05 Manual de usuario

Braun

Braun Vista 2 NVL Series Manual de usuario

Manuales populares de Sistema de elevación de otras marcas

morse

morse 82H-124 Manual de usuario

haacon

haacon 1889.10 Manual de usuario

Protekt

Protekt AT 252 Manual de usuario

R. Beck Maschinenbau

R. Beck Maschinenbau HS 600 Manual de usuario

Nova Technology International, LLC

Nova Technology International, LLC NAS Series Manual de usuario

Genie

Genie Z-60/34 Manual de usuario

Screen Technics

Screen Technics INTERFIT Vertical Up Lift Manual de usuario

Mortuary Lift

Mortuary Lift ULTIMATE 1000 Manual de usuario

Custom Equipment

Custom Equipment Hy-Brid 3 Series Manual de programación

Custom Equipment

Custom Equipment Hy-Brid Lifts 2 Series Manual de programación

Hy-Brid Lifts

Hy-Brid Lifts HB-P3.6 Manual de programación

BERG

BERG BeNomic EasyLeaf Manual de usuario

Powermate

Powermate LiftGate LG-3 Manual de usuario

Snorkel

Snorkel TM12 Series Manual de usuario

Terberg

Terberg OMNIDEKA Manual de usuario

Harmar Mobility

Harmar Mobility AL625 Instrucciones de funcionamiento

Rotary

Rotary SPO16 Manual de usuario

Ricon

Ricon Mirage F9T Manual de usuario
