Braun Activator 8595 Manual de usuario

Activator 8595 MN KURTZ DESIGN 04.02.03

www.braun.com/register

Type 5643

full

cartridge

empty

clean

eco

normal

intensive

auto select

8595

off

321

8595

5-643-451/01/IX-03/G2

GB/F/PL/CZ/SK/H/HR/SLO/TR/RUS/UA/Arab

Printed in Germany

5643451_S1 Seite 1 Montag, 8. September 2003 12:18 12

English 4, 10, 96

Français 11, 17, 96

Polski 18, 24, 96

âesk˘

26, 32, 96

Slovensk˘

33, 39, 96

Magyar 40, 46, 96

Hrvatski 47, 53, 96

Slovenski

54, 60, 96

Türkçe

61, 96

êÛÒÒÍËÈ

68, 74, 96

ìÍ‡ªÌÒ¸Í‡

77, 83, 96

94, 85, 96

Braun Infoline

Müµteri Hizmetleri Merkezi:

0212 - 473 75 85

ÖÒÎË Û Ç‡Ò ÂÒÚ¸ ‚ÓÔÓÒ˚ ÔÓ ÔÓ‚Ó‰Û

‰‡ÌÌÓ„Ó ÔÓ‰ÛÍÚ‡, Á‚ÓÌËÚÂ

(095) 258 62 70

RUS

5643451_S2 Seite 1 Freitag, 4. April 2003 9:06 09

8595

21off

Activator 8595

start

clea

ning

clean

eco

normal

intensive

full

cartridge

auto select

empty

No. 8000

Ge 60 8 p o U S G 9 0

5643451_S3 Seite 1 Freitag, 4. April 2003 9:06 09

Your Activator (shaver with Clean&Charge station)

is a system equipped with highly advanced electronic

processors. It ensures unsurpassed closeness and

comfort for you and optimum care for your shaver:

• The system automatically adapts to any voltage

worldwide.

•The system recognizes when cleaning of your shaver is

required, and automatically recognizes which of the

three cleaning programs is appropriate.

•While the shaver is connected to the mains, the system

automatically takes care of charging and discharging in

a way that is optimized for the shaver’s battery capacity

and life span.

• The system takes care of lubrication of the shaver’s

cutting parts.

• The system tells you when to replace the shaving foil

and cutter block.

Warning

Your Activator is provided with a low-voltage adapter.

Therefore you must not exchange or manipulate any

part of it. Otherwise there is risk of electric shock.

In order to avoid any leakage of the cleaning fluid,

place the Clean&Charge station on a flat, stable

surface.

Do not tip, move suddenly or transport the station in

any way if a cleaning cartridge is installed.

Do not place the station in a mirror cabinet, nor store

it over radiators, nor place it on polished or laquered

surfaces. Do not expose to direct sunlight.

The station contains highly flammable liquid. Keep it

away from sources of ignition.

No smoking.

Keep out of reach of children.

Do not refill cartridge.

Use only original Braun refill cartridge.

STOP

English

5643451_S4_102 Seite 4 Montag, 8. September 2003 11:48 11

Description

1. Low-voltage adapter

2. «start cleaning» button

3. Station-to-shaver connecting contacts

4. Station lift button for cartridge exchange

5. Display for cleaning programs

6. Display for cleaning fluid status

7. Station mains socket

8. Cleaning cartridge

9. Shaver foil protection cap

10. Shaver foil

11. Cutter block

12. Foil release buttons

13. Long hair trimmer

14. Shaver-to-station connecting contacts

(shaver backside)

15. Switch

16. Shaver display

17. Info key

18. Pilot light

19. Shaver mains socket

Before shaving

If you wish, you may start shaving right away (if the shaver

is charged, see section «Shaver display»). However, we

recommend to follow the procedure described here:

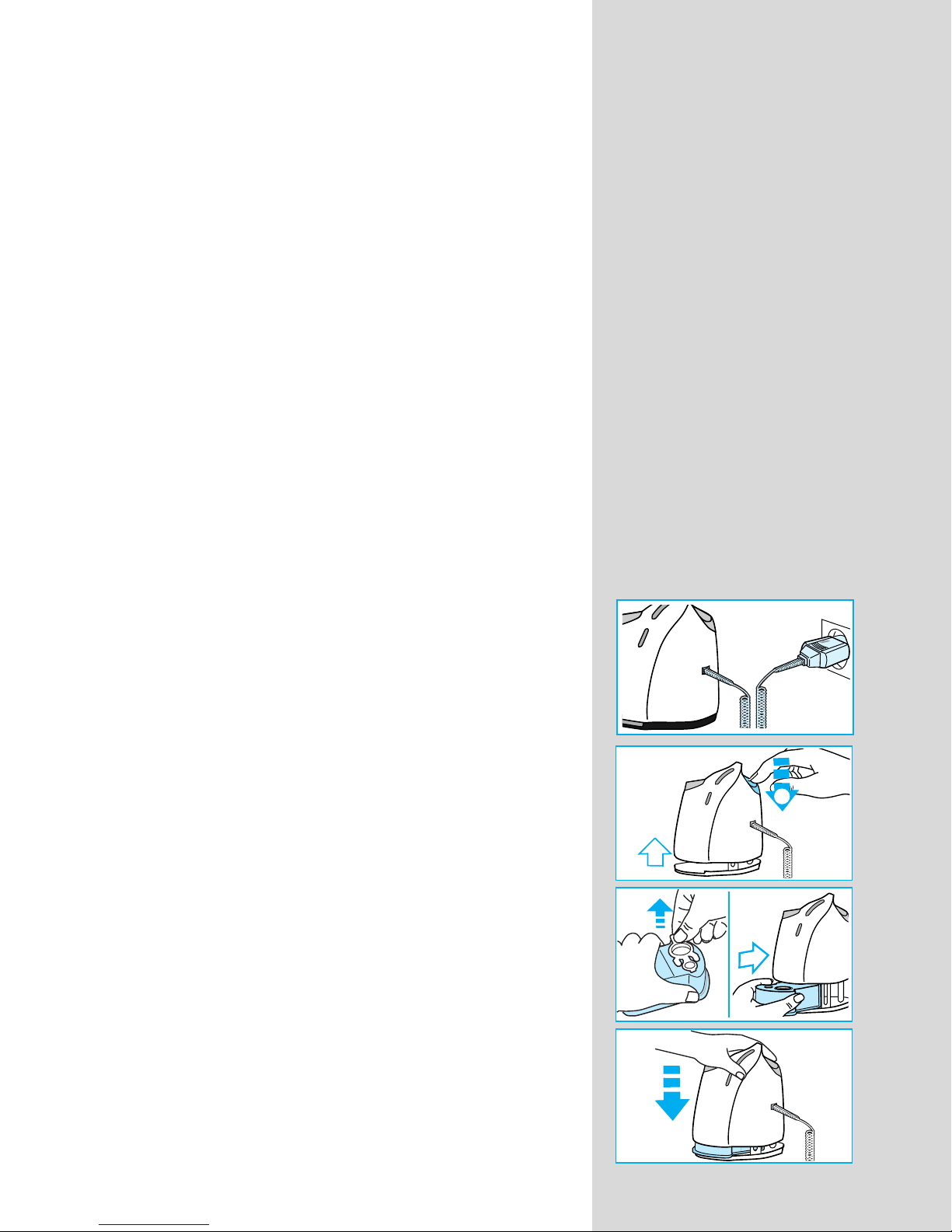

• Using the low-voltage adapter (1), connect the mains

socket of the Clean&Charge station (7) to the mains.

• Press the station lift button (4) to open the housing.

• Hold the cleaning cartridge (8) down on a flat, stable

surface (e.g. table).

• Carefully remove the lid from the cartridge.

•Slide the cartridge into the base of the station as far as

it will go.

• Slowly close the housing by pushing it down until it

locks.

eco

normal

intensive

auto s

full

cartridge

empty

clean

eco

normal

intensive

full

cartridge

auto select

empty

clean

eco

normal

intensive

full

cartridge

auto select

empty

clean

eco

normal

intensive

full

cartridge

auto select

empty

5643451_S4_102 Seite 5 Montag, 8. September 2003 11:48 11

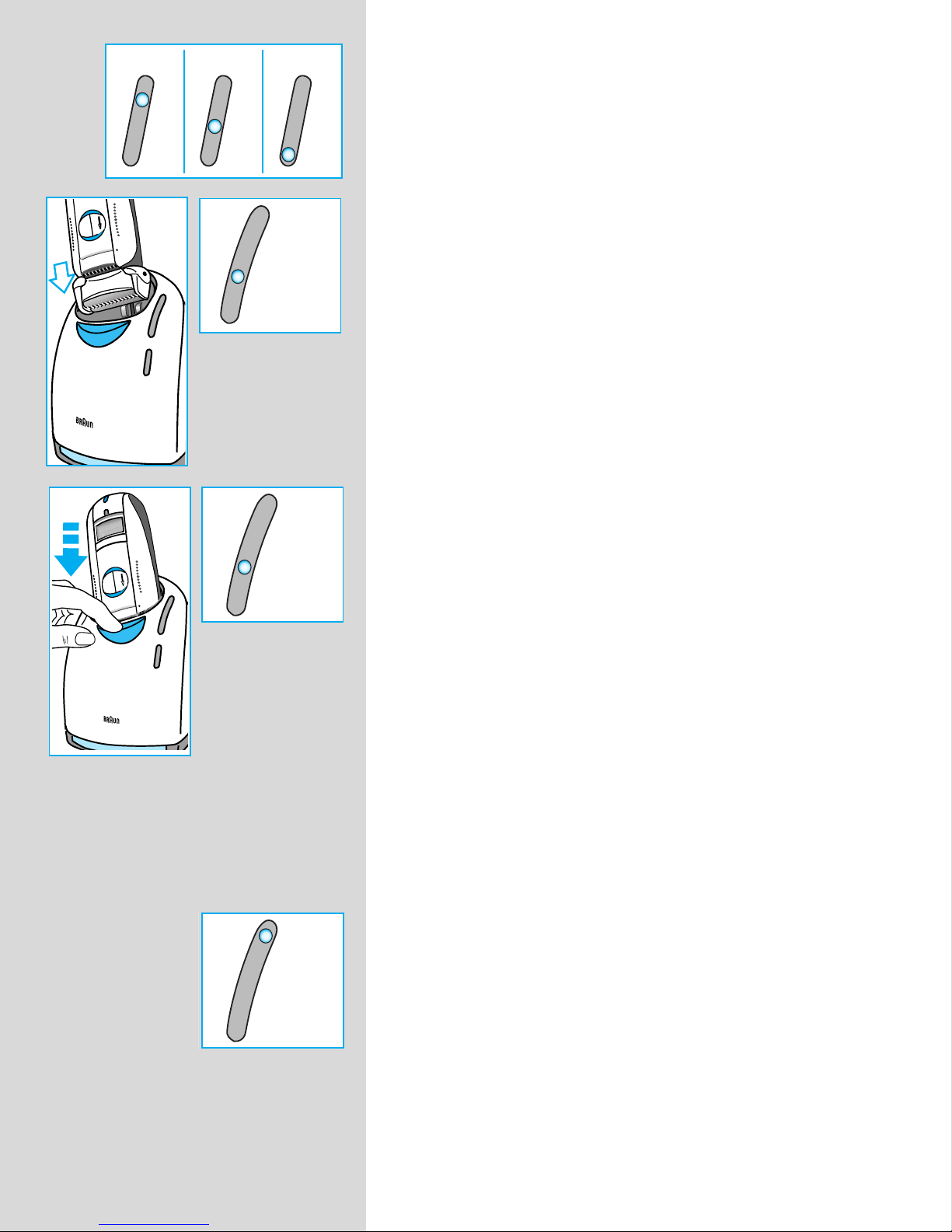

The display for cleaning fluid (6) will show how much

cleaning fluid is in the cartridge:

a) Cleaning solution sufficiently available

b) Up to 7 cleanings left

c) New cartridge required

Make sure the foil protection cap (9) is removed from the

shaver. Insert the shaver head down into the station (the

contacts on the back of the shaver (14) will correspond to

the contacts in the station (3)). If necessary, the system

will now charge the shaver.

Also, the cleaning status will be automatically analyzed

and one of the four diodes of the cleaning program display

(5) will light up:

a) The shaver is clean

b) Eco(nomic), i.e. short cleaning required

c) Normal cleaning required

d) Intensive cleaning required

If the system has selected one of the three cleaning

programs, it will not start until you push down the «start

cleaning» button (2). This locks the shaver into the station

and starts the cleaning process.

We recommend cleaning after each shave.

While the cleaning is in progress, the respective cleaning

program light will flash. Each cleaning consists of several

cycles (where the cleaning fluid is flushed through the

shaver head) and a heat drying period. The total cleaning

time is 33 to 50 minutes.

Cleaning processes in the Clean&Charge should not

be interrupted. While the shaver is drying, the metal

parts of the shaver may be hot. Also, if the shaver is

taken out prematurely and is not dry, its electronics

could be harmed.

When the program is finished, the blue «clean» light will

shine. You can release the shaver by pushing the «start

cleaning» button.

Your shaver is now clean, charged and ready for use.

cartridge

full

empty

cartridge

full

empty

cartridge

full

empty

abc

full

cartridge

auto select

empty

eco

normal

intensive

clean

321off

auto select

eco

normal

intensive

clean

auto select

eco

normal

intensive

clean

full

cartridge

auto select

empty

eco

normal

intensive

clean

321off

auto select

eco

normal

intensive

clean

5643451_S4_102 Seite 6 Montag, 8. September 2003 11:48 11

Shaving

If the shaver is locked into the Clean&Charge station,

push the «start cleaning» button (2) to release the shaver

and take it out.

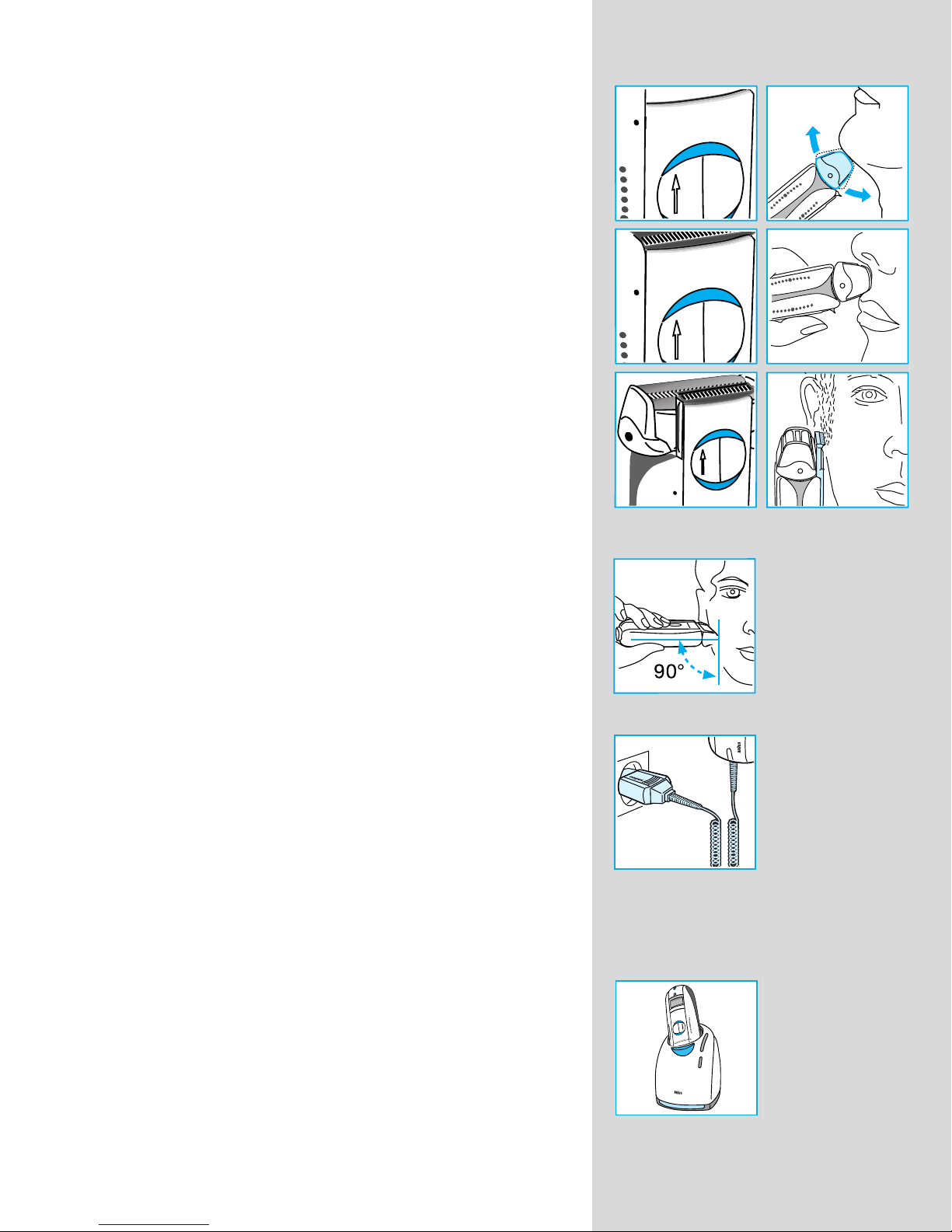

Switch positions

off = (switch is locked)

Press and push up the switch to operate the shaver:

1=Shaving with the pivoting head

(the pivoting cutting system automatically adjusts to

every contour of your face).

2=Shaving with the pivoting head locked at an angle

(to permit shaving in difficult areas, e.g. under the

nose).

3=The long hair trimmer is activated

(for trimming sideburns, moustache and beard).

Tips for the perfect shave

We recommend that you shave before washing, as the

skin tends to be slightly swollen after washing.

Hold the shaver at right angles (90°) to the skin.

Stretch your skin and shave against the direction of beard

growth.

To maintain 100% shaving performance, replace your foil

and cutter block when it is indicated on the shaver display

or when the parts are worn or at least every 18 months.

Shaving with the cord

If the shaver is completely discharged (see section

«Shaver display») and you do not have the time to

recharge in the Clean&Charge station, you may also

shave with the shaver connected to the mains via the

low-voltage adapter.

After shaving

Automatic cleaning

After each shave, return the shaver to the Clean&Charge

station and proceed as described above in the section

«Before shaving». All charging and cleaning needs are

then taken care of. With daily use, a cleaning cartridge

should be sufficient for about 30 cleaning cycles.

The hygienic cleaning solution cartridge contains alcohol

which, once opened, will naturally evaporate slowly into

the surrounding air. Each cartridge, if not used daily,

should be replaced after approximately 8 weeks.

321

8570

full

cartridge

auto select

empty

eco

normal

intensive

clean

321off

5643451_S4_102 Seite 7 Montag, 8. September 2003 11:48 11

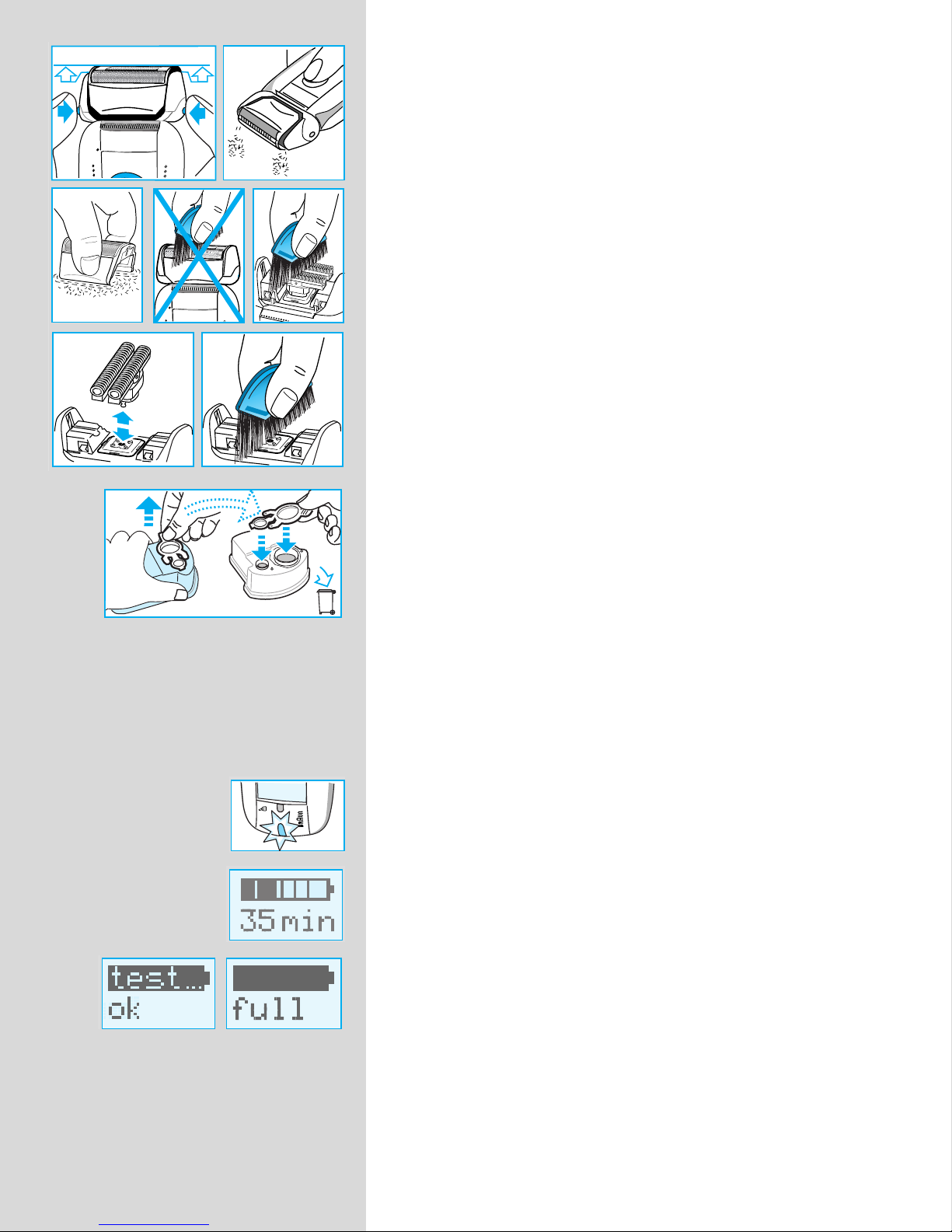

Quick cleaning

Press the foil release buttons (12) to lift the shaver foil

(do not remove the foil completely). Switch on the shaver

for approx. 5–10 seconds so that the shaved stubbles can

fall out.

Thorough manual cleaning

Manual cleaning is recommended only when the

Clean&Charge station is not available, e.g. when travel-

ling. Never use water to clean the shaver.

Remove the shaver foil and tap it out on a flat surface.

Using the brush, clean the cutter block and the inner area

of the pivoting head. If you do not use the Clean&Charge

station for a longer period of time, you should apply a drop

of light machine oil onto the shaver foil.

Replacing the cartridge

After having pressed the lift button (4) to open the

housing, wait for a few seconds before removing the used

cartridge.

Before discarding the used cartridge, make sure to close

the openings using the lid of the new cartridge, since the

used cartridge will contain contaminated cleaning

solution.

Cleaning the housing

Clean the housing of shaver and station from time to time

with a damp cloth, especially inside the opening of the

station where the shaver rests.

Shaver display

1. Pilot light: the shaver is connected to the mains.

2. Shaver is charging / Remaining charging time.

3. Self testing / shaver is fully charged (a full charge

will give up to 50 minutes of cordless shaving time,

depending on your beard growth).

21off

1off

old

new

8595

5643451_S4_102 Seite 8 Montag, 8. September 2003 11:48 11

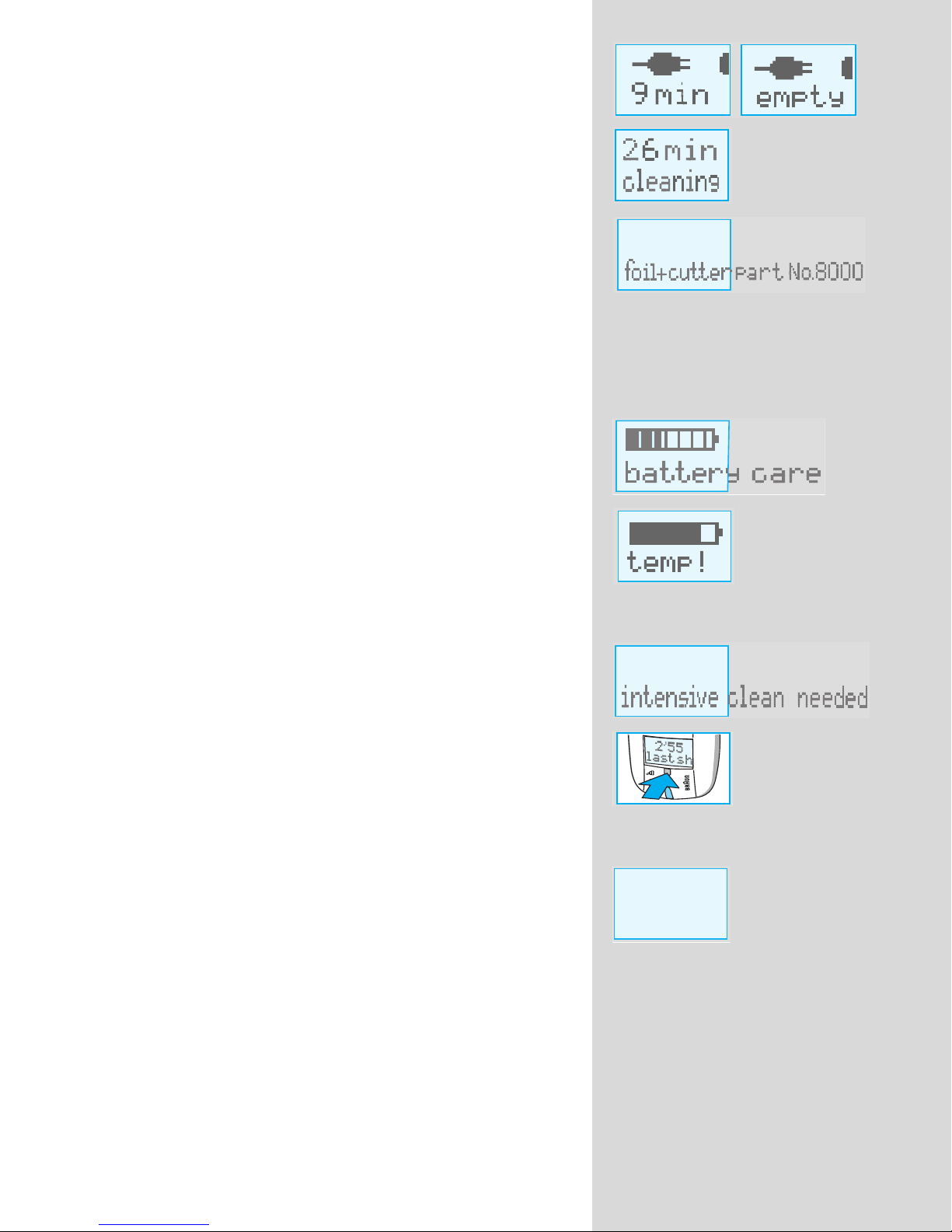

4. Remaining shaving time / Shaver must be charged.

5. Time left in the cleaning process.

6. Replace shaving foil and cutter block. To help obtain

a new shaver foil and cutter block at your dealer or

Braun Service Center, the display shows the part

No. 8000. To reset the display, push the info key (17).

We recommend to follow the display’s suggestion,

i.e. replace foil and cutter block every 18 months.

Change both parts at the same time for a closer

shave with less skin irritation.

7. System has initiated automatic battery maintenance

(it is fully discharging and then recharging the

batteries).

8. Environment temperature not suited for charging.

Allow the shaver to remain for some time at room

temperature for optimal charging conditions.

Best environmental temperature range for charging

is 15 °C to 35 °C.

9. Intensive cleaning needed – return to the

Clean&Charge station as soon as possible.

To reset the display, push the info key (17).

10. Info key, press once: duration of last shave.

Press again: total number of shaves (cannot be reset).

Press again: key part number for shaver foil and

cutter block. Hold for 3 seconds: runs a display

demo.

11. No display – shaver is completely discharged.

Accessories

Available at your dealer or Braun Service Centres:

• Shaver foil and cutter block

No. 8000

• Cleaning cartridge Clean&Charge

CCR

8595

5643451_S4_102 Seite 9 Montag, 8. September 2003 11:48 11

Environmental notice

This appliance is provided with nickel-hydride recharge-

able batteries. To protect the environment, do not dispose

of the appliance in the household waste at the end of its

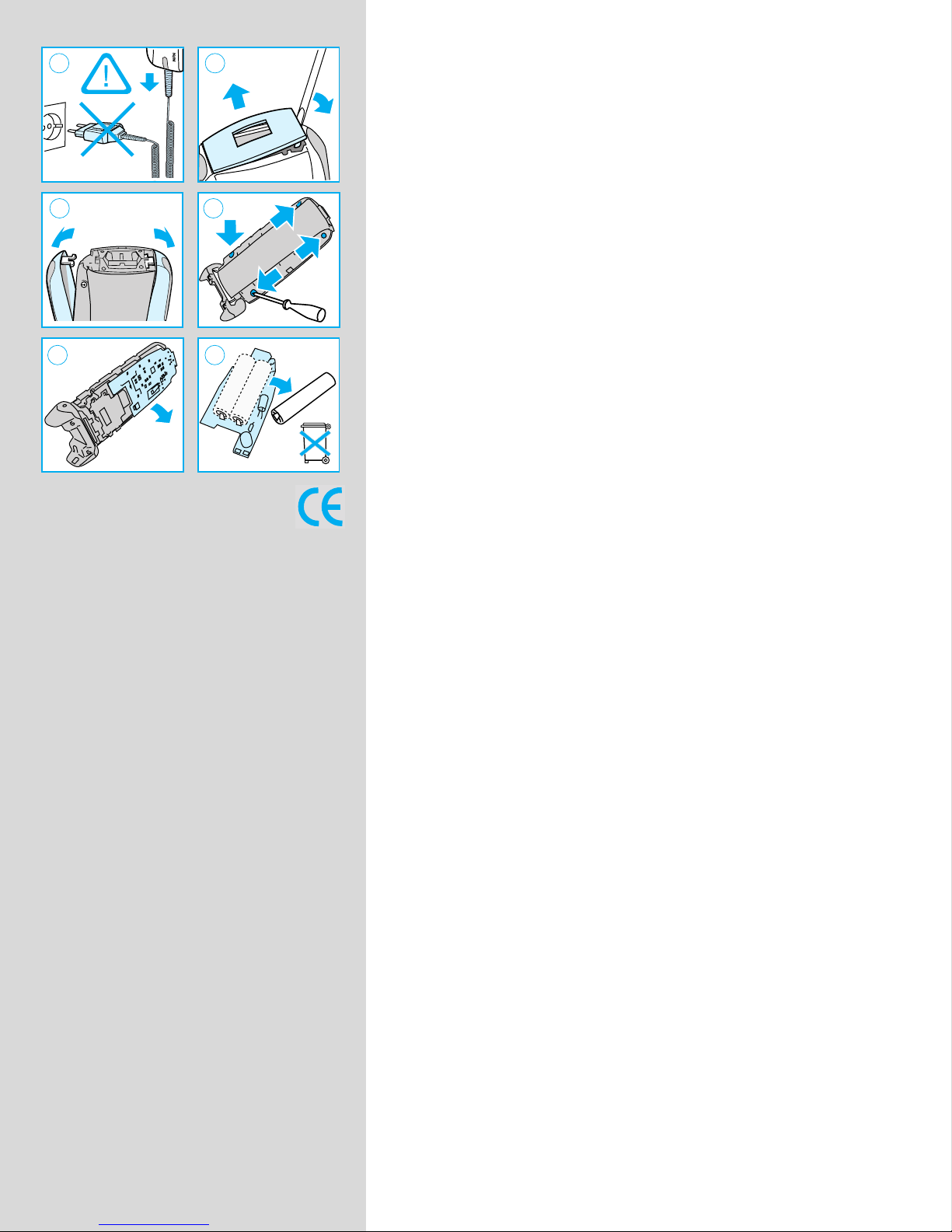

useful life. Open the housing as shown, remove and

dispose of the batteries at your retail store or at appro-

priate collection sites according to national or local

regulations.

The cartridge can be disposed with regular garbage.

Subject to change without notice.

This product conforms to the EMC-Directive 89/336/EEC and

to the Low Voltage Regulation 73/23 EEC.

Electric specifications see printing on the housing.

Guarantee

We grant 2 years guarantee on the product commencing

on the date of purchase. Within the guarantee period we

will eliminate, free of charge, any defects in the appliance

resulting from faults in materials or workmanship, either

by repairing or replacing the complete appliance as we

may choose.

This guarantee extends to every country where this appli-

ance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper

use, normal wear or use as well as defects that have a

negligible effect on the value or operation of the appli-

ance. The guarantee becomes void if repairs are under-

taken by unauthorised persons and if original Braun parts

are not used.

To obtain service within the guarantee period, hand in or

send the complete appliance with your sales receipt to an

authorised Braun Customer Service Centre.

For UK only:

This guarantee in no way affects your rights under

statutory law.

8570

5 6

5643451_S4_102 Seite 10 Montag, 8. September 2003 11:48 11

Otros manuales para Activator 8595

Tabla de contenidos

Idiomas:

Otros manuales de Rasuradora eléctrica de Braun

Braun

Braun cruZer3 2865 Manual de usuario

Braun

Braun 590 cc Manual de usuario

Braun

Braun 790 cc Manual de usuario

Braun

Braun 7 Manual de usuario

Braun

Braun 9395cc Manual de usuario

Braun

Braun MobileShave M-90 Manual de usuario

Braun

Braun Cruzer 2675 Manual de usuario

Braun

Braun 360S-4 Manual de usuario

Braun

Braun SC2 Sportive Manual de usuario

Braun

Braun X Series Manual de usuario

Braun

Braun Silk & Soft LS 5300 Manual de usuario

Braun

Braun 790CC-4 Manual de usuario

Braun

Braun CruZer FACE Manual de usuario

Braun

Braun Multigroomer MGK7221 Manual de usuario

Braun

Braun Exact Power EP 100 Manual de usuario

Braun

Braun S9 Manual de usuario

Braun

Braun Tri Control S 4776 Manual de usuario

Braun

Braun Gillette Venus SILK EXPERT Manual de usuario

Braun

Braun 93 cc Series Manual de usuario

Braun

Braun CRUZER3 Z50 Manual de usuario

Braun

Braun Contour 5790 Manual de usuario

Braun

Braun MGK5365 Manual de usuario

Braun

Braun 730s-4 Manual de usuario

Braun

Braun Pulsonic 9585 Manual de usuario

Manuales populares de Rasuradora eléctrica de otras marcas

Philips

Philips MicroAction 4402LC Manual de usuario

Philips

Philips HQ7740 Manual de usuario

Philips

Philips Norelco BG2022 Bodygroom Manual de usuario

Norelco

Norelco Quadra 7610X Manual de usuario

Philips

Philips 7616X Manual de usuario

Philips

Philips HQ802 Manual de usuario

Philips

Philips HQ7363/17 Manual de usuario

Philips

Philips NORELCO S7371 Manual de usuario

Daga

Daga MT-400 Manual

Philips

Philips RQ119x Manual de usuario

Remington

Remington BHT100 Manual de usuario

Philips

Philips Bodygroom BG2000 Manual de usuario

Kompernass

Kompernass KH 5537 Manual de usuario

Remington

Remington BHT6100 Manual de usuario

Philips

Philips qc5365 Manual de usuario

MIA

MIA Aqua Body Manual de usuario

Philips

Philips NORELCO AT880 Manual de usuario

Matheo

Matheo MLR 15 Manual de usuario
