Braun 5773 swing Manual de usuario

380s-3

Series3

www.braun.com

Type 5773

full

low

380

lock

99625055_380_Korea 1399625055_380_Korea 13 15.07.2010 15:10:08 Uhr15.07.2010 15:10:08 Uhr

STOP

full

low

380

washable

lock

full

low

380

lock

99625055_380_Korea 299625055_380_Korea 2 15.07.2010 15:10:01 Uhr15.07.2010 15:10:01 Uhr

90°

off

full

off

lock

full

washable

off

full

click!

oil

lock

99625055_380_Korea 399625055_380_Korea 3 15.07.2010 15:10:03 Uhr15.07.2010 15:10:03 Uhr

99625055_380_Korea 499625055_380_Korea 4 15.07.2010 15:10:03 Uhr15.07.2010 15:10:03 Uhr

99625055_380_Korea 599625055_380_Korea 5 15.07.2010 15:10:04 Uhr15.07.2010 15:10:04 Uhr

99625055_380_Korea 699625055_380_Korea 6 15.07.2010 15:10:05 Uhr15.07.2010 15:10:05 Uhr

99625055_380_Korea 799625055_380_Korea 7 15.07.2010 15:10:06 Uhr15.07.2010 15:10:06 Uhr

English

Our products are designed to meet the highest standards of quality,

functionality and design. We hope you enjoy your new Braun Shaver.

Warning

Your shaving system is provided with a special cord set, which has an

integrated Safety Extra Low Voltage power supply. Do not exchange or

tamper with any part of it, otherwise there is risk of an electric shock.

This appliance is not intended for use by children or persons with reduced

physical or mental capabilities, unless they are given supervision by a person

responsible for their safety. In general, we recommend that you keep the

appliance out of reach of children. Children should be supervised to ensure

that they do not play with the appliance.

For hygienic reasons, do not share this appliance with other persons.

For usage in other body areas, please make sure that the skin is stretched.

Oil bottle

Keep out of reach of children. Do not swallow. Dispose of properly when

empty.

Description

1 Foil & Cutter cassette

2 Long hair trimmer

3 Precision setting switch («lock»)

4 On/off switch

5 Charging lights (green)

6 Low-charge light (red)

7 Replacement light for shaving parts

8 Shaver power socket

9 Special cord set

10 Charging stand

11 Etui

Charging

The best environmental temperature for charging is between 15 °C to 35 °C.

Do not expose the shaver to temperatures higher than 50 °C for extended

periods of time.

Using the special cord set (9), connect the shaver or the charging stand (10)

to an electrical outlet with the motor switched off.

•

99625055_380_Korea 899625055_380_Korea 8 15.07.2010 15:10:06 Uhr15.07.2010 15:10:06 Uhr

When charging for the first time, leave the shaver to charge continuously

for 4 hours.

Once the shaver is completely charged, discharge the shaver through

normal use. Then recharge to full capacity. Subsequent charges will take

about 1 hour.

A full charge provides up to 45 minutes of cordless shaving time depend-

ing on your beard growth. However, the maximum battery capacity will

only be reached after several charging/discharging cycles.

5-minute quick charge is sufficient for a shave.

Charging lights (5)

The green charging lights show the charge status of the batteries. The green

charging light blinks when the shaver is being charged or switched on.

When the battery is fully charged, all green charging lights shine permanently,

provided the shaver is switched on or connected to an electrical outlet.

Low-charge light (6)

The red low-charge light flashes when the battery is running low.

You should be able to finish your shave.

Shaving

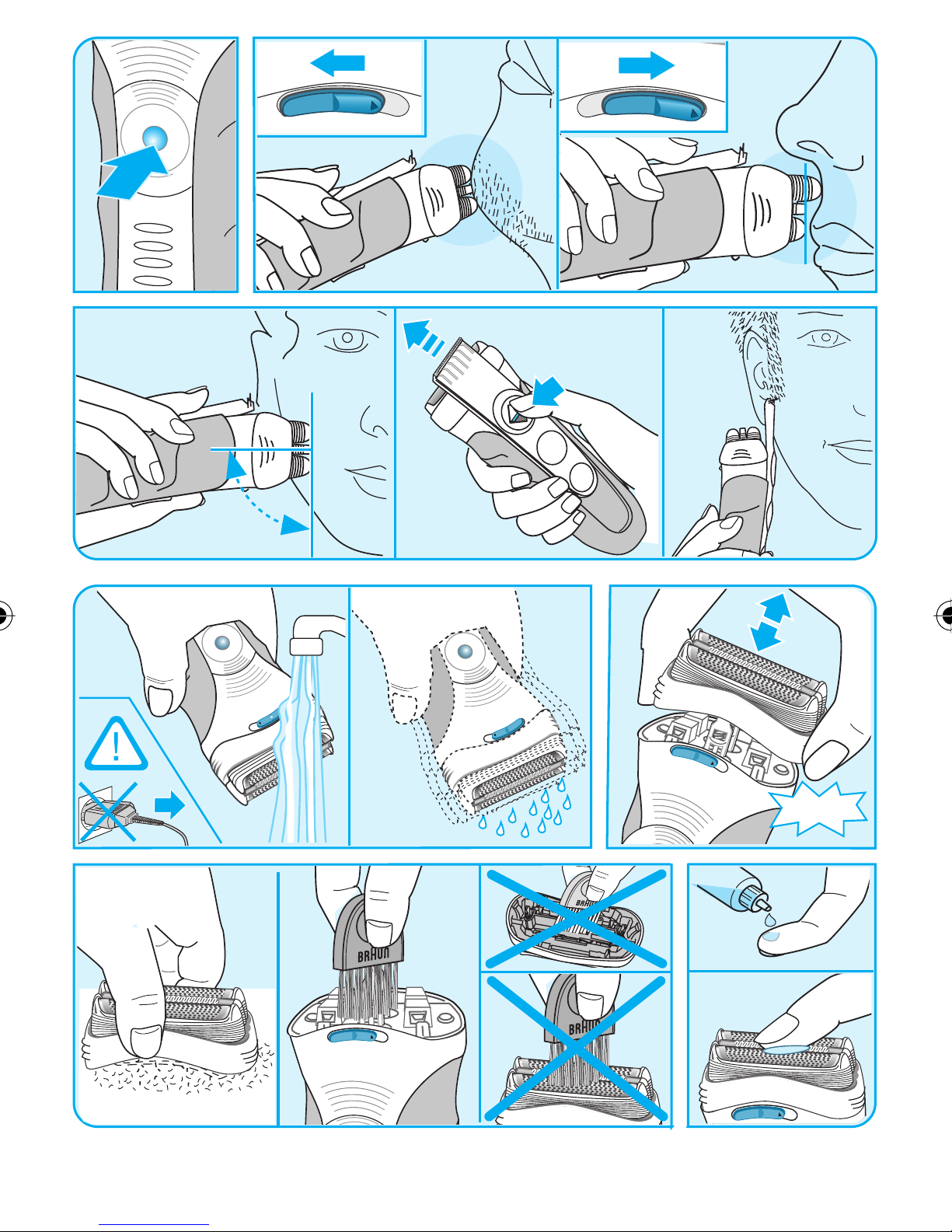

Press the on/off switch (4) to operate the shaver (picture).

The flexible shaving foils automatically adjust to every contour of your face

(picture).

Long hair trimmer (2)

To trim sideburns, moustache or beard, slide the long hair trimmer upwards.

Precision setting switch («lock») (3)

For precise handling in hard to shave areas (e.g. under the nose) slide the

switch (3) to the right to position «lock». The centre trimmer and one foil will

be lowered.

Tips for the perfect shave

For best results, Braun recommends you follow 3 simple steps:

1. Always shave before washing your face.

2. At all times, hold the shaver at right angles (90°) to your skin.

3. Stretch your skin and shave against the direction of your beard growth.

•

99625055_380_Korea 999625055_380_Korea 9 15.07.2010 15:10:06 Uhr15.07.2010 15:10:06 Uhr

This appliance is suitable for use in a bath or shower.

Cleaning

Regular cleaning ensures better shaving performance. Rinsing the shaver

head under running water after each shave is an easy and fast way to keep

it clean:

Switch the shaver on (cordless) and rinse the shaver head under hot

running water. You may use liquid soap without abrasive substances.

Rinse off all foam and let the shaver run for a few more seconds.

Next, switch off the shaver, remove the shaver Foil & Cutter cassette (1)

and let it dry.

If you regularly clean the shaver under water, then once a week apply a

drop of light machine oil onto the long hair trimmer (2) and shaver

Foil & Cutter cassette (1) (picture).

Alternatively, you may clean the shaver using a brush:

Switch off the shaver. Remove the shaver Foil & Cutter cassette and tap it

out on a flat surface (picture).

Using a brush, clean the inner area of the shaver head. However, do not

clean the shaver Foil & Cutter cassette with a brush as this may damage it

(picture).

Keeping your shaver in top shape

Replacement light for shaving parts / Reset

To maintain 100% shaving performance, replace the shaver Foil & Cutter

cassette (1), when the replacement light for shaving parts (7) comes on (after

about 18 months) or when worn.

Foil & Cutter cassette: 32S

The replacement light will remind you during the next 7 shaves to replace the

Foil & Cutter cassette. Then the shaver will automatically reset the display.

After you have replaced the Foil & Cutter cassette (1), press the on/off switch

(4) for at least 5 seconds to reset the counter.

While doing so, the replacement light blinks and goes off when the reset is

complete. The manual reset can be done at any time.

•

99625055_380_Korea 1099625055_380_Korea 10 15.07.2010 15:10:07 Uhr15.07.2010 15:10:07 Uhr
