INSTRUCTION MANUAL EN

Cooking Hob

EΛ

Important :

Before using your appliance, read this user guide carefully to familiarise yourself more quickly with its

operation.

Dear Customer,

You have just acquired a BRANDT product and we would like to thank you.

We have designed and made this product with you, your lifestyle and your

requirements in mind so that it meets your expectations. We have devoted our know-

how, our innovative spirit and the passion that has been guiding us for over 60 years.

In an effort to ensure that our products meet your requirements in the best possible

way, our Customer Relations department is at your disposal, to answer all your

questions and to listen to all your suggestions.

Visit our website www.brandt.com where you will find our latest innovations, as

well as useful and complementary information.

BRANDT is delighted to assist you every day and hopes you get the most out of

your purchase.

Table of contentsTable of contents

SAFETY ADVICE ....................................................................................4

ENVIRONMENT AND ENERGY SAVING ....................................................6

IDENTIFICATION ..................................................................................7

INSTALLATION......................................................................................8

Unpacking...................................................................................8

Enclosure ....................................................................................9

Electrical connection ....................................................................9

USE....................................................................................................10

Choice of cookware....................................................................10

Burner selection.........................................................................10

Power management ...................................................................10

Switching on / Stopping .........................................................11

+ / - Setting the power .............................................................11

Setting the timer.................................................................12

Boil function .......................................................................12

Child safety .........................................................................12

Safety precautions and recommandations....................................13

MAINTENANCE....................................................................................14

SPECIAL MESSAGES, INCIDENTS..........................................................15

ENERGY EFFICIENCY...........................................................................16

AFTER-SALES SERVICE........................................................................17

SAFETY ADVICESAFETY ADVICE SAFETY ADVICESAFETY ADVICE

This appliance may be used by

children aged 8 years and over and

by persons with reduced physical,

sensory or mental capabilities or

persons without experience and

knowledge, if they have been

properly informed or trained in

the safe use of the appliance and

understand the resulting risks.

Children must not play with the

appliance.

Cleaning and maintenance by the

user must not be carried out by

unsupervised children.

Children under 8 years of age

should be kept away unless they

are supervised at all times.

The appliance and its accessible

parts become hot during use.

Precautions should be taken

to avoid touching the heating

elements.

Metal objects such as knives,

forks, spoons and lids should not

be placed on the surface as they

can become hot.

Your hob has a child lock which

locks the hob when it is switched

off or during cooking (see chapter:

using the child lock).

Your appliance complies with

the European Directives and

regulations to which it is subject.

These hobs must be connected

to the mains supply via an

omnipolar disconnecting device

that complies with the installation

rules in force. A disconnecting

device must be incorporated in

the fixed wiring.

Your cooktop is designed

to operate at 50Hz or 60Hz

(50Hz/60Hz) without any special

intervention on your part.

After use, switch off the hob by

means of the control unit and do

not rely on the pot sensor.

In order to prevent interference

between your cooktop and a

pacemaker, the pacemaker

must be designed and adjusted

in accordance with the relevant

regulations. Ask the manufacturer

or your doctor about this.

Unattended cooking with oil or

fat on a hob can be dangerous

IMPORTANT SAFETY INSTRUCTIONS TO BE READ

CAREFULLY AND KEPT FOR FUTURE USE.

This guide can be downloaded from the brand web site.

SAFETY ADVICESAFETY ADVICE SAFETY ADVICESAFETY ADVICE

and may result in a fire. NEVER

attempt to extinguish a fire

with water, but switch off the

appliance before covering the

flame with e.g. a lid or fire

blanket.

CAUTION: Cooking must be

supervised. Short cooking times

require continuous supervision.

Risk of fire: Do not store objects

on the cooking areas.

If the surface is cracked,

disconnect the appliance to avoid

the risk of electric shock.

Do not use the hob again until

the glass top has been replaced.

Avoid shocks to the cookware:

the glass-ceramic surface is very

resistant, but not unbreakable.

Do not place a hot lid flat on your

cooktop. A "suction cup" effect

could damage the glass-ceramic

top. Avoid rubbing the cookware,

as this may cause damage to the

glass-ceramic top in the long run.

Never use aluminium foil for

cooking. Never place products

wrapped in aluminium or in

aluminium trays on your hob.

The aluminium will melt and

permanently damage the

appliance.

Do not store cleaning agents

or flammable products in the

cabinet under the cooktop.

If the power cord is damaged,

it must be replaced by the

manufacturer, its service centre

or similarly qualified persons to

avoid danger.

Make sure that the power cable of

an electrical appliance connected

in the vicinity of the cooktop

does not come into contact with

the cooking zones.

Never use a steam cleaner to

clean your hob.

The appliance is not intended

to be operated by means of

an external timer or a separate

remote control system.

CAUTION: Only use hob guards

the cooking appliance, referred

to in the operating instructions as

suitable, or incorporated into the

appliance. The use of unsuitable

guards may cause accidents.

ENVIRONMENT AND ENERGY SAVINGENVIRONMENT AND ENERGY SAVING

Protecting the environment

This symbol indicates that this product

should not be treated as household

waste.

Your appliance also contains a great

amount of recyclable material. It is

marked with this symbol to indicate that used

appliances must be disposed of in certified

collection points.

Contact your town hall or your retailer for

the used appliance collection points closest to

your home. This way, the appliance recycling

organised by your manufacturer will be done

under the best possible conditions, in compliance

with European Directive on Waste Electrical and

Electronic Equipment.

This appliance’s packing materials are also

recyclable. Help recycle it and protect the

environment by dropping it off in the municipal

receptacles provided for this purpose.

We thank you for your help in protecting the

environment.

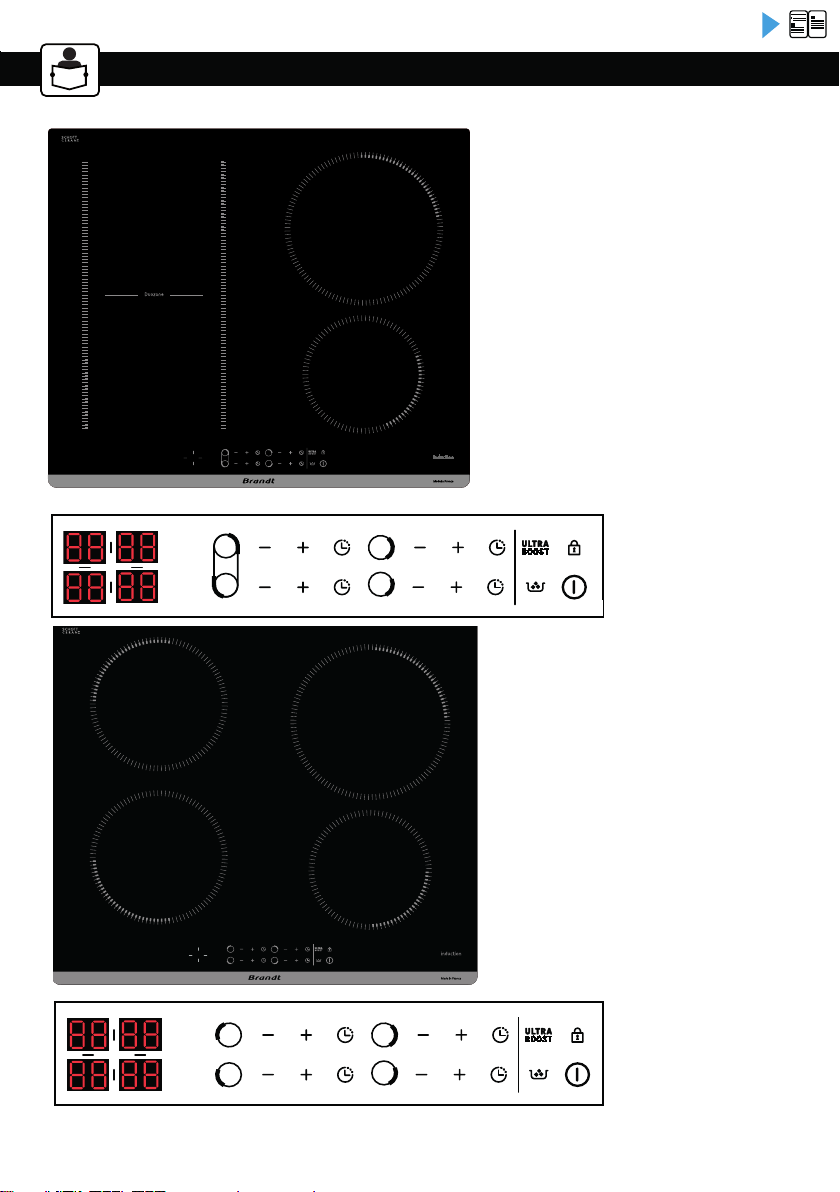

IDENTIFICATIONIDENTIFICATION

Advice on how to save energy

Cooking with the correctly sized lid saves energy.

If you use a glass lid, you can control your cooking

perfectly.

IDENTIFICATIONIDENTIFICATION

ENEN

Linear:

0121668 00

Definition

Folio Number :

Date

Aestheticsurfaces

withoutvisual defect

SPECIAL

ATTENTION

Geometrical:

Angular:

"Special Treatment "

importantdimensions

Defaulttolerances (Norm-Class)

Specifications (F.S.N)

Revision

BAS. DRAWING APPL. REF

10/12/2020

1/1

CREATION

Only for consultation

Checked by :

Created by :

Drawn by

Creation Date :

Rev Modification ECO

Scale :

Tempmax (°C) :

Tempuse (°C) :

This component should be in accordance with these standards :

Drawing Status :

TEINTES UTILISEES

REF ID

Validatedfor execution

REF NAME STATUSFOR USE MATERIAL

BASIC REF

GL4P00313

Marechal C

Fond / Background

Hightrans Eco Always black

Sérigraphie / Printing

Cool Aluet

CERAN HIGHTRANS ECO

ALWAYSBLACK ép:4+/-0.2

0100022

BPI164DUB

1616 cm

2121 cm

00332

Linear:

1/1

CREATION

0122294 00

Only for consultation

Definition

Folio Number :

Checked by :

Created by :

Drawn by Date

Creation Date :

Aestheticsurfaces

withoutvisual defect

Rev Modification ECO

Scale :

SPECIAL

ATTENTION

Geometrical:

Angular:

"Special Treatment "

importantdimensions

Defaulttolerances (Norm-Class)

Specifications (F.S.N)

Temp max (°C) :

Temp use (°C) :

This component should be in accordance with these standards :

Revision

Drawing Status :

REF ID

BPI1641PB

BPI1641UB

Validatedfor execution

REF NAME STATUS FOR USE MATERIAL

BASIC REF

BAS. DRAWING APPL. REF

GL4P00332

Marechal C26/03/2021

BRANDT2021

TEINTES UTILISEES

Fond / Background

Hightrans Eco Always black

Sérigraphie / Printing

Cool Aluet

CERAN HIGHTRANS ECO

ALWAYSBLACK ép:4+/-0.2

Type A

Type B

Type C

12 mm

2,5 mm

1616 cm

1818 cm

2121 cm

INSTALLATIONINSTALLATION

SERVICE:

TYPE

XXXXXXX xxx-xxxVxx/xxHz

XXXXW-

XXXXXXXX

XXXXXXX

SERVICE:

TYPE

XXXXXXX xxx-xxxVxx/xxHz

XXXXW-

XXXXXXXX

XXXXXXX

SERVICE: TYPE

xxx-x xxV xx/xxHz

XXXX W-

XXXXX

XXXXXXXX

XXXXXXXXX

XXXXXXX

UNPACKING

For future use, remove all protective elements.

Check and respect the appliance’s characteristics

that appear on the nameplate.

Note in the boxes below the service and standard

references shown on this plate.

ENCLOSURE

Check that the air intake and outlet are free

of obstruction Comply with the information

concerning the fitting dimensions (in millimetres)

of the work top destined to receive the hob.

Check that air circulates correctly between the

front and the back of your hob

Service : .........................................................................

Type : ..............................................................................

510

580

510

580

513

583

R 6,5

R 13,5

490

560

INSTALLATIONINSTALLATION INSTALLATIONINSTALLATION

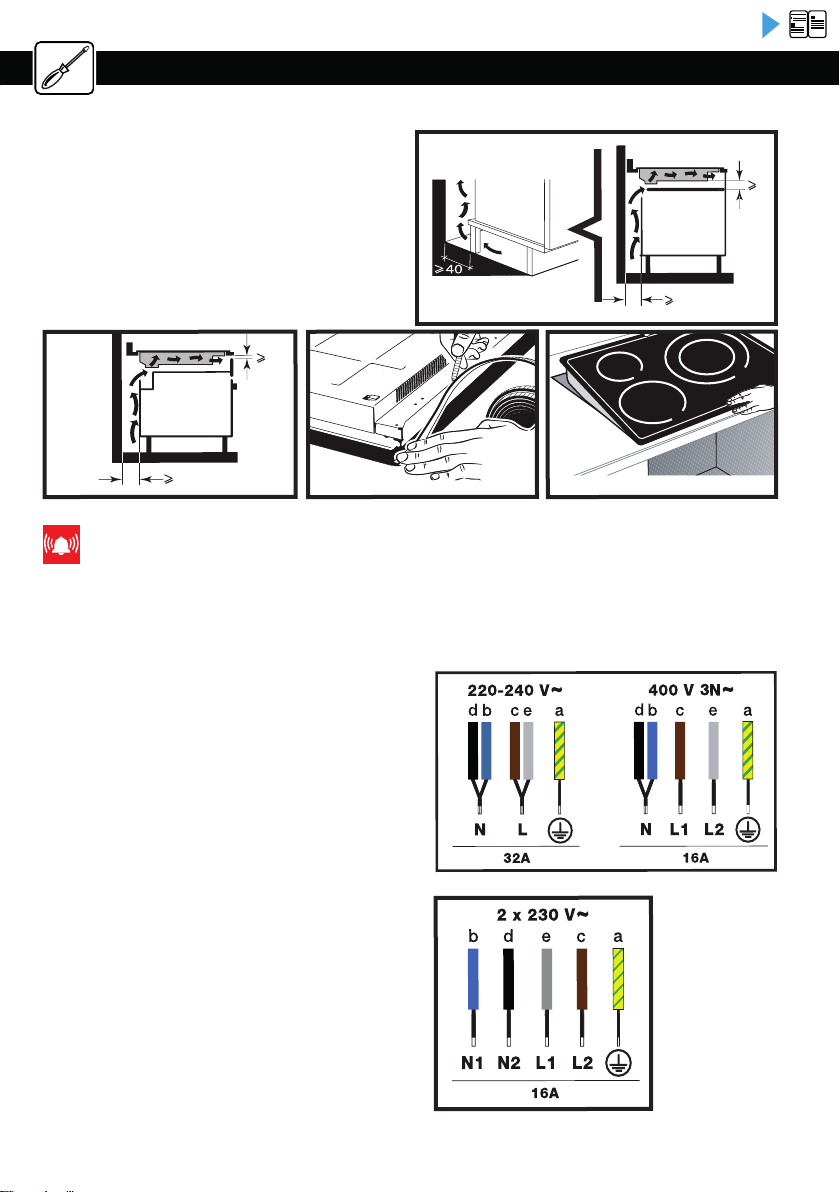

If you are installing the hob above a drawer, or

above a built-in oven, comply with the dimen-

sions provided on the illustrations to ensure a

sufficient air outlet at the front.

Carefully glue the sealing joint to the entire

surround of the glass hob insert the table into

the cabinet

Important

If your hob is located above your oven, the hob’s thermal safety devices can impede the simultaneous

use of the hob and the oven’s pyrolysis programme, display code “F7” in the control zones. In such

circumstances we recommend that you increase the hob’s ventilation by creating an opening in the side

of the cabinet (8 x 5 cm).

These hobs must be connected

to the power grid via an all-pole

cut-off device that complies with

installation regulations in effect. A

disconnection device must be in-

corporated into the fixed wiring.

Identify the type of cable of your hob according

to the number of wires and colours.

When switching your hob on or after a lengthy

power cut, a code is shown on the control pad

(this display is reserved for your after-sales

service, where applicable. The user of the hob

does not need to take notice of it).

This information disappears after around

30 seconds.

Electric connections

USEUSE

Tips

We suggest that you choose cookware with

a thick and flat bottom. The heat will be dis-

tributed better and cooking will be more uniform.

Advice on how to save energy

Cooking with the correctly sized lid saves energy.

If you use a glass lid, you can control

Most cookware is compatible with induction. Only

glass, earthenware, aluminium without a special

bottom, copper and some non-magnetic stainless

steel do not work with induction cooking.

CHOICE OF COOKWARE

BURNER SELECTION

Select the burner which is the right size for the

bottom of your cookware (see table). If the base

or the cookware is too small, the power indicator

will start to flash and the burner will not work,

even if the cookware’s material is recommended

for induction.

Do not use containers with a smaller diameter

than that of the replace (see table).

Diameter of

burner (cm)

Maximum

power of burner

(Watts)

Diameter of

bottom of

cookware

16 2500 10 - 18

18 3600 11 - 22

21 3600 12 - 24

Horizone 4000 18 - Oval

Fishmonger

Tips

When using the two hobs simultaneously, the

hob manages the power distribution so as not to

exceed the total power of the hob.

When using the maximum power (Ultra Boost)

on several hobs at the same time, make sure

that you use the best position for your containers

according to the model of your hob as shown in

the illustrations.

Ultra BoostUltra Boost

This will avoid automatic power limitation on one

of the hobs if the positioning is not optimal:

= Recommended positioning

= positioning to be avoided

The total wattage of your cooktop must matchThe total wattage of your cooktop must match

the wattage of your electrical installation.the wattage of your electrical installation.

By default, the power level of your cooktop is setBy default, the power level of your cooktop is set

at its highest level.at its highest level.

To increase or decrease the power level :To increase or decrease the power level :

- When rst turned on (within 30 seconds) press- When rst turned on (within 30 seconds) press

any key, the maximum power level is displayed.any key, the maximum power level is displayed.

To decrease the power, press the - key until theTo decrease the power, press the - key until the

desired power is reached.desired power is reached.

Power management

Otros manuales para BPI1641PB

Tabla de contenidos

Otros manuales de Quemador de Brandt

Brandt

Brandt BPG6414 Series Manual de usuario

Brandt

Brandt TI213BS1 Manual de usuario

Brandt

Brandt TE 600 WF1 Manual de usuario

Brandt

Brandt BPI1641PB Manual de usuario

Brandt

Brandt TG1089XC Manual de usuario

Brandt

Brandt BPI1638KB Manual de usuario

Brandt

Brandt BPV242 Manual de usuario

Brandt

Brandt TG1431B Manual de usuario

Brandt

Brandt TI1033B Manual de usuario

Brandt

Brandt TG890XC Guía de inicio rápido

Brandt

Brandt TE 610 WT1 Manual de usuario

Brandt

Brandt BPG6220 Series Manual de usuario

Brandt

Brandt BPG6210 Series Guía de inicio rápido

Brandt

Brandt TV1021 Guía de inicio rápido

Brandt

Brandt bpi1621ub Manual de usuario

Brandt

Brandt BPI6390B Manual de usuario

Brandt

Brandt TE217FS1 Guía de configuración

Brandt

Brandt TE 602 XF1 Hoja de especificaciones

Brandt

Brandt BPI6428UB Manual de usuario

Brandt

Brandt TI200 Manual de usuario

Brandt

Brandt TV 1024 Manual de usuario

Brandt

Brandt BPV6210B Manual de usuario

Brandt

Brandt TG2231BEL Hoja de especificaciones

Brandt

Brandt BPI 6420 X Manual de usuario

Manuales populares de Quemador de otras marcas

Siemens

Siemens EX875KYV1E Hoja de especificaciones

AEG

AEG CERAMIC HOB 6010 K Manual de usuario

VALERA

VALERA CT 70A Manual de usuario

Zanussi

Zanussi ZGF 6420 Manual de usuario

Gaggenau

Gaggenau CI 273 Manual de usuario

G3 Ferrari

G3 Ferrari Energy Manual de usuario

Pkm

Pkm IN4B Manual de usuario

Award

Award H903BG Manual de usuario

Zanussi

Zanussi VCH 5005 RZ Manual de usuario

Miele

Miele KM 523 Manual de usuario

Hotpoint

Hotpoint IS67V8CCXT/E Manual de usuario

AEG

AEG HK854870XB Manual de usuario

Cookology

Cookology SEP600BK Manual de usuario

Bauknecht

Bauknecht Hob Manual de usuario

Zanussi

Zanussi ZGM 782 Manual de usuario

dipo INDUCTION

dipo INDUCTION DIBK218S Manual de usuario

Miele

Miele KM 5987 Manual de usuario

Miele

Miele KM 360 G Manual de usuario
