Bradley S19-210HFP Manual de usuario

Installation

S19-210HFP

Pedestal-Mounted Eyewash

in 18”, 3’, 4’, 5’ and 6’ Bury Depths

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . . . . . . . . . 2

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Assembly of Components . . . . . . . . . . . . . . . . . . . . . 4–5

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

netzerotools.com

Bradley S19-210HFP3 Emergency Eyewash Station Frost Proof

Bradley S19-210HFP18 Emergency Eyewash Station Frost Proof

Bradley S19-210HFP4 Emergency Eyewash Station Frost Proof

Bradley S19-210HFP5 Emergency Eyewash Station Frost Proof

Bradley S19-210HFP6 Emergency Eyewash Station Frost Proof

S19-210HFP Installation

8/12/09

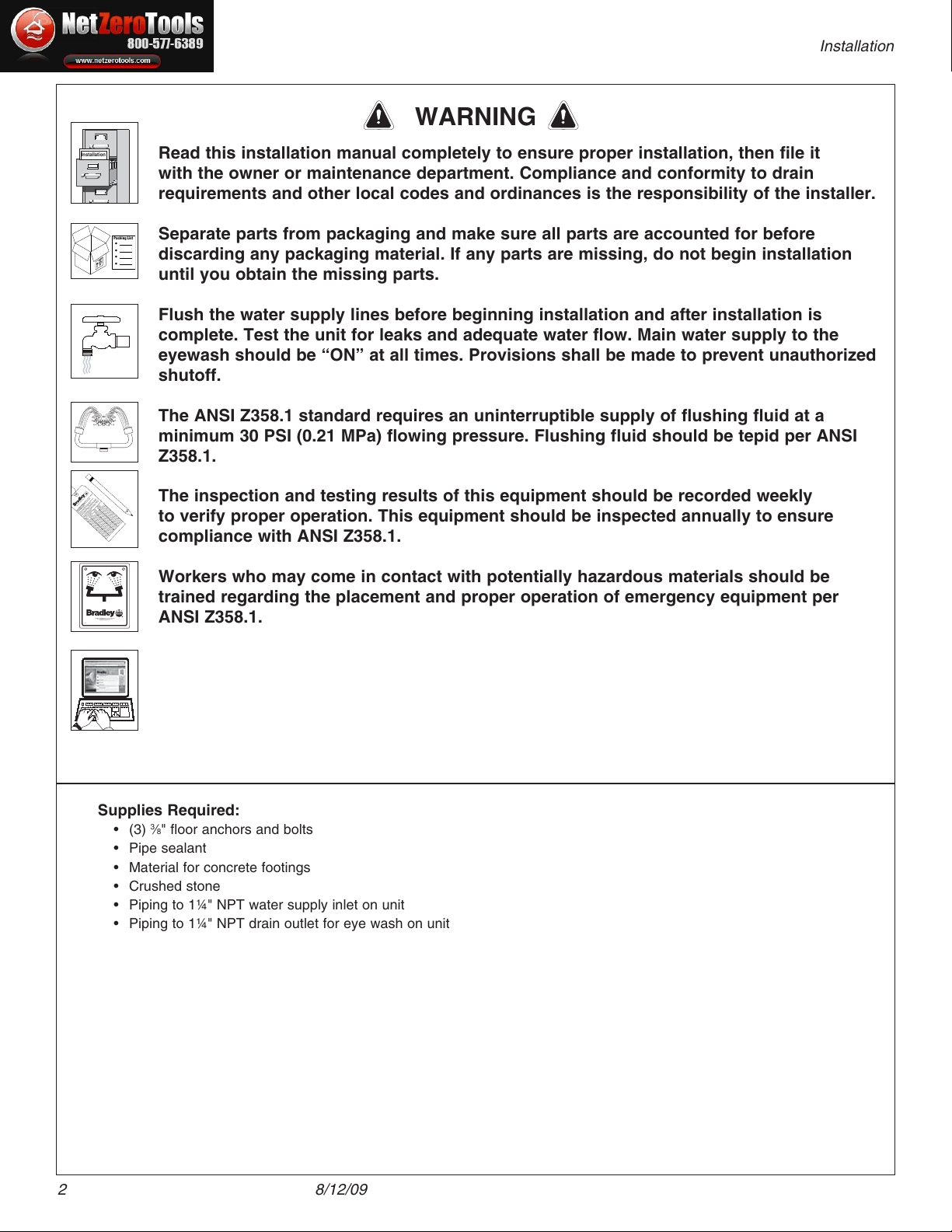

WARNING

Read this installation manual completely to ensure proper installation, then file it

with the owner or maintenance department. Compliance and conformity to drain

requirements and other local codes and ordinances is the responsibility of the installer.

Separate parts from packaging and make sure all parts are accounted for before

discarding any packaging material. If any parts are missing, do not begin installation

until you obtain the missing parts.

Flush the water supply lines before beginning installation and after installation is

complete. Test the unit for leaks and adequate water flow. Main water supply to the

eyewash should be “ON” at all times. Provisions shall be made to prevent unauthorized

shutoff.

The ANSI Z358.1 standard requires an uninterruptible supply of flushing fluid at a

minimum 30 PSI (0.21 MPa) flowing pressure. Flushing fluid should be tepid per ANSI

Z358.1.

The inspection and testing results of this equipment should be recorded weekly

to verify proper operation. This equipment should be inspected annually to ensure

compliance with ANSI Z358.1.

Workers who may come in contact with potentially hazardous materials should be

trained regarding the placement and proper operation of emergency equipment per

ANSI Z358.1.

Installation

THIS

SIDE

Packing List

•

P.O.Box309, Menomonee Falls,WI 53051

TESTTHISUNIT EACHWEEK

Test-operatevalve(s) each week and sign below.

Reportany malfunctions immediately.

Ventil(e)wöchentlich im Testbetriebprüfen, bestätigt

durchUnterschrift. Jegliche Störungsofort melden.

Date

Datum

Date

Signed

Unterschrift

Signe

Date

Date Signed

Signed

DIESESGERÄT1ST WÖCHENTLICH ZU PRÜFEN.

ESSAIHEBDOMADAIRE

Testle fonctionnement des valves chaque semaine et

signeen bas. S'il y à quelque chose qui ne va pas fait

unrapport immédiatement.

P.O.BOX309, MENOMONEE FALLS,WI 53052-0309 USA

TEL:1-800-BRADLEY FAX: (262-251-5817)

http://www.bradleycorp.com

114-051

Supplies Required:

• (3)

3⁄8" floor anchors and bolts

• Pipe sealant

• Material for concrete footings

• Crushed stone

•Piping to 1¼" NPT water supply inlet on unit

• Piping to 1¼" NPT drain outlet for eye wash on unit

netzerotools.com

Installation S19-210HFP

8/12/09

17"

(432mm)

Ø 10¾"

(273mm)

7¼"

(184mm)

40½"

(1028mm)

9¼"

(235mm)

35"

(889mm)

Handle

shown in

stay-open

position

NOTE: All dimensions assume standard thread

engagement. Variations in manufacturing

allow for +/- 1⁄8" (3mm) per threaded joint.

To find the tolerance of a dimension, add

the number of thread joints in between a

dimension and multiply it by 1⁄8" (3mm).

Installation

Step 1: Prepare foundation

1. Excavate a hole for the drain and inlet to

a depth of 6" (152mm) minimum below the

frost line. (Standard depths: 18", 3', 4', 5'

or 6') .

2. Pour a concrete footing for the eyewash

adjacent to the excavation for the inlet and

drain piping.

Step 2: Assemble eyewash

1. Assemble the long pipe to the eyewash

base and the eyewash bowl as shown on

page 4.

IMPORTANT: Make sure the supply

inlet on the bowl is

aligned toward the inlet

excavation.

2. Attach the eyewash over the drain

excavation to the concrete footing with

suitable fasteners (supplied by installer).

3. Lower the frostproof valve into the

excavation and connect to the eyewash

inlet using the close nipple and union.

This will establish the height of the valve

for connection to the supply and drain.

Step 3: Connect valve and complete

installation

1. Connect the valve to the supply inlet and

the weep valve to drain down waste.

2. Backfill the excavation as specified.

3. Assemble the remaining components

as shown on page 4. Apply pipe sealant

(supplied by installer) to all pipe joints.

Concrete

Flooring

18" (457mm)

3' (914mm)

4' (1219mm)

5' (1524mm)

6' (1829mm)

bury depth

Ø 9" (229mm)

Flange with (3) Ø

3⁄8" (10mm) Holes

on Ø 8" (203mm)

Bolt Circle

NOTE: 1⁄8" tube

drain down waste

to spill on grade,

french drain or

other safe waste.

NOTE: Not less

than 3 cubic yards

of crushed stone

around and below

drain down waste

outlet for drainage.

1¼" NPT

Supply Inlet

1¼" NPT

Drain

netzerotools.com

S19-210HFP Installation

8/12/09

P.O. Box 309, Menomonee Falls, WI 53051

TEST THIS UNIT EACH WEEK

Test-operate valve(s) each week and sign below.

Report any malfunctions immediately.

Ventil(e) wöchentlich im Testbetrieb prüfen, bestätigt

durch Unterschrift. Jegliche Störung sofort melden.

Date

Datum

Date

Signed

Unterschrift

Signe

Date

Date Signed

Signed

DIESES GERÄT 1ST WÖCHENTLICH ZU PRÜFEN.

ESSAI HEBDOMADAIRE

Test le fonctionnement des valves chaque semaine et

signe en bas. S'il y à quelque chose qui ne va pas fait

un rapport immédiatement.

P.O.BOX 309,MENOMONEE FALLS, WI 53052-0309 USA

TEL:1-800-BRADLEY FAX:(262-251-5817)

http://www.bradleycorp.com

114-051

6.1

6.2

6.3

6.4

6.5

6.6

6.7

6.8

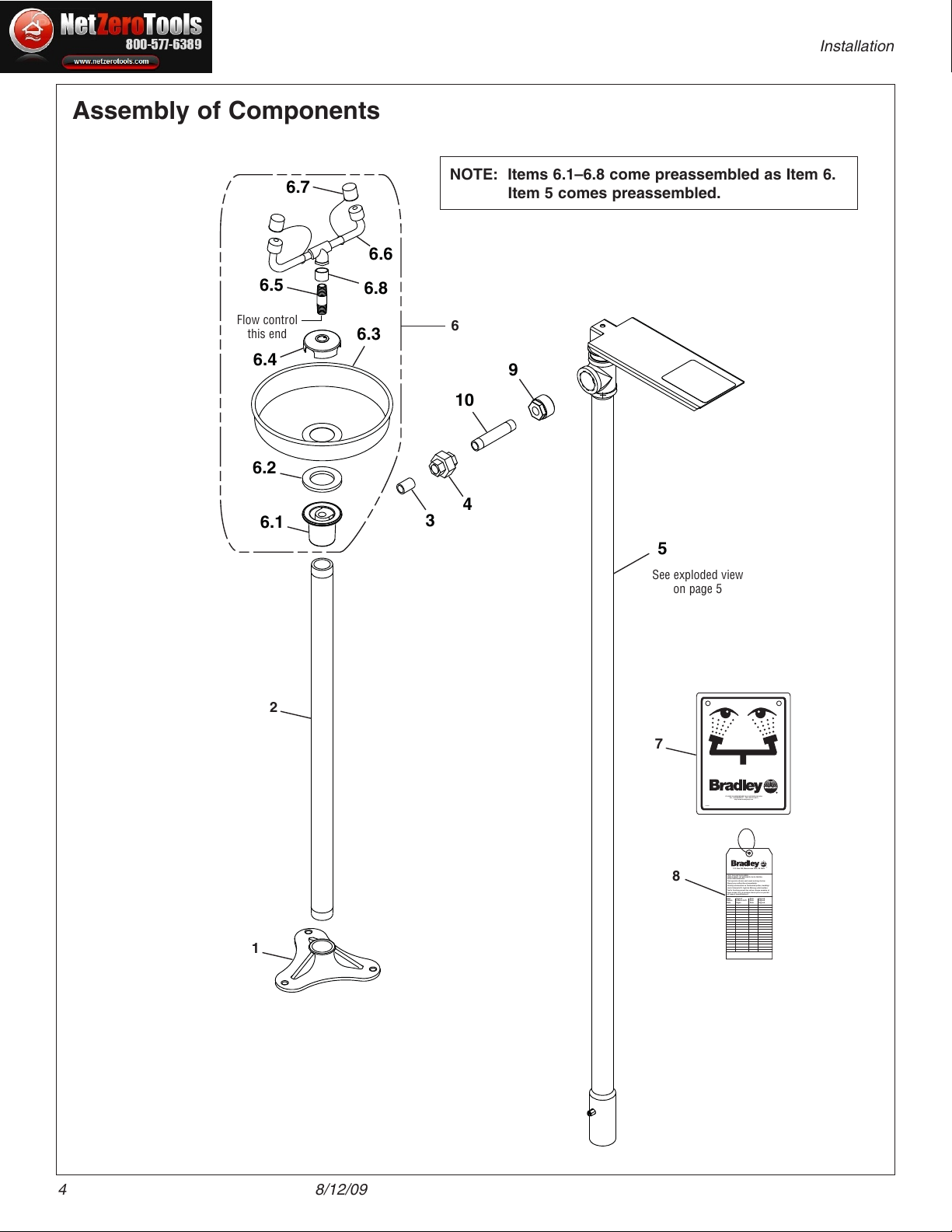

Assembly of Components

NOTE: Items 6.1–6.8 come preassembled as Item 6.

Item 5 comes preassembled.

See exploded view

on page 5

Flow control

this end

netzerotools.com

Installation S19-210HFP

8/12/09

Assembly of Components

netzerotools.com

S19-210HFP Installation

8/12/09

Parts List

1 131-042 1 Base

2 113-006NE 1 Pipe 1¼" NPT x 32½"

3 113-006LG 1 Close Nipple ½" NPT

4 169-726 1 Union ½"

5 S90-252 1 18" Frostproof Valve Assembly

S90-089 1 3' Frostproof Valve Assembly

S90-090 1 4' Frostproof Valve Assembly

S90-091 1 5' Frostproof Valve Assembly

S90-253 1 6' Frostproof Valve Assembly

5.1 S08-040 1 Handle Assembly

5.2 142-002BB 1 Stainless Steel Washer

5.3 110-108 1 Bonnet Nut

5.4 124-001BS 1 Gasket

5.5 135-001AP 1 Spring

5.6 132-012 1 Retaining Ring

5.7 113-772 1 Casing Pipe (18" Bury Depth)

113-773 1 Casing Pipe (3' Bury Depth)

113-774 1 Casing Pipe (4' Bury Depth

113-775 1 Casing Pipe (5' Bury Depth)

113-776 1 Casing Pipe (6' Bury Depth)

5.8 120-022K 1 Lifting Stem (18" Bury Depth)

120-022D 1 Lifting Stem (3' Bury Depth)

120-022E 1 Lifting Stem (4' Bury Depth)

120-022F 1 Lifting Stem (5' Bury Depth)

120-022G 1 Lifting Stem (6' Bury Depth)

5.9 169-727A 1 Tee

5.10 145-072 1 Guide

5.11 132-011 1 Retainer

5.12 118-246 1 Valve Body Assembly

5.13 160-138 1 Machine Screw

5.14 169-920 1 Faucet Washer

5.15 182-061 1 Spacer

5.16 142-002CC 3 Washer

5.17 160-251 1 Screw Stud

5.18 125-001CD 1 O-Ring

5.19 110-109 1 Bar Nut

5.20 165-038 2 Roll Pin

5.21 161-061 1 Stop Nut

5.22 169-890 1 Connector

6 S90-285 1 Eyewash Assembly

6.1 111-039 1 Inlet-Drain Fitting

6.2 124-028 1 Gasket

6.3 187-053 1 Stainless Steel Bowl

6.4 173-009 1 Cup Strainer

6.5 S21-071 1 Supply Pipe

6.6 S05-091 1 Eyewash Yoke

6.7 107-371 2 Tethered Dust Cover

6.8 113-1159 1 Spacer, Stainless Steel

7 114-051 1 Safety Sign

8 204-421 1 Emergency Inspection Tag

9 169-725 1 Reducing Bushing 1¼" x ½"

10 113-006LJ 1 Pipe ½" NPT x 4"

11 269-915 1 Grip Pad (not shown)

Item Part No. Qty Description Item Part No. Qty Description

Prepack S45-1782 includes Items 6.2, 6.4, 6.5, 6.8
