RESIDENTIAL GAS REPLACEMENT PARTS LIST

Direct Vent Energy Saver (DS) Models

Includes Hydrojet

Total Performance System

Effective: July 31, 2008

ECO 7291-2

NOTE: BOTH MODEL AND SERIAL

NUMBERS ARE REQUIRED FOR

ORDERING REPLACEMENT PARTS

Dimensions and specifications

subject to change without notice.

Parts Book #238-42504-00b

Page 2

Item Description Model Model

DS140S*(BN,EN,CX) DS150S*(BN,EN,CX)

1 Standard Brown Vent Package (Includes Items 2 Thru 8) 239-41097-00 239-41097-00

White Vent Package (Includes Items 2 Thru 8) 239-45481-00 239-45481-00

2 Direct Vent-Air Intake Terminal (Standard Brown) 239-41425-00 239-41425-00

Direct Vent-Air Intake Terminal (White) 239-45482-00 239-45482-00

3 Outer Wall Mounting Plate (Standard Brown) 239-41431-00 239-41431-00

Outer Wall Mounting Plate (White) 239-45483-00 239-45483-00

4 Backing Plate 239-41433-00 239-41433-00

5 Outer Telescopic Tube 239-41006-00 239-41006-00

6 Inner Telescopic Tube 239-41005-00 239-41005-00

7 Outer Elbow 239-41007-00 239-41007-00

8 Inner Elbow 239-41008-00 239-41008-00

9 Plenum 239-41010-00 239-41010-00

10 Flue Reducer 239-41009-00 239-41009-00

11 Plenum Gasket 239-41070-01 239-41070-01

12 Air Intake Tube 239-41012-01 239-41012-02

13 Flue Baffle 243-44648-00 243-44648-00

14 Heat Trap Insert (Inlet) 239-45073-00 239-45073-00

15 Cold Water Inlet Dip Tube Polysulfone ŸŸ 229-39628-04 229-39628-06

16 Hot Water Outlet Anode Magnesium Ÿ224-32731-81 224-32731-82

Hot Water Outlet Anode Aluminum Ÿ224-32999-31 224-32999-06

Hot Water Outlet Anode A420 Aluminum Ÿ224-45147-04 224-45147-03

17 Heat Trap Insert (Outlet) 239-45167-00 239-45167-00

18 T&P Relief Valve 230-32920-01 230-32920-01

19 Wire Tie 239-44328-00 239-44328-00

20 Air Intake Boot Escutcheon 243-46922-00 243-46922-00

21 Air Intake Boot 239-46755-01 239-46755-01

22 Air Intake Boot Gasket 223-41067-00 223-41067-00

23 Piezo Igniter 239-43448-00 239-43448-00

24 Outer Door 243-43962-00 243-43962-00

25 Right Side Inner Door (Sight Glass) 239-45415-00 239-45415-00

26 Left Side Inner Door 239-45416-00 239-45416-00

27 Brass Drain Valve 265-42351-02 265-42351-02

28 Gas Valve Natural Gas 265-46181-01 265-46181-01

Gas Valve LP Gas 265-46182-01 265-46182-01

29 Heat Trap Insert Kit 265-45420-00 265-45420-00

30 ASSE Approved Mixing Valve (Optional) 239-43740-01 239-43740-01

31 Inner Door Gasket Kit 239-45909-00 239-45909-00

32 Direct Vent-Air Intake Terminal Guard (Optional) 239-41453-00 239-41453-00

*Applies to all warranties

**Inner door gasket kit recommended

***Ordering a complete burner assembly may increase delivery time. Please order the specific component required for the quickest delivery.

ŸOrder with item 17

ŸŸOrder with item 14

Page 3

Page 4

Item Description Model Model

DS140S*(BN,EN,CX) DS150S*(BN,EN,CX)

Natual Gas (BN) Burner Assembl

(Replacement for Natural Gas (EN) Burner)

33 Nat. Gas (BN) Burner Assembly Complete*** 265-47439-11-33 265-47439-11-32

34 Nat. Gas (BN) Burner** 228-42506-00 228-42506-00

35 Nat. Gas (BN) Main Burner Orifice** 234-41034-33 234-41034-32

Nat. Gas (BN) High Altitude 2001 Ft. to 5000 Ft.** 234-41034-36 234-41034-36

Nat. Gas (BN) High Altitude 5001 Ft. to 8000 Ft.** 234-41034-36 234-41034-38

Nat. Gas (BN) High Altitude Over 8000 Ft.** 234-41034-40 234-41034-38

36 Nat. Gas Pilot Assembly** 233-46277-04 233-46277-04

37 Thermocouple** 233-46501-24 233-46501-24

38 Nat. Gas Pilot Orifice** 234-46502-05 234-46502-05

LP Gas (SX) Titanium Stainless Steel Burner Assembly (Replacement for LP Gas (CX) Cast Iron Burner)

39 LP Gas (SX) Burner Assembly Complete*** 265-47440-20-50 265-47440-20-49

40 LP Gas (SX) Burner** 228-46964-00 228-46964-00

41 LP Gas (SX) Main Burner Orifice** 234-47604-50 234-47604-49

LP Gas (SX) High Altitude 2001 Ft. to 5000 Ft.** 234-47604-51 234-47064-51

LP Gas (SX) High Altitude 5001 Ft. to 8000 Ft.** 234-47604-52 234-47064-52

LP Gas (SX) High Altitude Over 8000 Ft.** 234-47064-53 234-47064-52

42 LP Gas Pilot Assembly** 233-46278-03 233-46278-03

43 Thermocouple** 233-46501-24 233-46501-24

44 LP Gas Pilot Orifice** 234-46502-02 234-46502-02

- LP to Natural Gas Conversion Kit (Norm Alt.) 265-45912-01 265-45912-02

- LP to Natural Gas Conversion Kit (High Alt.) 265-45912-06 265-45912-07

*Applies to all warranties

**Inner door gasket kit recommended

***Ordering a complete burner assembly may increase delivery time. Please order the specific component required for the quickest delivery.

ŸOrder with item 17

ŸŸOrder with item 14

Page 5

Page 6

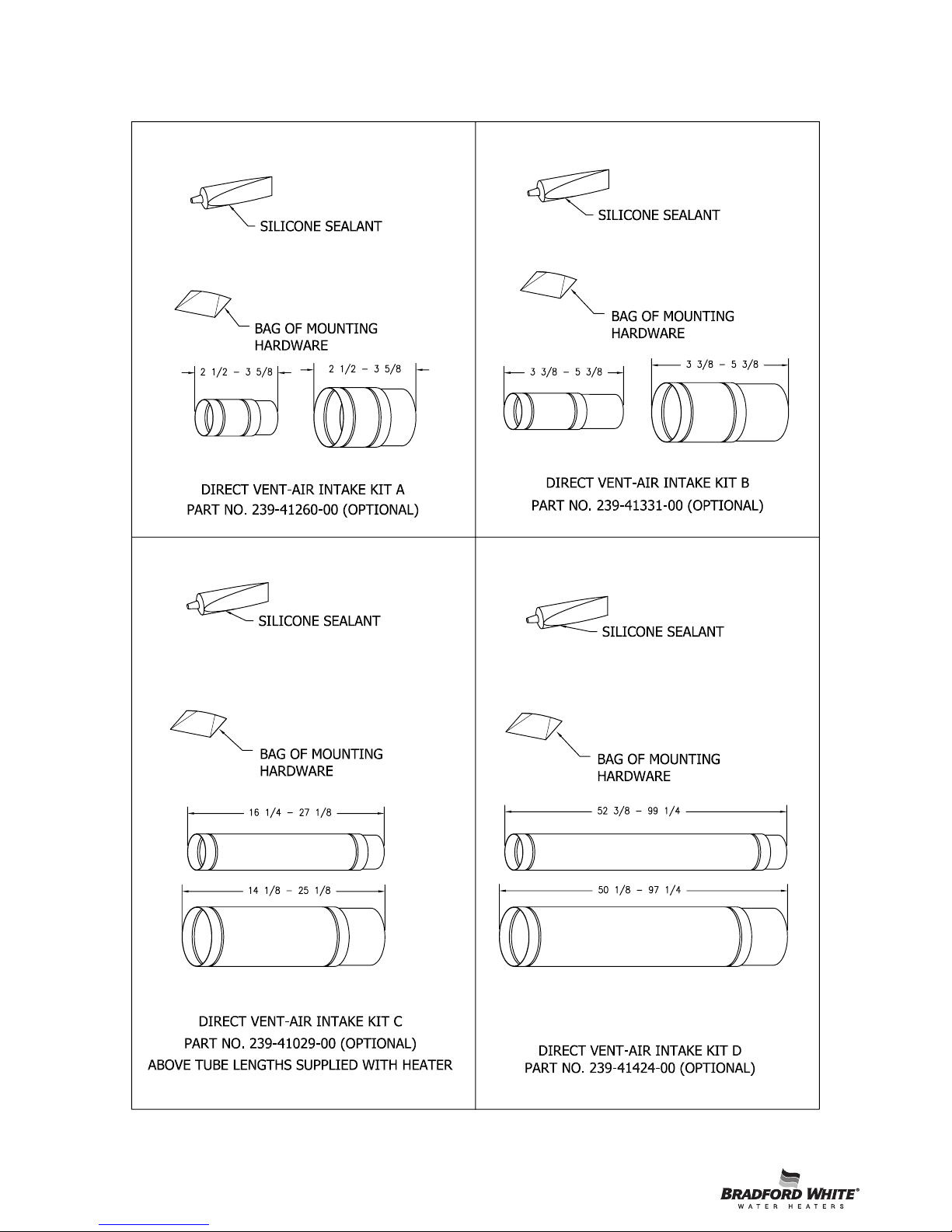

ENT KITS

13 1/4

14 3/16

17 11/16

22 1/4

32 3/16

55 7/8

58 5/16

104 5/16

10 order kit A

239-41260-00

order kit B

239-41331-00

no add'l kit

req'd

order kit C

239-41029-00

order kit D

239-41424-00

14 3/4

15 11/16

order kit A *(2)

239-41260-00

order kit A & B

239-41260-00

239-41331-00

order kit A

239-41260-00

order kit A & C

239-41260-00

239-41029-00

order kit A & D

239-41260-00

239-41424-00

16 1/2

19 3/16

order kit A & B

239-41260-00

239-41331-00

order kit B *(2)

239-41331-00

order kit B

239-41331-00

order kit B & C

239-41331-00

239-41029-00

order kit B & D

239-41331-00

239-41424-00

23 3/4

33 11/16

order kit A

239-41260-00

order kit B

239-41331-00

order kit C

239-41029-00

order kit C *(2)

239-41029-00

order kit D

239-41424-00

37 1/2

57 3/8

order kit A & C

239-41260-00

239-41029-00

order kit B & C

239-41331-00

239-41029-00

order kit C *(2)

239-41029-00

order kit C *(3)

239-41029-00

order kit C & D

239-41029-00

239-41424-00

59 13/16

105 13/16

order kit A & D

239-41260-00

239-41424-00

order kit B & D

239-41331-00

239-41424-00

order kit D

239-41424-00

order kit C & D

239-41029-00

239-41424-00

order kit D *(2)

239-41424-00

*(2) = Order two kits

*(3) = Order three kits

Horizontal "X"

Vertical "Y"

Page 7

[email protected]

www.bradfordwhite.com
