THANGRAM
Programming
Manual
CONNECTION DIAGRAM WITHOUT SYSTEM CONTROLLER
(VAS/100)
THIS SYSTEM IS
LIMITED TO ONE
ENTRY PANEL
CONNECTION DIAGRAM USING SYSTEM CONTROLLER
(VA/01)
THIS SYSTEM
SUPPORTS MULTIPLE
ENTRY PANELS
&
ACCESS CONTROL
MANUAL PROGRAMMING
ONLY 5 STEPS TO MAKE IT WORK
1. To program a system without a VA01 Power Supply
and System Controller, Press the PROG key on the
Entry Panel for more than 3 seconds and release
within 6 seconds until the PROG LED turns on.
or
With a VA01 System Controller present, Press and
hold the PROG key for more than 3 seconds until
the Yellow PROG LED turns on.
The entry panel LEDs turn on as shown in the figure.
2. Select the Pushbutton type (Single, Double
or 4 Button) press the pushbutton until the
PROG LED stops flashing
In the case that the call buttons are
located on the additional panel, the
operation must be carried out as
illustrated.
If the Blue pushbutton light does not commence to flash, re-press and hold the program button for
a further 3 seconds. The lights should now begin to flash.
The LEDs on the MASTER entry panel change configuration
confirming the selection is correclty done.
ATTENTION
MANUAL PROGRAMMING
ONLY 5 STEPS TO MAKE IT WORK
To program the system with more than one entry panel repeat step 2 for each
external panel
Press the first key on each entry panel until the LED
stops flashing as do the backlighting LEDs.
Repeat the above operation on all entry panels to be
programmed
at the end, the LED signals will assume dif-
ferent configuration:
The MASTER will have ON this LED
The SLAVES will have ON these LED
Master Slave Slave
PROGRAMMING operations may only be performed from the MASTER
entry panel
to change the entry panel from which the call programming is performed, press
one of the first 4 call key positions for at least 3s (or press key 1 followed by
key for entry. panels with DNA).
3.
MANUAL PROGRAMMING
ONLY 5 STEPS TO MAKE IT WORK
To link the Receiver with the CALL button (for
systems with handsets please lift the handset)
and
SIMULTANEOUSLY PRESS both the
Door LOCK button ( )
and the
AUX2 button ( )
4. On the Entry Panel, press the button that you would
like to associate with the Receiver
A confirmation will sound to confirm the setting has
been stored.
beep
5. Hang up the handset (on hands free units, press
the button ) and continue to repeat the above procedure
for all other receivers.
When all the handsets have been programmed, press the program button on the
Door Station or VA01 Power Supply and System Controller ONCE to exit program-
ming
Both the Video and Audio Channels will now
be on. (Check the quality of the transmissions
at this time)
7. Now press and hold the button you want to associ-
ate with the other receivers, a confirmation beep will
sound when accepted.
Repeat the above procedure for all other handsets.

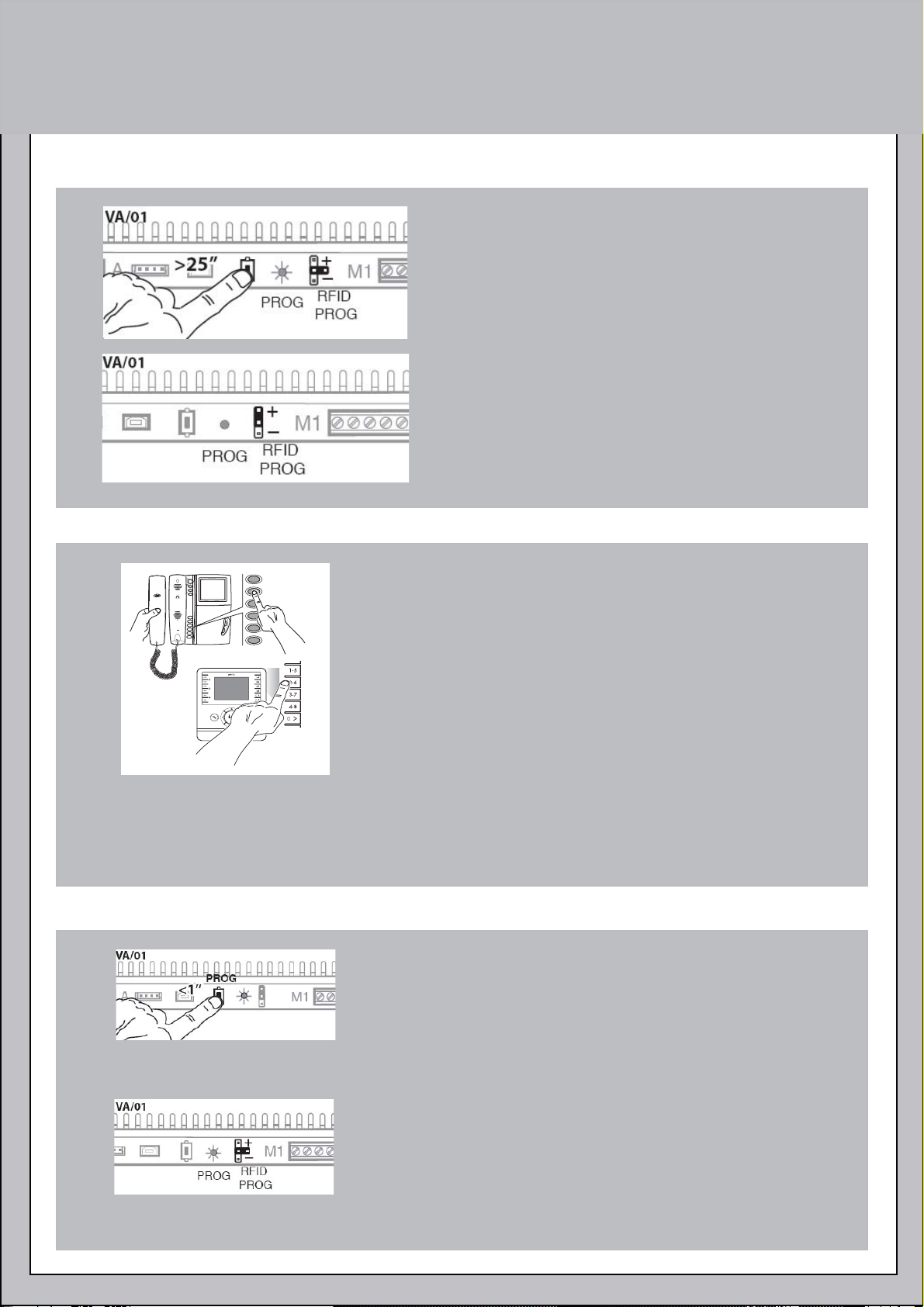

6. The feature is available using the VA01 only
Press and hold the button on the VA08 Sys-
tem Controller for 25 seconds
Place the RFID PROG jumper in position “+”
8. Press the PROG button once to exit programming.
If no action is performed, the procedure will end automati-
cally after 30 minutes.
At the end, return the RFID PROG jumper to its stand-
by position
the procedure will NOT end automatically!
MANUAL PROGRAMMING
INTERCOMUNICATION FUNCTION CALLS
ATTENTION :
To program the YVCL301 monitor or the PEC handsfreeAudio only receivers you
will need to set the jumper as per the following diagrams:
Using YVCL301 or PEC
the max performance is
2 groups of 2 receivers
calling each other with
unique code
MANUAL PROGRAMMING
INTERCOMUNICATION FUNCTION CALLS
While still in “CALL BUTTON PROGRAMMING MODE”
(steps 1 to 5) the Entry Panel’s camera field of view can be
adjusted. Any extension in “Standby” may be used to adjust
the viewing settings.
Press the “Self Configuration” button
Use the AUX1 and AUX2 buttons to scroll through
viewing options.
The setting will save automatically when exiting the programming mode
ADJUSTING THE VIEWING ANGLE
OF THE ENTRY PANEL
4.
3.
2.
1.
The Entry panel configuration LEDS will flash
Place the RFID PROG jumper in the ‘+’ position
Present a configured credential to the Entry Panel
Reader.
Atone will sound.
Press the CALL button to be associated with the cre-
dential (a maximum of 5 credentials per call button)
To exit programming mode return the RFID PROG
jumper to the standby position.
the procedure will NOT end automatically!
ACCESS CONTROL
ADDING TAG/CARD +
