B+K precision 2160A Manual de usuario

INSTRUCTION

MANUAL

MANUAL DE INSTRUCCION

MODELS 1541D

and 2160A

MODELOS 1541D & 2160A

40 MHz & 60 MHz DUAL-TRACE OSCILLOSCOPES

40MHz & 60MHz DOBLE LINEA OSCILOSCOPIOS

TEST INSTRUMENT SAFETY

WARNING

Normal use of test equipment exposes you to a certain amount of danger from electrical shock because

testing must often be performed where exposed high voltage is present. An electrical shock causing

10 milliampsof current topass through theheart willstop mosthuman heartbeats.Voltageaslow as 35 volts

dc or ac rms should be considered dangerous and hazardous since it can produce a lethal current under

certain conditions. Higher voltage poses an even greater threat because such voltage can more easily

produce a lethal current. Your normal work habits should include all accepted practices that will prevent

contact with exposed high voltage, and that will steer current away from your heart in case of accidental

contact with a high voltage. You will significantly reduce the risk factor if you know and observe the

following safety precautions:

1. Don’t expose high voltage needlessly in the equipment under test. Remove housings and covers only when necessary.

Turn off equipment while making test connections in high-voltage circuits. Discharge high-voltage capacitors after

removing power.

2. If possible, familiarize yourself with the equipment being tested and the location of its high voltage points. However,

remember that high voltage may appear at unexpected points in defective equipment.

3. Use an insulated floor material or a large, insulated floor mat to stand on, and an insulated work surface on which to

place equipment; make certain such surfaces are not damp or wet.

4. Use the time-proven “one hand in the pocket” technique while handling an instrument probe. Be particularly careful to

avoid contacting a nearby metal object that could provide a good ground return path.

5. When using a probe, touch only the insulated portion. Never touch the exposed tip portion.

6. When testing ac powered equipment, remember that ac line voltage is usually present on some power input circuits such

as the on-off switch, fuses, power transformer, etc. any time the equipment is connected to an ac outlet, even if the

equipment is turned off.

7. Some equipment with a two-wire ac power cord, including some with polarized power plugs, is the “hot chassis” type.

This includes most recent television receivers and audio equipment. A plastic or wooden cabinet insulates the chassis

to protect the customer.When the cabinet is removed forservicing, a serious shockhazard exists if thechassis is touched.

Not only does this present a dangerous shock hazard, but damage to test instruments or the equipment under test may

result from connecting the ground lead of most test instruments (including this oscilloscope) to a “hot chassis”. To make

measurements in “hot chassis” equipment, always connect an isolation transformer between the ac outlet and the

equipment under test. The B+K Precision Model TR-110 or 1604A Isolation Transformer, or Model 1653A or 1655A

AC Power Supply is suitable for most applications. To be on the safe side, treat all two wire ac powered equipment as

“hot chassis” unless you are sure it has an isolated chassis or an earth ground chassis.

8. Never work alone. Someone should be nearby to render aid if necessary. Training in CPR (cardio-pulmonary

resuscitation) first aid is highly recommended.

This symbol on oscilloscope means “refer to instruction manual

for further precautionary information”. This symbol appears in the

manual where the corresponding information is given.

Instruction Manual

for

Models 1541D

and 2160A

40 MHz and 60 MHz

Dual-Trace Oscilloscopes

BK PRECISION

TABLE OF CONTENTS

Page Page

TEST INSTRUMENT SAFETY . . . . . . inside front cover

FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

CONTROLS AND INDICATORS . . . . . . . . . . . . . . . . . . 7

General Function Controls . . . . . . . . . . . . . . . . . . . . . . 7

Vertical Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Horizontal Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Triggering Controls . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Rear Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . 10

OPERATING INSTRUCTIONS. . . . . . . . . . . . . . . . . . . 11

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Equipment Protection Precautions. . . . . . . . . . . . . . . 11

Operating Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Initial Starting Procedure . . . . . . . . . . . . . . . . . . . . . . 12

Single Trace Display . . . . . . . . . . . . . . . . . . . . . . . . . 12

Dual Trace Display. . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Magnified Sweep Operation . . . . . . . . . . . . . . . . . . . 15

OPERATING INSTRUCTIONS (Continued)

X−Y Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Video Signal Observation . . . . . . . . . . . . . . . . . . . . . 15

Applications Guidebook . . . . . . . . . . . . . . . . . . . . . . 15

Delayed Sweep Operation. . . . . . . . . . . . . . . . . . . . . 15

Component Test Operation . . . . . . . . . . . . . . . . . . . . 16

MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Fuse Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Line Voltage Selection. . . . . . . . . . . . . . . . . . . . . . . . 20

Periodic Adjustments. . . . . . . . . . . . . . . . . . . . . . . . . 20

Calibration Check . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Instrument Repair Service. . . . . . . . . . . . . . . . . . . . . 21

APPENDIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Important Considerations for Rise Time and

Fall Time Measurements . . . . . . . . . . . . . . . . . . . . 22

Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

“Guidebook To Oscilloscopes”

Availability . . . . . . . . . . . . . . . . . . . . . inside back cover

SPANISH MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . 25

FEATURES

LOW COST, HIGH PERFORMANCE

B+K Precision’s 40 MHz and 60 MHz oscilloscopes are

among the lowest cost in the industry, yet offer high

performance and features not found on many competitors’

oscilloscopes. Model 2160A includes a built-in component

tester, which is an excellent tool for in-circuit troubleshoot-

ing. These oscilloscopes are built by and backed by B+K

Precision, a compnay that has been selling reliable, durable,

value priced test instruments for over 50 years.

CRT FEATURES

Rectangular CRT

Rectangular CRT with large 8 x 10 centimeter viewing

area. On Model 2160A, graticule is equipped with

variable scale illumination.

Convenience

Trace rotation electricallyadjustable from front panel.

0%, 10%, 90%, and 100% markers for risetimemeas-

urements.

DUAL TRACE FEATURES

Dual Trace

Models2160Aand1541Deachhavetwoverticalinput

channels for displaying two waveforms simultane-

ously. Selectable single trace (either CH 1 or CH 2) or

dual trace. Alternate or chop sweep selectable at all

sweep rates.

Sum and Difference Capability

Permits algebraic addition or subtraction of channel 1

and channel 2 waveforms, displayed as a single trace.

Useful for differentialvoltage and distortion measure-

ments.

HIGH FREQUENCY FEATURES

Wide Bandwidth

Conservatively-rated −3 dB bandwidth is dc to 60

MHz for Model 2160A and dc to 40 MHz for Model

1541D.

Fast Rise Time

Rise time is less than 5.8 ns for Model 2160A and

8.8 ns for Model 1541D.

Fast Sweep

Maximum sweep speed of 10 ns/div (with X10 MAG)

assures high frequenciesand short-duration pulses are

displayed with high resolution.

VERTICAL FEATURES

High Sensitivity

5 mV/div sensitivity for full bandwidth. High-sen-

sitivity 1 mV/div and 2 mV/div using PULL X5 gain

control.

Calibrated Voltage Measurements

Accurate voltage measurements (±3%) on 10 cali-

brated ranges from 5 mV/div to 5 V/ div. Vertical gain

fully adjustable between calibrated ranges.

SWEEP FEATURES

Calibrated Time Measurements

Accurate (±3%) time measurements. The main sweep

has 23 calibrated ranges from 2 S/div to 0.1 µS/div.

The delayed sweep on the Model 2160A has 23 cali-

brated ranges from 2 S/div to 0.1 µS/div. Sweep time

is fully adjustable between calibrated ranges.

X10 Sweep Magnification

Allows closer examination of waveforms, increases

maximum sweep rate to 10 nS/div.

DUAL TIME BASE FEATURES (Model 2160A)

Dual Sweep Generators

Main sweep gives normal waveform display, delayed

sweepmaybeoperatedatfastersweepspeedtoexpand

a portion of the waveform.

Four Sweep Modes

Choice of main sweep only, delayed sweep only,

main sweep and delayed sweep sharing the trace

(percentage of main/delayed sweep adjustable), or

X−Y.

Adjustable Start Of Delayed Sweep

DELAY TIME POSition control allows adjustment of

delayed sweep starting point.

TRIGGERING FEATURES

Two Trigger Modes

Selectable normal (triggered) or automatic sweep

modes.

Triggered Sweep

Sweep remains at rest unless adequate trigger signal is

applied. Fully adjustable trigger level and (+) or (−)

slope.

AUTO Sweep

Selectable AUTO sweep provides sweep without trig-

ger input, automatically reverts to triggered sweep

operation when adequate trigger is applied.

Five Trigger Sources

Five trigger source selections, including CH 1, CH 2,

alternate, EXT, and LINE.

Video Sync

Frame (TV V) or Line (TV H) triggering selectablefor

observing composite video waveforms. TV-H position

can also be used as low frequency reject and TV-V

position can be used as high frequency reject.

Variable Holdoff

Trigger inhibit period after end of sweep adjustable.

Permits stable observation of complex pulse trains.

OTHER FEATURES

X−Y Operation

Channel 1 can be applied as horizontal deflection

(X-axis) while channel 2 provides vertical deflection

(Y-axis).

Built-in Probe Adjust Square Wave

A 2 V p-p, 1 kHz square wave generatorpermits probe

compensation adjustment.

Component Test Function (Model 2160A)

Built-inX−Y typecomponenttesterappliesfixedlevel

ac signal to components for display of signature on

CRT.

Channel 2 (Y) Output (Model 2160A)

A buffered 50Ωoutput of the channel 2 signal is

available at the rear panel for driving a frequency

counter or other instruments. The output is 50 mV/div

(nominal) into 50Ω.

Z-Axis Input (Model 2160A)

Rear panel Z-Axis input allows intensity modulation.

Supplied With Two Probes

FEATURES

SPECIFICATIONS

CRT

Type: 6-inch rectangular with integral graticule,

P31 phosphor.

DisplayArea: 8 x 10 div (1 div = 1 cm).

Accelerating Voltage: 12 kV.

Phosphor: P31.

Trace Rotation: Electrical, front panel adjustable.

Scale Illumination: Continuously variable (Model 2160A).

Beam Finder (Model 2160A).

VERTICAL AMPLIFIERS (CH 1 and CH 2)

Sensitivity: 5 mV/div to 5 V/div, 1 mv/div to 1 V/div at

X5 MAG.

Attenuator: 10 calibrated steps in 1-2-5 sequence. Vernier

control provides fully adjustable sensitivity between

steps; range 1/1 to at least 1/3.

Accuracy: ±3%, 5 mV to 5 V/div; 5%, at X5 MAG.

Input Resistance:1MΩ±2%.

Input Capacitance: 25 pF ±10 pF.

Frequency Response:

5 mV/div to 5 V/div:

DC to 60 MHz (−3 dB), Model 2160A

DC to 40 MHz (−3 dB), Model 1541D.

X5 MAG:

DC to 15 MHz (−3 dB), Model 2160A

DC to 10 MHz (−3 dB), Model 1541D.

Rise Time:

5.8 nS, Model 2160A

8.8 nS, Model 1541D.

Overshoot: Less than 5%.

Operating Modes:

CH 1: CH 1, single trace.

CH 2: CH 2, single trace.

DUAL: CH 1 and CH 2, dual trace.

Alternate or Chop selectable at

any sweep rate.

ADD: Algebraic sum of CH 1 + CH 2.

Chop Frequency: Approximately 500 kHz.

Polarity Reversal: CH 2 invert.

Maximum Input Voltage: 400 V (dc + ac peak).

HORIZONTAL AMPLIFIER

(Input through channel 1 input)

X−Y mode:

CH 1 = X axis.

CH 2 = Y axis.

Sensitivity: Same as vertical channel 2.

Input Impedance: Same as vertical channel 2.

Frequency Response:

DC to 1 MHz (−3 dB).

X-Y Phase Difference: 3° or less at 50 kHz.

Maximum Input Voltage: Same as vertical channel 1.

SWEEP SYSTEM

Operating Modes:

Model 2160A: Main, Mix (both main and delayed

sweep displayed), Delay (only delayed sweep

displayed), X−Y.

Model 1541D: Main only.

Main Time Base: 0.1 µS/div to 2.0 S/div in 1-2-5

sequence, 23 steps. Vernier control provides fully

adjustable sweep time between steps.

Delayed Time Base (Model 2160A only): 0.1 µS/div to

2.0 S/div in 1-2-5 sequence, 23 steps.

Accuracy: ±3%.

Sweep Magnification: X10 ±10%.

Holdoff: Continuously adjustable for main time base from

NORM to 5 times normal.

Delay Time Position: Control sets percentage of display

that is devoted to main and delayed sweep.

Delay Jitter: 1/10,000 of full scale sweep time.

TRIGGERING

Trigger Modes:

AUTO (free run), NORM, TV-V, TV-H.

Trigger Source:

CH 1, CH 2, Alternate, EXT, LINE.

Slope:

(+) or (–).

Trigger Coupling:

AUTO: Sweep free-runs in absence of

suitable trigger signal.

NORM: Sweep triggered only by adequate

trigger signal.

TV-V: Video vertical sync pulses are

selected. Also usable for high

frequency reject.

TV-H: Video horizontal sync pulses are

selected. Also usable for low

frequency reject.

Trigger Sensitivity:

Auto: 1.5 div (internal)

≥0.5 Vp-p (external)

100 Hz – 60 MHz (2160A)

100 Hz – 40 MHz (1541D)

Norm: 1.5 div (internal)

≥0.5 Vp-p (external)

100 Hz – 60 MHz (2160A)

DC – 40 MHz (1541D)

TV-V: 1.0 div (internal)

≥0.5 Vp-p (external)

DC – 1 kHz

TV-H: 1.0 div (internal)

≥0.5 Vp-p (external)

1 kHz – 100 kHz

Maximum External Trigger Voltage: 300 V (dc + ac

peak).

COMPONENTTESTER (Model 2160A)

Components Tested: Resistors, capacitors, inductors, and

semiconductors.

TestVoltage: 6 V rms maximum (open).

Test Current: 11 mA maximum (shorted).

Test Frequency: Line frequency (60 Hz in USA).

OTHER SPECIFICATIONS

Cal/Probe Compensation Voltage: 2 V p-p ±3% square

wave, 1 kHz nominal.

CH 2 (Y) Output (Model 2160A):

Output Voltage: 50 mV/div (nominal into 50 ohm

load).

Output Impedance: Approximately 50 ohms.

Frequency Response: 20 Hz to 30 MHz, −3 dB.

Intensity Modulation (Model 2160A)

Input Signal: TTL level, intensity increasing with

more positive levels, decreased intensity with more

negative levels.

Input Impedance: Approximately 50 kΩ.

Usable Frequency Range: DC to 5 MHz.

Maximum Input Voltage: 30 V (dc + ac peak).

Power Requirements: 100–130 VAC or 200–260 VAC,

50/60 Hz, 38 watts.

Dimensions (H 3W3D):

5.2″312.8″315.7″

(132 3324 3398 mm).

Weight: 16.8 lbs (7.6 kg).

Environment:

Within Specified Accuracy: +10° to +35° C, 10–80%

relative humidity.

Full Operation: 0° to +50° C, 10–80% relative

humidity.

Storage: −30° to +70° C, 10–90% relative humidity.

ACCESSORIES SUPPLIED:

Two Switchable X1/X10 Probes.

Instruction Manual.

AC Line Cord.

SPECIFICATIONS

NOTE:

Specifications and information

are

subject to change without notice.

Please visit

www.bkprecision.com for the most current product information.

CONTROLS AND INDICATORS

GENERAL FUNCTION CONTROLS

1. ON Indicator. Lights when oscilloscope is “on”.

2.2160A Only. POWER/Scale ILLUMination Con-

trol. Clockwise rotation from OFF position turns os-

cilloscope “on”. Further clockwise rotation increases

amount of graticule illumination.

3.1541D Only. POWER Pushbutton. Turns oscillo-

scope “on” and “off”.

4.INTENSITY Control. Adjusts brightness of trace.

5.TRACE ROTATION Control. Adjusts to maintain

trace at a horizontal position.

6. FOCUS Control. Adjusts trace focus.

7.2160A Only. COMPonent TEST Pushbutton. With

pushbutton set to “in” position, ComponentTest mode

is enabled. Normal scope operation is enabled with

pushbutton in “out” position.

8.2160A Only. COMPonent TEST Jack. “Banana”-

type HI-side input jack for connection to component

in Component Test operating mode.

9. GND Terminal. Oscilloscope chassis ground

jack, and earth ground via three-wire ac power cord.

On Model 2160A, also serves as LO-side Component

Test jack.

10. CAL Terminal. Terminal provides 2 V p-p, 1 kHz

(nominal) square wave signal. This signal is useful for

checking probe compensation adjustment, as well as

providing a rough check of vertical calibration.

11. 2160AOnly.BEAMFINDPushbutton.Momentary-

contact pushbutton speeds setup of trace positioning

by bringing the beam into graticule area; operates

independently of other display controls.

VERTICAL CONTROLS

12. VERTical MODE Switch. Selects vertical display

mode. Four-position lever switch with the following

positions:

CH1:

Displays the channel 1 signal by itself.

CH2/X-Y:

CH2: displays the channel 2 signal by itself.

X-Y: used in conjunction with the X-Y control and

Trigger SOURCE switch to enable X-Y display

mode.

DUAL:

Displays the channel 1 and channel 2 signals simul-

taneously. Dual-trace mode may be either alternate

or chopped sweep; see the description under

HOLDOFF/PULL CHOP control.

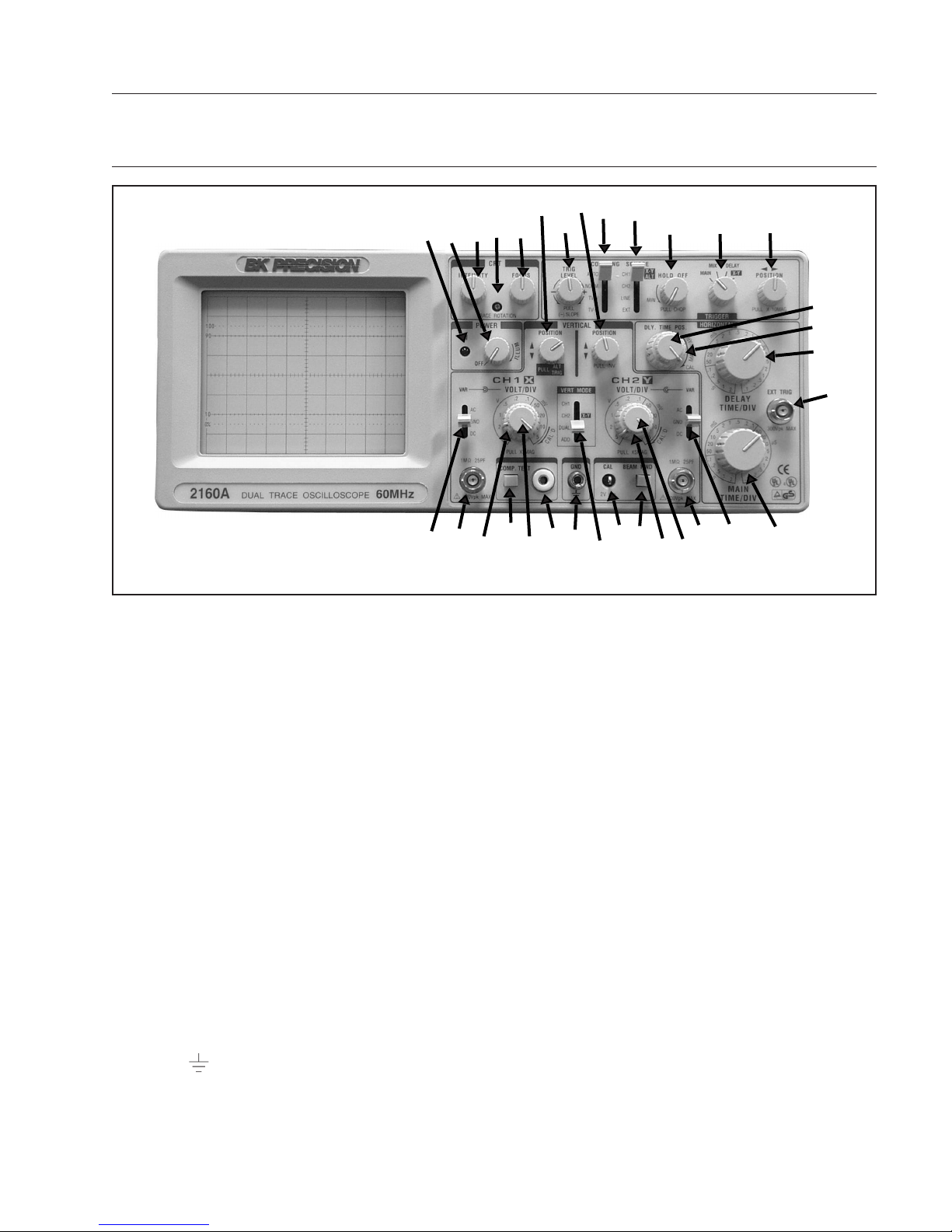

Fig. 1. Model 2160A Controls and Indicators.

17 33 18 32 31 30 28 27

ADD:

The inputs from channel 1 and channel 2 are

summed and displayed as a single signal. If the

Channel 2 POSition/PULL INVert control is

pulled out, the input from channel 2 is subtracted

from channel 1 and the difference is displayed as a

single signal.

13. CH1 AC-GND-DC Switch. Three-position lever

switch with the following positions:

AC:

Channel 1 input signal is capacitively coupled; dc

component is blocked.

GND:

Opens signal path and grounds input to vertical

amplifier. This provides a zero-volt base line, the

position of which can be used as a reference when

performing dc measurements.

DC:

Direct coupling of channel 1 input signal; both ac

and dc components of signal produce vertical de-

flection.

14. CH1 (X) Input Jack. Vertical input for channel 1.

X-axis input for X-Y operation.

15. CH1 (X) VOLTS/DIV Control. Vertical attenuator

for channel 1. Provides step adjustment of vertical

sensitivity. When channel 1 VARiable control is set

to CAL, vertical sensitivity is calibrated in 10 steps

from 5 mV/div to 5 V/div in a 1-2-5 sequence. When

the X-Y mode of operation is selected, this control

provides step adjustment of X-axis sensitivity.

16. CH1 VARiable/PULL X5 MAG Control:

VARiable:

Rotation provides vernier adjustment of channel 1

vertical sensitivity. In the fully-clockwise (CAL)

position, the vertical attenuator is calibrated. Coun-

terclockwise rotation decreases gain sensitivity. In

X-Y operation, this control becomes the vernier

X-axis sensitivity control.

PULL X5 MAG:

When pulled out, increases vertical sensitivity by a

factor of five. Effectively provides two extra sensi-

tivity settings: 2 mV/div and 1 mV/div. In X-Y

mode, increases X-sensitivity by a factor of five.

17. CH1 POSition/PULL ALT TRIGger Control:

POSition:

Adjusts vertical position of channel 1 trace.

PULL ALT:

Used in conjunction with the Trigger SOURCE

switch to activate alternate triggering. See the de-

scription under the Trigger SOURCE switch.

18. CH2 POSition/PULL INVert Control:

POSition:

Adjusts verticalposition of channel 2 trace. In X-Y

operation, rotation adjusts vertical position of X-Y

display.

CONTROLS AND INDICATORS

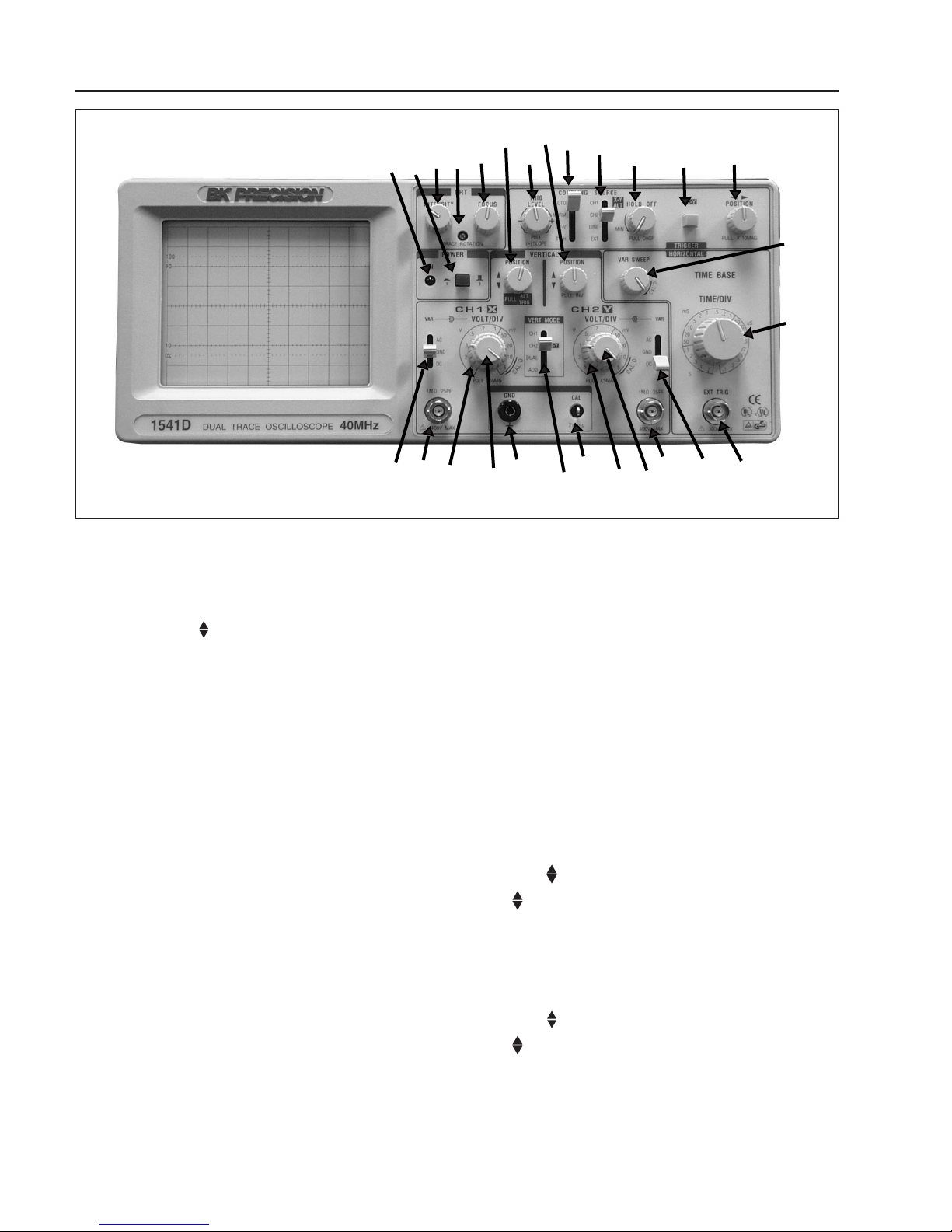

Fig. 2. Model 1541D Controls and Indicators.

1417 33 18 32 31 30 28 27

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Equipo de prueba de B+K precision

B+K precision

B+K precision Sefram MW9325 Manual de usuario

B+K precision

B+K precision 2540B Manual de usuario

B+K precision

B+K precision 530 Manual de usuario

B+K precision

B+K precision 575A Manual de usuario

B+K precision

B+K precision 5105A Manual de usuario

B+K precision

B+K precision 2125A Manual de usuario

B+K precision

B+K precision 2510 Series Manual de usuario

B+K precision

B+K precision 881 Manual de usuario

B+K precision

B+K precision 1474 Manual de usuario

B+K precision

B+K precision 8600/B Manual de usuario

B+K precision

B+K precision 2194 Manual de usuario

B+K precision

B+K precision 570A Manual de usuario

B+K precision

B+K precision 8500 Manual de usuario

B+K precision

B+K precision 2530 Manual de usuario

B+K precision

B+K precision 2522C Manual de usuario

B+K precision

B+K precision 8500 Manual de usuario

B+K precision

B+K precision 4040A Manual de usuario

B+K precision

B+K precision 2522B Manual de usuario

B+K precision

B+K precision 2540C Series Manual de usuario

B+K precision

B+K precision 2540 Manual de usuario

B+K precision

B+K precision 2190B Manual de usuario

B+K precision

B+K precision 2560B Series Manual de usuario

B+K precision

B+K precision 2510B Series Manual de usuario

B+K precision

B+K precision 8500B Series Manual de usuario

Manuales populares de Equipo de prueba de otras marcas

SMART

SMART KANAAD SBT XTREME 3G Series Manual de usuario

Agilent Technologies

Agilent Technologies BERT Serial Manual de usuario

Agilent Technologies

Agilent Technologies N3280A Manual de usuario

Vernier

Vernier Go Direct Voltage Manual de usuario

Lifeloc

Lifeloc R.A.D.A.R. Manual de usuario

Fluke

Fluke T5-600 Instrucciones de funcionamiento e instalación

Mercury

Mercury TSL01 Manual de usuario

MAHA

MAHA MBT Series Manual de usuario

Fuji Electric

Fuji Electric P-61 Manual de usuario

ETC

ETC SealerAtor Manual de usuario

Skyfine

Skyfine ETHYWAY V2 Manual de usuario

Appion

Appion G5 Twin Manual de usuario

PCB Piezotronics

PCB Piezotronics 8159-0112A Manual de usuario

BW Technologies

BW Technologies MicroDock II Manual de usuario

Sun Nuclear

Sun Nuclear 1027 Manual de usuario

Biomark

Biomark HPR LITE READER Manual de usuario

Hioki

Hioki 3169-20 Manual de usuario

Ashcroft

Ashcroft ATE-100 Manual de usuario
