1. FOREWORD

Dear customer,

We thank you for having purchased the Temperature Data Logger TagTemp and are very glad that you decided in favour of a

product of B+B Thermo-Technik GmbH. We hope this product will fully satify you and will assist you effectively in your work.

This Device has been developped to be technically highly up-to date. This product has been designed in accordance with the

regnant european and german national directives and rules. For a proper and effective usage of the product the customer shall

observe the following Operating Instructions. In the case that against one’s expectations any troubles occure which you can not

resolve yourself, please contact our service centers or your salesperson. We go after giving you rapid and competent help to

minimize the risk of long time outfalls.

The following operating Instruction are an indispensable part of of this Product. It contains important advices for the starting up and

further use of the device.

2. GENERAL INFORMATION

This documentation contains informations which must be paid in attention to assure a highly effective and secure use of the supplied

product

Please read through the following instructions and make yourself familiar with the handling of the product before you insert it in your

processes. Keep this document always readily to hand so you can consult it by need.

2.1. Labels

Sign

Meaning

Notice

Advice

It is necessary to read the following advices before beginning the

operations. The used symbols in the manual acts first of all as eye

catcher for security risks. The symbols does not replace the security

advices. The text must be read to the end.

Necessary to

observe

This symbol designate important advices and tips that are necessary

for the success of a workstep. They have to be followed in order to get

good results.

INSTRUCTION MANUAL

TagTemp

Temperature Data Logger

Technical changes reserved

B+B Thermo-Technik GmbH | Heinrich-Hertz-Str. 4 | D-78166 Donaueschingen

0141 0315-84 22.06.2016 Fon +49 771 83160 | Fax +49 771 831650 | info@bb-sensors.com | bb-sensors.com 4 / 14

Warning Signs

Meaning

Warning Signs

Meaning

This symbol advises the user of

danger for persons, material or

environment. The text gives

informations that must be

necessarily followed to avoid any

risks

Caution against electro-magnetic

fields (BGV A8, GUV-V A8/W12)

Caution against hot surfaces (BGV

A8, GUV-V A8/W26) and hot liquids

or oder substances

Caution against severe cold

(BGV A8, GUV-V A8/W17)

Caution against liquids and hot

substances

Caution against dangerous high

electrical voltage (BGV A8, GUV-V

A8/W08)

Caution against dangerous explosif

substances (BGV A8, GUV-V

A8/W02)

Caution against dangerous

explosif atmosphere

(BGV A8, GUV-V A8/W21)

Caution agaist mobile engines

(W29)

Caution against moving parts

Electronic waste

3. SECURITY ADVICE

The B+B Therm-Thechnik GmbH assumes no liability for damages occurred through failure to observe these security advices. A

usage non conforme to the instructions given in this manual can damage the device

Body and property damages

The use of the measurement system must be restricted to qualified personal.

The system is not adequate for use in atmosphere with explosion danger.

Do not use the system in a high electric or magnetic field area.

Ensuring of product security

The system must be operated only within the limits given in the technical Datas

Exposing the system to hot temperatures (higher than the operating temperature) will cause damages in the electronic circuits and

also damage the housing.

4. WASTE AND DISPOSAL ADVICE

Please return the device to B+B Thermo-Technik GmbH after expiration of its lifetime

5. USAGE ACCORDING TO PURPOSE

Please use the product only for the purposes for which it is conceived. In case of doubt, please first contact B+B Thermo-Technik

Gmbh

INSTRUCTION MANUAL

TagTemp

Temperature Data Logger

Technical changes reserved

B+B Thermo-Technik GmbH | Heinrich-Hertz-Str. 4 | D-78166 Donaueschingen

0141 0315-84 22.06.2016 Fon +49 771 83160 | Fax +49 771 831650 | info@bb-sensors.com | bb-sensors.com 5 / 14

6. PRODUCT DESCRIPTION

TagTemp is a small portable electronic temperature data logger. Its internal sensor measures local environment temperature and

logs the values in an electronic memory. Logged data, or ACQUISITIONS, can be later viewed and analyzed on a PC where they

can be opened in tabular and graph forms.

The configuration and data transfer can be fulfilled only with the IrLink communication wand which is supplied with Logchart-II software.

The software enables to set up the logger operation mode. It is also used for viewing acquisitions. Other parameters such as end of

measurements, logging interval, etc., are easily defined through the LogChart-II software.

Acquisitions can also be exported to be analyzed in other applications, such as spreadsheet programs.

1.1. Supply voltage

The Temperature Data logger TagTemp is a highly autonome temperature measurement device. It is supplied with a built-in 3.6 V

lithium battery (CR2032).

6.2. Unpacking

The following items must be included in the package:

The electronic logger TagTemp;

A CD-ROM with the Logchart-II software and a USB driver;

Quick logger operation guide.

The present operating instructions

Optional : a communication interface (upon request)

6.3. Identification

The identification label is on the logger body. Check if the features described are in accordance with your order.

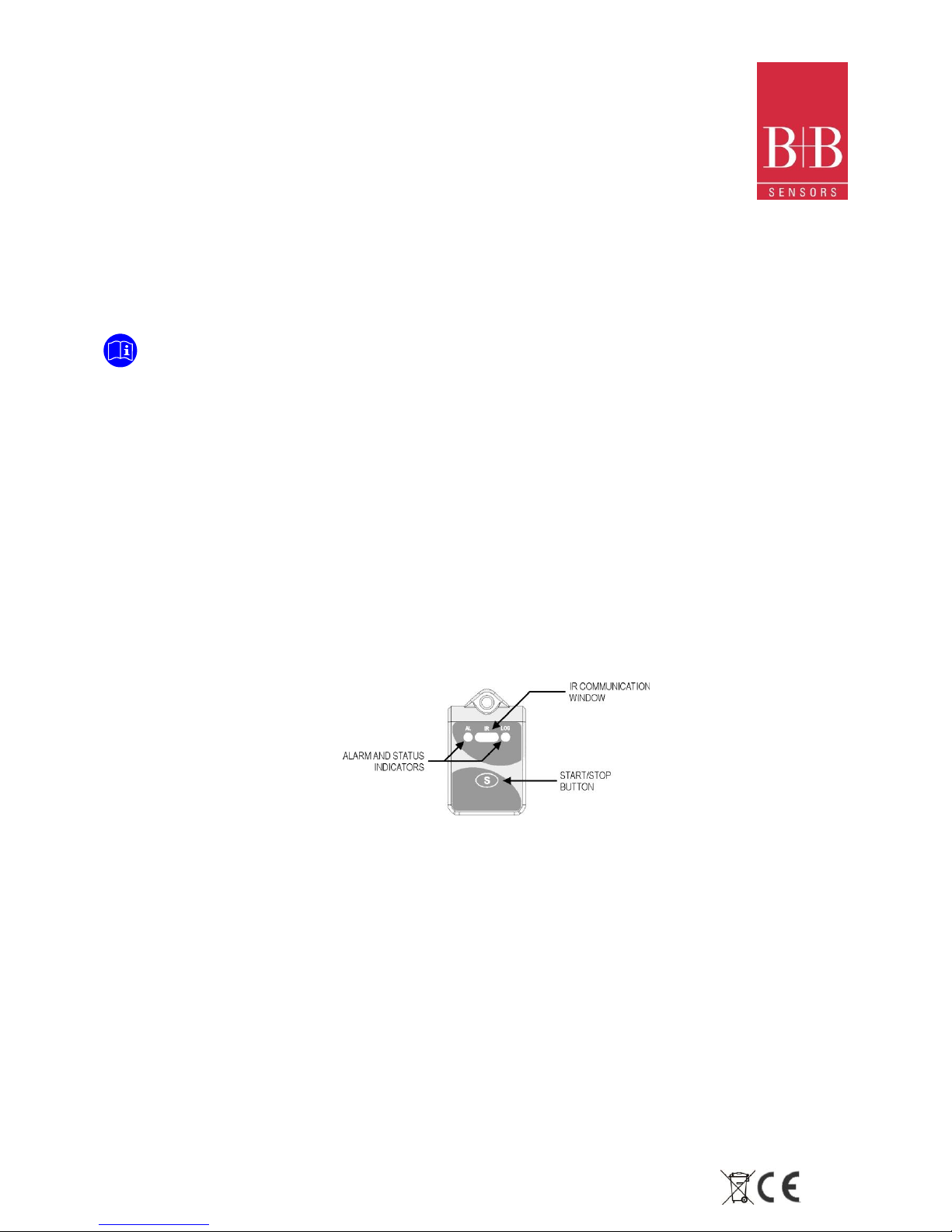

The following elements are shown in the logger front.

Start/stop button (S)

This button “wakes up” the logger whenever a communication between

logger and PC is intended to start. It can also be configured to start or

stop the temperature measurement process.

IR communication

Window

PC - Logger communication area. During download, the communication

interface must be directed towards this window.

Status indicator (LOG)

While in stand-by (not logging) or after a series of measurements, it

flashes once, during logging twice at every four seconds.

Alarm Indicator (AL)

Warns the user as to alarm conditions. Whenever an alarm situation

takes place it will flash once at every four seconds, until a new

configuration is applied to the logger.

INSTRUCTION MANUAL

TagTemp

Temperature Data Logger

Technical changes reserved

B+B Thermo-Technik GmbH | Heinrich-Hertz-Str. 4 | D-78166 Donaueschingen

0141 0315-84 22.06.2016 Fon +49 771 83160 | Fax +49 771 831650 | info@bb-sensors.com | bb-sensors.com 6 / 14

7. OPERATION

It is only possible to operate the logger after the Logchart-II software is installed to a PC, according to the steps described in

Logchart-II Software section of this manual. The communication between logger and PC is performed with the aid of the IR-Link

wand.

Requirements:

A PC system or a Laptop with Windows®2000- or XP

CD-ROM device

A free USB interface (or optinal a RS232 port)

The logger must be “waken up” before communication is attempted. To do so, press once the Start/Stop button. The logger starts

flashing the Status Indicator according to its current status:

One flash every four seconds (stand-by) indicates the logger is waiting to start measuring or that a series of measures was

concluded and the logger is waiting for a new command.

Two flashes every four seconds indicates measures ongoing.

To minimize battery consumption the logger deactivates the LED’s and the communication interface after about 30 seconds of user

inactivity. To reactivate it press again the Start/Stop Button

The logger operation mode set up is defined in advance by using the LogChart-II software.Each setting must be defined and the

consequences observed. The logger starts and stops logging as defined in settings.

7.1 Drivers and software installation

In the Ir-Link3/RS232 model there is a RSR232/Ir communication interface. It must be connected to the serial port at the PC.

In the Ir-Link3/USB model there is a USB/Ir communication interface, which must be connected to the available USB port. Windows

will request the proper driver installation, which is found in the CD-ROM that is provided with the logger.

The drivers installation steps may vary according to the machine, even for the same version of an operating system. The following

screenshots and steps are only to provide guidance.

1. Insert the CD shipped with the logger in the CD-ROM drive.

2. Connect the communication interface IrLink-3 to the PC USB port. Windows® will

acknowledge the presence of new hardware and a few seconds later it will start

the driver installation process.

3. The “found new hardware wizard” will be displayed, and you will be asked if you

want to install the driver from the Windows Update website. Select “No, not this

time”, and then click Next.

4. Select “Install from a list or specific location (Advanced)” and click “Next”.

INSTRUCTION MANUAL

TagTemp

Temperature Data Logger

Technical changes reserved

B+B Thermo-Technik GmbH | Heinrich-Hertz-Str. 4 | D-78166 Donaueschingen

0141 0315-84 22.06.2016 Fon +49 771 83160 | Fax +49 771 831650 | info@bb-sensors.com | bb-sensors.com 7 / 14

5. Select “Search for the best driver in these locations” and check “Search

removable media”. Click “Next”. If installation files are not in a CD, check “Include

this location in the search” and show the file path.

6. If a prompt warns you that it does not support Windows® XP or that signature

verification failed, click “Continue anyway”.

7. The interface driver files will be copied to the PC and after a few seconds a

screen is displayed informing you that the software installation has been

concluded. Click “Finish”.

8. In some situations, the steps described above may be repeated again. Follow the

same procedures.

In later uses of the interface, Windows® may require the driver installation again. In

this case, the same installation wizard will be displayed, and you will have to select the option “Install software automatically

(recommended), as the driver may already be in the computer.

Logchart-II Software installation:

Insert the supplied CD-ROM in the CD-drive of the PCs/Laptop.

The software installlation wizzard will start automatically. If it does not, please run the LC_II_Setup.exe program provided from

your CD drive. To do so please follow the steps below:

From the start menu of Windows run Windows Explorer. Choose the CD drive

Double click on the icon LC_II_Setup.exe to run the setup program.

Follw the steps described in the Setup wizzard



7.2 Running LogChart_II

When you open Logchart-II by double clicking on its icon the following main window is displayed

Next, select the serial port that the communication interface will use in the “Port” menu.

If using a serial port check which serial is available. Usually COM2 is free, once the mouse uses COM1. In the case of Ir-Link3/USB

choose USB port. The chosen port will be chosen by default next times the LogChart II is initiated. When a valid port is selected, the

buttons showed below are highlighted.

INSTRUCTION MANUAL

TagTemp

Temperature Data Logger

Technical changes reserved

B+B Thermo-Technik GmbH | Heinrich-Hertz-Str. 4 | D-78166 Donaueschingen

0141 0315-84 22.06.2016 Fon +49 771 83160 | Fax +49 771 831650 | info@bb-sensors.com | bb-sensors.com 8 / 14

To display the

configuration setup dialog

box

Stops any running

measurements

Press this button to download the

actual contents of the logger’s

memory

Press to view online the 10 last

logged values

7.3.

Configuring the logger

Make sure the communication interface is connected to the PC port selected. The interface must be constantly directed towards the

communication window on front part of the logger at a maximum distance of 0.5 m.

The logger must be first “woken up” by pressing once the Start/Stop (S) button on its front side.

After the serial port is selected, click the “GO” button:

The following Parameters Configuration dialog box is then displayed

INSTRUCTION MANUAL

TagTemp

Temperature Data Logger

Technical changes reserved

B+B Thermo-Technik GmbH | Heinrich-Hertz-Str. 4 | D-78166 Donaueschingen

0141 0315-84 22.06.2016 Fon +49 771 83160 | Fax +49 771 831650 | info@bb-sensors.com | bb-sensors.com 9 / 14

In this dialog box the user can define the logger operation mode and also obtains general information about the device. The different

Fields and their meaning are listed in the following:

Title

In this field, the user identifies the logger by assigning it a name.

General

information

Area with information about the logger, such as Model, Serial Number, Logger Date/Time,

PC Date/Time, firmware version, memory capacity and number of acquisitions stored in

memory, etc. In this field, time is constantly updated while the communication between

logger and computer is taking place

Acquisition

determined.

Period

Defines the interval between readings: The minimum interval is one (1) second and the

maximum is eighteen (18) hours.

Note: When the type of value logged is maximum or minimum values (see Value), the

minimum interval possible is 10 seconds.

Daily Operations

Here the user defines the time at which daily logs will take place

Estimated time

This field informs the user how long it will take to fill totally the memory, under the

conditions set up during configuration.

Start of readings

Readings can be started in one of five different modes

Immediately

Measurement starts as soon as set up is ready and sent (OK) to the logger.

Start via Palm

Measurement starts with a command sent via a PDA, which runs the software Log Chart

Palm-OS.

Date

Readings start at a predefined date and time.

Via Start/ Stop

Measurement starts and ends by pressing the Start/Stop button, in the frontal part of the

logger, for two seconds.

Setpoint

Acquisition starts when a temperature setpoint is reached. In this option, the setpoint

value is defined in the Channels field, where the Alarm parameter is replaced by setpoint.

Stop loggings

Defines the event that initiates the end of measurement. The following options are

possible.

Full Memory

Measurement is stopped when the memory is full (16 000 values).

INSTRUCTION MANUAL

TagTemp

Temperature Data Logger

Technical changes reserved

B+B Thermo-Technik GmbH | Heinrich-Hertz-Str. 4 | D-78166 Donaueschingen

0141 0315-84 22.06.2016 Fon +49 771 83160 | Fax +49 771 831650 | info@bb-sensors.com | bb-sensors.com 10 / 14

Wrap around

Readings are continuous, replacing the oldest records with new ones as the number of

readings exceeds the memory capacity.

After

The logger stops readings after a number of readings defined in the corresponding field is

reached.

Date

Readings stop at user-predefined date and time. In case the logger memory capacity is

reached before the date defined, readings are also stopped

Channels

Unit

Defines the unit of the value measured: ºC or ºF

Value

Defines how the value measured will be registered. 3 Options are available:

Instantaneous

The logger takes one measurement at the end of the measurement interval defined in

“Period” field and save the resulting value in the internal memory. The minimum interval in

this case is 1 seconds.

Maximum

The logger takes 10 equidistant measurements within the predefined measurement

interval and saves the highest value (Maximum) in the internal memory. In this option the

minimum interval between measurements (Period) is 10 seconds.

Minimum

The logger takes 10 equidistant measurements within the predefined measurement

interval and saves the lowest value (Minimum) in the internal memory. In this option the

minimum interval between measurements (Period) is 10 seconds.

Offset

Gives the user the possibility to automatically correct the values logged.

Alarm

Defines limit values that, when exceeded, characterize an alarm condition. Alarm events

are informed to the user through a flashing mode of the Alarm Indicator LED.

After filling all the fields select OK and settings will be sent to the logger

Note: After clicking the OK button all previous settings and previous data logged are lost.

8. DATA TRANSFER AND VISUALISATION

Data collected are sent from logger to PC. Data can be collected any time, at the end of the acquisition process or while they are

being acquired. If data collection takes place during the acquisition process, the process will not be interrupted, following the logger

configuration.

It is important to "wake up" the logger before starting communication.

8.4. Offloading data

Data offload is accomplished by clicking the button Offload Data:

During data transfer, a status bar indicates remaining data to be transferred. Data offloading time is proportional to the number of

readings logged.

8.5. Visualizing data

At the end of values transfer, data are automatically displayed in a graphical format.

8.6. Chart view

It is possible to select a region of the chart to zoom in. Zoom commands can be accessed through the View menu or through zoom

icons from the task bar.

It is also possible to select an area from the chart to zoom in by clicking and dragging the mouse, thus creating a zoom region

starting from the upper left corner on the chart area.

The graphic curves can be vertically dragged with a right-click and dragging the mouse up and down

Otros manuales para TagTemp

Tabla de contenidos

Otros manuales de Otro de B+B Sensors

B+B Sensors

B+B Sensors LogBox AA Manual de instalación

B+B Sensors

B+B Sensors FieldLogger Manual de usuario

B+B Sensors

B+B Sensors LogBox AA IP65 Manual de usuario

Manuales populares de Otro de otras marcas

GO Industries

GO Industries 38017 Manual de usuario

Cissell

Cissell 30LBCMAN2 Manual de usuario

RIDGID

RIDGID K-60SP Manual de usuario

Gage Bilt

Gage Bilt GB751SH-5 Manual de usuario

OVE

OVE SIERRA 60 Manual de usuario

ReelCraft

ReelCraft 7800 OLB21 Manual de usuario

Body Armor 4x4

Body Armor 4x4 ECO-SERIES Manual de usuario

ROBLIN

ROBLIN DROP Guía del usuario

EMG

EMG EMG-ACB BARREL Manual de servicio

MiniSolar

MiniSolar MT-150 Manual de usuario

Parkside

Parkside PSZ 250 B2 Manual de usuario

ABB

ABB REM 610 Manual del producto

Parkside

Parkside 55992 Manual del propietario

Skyjacker

Skyjacker F250 Manual de usuario

IBM

IBM IBM SYSTEM Z Guía de instalación

Grech Motors

Grech Motors G28 Manual de usuario

NOVAK

NOVAK BATTERY CARE SHEET Guía

Telemotive

Telemotive blue PiraT Mini Guía del usuario
