BOXLIGHT ProColor Series Manual de usuario
ProColor Series1
Service Manual
ProColor 551, 651H, 701H,
651U, 751U, 841U
mimio.boxlight.com
mimio.boxlight.com
2
3
Table of Contents
Safety Considerations 4
Product Photos 5
System Block Design 7
Internal Photo 8
Key Parts List 9
Disassembly Guide 10
Removing Circuit Boards 13
Internal Cabling 16
Touch Frame 25
Windows PC Option 26
PCB Details and Measurements 28
Main Board 28
TV Power Board 35
Keys Board 37
USB Board 38
MCU Board 39
Touch Frame 43
mimio.boxlight.com
4
Safety Considerations
The AC power supplied to the display is potentially dangerous. It is necessary that the main
power be unplugged when servicing the display. It is also recommended that all external
cables be disconnected as they too can be a source of potentially dangerous voltages.
Recommendations:
• Always plug the display into a grounded AC outlet
• Disconnect the main AC power Before servicing the display
• Keep all liquids away from the display
• Do not connect or disconnect cables while the display is on
• Do not remove or install any modules while the display is on
• Do not connect or disconnect any cables or use the displaywhen lightning is present.
• Please disconnect the power cable, remote communication system, network, modem,
and other devices before opening the screen, unless otherwise specified in the instal-
lation and configuration process
• Disconnect all cables if the display is to be installed, uninstalled, moved or opened
5
Front and Rear Views
Front view
Rear view
mimio.boxlight.com
6
Side View and Connector Panels
7
System Block Diagram
mimio.boxlight.com
8
Internal View from Back
MCU Board
TV Power
T-CON
USB Board
Pink Piece of Paper
Keys and IR Board
TV Main
9

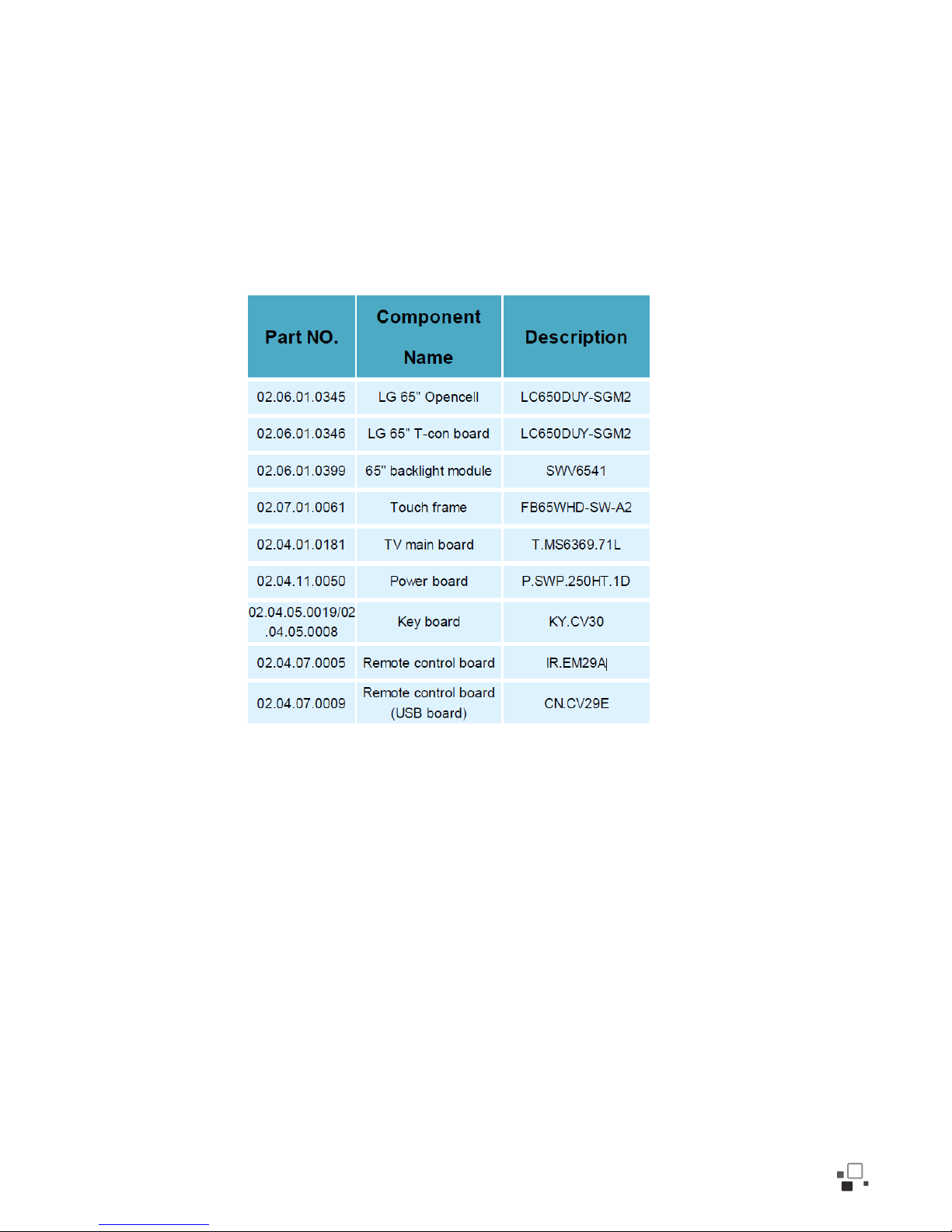

Key Parts List
mimio.boxlight.com
10
Disassembly Guide
