Bounty Hunter VLF Manual de usuario

VLF

treasure

detector

Owner’s Manual

VLF TREASURE DETECTOR

Owner’s Manual

I. ASSEMBLY:

To assemble your VLF Treasure Detector,

follow this simple procedure:

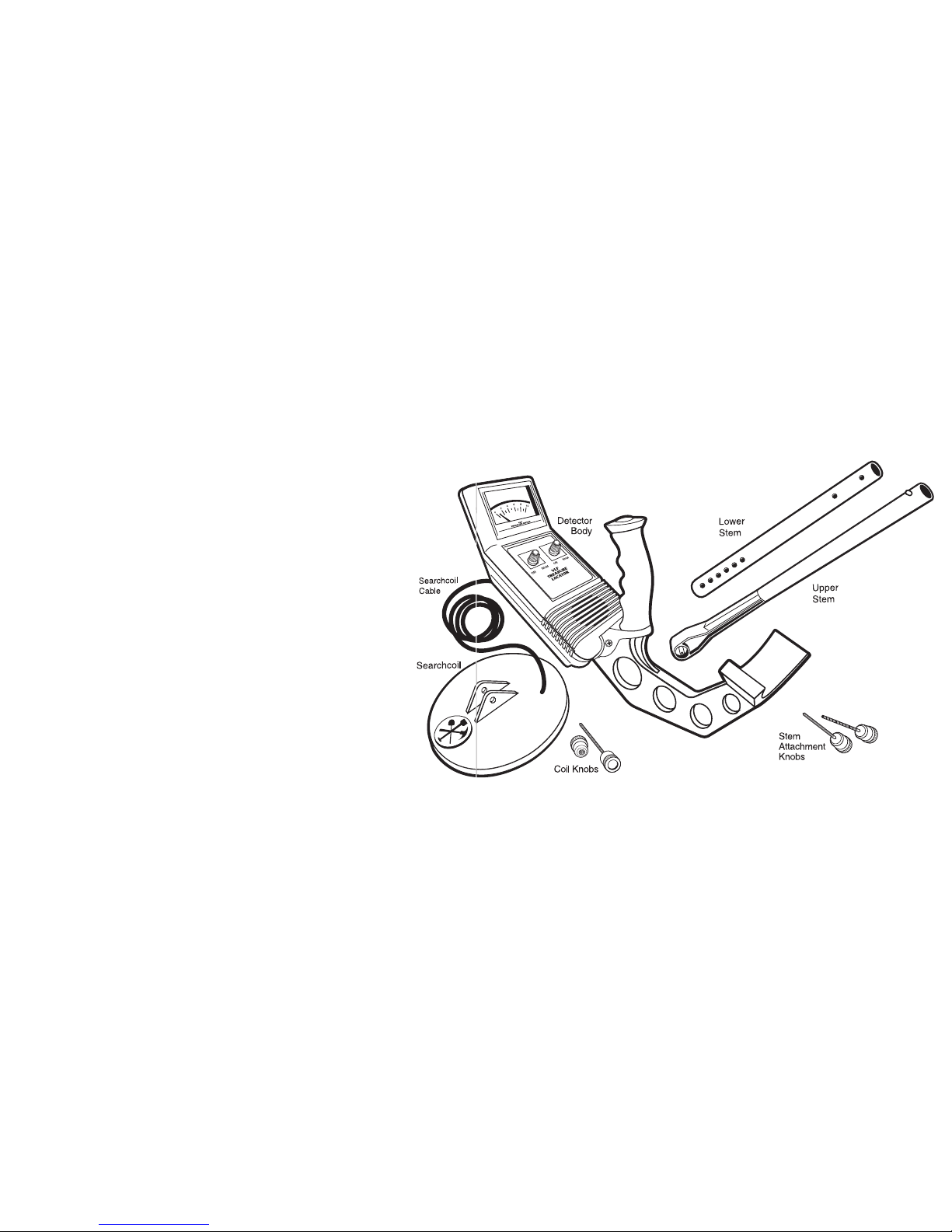

1) Unpack your detector and find the following parts:

• Detector Body with armrest, search coil and attached coil knob.

• Upper Stem (thicker silver rod with many holes)

• Lower Stem (thinner silver rod with plastic extension and button)

• Two (2) stem attachment knobs (in the plastic bag)

I. ASSEMBLY: (continued)

2) Attach the Upper Stem to the back of the

detector body with the two knobs supplied.

3) Depress the button on the lower stem and

push the lower stem into the upper stem.

4) Wind the search coil cable around the

two-piece stem.

5) Leave some slack

in the cable as

you reach the

end of the lower

stem.

6) Attach the coil to

the lower stem

using the attached

coil knob.

7) Install two (2) 9-volt

ALKALINE batteries (not

supplied). There are two

battery doors on the back of

the detector body.

IMPORTANT: Use 9-volt ALKALINE

batteries ONLY.

II. HEIGHT ADJUSTMENT

Stand with the detector in one hand, with the coil on

the ground, a few feet in front of you. If the stem is not

set a a comfortable height, push the button on the low

rod to change the length. If you make a large

adjustment, wrap the cable again, starting at the top.

CAUTION: Do not pull on the cable where it

connects to the detector body. It is

permanently attached; to much force

could damage the connection.

III. FIND TREASURE!

Your Treasure Detector will detect all kinds of metal

from iron relics, to coins and household items, to

precious metals like gold and silver.

IV. TREASURE METER

Your meter moves when metal is detected. it shows the

strength of the signal and helps with pinpointing the object.

Watch for the location where the meter jumps strongly to

the right; that’s where the target is.

V. AIR TESTING

You can test your detector by passing coins over the

search coil. Remember that coins found on the ground will

lie flat; so pass the coins parallel to the search coil for

optimum results.

CAUTION: There is metal in the floors, ceilings, walls and

counters of most homes. There is metal in tables. Keep the

detector away from metal. Do not attempt to place coins on

the floor of your home or apartment; the metal in the floor

will interfere with the signal.

It is best to have a friend hold the detector body, with the

search coil suspend in the air, while you pass the coins.

If you turn the detector on and turn the Trash Eliminator

switch fully clockwise (to the right), you will hear different

tones. Pass a penny, nickel, dime, quarter, nail,

screwdriver and pull-tab. Notice the different sounds, or no

sound at all! Turn the Trash Eliminator to many different

settings, and sometimes notice different tones for the same

object.

• TRASH ELIMINATOR

(the right knob)

OFF Position

In this position, all

different metals will be

detected.

One tone will sound for

all types of metal.

VI. TUNING and GROUND BALANCING

Forget it!

With your VLF Treasure Detector, it’s automatic.

Be it hard ground, a sandy beach, rocks, or the black sand terrains

common to gold prospecting locations, your VLF adjust itself to tune

out naturally occurring mineral deposits, and only detect the metal

objects you are looking for.

VII.CONTROLS

• POWER/SENSITIVITY

(the left knob)

The detector is off in the full counter-clockwise position (to the left).

Turn it on with a click to the right. The further clockwise, the higher the

sensitivity. If you get static or noise, then lower the sensitivity a bit.

Power

Sensitivity

Knob

Trash

Eliminator

Knob

• TRASH ELIMINATOR

Applications:

1) Relic Hunting: Historical objects are usually made

of iron. Keep the Trash Eliminator turned off for

best detection of relics.

2) Household Applications: Find property markers,

lost keys, etc.

3) Gold Prospecting: Did you know that only 1% of

the world’s gold supply has been mined? The

other 99% is still out there waiting for you to find it!

ON Position

Click on to cause your detector to emit different sounds for

different types of metals.

Turn the knob clockwise (to the right) to eliminate more trash

items.

• TRASH ELIMINATOR (continued)

Applications:

1) Coin-shooting

2) Jewelry-Hunting

• Small iron objects, like nails, will not be detected.

• Trash items, like pull-tabs, will be identified with a

broken tone.

• Silver and copper items (like some coins), will be

identified with a high tone.

CAUTION: some metal objects have a metallic

signature very similar to trash.

A nickel can sound very similar to a pull-tab. At different Trash

Elimination settings, you can sometimes notice a slight tone difference

• TRASH ELIMINATOR (continued)

between the two. There are several different types of pull-tabs and

bottle caps. It takes practice to notice the difference.

Gold rings are almost impossible to distinguish from many pull-tabs. If

you’re looking for gold rings, get used to digging. You’ll kiss a lot of

frogs before you find your first prince. Perseverance furthers!

IS THERE A PROBLEM WITH MY DETECTOR?

(Novice Detectorist’s TROUBLESHOOTING GUIDE)

SYMPTOM PROBABLE CAUSE SOLUTION

Weak signal, constant • No batteries • Check batteries.

Chatter, low sensitivity, • Dead batteries • Use 9-volt ALKALINE

or no signal. • Wrong batteries. batteries only.

• Interference • Turn sensitivity down

Cannot detect Interference from • Try it outdoors

coins or the floor. metal in the floor.

No sound for Trash eliminator is on. • Turn trash

some objects Small iron objects are eliminator off.

purposely eliminated

If just does not work. Did you pull the cord

loose from the detector? • None

Poor performance • Interference from other • Keep two detectors

operating near other detector or other at least 20 feet apart.

detector or power lines. electromagnetic field. •

Keep away from power lines

Be Environmentally Conscious and

Respect Other’s Property

• Use small digging tools. (a garden spade is preferable to a coal shovel.)

• Fill in holes.

• Obtain permission before hunting on private or government property.

USING HEADPHONES

Using headphones (not supplied) improves battery life, and prevents the

sounds from annoying bystanders.

It also allows you to hear subtle changes in the sound more clearly, particularly

if searching in a noisy location. For safety reasons, do not use headphones

near traffic or where other dangers are present. This device is to be used with

interconnecting cables/headphone cables shorter than three meters.

MVLF-070709

TREASURE HUNTER’S CODE OF ETHICS:

• Always check Federal, State, County and local laws before searching.

• Respect private property and do not enter private property without the owner’s permission.

• Take care to refill all holes and try not to leave any damage.

• Remove and dispose of any and all trash and litter found.

• Appreciate and protect our inheritance of natural resources, wildlife and private property.

• Act as an ambassador for the hobby, use thoughtfulness, consideration and courtesy at all times.

• Never destroy historical or archaeological treasures.

• All treasure hunters may be judged by the example you set; always conduct yourself with courtesy and

consideration of others

Published by First Texas Products, L.L.C.

Bounty Hunter®and VLF®are registered trademarks of First Texas Products, L.L.C.

www.detecting.com First Texas Products, L.L.C.

1465-H Henry Brennan Dr.

El Paso, TX 79936

1-800-413-4131

FIRST TEXAS PRODUCTS, LLC 1-YEAR LIMITED WARRANTY

This product is warranted against defects in workmanship or materials under normal use for one year

from date of purchase to the original user. Liability in all events is limited to the purchase price paid.

Liability under this Warranty is limited to replacing or repairing, at our option, any Bounty Hunter De-

tector returned, shipping cost prepaid, to First Texas Products, LLC. Damage due to neglect,

accidental damage or misuse of this product is not covered by this warranty.

Proof of purchase is required to make a claim under this warranty.

NOTE TO FOREIGN COUNTRY CUSTOMERS

This warranty may vary in other countries, check with your distributor for details.

Factory warranty follows the channel of distribution. Warranty does not cover shipping costs.
