Boston Acoustics S50 Manual de usuario

Boston Acoustics, Inc. 300 Jubilee Drive Peabody,Massachusetts 01960 U.S.A. bostonacoustics.com

are registered trademarks of Boston Acoustics, Inc.

Specifications: S50

Nominal Size 5 1⁄4" (130mm)

RMS Power Handling 55w

Peak Power Handling 150w

Frequency Response (±3dB) 60-20kHz

Impedance 4Ω

Sensitivity (1w/1M) 92dB

042-002319-1

117mm

”

47mm

# Description Quantity

1 Type S3 3⁄4” Tweeter 2

2 S50 Crossover 2

3 S50 Woofer 2

4 S50 Woofer Grille 2

5 Flush-Angle Tweeter Mount 2

6 Surface-Angle Tweeter Mount 2

7 S50 Crossover Cover 2

8 Hex Head Screw 8

9 Spring Clip 8

10 Terminated Woofer Wire 2

11 Terminated Tweeter Wire 2

12 Spring Clip-Front 2

13 Spring Clip-Rear 2

14 M4x10mm (3⁄8") 2

15 M3x12mm (1⁄2") 2

16 M4x20mm (3⁄4") 8

17 #6 x 3⁄8" Silver Socket Head Screw 4

not shown Woofer Gasket 2

not shown 16/18AWG. Connector Barrel 8

not shown Hex Key 1

2‘’

50mm 2

‘’

57mm

‘’

44mm

‘’ \ 10mm*

‘’ \ 15mm**

1‘’

25mm

‘’

38mm

‘’

47mm

2‘’

50mm 2

‘’

57mm

‘’

44mm

‘’ \ 10mm*

‘’ \ 15mm**

1‘’

25mm

‘’

38mm

‘’

47mm

2‘’

50mm 2

‘’

57mm

‘’

44mm

‘’ \ 10mm*

‘’ \ 15mm**

1‘’

25mm

‘’

38mm

‘’

47mm

2‘’

50mm 2

‘’

57mm

‘’

44mm

‘’ \ 10mm*

‘’ \ 15mm**

1‘’

25mm

‘’

38mm

‘’

47mm

36 mm

169 mm

43 mm

S50 5 1⁄4-inch (130mm) Component Speakers

Woofer Dimensions

Crossover Dimensions

Surface-Angle Tweeter

Mount Dimensions

Flush-Angle Tweeter

Mount Dimensions

* Depth Without Spring Clip

** Depth With Spring Clip

2‘’

50mm 2

‘’

57mm

‘’

44mm

‘’ \ 10mm*

‘’ \ 15mm**

1‘’

25mm

‘’

38mm

‘’

47mm

2‘’

50mm 2

‘’

57mm

‘’

44mm

‘’ \ 10mm*

‘’ \ 15mm**

1‘’

25mm

‘’

38mm

‘’

47mm

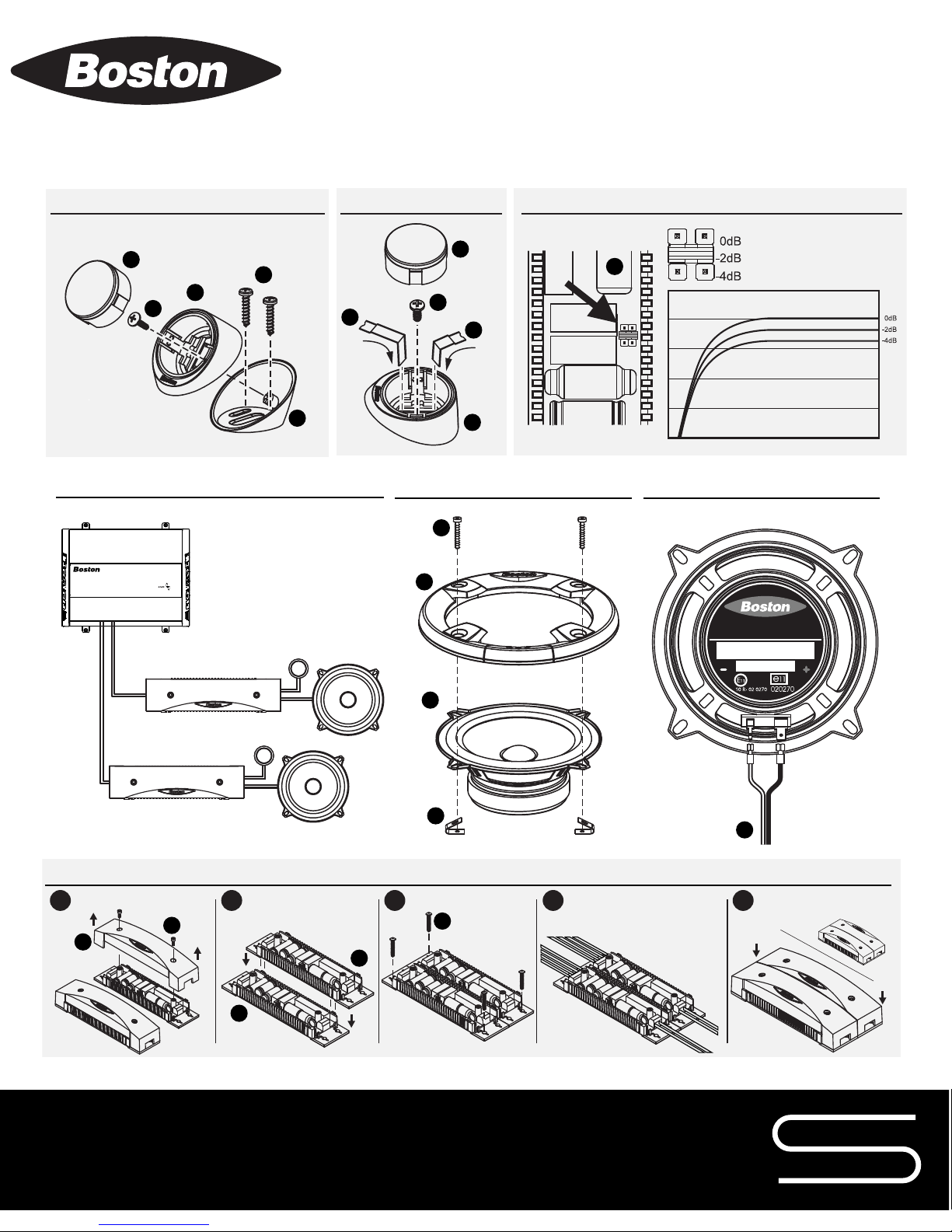

S50

Impedance 4 Ohms

55 Watts RMS

150 Watts Peak

Surface-Angle Mount Flush-Angle Mount Tweeter Level Adjustment

B C D EA

Wire ConnectionsSecure CrossoversConnect CrossoversRemove Covers

Connecting Crossover Cases

Re-Install Covers

System Wiring

Grille Installation

S50 Woofer Wiring

Positive

–

Negative

S50 5 1⁄4-inch (130mm) Component Speakers
