BOSSCO RVH1004Z Manual de usuario

RVH1004Z/1008Z/1016Z

US411Z/811Z/611Z

X11Z

H.264 DVR

User Manual

SW-11Z-I1-V1.0-E

This document contains preliminary information and subject to change without notice.

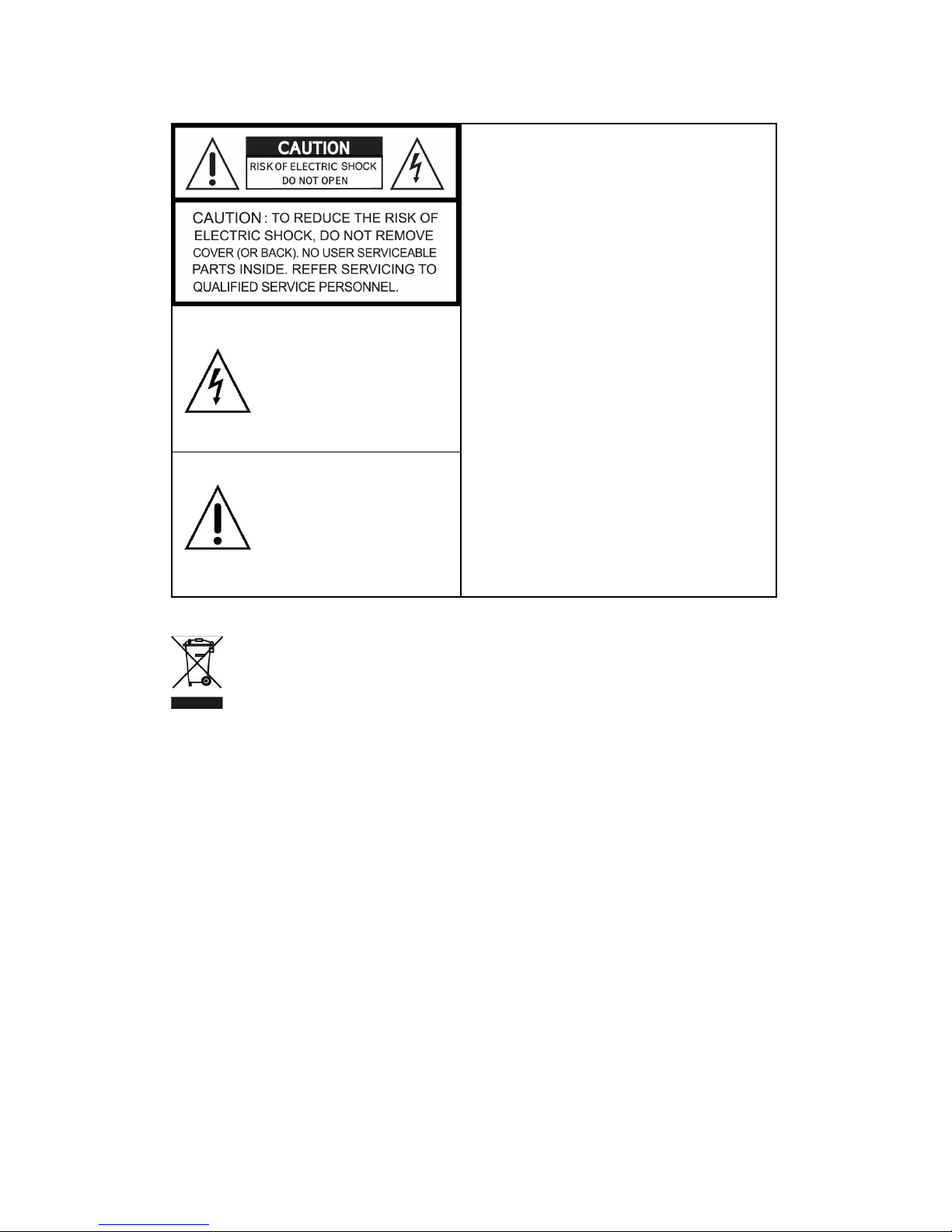

This symbol is intended to

alert the user to the presence

of unprotected “Dangerous

voltage" within the product's

enclosure that may be strong

enough to cause a ris of

electric shoc .

This symbol is intended to

alert the user to the presence

of important operating and

maintenance (servicing)

instructions in the literature

accompanying the appliance.

WARNING

TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE

THIS APPLIANCE TO RAIN OR

MOISTURE.

NOTE:

This equipment has been tested

and found to comply with the limits for a

class digital device, pursuant to part 15 of

the FCC Rules. These limits are designed

to provide reasonable protection against

harmful interference when the equipment is

operated in a commercial environment.

This equipment generates, uses, and can

radiate radio frequency energy and, if not

installed and used in accordance with the

instruction manual, may cause harmful

interference to radio communications.

Operation of this equipment in a residential

area is li ely to cause harmful interference

in which case the user will be required to

correct the interference at his own expense.

Disposal o Ol

d Electrical & Electronic Equipment

(Applicable in the European

Union and other European countries with separate collection systems)

This symbol on the product or on its pac aging indicates that this product shall not be treated

as household waste. Instead it shall be handed over to the applicable collection point for the

recycling of electrical and electronic equipment. By ensuring this product is disposed of

correctly, you will help prevent potential negative consequences for the environment and

human health, which could otherwise be caused by inappropriate waste handling of this

product. The recycling of materials will help to conserve natural resources. For more detailed

information about recycling of this product, please contact your local city office, your household

waste disposal service or the shop where you purchased the product.

Notice: Ghosting or fractured images may occur on the screen when there is a suddenly surge

or lightning stro e which cause damage on IC in the DVRs.

Table of Contents

CHAPTER 1 MAIN MENU SETUP ____________________________________ 4

1-1 RECORD SETUP ____________________________________________ 5

1-1.1 Quality & Frame Rate Setup _____________________________ 6

1-2 EVE T SETUP ______________________________________________ 6

1-2.1 MOTIO SETUP ________________________________________ 7

1-2.1.1 MOTIO AREA SETUP ______________________________ 7

1-2.2 SE SOR SETUP ________________________________________ 8

1-3 SCHEDULE SETUP __________________________________________ 9

1-3.1 Schedule Record Setup _________________________________ 9

1-3.2 Holiday Setup _________________________________________ 10

1-4 CAMERA SETUP ___________________________________________ 10

1-5 ACCOU T SETUP __________________________________________ 11

1-5.1 Permission Setup ______________________________________ 11

1-5.2 User Picture Setup ____________________________________ 12

1-6 ETWORKI G SETUP _______________________________________ 12

1-6.1 ETWORKI G SETUP __________________________________ 13

1-6.1.1 DHCP ___________________________________________ 13

1-6.1.2 LA _____________________________________________ 13

1-6.1.3 ADSL ____________________________________________ 14

1-6.1.4 3G ______________________________________________ 14

1-6.2 HTTP Setup ___________________________________________ 15

1-6.3 DD S Setup __________________________________________ 16

1-6.4 Mail Setup ____________________________________________ 17

1-7 PTZ & RS485 SETUP _______________________________________ 18

1-8 SYSTEM SETUP ____________________________________________ 19

1-8.1 DISPLAY SETUP _______________________________________ 19

1-8.2 DATE/TIME SETUP _____________________________________ 20

1-8.2.1 CHA GE DATE & TIME ____________________________ 21

1-8.2.2 TIME ZO E A D DAYLIGHT SAVI G TIME SETUP ____ 21

1-8.2.3 I TER ET TIME SETUP ___________________________ 22

1-8.3 BUZZER & RELAY SETUP ______________________________ 22

1-8.4 SPOT SETUP__________________________________________ 23

1-9 UTILITY SETUP ____________________________________________ 24

1-10 DIAG OSTIC ______________________________________________ 25

CHAPTER 2 BACKUP & SEARCH ___________________________________ 26

2-1 BACKUP SETUP ____________________________________________ 26

2-2 SEARCH SETUP ____________________________________________ 29

2-2.1 EVE T SEARCH _______________________________________ 29

2-2.1.1 CRITERIA SETUP FOR EVE T SEARCH _____________ 30

2-2.2 TIME SEARCH_________________________________________ 31

CHAPTER 3 Remote Software Installation and Setup ___________________ 32

3-1 AP Software Installation and instruction ______________________ 32

3-2 How to do remote monitoring through IE _____________________ 34

3-3 How to do remote monitoring through JPEG VIEWER(Only Monitor

Function) _____________________________________________________ 35

3-4 AP Software Operation ______________________________________ 37

CHAPTER 4 Specification __________________________________________ 39

CHAPTER 1 MAIN MENU SETUP

To enter the main menu and set up DVR, log-in account and user password are required.

The default password of the administrator is “123456”. Please chec the “Account Setup” for

related setup of other log-in users.

Table 1-0.1 Some definition of virtual eyboard.

Item Description

Switch between capital and small letters.

/ Switch between numbers and letters.

Press to cancel the setup, and re-choose the login

account.

Delete the last character.

Enter to identify the password. It will enter the set

up menu, If the password is verified.

Space ey

Table 1-0.2 The operation of remote control under the setting menu

Item Description

Switch to different options under one item

Switch to different items

MENU Save setup and bac to LIVE mode

ESC Bac to Upper level of menu without saving

ENTER Enter the menu, or display virtual eyboard

PS. The initialization of new-installed HD is required before recording, please refer to “ UTILITY

SETUP” for detail.

1-1 RECORD SETUP

Item Description

HDD FULL

Select STOP to stop recording or OVERWRITE to reuse the

HDD when HDD is full

「Stop」：Stop Recording

「Overwrite」：Start to overwrite that begin from the oldest data

of HDD, and continue to record.

OSD position X Setup OSD X axis

OSD position Y Set up OSD y axis

OSD position setup Set up OSD axis

Video Preservation Setup the video preservation period. Recorded video will be

deleted automatically after expiry of preservation period.

Quality & Frame Rate

Setup

Setup the quality and frame rate for each channel under normal

recording and event recording type.

Note：

：：

：4CH DVR will display 4 channels and 8CH DVR will display 8 channels.

1-1.1 Quality & Frame Rate Setup

Item Description

Normal setup/

event setup Select recording mode

Resolution Select recording resolution: NTSC:352x240, 704x240, 704x480

PAL:352X288,704X288,704X576

Record Type You can setup quality and FPS separately for record type.

No. Chec /unchec the box enable/disable selected channel recording

Quality Select quality: Below Basic/ Basic/ Normal/ High/ Highest

FPS Select recording frame rate.

(The number of sheets in accordance with the actual models)

Auto Assign each channel with its maximum accessible fps

Note：

：：

：4CH DVR will display 4 channels and 8CH DVR will display 8 channels.

1-2 EVE T SETUP

Item Description

Motion Setup Enter to set up motion detection

Sensor Setup Enter to set up sensor detection

1-2.1 MOTIO SETUP

Item Description

Alarm Duration(Seconds) When motion detect，the number of seconds continuous alarm

1~16 You can setup independently for each channel.

Enable Chec the box to Enable/Disable motion detection for each channel.

Sensitivity

Drag the white bar or press ◀ ▶ to set up Sensitivity from

value 0 to 10 for each channel. The higher value you set the

higher sensitivity it will be.

Motion Area Setup Enter to setup motion detection area

Note：

：：

：4CH DVR will display 4 channels and 8CH DVR will display 8 channels.

1-2.1.1 MOTIO AREA SETUP

The motion detection has been divided into 22x18 grids. The default detection area is

full screen as it mar ed in transparent for local DVR and purple for remote access.

Areas deselected for motion detection are mar ed in red for both local and remote site.

Item Description

Mask Mouse Selection Switch between “select” and “deselect” for cursor-dragging function

All Area Detection Select entire screen as detection area.

Mask All Area Deselect entire detection area.

Continue Continue setup

Exit & Save Save setup and leave

Exit & Discard Cancel setup and leave

1-2.2 SE SOR SETUP

Item Description

Sensor Popup Chec the box to Enable/Disable popup screen function for all

channels. When Sensor is detected in LIVE mode, the detected

channel image will pop up in full screen display.

All O Set all sensor off

All Low Set all sensor polarity low

All High Set all sensor polarity high

Sensor Polarity Clic or press ▼ to select between HIGH, LOW voltage for triggering

sensor detection or OFF to turn off polarity for each channel

Low Polarity：Sensor has not been triggered. When connected,

sensor will be turned on..

High Polarity：Sensor has been triggered. When connected, sensor

status will be turned off..

O ：Sensor is deactivated, and will not be turned on/off.

Note：

：：

：4CH DVR will display 4 channels and 8CH DVR will display 8 channels.

1-3 SCHEDULE SETUP

Except from starting recording manually, you can also setup the recording time by wee s

and schedule including normal, motion detect, and recording type.

Item Description

Page Each page provides 10 schedules for setup. 5 pages in total.

Holiday Setup Enter to setup holiday, up to 50 days, other than wee ends,.

View Event/ Motion/

Sensor Setup

View Normal/ Motion/Sensor

Note：

：：

：4CH DVR will display 4 channels and 8CH DVR will display 8 channels.

1-3.1 Schedule Record Setup

Clic on the time on the left side. The setup menu will be displayed. You can have

detail setup by dates, Time and event.

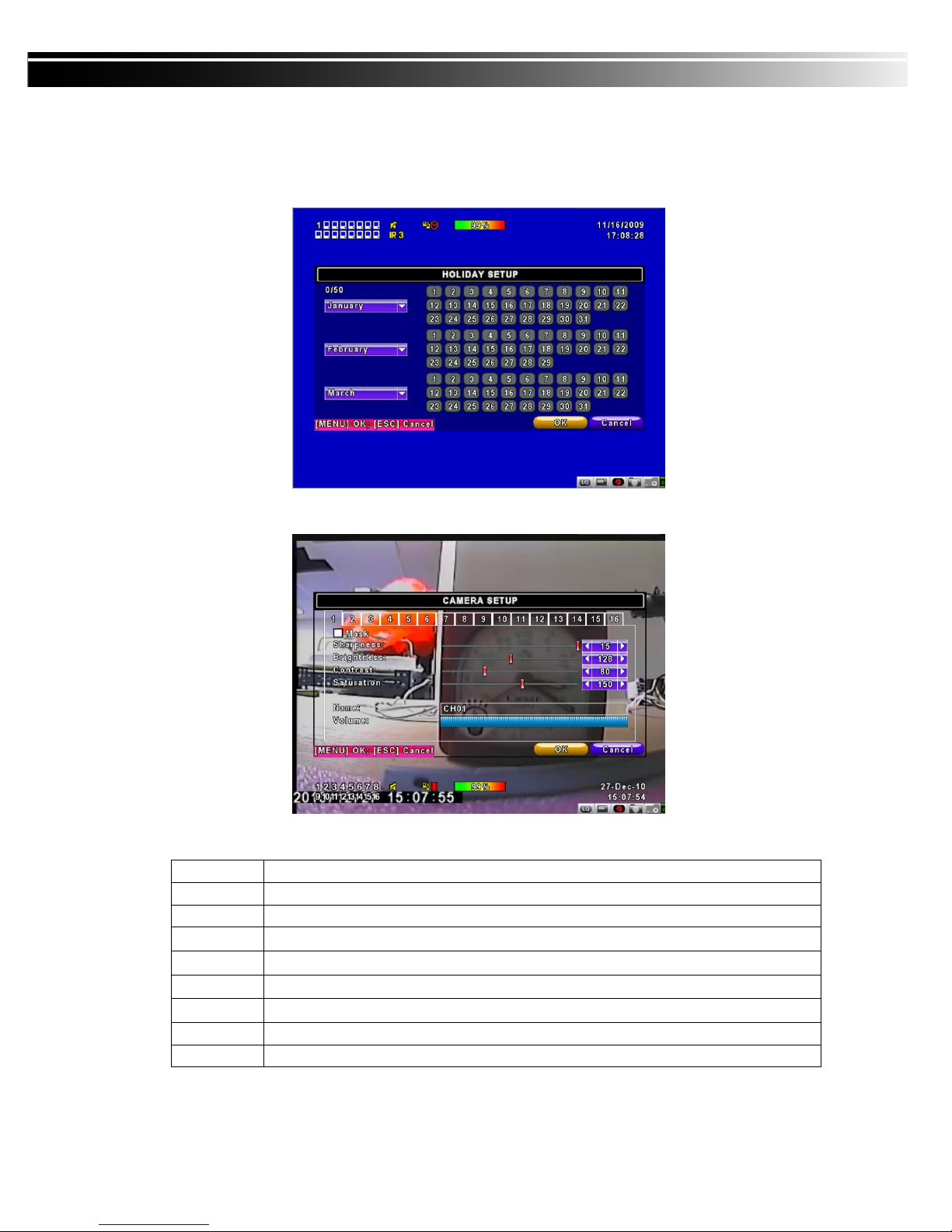

1-3.2 Holiday Setup

Since holidays are different by different country and region, you can setup the holiday of

your location accordingly.

1-4 CAMERA SETUP

Item Description

1~16 You can setup independently for each channel.

Mask Chec the box to Enable/Disable mas function for LIVE mode

Sharpness Drag the bar or press ◀ ▶ to adjust Sharpness of your camera from value 0 to 15.

Brightness

Drag the bar or press ◀ ▶ to adjust Brightness of your camera from value 1 to 255.

Contrast Drag the bar or press ◀ ▶ to adjust Contrast of your camera from value 1 to 255.

Saturation Drag the bar or press ◀ ▶ to adjust Saturation of your camera from value 1 to 255.

Name Set up name of each channel

Volume Audio volume under LIVE mode and recording mode can be adjusted.

Note：

：：

：4CH DVR will display 4 channels and 8CH DVR will display 8 channels.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Manuales populares de DVR de otras marcas

FLIR

FLIR M3100E Series Manual de usuario

VTRACKPRO

VTRACKPRO FPRO300 Manual de usuario

Swann

Swann NVR-7085 models Manual de usuario

XtendLan

XtendLan DVR-1670C Manual de usuario

urmet domus

urmet domus 1093/004AHD Manual de usuario

Holux

Holux M1 Manual de usuario

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manual de usuario

Whistler

Whistler D16VRS Manual de usuario

Defender Security

Defender Security 82-20235 Manual de usuario

MISUMI

MISUMI MP-WF100M Manual de usuario

Speco

Speco D8HU Manual de usuario

UST

UST DDR-E04AA Instrucciones de uso

Consolidated

Consolidated Digital Video Recorder Manual de usuario

Mace

Mace DVR0404RW Guía de inicio rápido

RCA

RCA RTD315W Manual de usuario

FSM

FSM Colibri Grande PRO Manual de usuario

Hauppauge

Hauppauge HD PVR 2 Manual de usuario

Identivision

Identivision ICR-PH161i PIONEER Manual de usuario
