Boss Audio Systems BV9557 Manual de usuario

BV9557

WITH DUAL FRONT AND REAR USB

AND SD MEMORY CARD PORT

AND SIDE PANEL AUX INPUT

()

WITH DUAL FRONT AND REAR USB

AND SD MEMORY CARD PORT

AND SIDE PANEL AUX INPUT

()

06.2012

Panel Introduction 02

Basic Functions 03

Remote Control Function 05

Turn the Unit On/Off 07

Enter into the Main Interface 07

Play SD card/USB memory device 07

Radio Function Operation 08

Disc Function Operation 09

Play/Eject Disc 09

DVD/VCD Disc Playback 09

CD Disc Playback 09

MP3/WMA Format Disc Playback 09

Touch Menu Function 09

General setting 11

Language Setup 11

Video Setup 11

Audio setting 12

Steering Wheel Setup 12

Touch calibration 12

Wiring Diagram 15

Trouble shooting 16

Accessory

Time setting 11

External input operation 14

Other Function Operations 14

DVD Parental control function

Specifications 17

Access setup interface 11

Rear view function 14

ACCESSORY

DVD Parental control function：The default set

for DVD is #8 adult, which means all grades of

DVD can be read without entering password.To

change the default grade,you need to follow the

below procedure: Press SETUP button on the

remote, display will show the system set up menu

and the submenu,select password and enter

0000, you will be able to choose the DVD

grade as default.

INSTRUCTIONS

DVD Parental control function

INSTRUCTIONS

CONTENTS

Accessory Quantity

Wire

USB Cable

1PC

Remote controller

Warranty card

1PC

2PCS

Warning: To ensure safety while driving and to comply with laws, drivers should not

watch video or operate the video device while driving.

INSTRUCTIONS

Panel Introduction

This unit is with switchable frequency.

You can switch from USA frequency to Europe frequency by following the

below steps:

Step1. In main menu, press setup icon to enter the setup interface.

Step2. Press the Radio icon,and insert password 123456, then press “OK”,

the menu from which you can select the radio frequency will show.

Step3. Press “Radio region” and select the desired frequency by pressing the "up"

and "down" arrow, then press it and setting is finished.

87.5-108MHz

87.5-107.9MHz

55dB

30dB

20-30dBuv

1.5%

522-1620KHz

530-1710KHz

32dB

70dB

20Hz-20KHz

FM tuner

European frequency range

USA frequency range

Signal / Noise ratio

Stereo separation

Search station volt

Distortion rate

AM tuner

European frequency range

USA frequency range

Limit noise sensitivity

DVD player

Signal / Noise ratio

Frequency response

DC 12V

10.8-16.0V DC

15A

Negative ground

85 WattsX4 Channels

Power supply

Power range

Max operate current

Ground system

Amp Rating

SPECITICATIONS

1. PWR Button

2. MUTE Button

3. DBAS Button

4. VOL- Button

5. VOL+ Button

6. Eject Button

7. RESET Button

8. USB Slot

9. Remote Control Receiver

10. AUX External Input

INSTRUCTIONS INSTRUCTIONS

03 16

TROUBLE SHOOTING

PROBLEM CAUSE SOLUTION

After ignition switch

off ,setting

information all lose

Reset information and save

Change battery or fuse

Cannot power on

Change fuse same as the old one

Some factors cause MPU

wrong operation

Press RES button on the panel by

penpoint, then, power on

Poor performance

of radio station

Connot load disk There is a disk inside Remove disc before inserting another one

Weak signal Move the car to another place, then research

Cannot play disc

Disc is scratched Change new disc

Put wrong side of disc into

the unit Insert in the disk with sign side up

Clean lens by lens clean disc

Lens is dirty

Cannot switch

language/subtitle There is only one language/

subtitle in disc

If disc is not with multi-language/subtitle,

it cannot switch language/subtitle

No image Other factors cause MPU

wrong operation Press [RES] button on the panel by

penpoint, then, power on

Cannot watch

image during

driving

It’s not allowed to watch image

during driving

Park the car in a safe place, put the car stall

in “ P ” postion, pull up the hand brake,

parking brake wire must be grounded

Check fuse

BASIC FUNCTION

1. PWR Button

Short press this button to power on, long press this button to power off.

In normal situation, press PWR button can return to the main menu.

2. MUTE Button

Press this button to shut off the sound output, re-press this button can resume the

sound output, long press this button can turn off the TFT LCD display.

3. DBAS Button

Press this button to bass on/off.

4. VOL- Button

Press this button to reduce the volume.

5. VOL+ Button

Press this button to increase the volume.

6. Eject Button

Press this button can eject the disc.

7. RESET Button

Press this button and this unit will be restored to the initial state.

8. Dual (front and rear) USB

Warning: You can only use either front or rear USB at a time. Never connect both

front and rear USB at the same time! This could cause malfunctions.

9. Remote control receiver

It is able of receiving infrared signals launched by the remote control matching the unit.

10. Dual (front and rear) AUX

Warning: You can only use either front or rear AUX at a time. Never connect both

front and rear AUX at the same time!

INSTRUCTIONSINSTRUCTIONS

WIRING DIAGRAM

This player is equipped with ISO standard connector, please follow below instruction:

● Yellow – 12 V Constant

● Black – Ground wire

● Blue - Power Antenna / Remote Amp Turn On

● Orange – Back-Up Camera Trigger (+) ● Pink – Parking Brake (-)

● White/White black - Left front speaker (+/-)

● Purple/Purple black - Right rear speaker (+/-)

● Green/Green black - Left rear speaker (+/-)

● Red - ACC ON (+12V) ● Grey/Grey black - Right front speaker (+/-)

13 11

11.

12.

13.

Blue (Radio antenna control)

Orange (CCD)

Red (Key switch/ACC)

Yellow (Battery +)

Black (GND)

Pink (Safety cable)

Blue/White(Remote control for Amplifier)

Video output 2

Video input

Front right speaker

Rear right speaker

AUX input

Rear USB/SWC

Video output 1

Wire socket

CCD

Subwoofer output

Front left speaker

Rear left speaker

Radio antenna

Rear

Left track speaker

Front

Wire plug

Green Purple

Rear

Green/black Purple/black

Right track speaker

White Grey

White/black Grey/black Front

INSTRUCTIONS INSTRUCTIONS

05 14

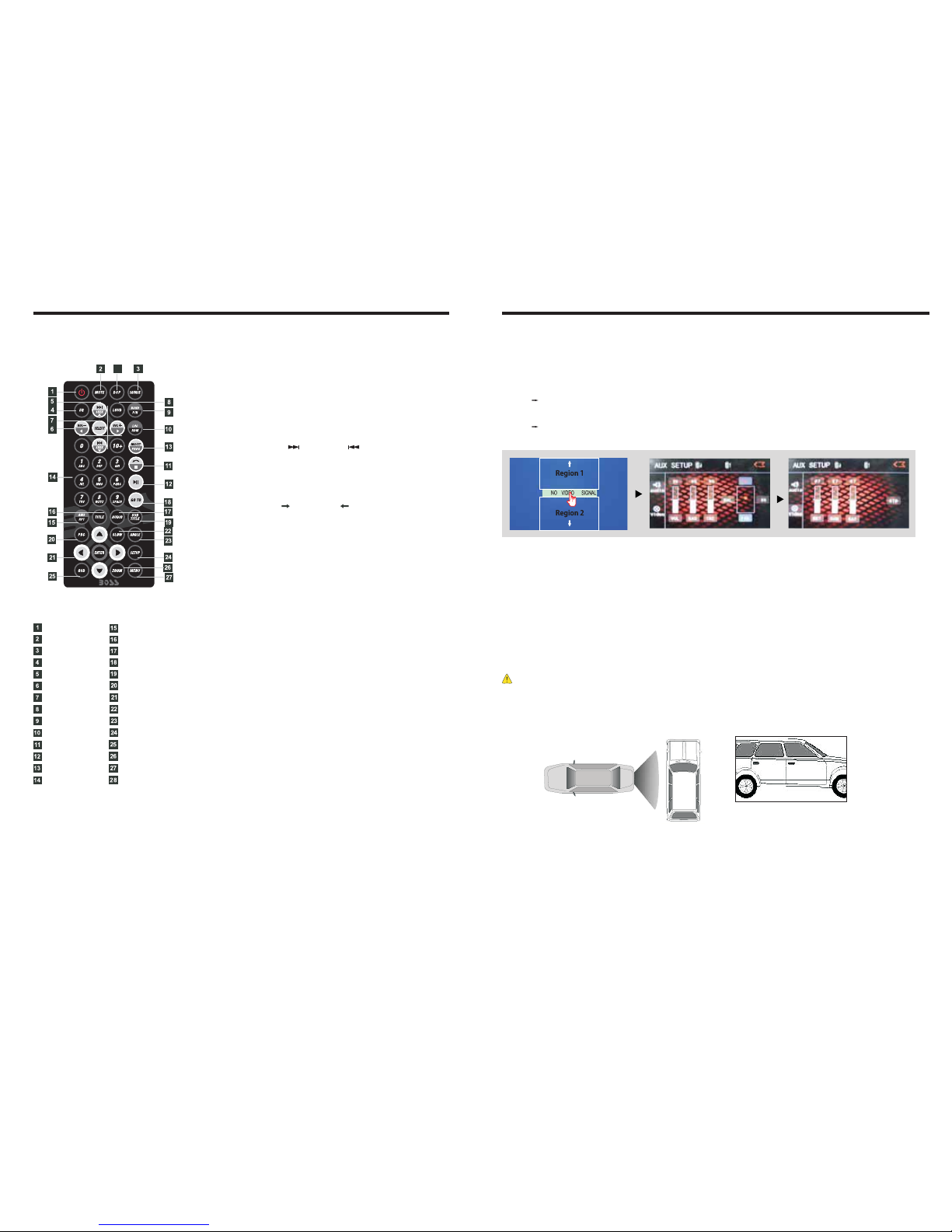

REMOTE CONTROL FUNCTION

1.POWER

Press once to switch on, press again to

switch off.

2. MUTE Button

Press once to turn off audio output,

press again to resume volume level.

3. SOURCE Button

Press this button to change mode.

4. EQ Button

Press this button to choose POP、ROCK、

CLASSIC、EQ off.

5. SEEK+ ( )/ SEEK-( ) Button

In normal playback MP3、USB、SD songs,

Press this button to previous song or next

song.

6. VOL+ ( ) / VOL- ( )

Press this button to increase or decrease

volume level.

7. SEL Button

Press this button to choose sound feature.

8. LOUD Button

Press this button to startup LOUD function.

9. BAND-P/N Button

In radio mode, press this button to choose

band.

In VCD、DVD mode, press this button to

choose AUTO、PAL or NTSC system.

10. LOC/RDM Button

In radio mode, press this button to switch

between local and direction.

In VCD、CD mode,press this key to randomly

play.

11. STOP Button

Press this button to stop playing.

12. PLAY/PAUSE Button

Press this button to switch between play and

pause.

In stop mode, press this button to play.

13. ST/PROG Button

In radio mode, press this button to choose

stereo or mono station.

In audio mode, it can help STOP button to

programmed play.

POWER ON/OFF

MUTE

SOURCE

SEEK+ / SEEK-

VOL+ / VOL-

SEL

LOUD

BAND / P / N

LOC / RDM

STOP

PLAY / PAUSE

ST / PROG

O-10+ DSP

AMS / RPT

TITLE

AUDIO

SET PLAYING TIME

SUBTITLE

PBC / MENU

UP / DOWN / L / R ENTER

SLOW

ANGLE

SETUP

OSD

ZOOM

External input operation

Connect the video input plug with external video input jack, and connect the audio input

plug with external audio input jack.

Touch [Input] icon on main interface to access external input interface.

Audio You can adjust the

You can adjust the speaker volume by adjusting the front and back,left and right column.

volume, bass, pitch for input audio.

Video You can adjust the brightness, contrast, saturation and hue for input video.

You can also choose the video standard mode.

Other functions

Rear view function

In any running state, the video signal can switch to reverse video state when reversing

the car, and the system shall return to its initial running state after reversing the car.

Do not rely on CCD system completely, please make sure you use your direct eyesight

while driving. Back rearview system only assists in driving. As the distance range of

rearview system is limited, completely relying on the rearview system during driving

may cause accidents.

Reverse field simulation Rearview backup image

Warning

Warning: In AUX mode, you can adjust the angle of screen by press region 1 & region 2.

Press Region 1 to slide up, press Region 2 to slide down.

INSTRUCTIONS INSTRUCTIONS

22. SLOW Button

In audio mode, press this button to slow

backward and slow forward.

23. ANGLE Button

In DVD mode, press this button to change

play angle.

24. SETUP Button

In audio mode, press this button to choose

different set items.

25. OSD Display

Press this button to display the title chapter

and the left time.

26. ZOOM Button

In DVD/VCD mode, press this button to

ZOOM in.

27. MENU Button

Press button to back to the main menu.

28. DSP

Press this button to show the time.

BATTERY CHANGE

When control distance of remote control

becomes shorter or no function, please

change battery. Please confirm polarity

before change.

One hand press stopper, then pull out battery.

Put battery into controller.

Insert battery holder into controller.

14. 0-10+ Button

Press this button to choose desired song

section、preset stations.

Decimal numbers, for example the 19th

song, press 1.9 button;

Centesimal numbers, for example, the

120th song, press 1.2.0 button.

15. AMS / RPT Button

In radio mode, press this button to browse

stored stations.

In audio mode, press this button to play

repeatedly.

16. TITLE Button

In DVD mode, press this button to play

back to the top menu of disc.

17. AUDIO Button

In DVD mode, press this button to switch

language of dialogue.

In VCD mode, press this button to choose

left track、right track and stereo.

18. SET playing time

In DVD mode, press this button, you can

define playing time.

19. SUBTITLE Button

In DVD mode, press this button to switch

language of subtitle.

20. PBC Button

In VCD mode, press this button to display

all song menus, work with number button

to choose songs.

21. UP、DOWN、LEFT、 RIGHT、ENTER

Button

When playing MP3、USB、SD returns to

song menu, up、down selections can be

up / " " button or down / " " key to

select up and down, select and press " "

key to confirm.

The selected tracks can be played. Press

the left or right arrow keys to " " or " "

key, can be on the next page function

operation.

、

Touch the function icons so as to access the

corresponding function operations.

INSTRUCTIONS INSTRUCTIONS

Turn on/off Host

Access main interface

Insert/eject USB storage device

1. Connect a USB recorded with media information to the unit by a USB connecting cable.

2. When there is a need to eject the USB device, exit the USB device playback screen

first, and then take out the device.

Insert/eject SD card

1. Insert a SD card recorded with media information into the SD card slot in the unit

correctly until it is locked.

2. When pulling out the SD card, exit SD card playing state first, then press the SD card

and it shall pop up after unlocking.

Enter/exit

Insert a USB storage device or SD card to automatically play data contained in it. If the

unit has connected with a USB device or SD card, touch[ USB ]icon in the main interface

to enter into the external storage playback interface; Touch[ SD ]icon to enter into the SD

card playback interface. During playback, touch the top center area of the screen to pop

up the touch menu, operate touch menu to perform various playback controls.

When there is a USB device/SD card connected,

the unit can conduct the playback of audio/video/

image files in the USB device/SD card.

USB/SD Card function operation

Play

After SD card/USB removable device being read out, the operation methods are similar

to disk operation methods.

When the ignition switch is put in ACC or ON position,Press[ ] button on the front panel

to turn on the unit.After the host starts, hold [ ]button for 3 seconds , the host will turn off.

In the other mode, click on the interface to return the icon will switch to the main interface.

Click icon on setup interface to access audio setting interface, as shown in

right (PIC 1) diagram:

Audio setting

You can turn on or turn off the existing

functions on audio setting interface.

Steering wheel setting

II.Connect anode and cathode of direction control wire of the car with anode and cathode

of direction control wire of this device, and press the buttons on steering wheel one by

one and record the corresponding sequence and functions.

III. Click the button of steering wheel needs to be allotted so as to select the

corresponding setting function, such as volume +.

I. Click icon on setup interface so as to access steering wheel setting interface.

IIII. Buttons on steering wheel shall display the corresponding functions, such as

volume + .

To reset functions, click [Reset] icon, all the settings set before shall be cleared, repeat

procedures 3~4 for resetting.

To modify function settings, repeat procedures 3~4.

Touch calibration

If touch calibration error occurs, you can adjust the touch coordinate by “Touch calibration”.

Click icon on setup interface, input password [888888] to confirm to access touch

calibration interface, as shown in below diagram:

Touching methods

Use touch pen to click the center of “+” icon, and move along with center of “+” icon so as

to calibrate the screen. It shall automatically save data and exit after screen calibration.

Please accurately click all positions on screen, or the accuracy of touch calibration shall be

affected.

PIC 1

INSTRUCTIONS INSTRUCTIONS

Radio Function Operation

Touch [ RADIO ] icon in the main interface to enter into the radio interface.

Touch icon to return to main interface, and then touch other function icons so as to exit

radio mode.

Enter/exit

Click [BND] icon so as to switch among AM1, AM2, bands.FM1,FM2, FM3,

Band selection

Search/Save radio stations

Short press [Scan] icon to browse the stored radio stations.

FM band can save 18 radio stations (Six stations for FM1/FM2/FM3), AM band can save

12 radio stations (Six stations for AM1/AM2).

Scan radio

Short press icon to manually fine-tune radio stations upward/downward.

Long press icon to automatically search and save radio stations.

Sound setting

Click [EQ] icon can switch to different sound mode.

Mute on/off

Click [Mute] icon to turn on/off mute function

TFT on/off

Click icon to turn off TFT, and then click the screen area so as to turn on TFT.

Click icon so as to slide screen angle.

Access setup interface

Click [Setting] icon on main interface to access setup interface.

General setting

Click icon on setup interface to access general setting interface, as shown in below

PIC 1 diagram:

In general setting interface, you can select to turn on or turn off the existing functions.

You can set wallpaper and opening picture you like and check version number of DV/DC,

click icon to browse up/down.

Wallpaper selection

Click icon on wallpaper bar , direction icon shall pop up, click it to

select wallpaper.

Time setting

Click

PIC 2diagram:

icon on setup interface to access time setting interface, as shown in below

Click icon on time bar time setting interface shall display, as shown in

below PIC 3 diagram:

Click icon beside hour and minute to separately set hour and minute.

Video setting

Click

(PIC 5) diagram:

icon on setup interface to access video setting interface, as shown in right

At video setting interface, you can adjust brightness, contrast, saturation and hue of the video.

Language Setup

During use, you can select your familiar language to display menu by language setup.

Click icon on setup interface to access language setting interface, as shown in right

(PIC 4) diagram:

Click the corresponding icon on the language bar desired to be set so as to switch

the language type, when there are more than 3 languages, direction icon shall pop up,

click it to select your familiar language.

PIC 4 PIC 5

INSTRUCTIONS INSTRUCTIONS

Disc Function Operation

PIC 1

00:01:44 00:09:43

TT 1/5 CH 1/1

VOL

00:01:44 00:09:43

TT 1/5 CH 1/1

VOL

Do not insert two discs or more.

Eject disc

(1) Click button on the panel to eject the disc.

(2) If a disc has not been took away 15 seconds after it is ejected, system will

automatically take in the disc but not play.

Play/eject disc

Play disc

Insert the disc into the disc slot with the printing surface up, system will detect the disc

and automatically take it in to read and play.

During playback of disc, touch the middle lower area of the screen to pop up the touch

menu, operate the touch menu to perform various playback controls.(PIC 1)

DVD/VCD disc playback

CD Disc Playback

After a CD is inserted, system shall access disc reading state immediately.

When there is a disc in the device, click [Disc] at the main interface so as to access disc

reading state.

After the disc being read out, system shall automatically play in sequence.

Play/pause

Touch the button to pause, retouch it to continue to play.

Stop

Touch the button to enter into prestop status.

Touch the button to select the previous/next song.

The previous/next song

Touch Menu Function Description

Fast forward/backward

Consecutively touch this button to select the speed of fast-forward/fast-backward.

Volume adjustment button

Touch this button and volume adjustment modulation shall pop up, touch button to

adjust the volume.

MP3/JPEG/MPEG4 disk playing

When the disc contains readable files, such as MP3/JPEG/MPEG4 files, it shall be

automatically read out and played after slipping into DVD player.

During playing, touch the screen area and the touch menu shall pop up. Operate the

touch menu for various playing.

Access next menu

Touch it to access the next menu interface.

Time setting

Touch this button to access time setting interface.

Stereo on/off

Touch it so as to turn on/off stereo.

Return to root menu

Touch this icon, it shall return to root menu of disk in DVD state and access PBC

menu playing in VCD state. All chapters in the disk shall be displayed on the interface,

touch the chapter icon directly for playing.

Access title menu

Press this button to return to title menu of the disk. Directly click menu bar at title

menu interface for playing.

Language selection

Touch this button to select language.

Digit keyboard

Touch this button and digit keyboard shall appear, click number buttons directly to

select tracks for playing.

Randomly play

Touch this button to instantly play each song. Press again to back to the normal play.

Zoom in/Zoom out image

Touch this button to zoom in /zoom out the image.

Repeat play

In playing state, touch this button to start repeat play function: Chapter repeat

Title repeat repeat all Off.

During VCD playing, this function only works when PBC is off.

Otros manuales para BV9557

Tabla de contenidos

Otros manuales de Sistema de vídeo para coche de Boss Audio Systems

Boss Audio Systems

Boss Audio Systems Vision BV54HR Manual de usuario

Boss Audio Systems

Boss Audio Systems BV11.2MC Manual de usuario

Boss Audio Systems

Boss Audio Systems BV7948B Manual de usuario

Boss Audio Systems

Boss Audio Systems HIR7UBL Manual de usuario

Boss Audio Systems

Boss Audio Systems BV7970 Manual de usuario

Boss Audio Systems

Boss Audio Systems HIR7BLK Manual de usuario

Boss Audio Systems

Boss Audio Systems BV10.4 Manual de usuario

Boss Audio Systems

Boss Audio Systems Universal headrest Manual de usuario

Boss Audio Systems

Boss Audio Systems BV14.1FLIP Manual de usuario

Boss Audio Systems

Boss Audio Systems BV9150 Manual de usuario

Boss Audio Systems

Boss Audio Systems BV13FLIP Manual de usuario

Boss Audio Systems

Boss Audio Systems BV11.2BGT Manual

Boss Audio Systems

Boss Audio Systems BV2450 Manual de usuario

Boss Audio Systems

Boss Audio Systems BV9BA Manual de usuario

Boss Audio Systems

Boss Audio Systems BV9560B Manual de usuario

Boss Audio Systems

Boss Audio Systems BV9967BI Guía del usuario

Boss Audio Systems

Boss Audio Systems BV9354 Manual de usuario

Boss Audio Systems

Boss Audio Systems BV9990 Manual de usuario

Boss Audio Systems

Boss Audio Systems BV-560M Manual de usuario

Boss Audio Systems

Boss Audio Systems HIR70UB Manual de usuario

Boss Audio Systems

Boss Audio Systems 822UA Manual de usuario

Boss Audio Systems

Boss Audio Systems BV9997BI Manual de usuario

Boss Audio Systems

Boss Audio Systems BV8250 Manual de usuario

Boss Audio Systems

Boss Audio Systems Vision BV10.4FLIP Manual de usuario

Manuales populares de Sistema de vídeo para coche de otras marcas

Stinger

Stinger HEIGH10 RB10RAM13B Manual de usuario

Eonon

Eonon E1057 Manual de usuario

Milion

Milion D2223 Manual de usuario

Metra Electronics

Metra Electronics 99-8153 Manual de usuario

Voxx Electronics

Voxx Electronics HR8MA1 Manual de usuario

Axxera

Axxera AV604Bi Manual de usuario

Clarion

Clarion NX706E Manual de usuario

Pyle view

Pyle view PLDN74BTi Manual de usuario

Clarion

Clarion NX602 Manual de usuario

PowerAcoustik

PowerAcoustik PTID-5850N Manual de usuario

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Guía del usuario

Lanzar

Lanzar SVDVD5 Manual de usuario

Kia

Kia MTXM100YPPE Manual de usuario

Eonon

Eonon E1060 Manual de usuario

Macrom

Macrom M-AN900 Manual de usuario

Hyundai

Hyundai BAPE-L3000N Manual de usuario

r.LiNK

r.LiNK RL2-UCON8-SM Manual de usuario

Blaupunkt

Blaupunkt DVP 01C Manual de usuario
