Bose Volume Control User Interface Manual de usuario
Bose®Volume Control User Interface
and Volume Control with A/B Select User Interface
Installation Guide
Flagstaff_Wall Control 6x6.fm Page 1 Tuesday, November 14, 2006 4:00 PM
2
Important Safety Instructions
For the intended audience
This guide has been written for professional installers of sound systems.
1. Read these instructions – for all components before using this product.
2. Keep these instructions – for future reference.
3. Heed all warnings – on the product and in the installer’s guide.
4. Follow all instructions.
5. Do not use this apparatus near water or moisture.
6. Clean only with a dry cloth – and as directed by Bose.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instruc-
tions.
8. Do not install near any heat sources, such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way such as: power-supply cord or plug is damaged; liquid has been
spilled or objects have fallen into the apparatus; the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped. Do not attempt to service this
product yourself. Opening or removing covers may expose you to dangerous voltages or other
hazards. Please call Bose to be referred to an authorized service center near you.
10. Do not let objects or liquids enter the product – as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock.
11. See product enclosure for safety-related markings.
12. Only use attachments/accessories specified by the manufacturer.
CAUTION: Check local regulations before installing the Bose®Volume Control User Interface and/or Volume
Control with A/B Select User Interface. The building code may require professional installation by a skilled techni-
cian or licensed contractor. Regional electrical codes may require similar qualifications for wiring the system.
Please read this install guide
The Bose Volume Control User Interface and Volume Control with A/B Select User Interface are engineered
to provide custom on-site controls for the FreeSpace®DXA 2120 digital mixer/amplifier. Please read this
guide to help you install and use the interfaces correctly.
Flagstaff_Wall Control 6x6.fm Page 2 Tuesday, November 14, 2006 4:00 PM
3
Provided in carton
©2006 Bose Corporation. No part of this work may be reproduced, modified, distributed,
or otherwise used without prior written permission.
Volume control user interface
Volume control with A/B select user interface
OR
Flagstaff_Wall Control 6x6.fm Page 3 Tuesday, November 14, 2006 4:00 PM
4
Also needed
* For the volume control user interface, use a single twisted pair of data-grade cable
(22-24 AWG or 0.34-0.25mm2).
* For the volume control with A/B select user interface, use two twisted pairs of data-grade
cable (22-24 AWG or 0.34-0.25mm2).
Cable*
Double-gang junction box
6-terminal input
connector
Provided in the FreeSpace®DXA 2120 digital mixer/amplifier carton
Not provided
Flagstaff_Wall Control 6x6.fm Page 4 Tuesday, November 14, 2006 4:00 PM
5
Assembly
Flagstaff_Wall Control 6x6.fm Page 5 Tuesday, November 14, 2006 4:00 PM
6
Recommended cable lengths
Chassis
2000 ft (610 m) max.
For one user interface
Chassis
For two user interfaces
2000 ft (610 m) max.
22-24 AWG or 0.34-0.25mm2
22-24 AWG or 0.34-0.25mm2
Flagstaff_Wall Control 6x6.fm Page 6 Tuesday, November 14, 2006 4:00 PM
7
Wiring
CAUTION: Be sure to terminate cable at both ends.
Two volume control user interfaces
One volume control user interface
User interface connector 6-terminal input connector
mounts to REMOTE jack
on the chassis
Flagstaff_Wall Control 6x6.fm Page 7 Tuesday, November 14, 2006 4:00 PM
8

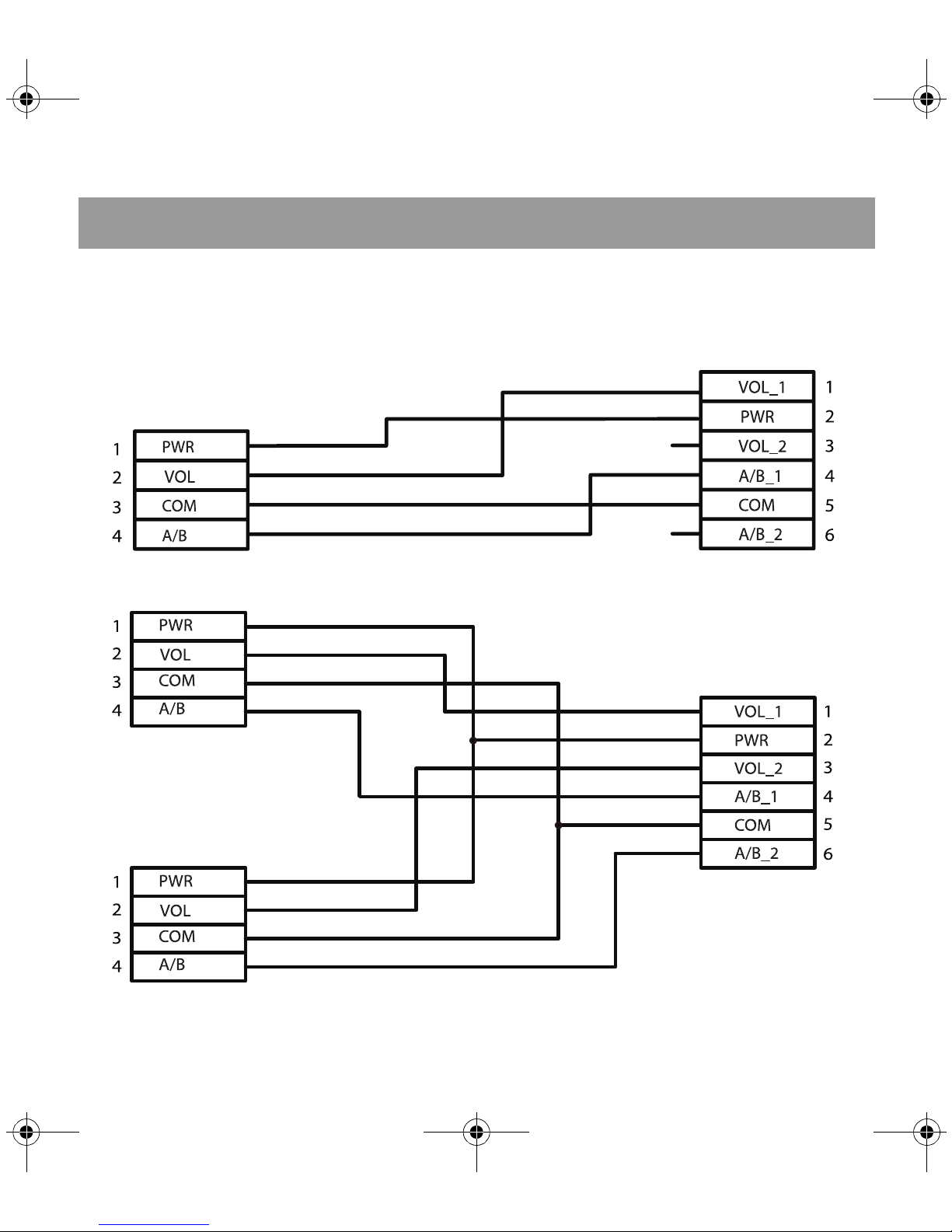

Wiring
Two volume control with A/B select user interfaces
One volume control with A/B select user interface
User interface connector 6-terminal input connector
mounts to REMOTE jack
on the chassis
Flagstaff_Wall Control 6x6.fm Page 8 Tuesday, November 14, 2006 4:00 PM
9
Using a junction box
Install a double-gang electrical box for each user interface.
The Bose®Volume Control User Interface and Volume Control with A/B Select User
Interface are designed to fit a North American, Japanese, Australian, and some
European double-gang junction boxes.
• Mount a North American or Japanese box vertically, as shown.
• Mount a European or Australian box horizontally, as shown.
• Choose a location for each box that is convenient for the person using the controls.
• Install the junction box recessed slightly or flush to the surface of the finished wall.
CAUTION: Do not install a volume control user interface or volume control with A/B select
user interface in a junction box that houses an AC power (mains) cord.
CAUTION: Do not place the power cable in the same conduit with the mains wire, unless you
are sure that special regulatory insulation requirements are met. Consult your local electrical
regulatory agency for further information.
Flagstaff_Wall Control 6x6.fm Page 9 Tuesday, November 14, 2006 4:00 PM
10
Mounting
After connecting the wires, mount the user interface in the junction box.
Two sets of screws are provided. Use the screws that are appropriate for your junction
box: Use #6 for North American boxes, or M4 for Japanese, European, and Australian
boxes.
CAUTION: Do not overtighten the screws. Overtightening may cause the frame to break.
After securing the user interface frame to the junction box, snap the cover onto the frame.
To remove the cover, insert the flat head of a screwdriver into the slot on either side of the
cover.
User interface
frame
Cover
Flagstaff_Wall Control 6x6.fm Page 10 Tuesday, November 14, 2006 4:00 PM
