Bosch CIP5000 Series Manual de usuario
CIP5000 series storage
CIP‑5316W‑00N / CIP‑5424W‑00N
en Quick installation guide
CIP5000 series storage Table of contents | en 3
Bosch Security Systems B.V. Quick installation guide 2019-10 | V01 | F.01U.380.028
Table of contents
1Safety 4
1.1 RoHS compliance 4
2About this guide 5
2.1 Introduction 5
3System overview 6
3.1 Front panel 6
3.2 Rear panel 6
3.2.1 Rear panel components 7
3.3 Secure cover 8
3.3.1 Install the cover 9
4Setup tasks 10
4.1 Task 1: unpacking 10
4.2 Task 2: install enclosure on the rack 10
4.3 Task 3: install disk drives 13
4.3.1 Drive slot numbering 13
4.3.2 Remove the drive carrier 14
4.3.3 Install 3.5" disk drive in the carrier 15
4.4 Task 4: establish I/O connections 15
4.4.1 Initial setup 16
4.4.2 Network connection 16
4.5 Task 5: connect power and power on 16
4.5.1 Power on 17
4.5.2 Front panel LED behavior 18
4.5.3 Disk drive LEDs 18
4.5.4 PSU LEDs 18
4.5.5 Rear panel LED behavior 19
4.6 Task 6: login to windows 19
4.7 Task 7: create logical drives 19
4.7.1 Log into management GUI 20
4.7.2 Choose a language 20
4.7.3 Create logical drives 20
4.7.4 Log out 24
4.8 System shutdown 24
5Technical support 25
6Disposal 26
4en | Safety CIP5000 series storage
2019-10 | V01 | F.01U.380.028 Quick installation guide Bosch Security Systems B.V.
1 Safety
!
Warning!
This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Danger!
Consequences The electronic components within the enclosure are sensitive to damage from
Electro-Static Discharge (ESD). Observe appropriate precautions at all times when handling
the device or its subassemblies.
!
Warning!
Turn off the power and disconnect the power cord before servicing this device.
1.1 RoHS compliance
CIP5000 series storage
Hazardous substance table according to SJ/T 11364-2014
Pb
(Pb)
Hg
(Hg)
Cd
(Cd)
Cr 6+
(Cr 6+)
PBB
(PBB)
PBDE
(PBDE)
PCBA X O O O O O
Housing & enclosures X O O O O O
Cables O O O O O O
Power supply units X O O O O O
Batteries X O O O O O
This table was created according to the provisions of SJ/T 11364
O: The content of such hazardous substance in all homogeneous materials of such
component is below the limit defined in GB/T 26572
X: The content of such hazardous substance in a certain homogeneous material is above the
limit defined in GB/T 26572
CIP5000 series storage About this guide | en 5
Bosch Security Systems B.V. Quick installation guide 2019-10 | V01 | F.01U.380.028
2 About this guide
This document gives a brief overview of the CIP5000 series storage, and then provides
instructions to install the system hardware in the rack, and configure necessary network and I/
O device connections.
For more details on installation and operation of the CIP5000 series storage, refer to the User
manual.
2.1 Introduction
Models included in this guide
Model Interface Number of drives Power supplies Cooling units
CIP-5316W-00N 1000 BASE-T x 2 16 2 2
CIP-5424W-00N 1000 BASE-T x 2 24 2 2
6en | System overview CIP5000 series storage
2019-10 | V01 | F.01U.380.028 Quick installation guide Bosch Security Systems B.V.
3 System overview
This section gives an overview of the front panel, rear panel and secure cover of CIP5000
series storage.
3.1 Front panel
The front panel hardware components on the CIP-5316W-00N and CIP-5424W-00N are
identical except the number of drives.
Drive carriers Power and Status LEDs
Figure3.1: CIP-5316W-00N front view
Drive carriers Power and Status LEDs
Figure3.2: CIP-5424W-00N front view
Defective drives shall be replaced immediately in order to ensure data availability. If any drive
failed, a hot spare drive automatically replaces a failed drive, thus ensuring the fault-tolerant
integrity of the logical drive. The self-contained hardware-based RAID logical drives provide
maximum performance in a compact external enclosure.
3.2 Rear panel
The rear panel of CIP-5424W-00N is almost the same as the rear panel of the CIP-5316W-00N
except for its higher profile. The form factor of the CIP-5424W-00N is 4U and the form factor
of the CIP-5316W-00N is 3U.
The rear panel is where you connect power cables, I/O connections, IPMI port, audio out/in,
video (VGA), USB serial ports, COM1 (serial port) and SAS port Backend Controller card. Both
enclosures include PCIe slots for added system versatility.
CIP5000 series storage System overview | en 7
Bosch Security Systems B.V. Quick installation guide 2019-10 | V01 | F.01U.380.028
Figure3.3: CIP-5316W-00N rear view
Figure3.4: CIP-5424W-00N rear view
3.2.1 Rear panel components
The rear panel components of CIP-5316W-00N and CIP-5424W-00N are the same, and each
model has two power supply units (PSU).
12
10
11
3
4 6 7 95 8
1 PSU fan vents
2 Power inserts
3 System fan vents
4 PS/2 mouse/keyboard port
8en | System overview CIP5000 series storage
2019-10 | V01 | F.01U.380.028 Quick installation guide Bosch Security Systems B.V.
5 VGA port
6 DVI port
7 HDMI port
8 USB 3.0 (4 ports)
9 Optical SPDIF Out port
10 Audio In/Out ports
11 1000BASE-T RJ-45 (2 ports)
3.3 Secure cover
The CIP5000 enclosure include a secure cover for better physical security and to prevent
unintended or accidental removal of hard drives.
The cover are secured with a single tubular cam lock located near the left side of the cover.
Turn the key clockwise to lock, counter clockwise to unlock.

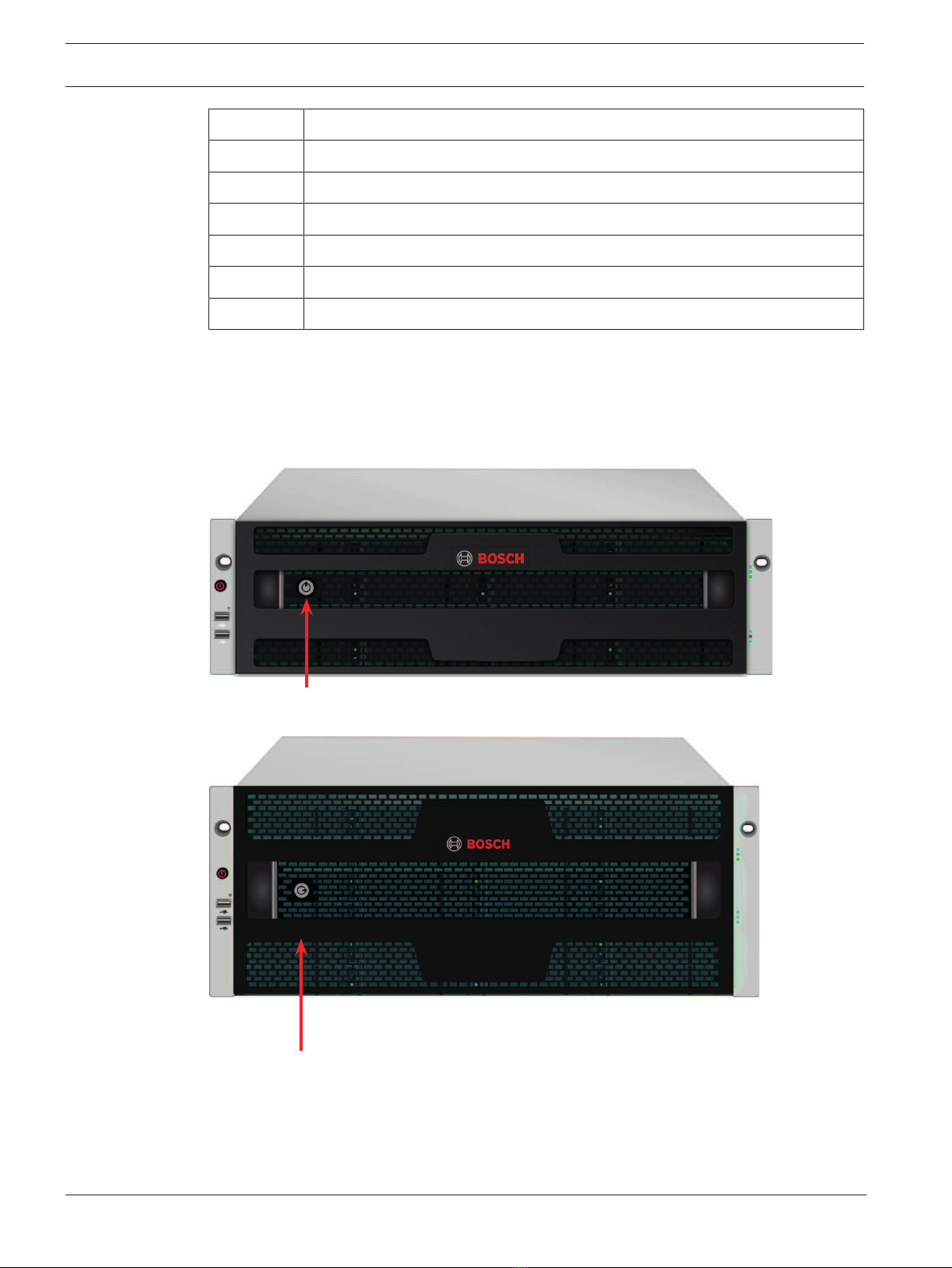

Tubular cam lock
Figure3.5: CIP-5316W-00N with secure cover (unlocked)
Tubular cam lock
Figure3.6: CIP-5424W-00N with secure cover (locked)
CIP5000 series storage System overview | en 9
Bosch Security Systems B.V. Quick installation guide 2019-10 | V01 | F.01U.380.028
3.3.1 Install the cover
Figure3.7: Installing or removing secure cover
To attach the secure cover:
1. Make sure the lock is in the unlocked position. To unlock, insert the key into the lock and
turn counter clockwise.
2. Insert the tab on the right side of the cover into the slot receptacle on the right handle.
3. Place the cover in position and push in the latch release (to the left of the keyhole).
4. Push the cover into position so that the tab on the right side inserts into the receptacle
on the right handle when releasing the latch.
5. Insert the key and turn clockwise to lock.
To remove the cover, unlock it, press the latch release on the left side and pull the left end out
first, holding it with both hands.
10 en | Setup tasks CIP5000 series storage
2019-10 | V01 | F.01U.380.028 Quick installation guide Bosch Security Systems B.V.
4 Setup tasks
Finish the basic setup tasks described in the guide.
4.1 Task 1: unpacking
Note that the two models are nearly identical, except for the number of disk drive bays.
Packing List
The box contains the following items:
– One of the following storage appliances:
– CIP-5316W-00N
– CIP-5424W-00N
– Two 1.83m (6 ft) power cords
– Screws for disk drives
– Front panel bezel cover
– Quick installation guide
– (Optional) Sliding rail assembly for rack mounting
4.2 Task 2: install enclosure on the rack
The instructions here apply to 3U 16-bay models CIP-5316W-00N and the JBOD expansion
CIP-5316-JBOD, as well as the 4U 24-bay model CIP-5424W-00N.
!
Caution!
Do not populate any enclosure hardware with hard drives until it has been securely installed
in the rack.
!
Caution!
At least two persons are required to safely lift, place, and attach the enclosure hardware into
a rack system.
!
Caution!
Do not lift or move the enclosure hardware by the handles, or power supplies. Hold the
system itself.
!
Caution!
Do not install the enclosure hardware into a rack without rails to support the system.
!
Caution!
Only a qualified technician who is familiar with the installation procedure should mount and
install the enclosure hardware.
!
Caution!
Mount the rails to the rack using the appropriate screws and flange nuts, fully tightened, at
each end of the rail.
