Bosch B450 Instrucciones de funcionamiento originales
Conettix Plug-in Communicator Interface
B450
en Installation and Operation Guide
Table of contents
1Safety 4
2Introduction 5
2.1 About documentation 5
2.2 Bosch Security Systems, Inc. product manufacturing dates 5
2.3 Installation workflow 5
3System overview 7
3.1 Module overview 7
3.2 Bus address settings 8
4Installation 10
4.1 Setting the bus address 10
4.2 Insert the B44x communication module (required and available separately) 10
4.3 Mount the module in the enclosure 11
4.3.1 Mount and wire the tamper switch (option for SDI2 bus only) 12
4.4 Install and mount the plug-in communicator antenna 12
4.5 Wire to the control panel 13
4.5.1 Wire to an SDI2 control panel 14
4.5.2 Wire to an SDI control panel 15
4.5.3 Wire to an option bus control panel 16
5Configuration 17
5.1 Plug and Play configuration 17
5.2 Configuration for SDI2 control panels 17
5.2.1 Configuring and viewing status from RPS 17
5.3 Use USB to configure the B450 22
5.3.1 Install a communication program 24
5.3.2 Log into the USB interface 25
5.3.3 USB Main menu 27
5.3.4 USB menu structure 27
5.3.5 USB menu 28
5.4 Short Message Service (SMS) configuration 32
5.4.1 Use SMS to configure the B450 32
5.5 Firmware Update page 35
6Maintenance and troubleshooting 39
6.1 LED status indicators 39
6.2 Show the firmware version 41
6.3 Diagnostic log 41
6.4 Understanding network polling 41
6.4.1 Example 1 - High Security Application 42
6.4.2 Example 2 - Medium Security Application 42
6.4.3 Example 3 - Backup or Low Security Application 42
6.5 Control panel programming using cellular 43
7Specifictions and certifications 44
7.1 Technical specification 44
7.2 Certifications 45
Conettix Plug-in Communicator
Interface Table of Contents | en 3
Bosch Security Systems, Inc. Installation and Operation Guide 2013.09 | 02 | F.01U.282.875
Safety
ESD Precaution
Please note that while the B450 comes in a plastic case, and is protected from ESD, the plug-
in cellular communicator (B44x) does not. All plug-in cellular communicator components may
potentially be exposed to finger touches - therefore extra attention must be paid to ESD
(electrostatic discharge) precaution. Make sure there is no static interference when using the
board. Appropriate ESD protections must be taken and wearing electrostatic equipment is
recommended, such as anti-static wrist strap.
ESD damage can range from subtle performance degradation to complete device failure.
Precision integrated circuits may be more susceptible to damage because very small
parametric changes could cause the device not to meet its published specifications.
!
Warning!
Failure to follow these instructions can result in a failure to initiate alarm conditions. Bosch
Security Systems, Inc. is not responsible for improperly installed, tested, or maintained
devices. Follow these instructions to avoid personal injury and damage to the equipment.
Notice!
Inform the operator and the local authority having jurisdiction (AHJ) before installing the
module in an existing system.
Disconnect all power to the control panel before installing the module.
1
4en | Safety Conettix Plug-in Communicator
Interface
2013.09 | 02 | F.01U.282.875 Installation and Operation Guide Bosch Security Systems, Inc.
Introduction
About documentation
Copyright
This document is the intellectual property of Bosch Security Systems, Inc. and is protected by
copyright. All rights reserved.
Trademarks
All hardware and software product names used in this document are likely to be registered
trademarks and must be treated accordingly.
Bosch Security Systems, Inc. product manufacturing dates
Use the serial number located on the product label and refer to the Bosch Security Systems,
Inc. website at http://www.boschsecurity.com/datecodes/.
The following image shows an example of a product label and highlights where to find the
manufacturing date within the serial number.
Installation workflow
To install and configure the device, use the workflow below and follow in sequential order
from top to bottom, marking off each box as you complete a step.
!
Caution!
Always power down the control panel when connecting the B450. Power down the control
panel by unplugging the transformer and disconnecting the battery.
Plan the installation of the B450 Conettix Plug-in Communicator Interface
Unpack the device contents
Power down the system
Select the bus address value for the compatible control panel (This will automatically
configure the module to work with a compatible control panel. Refer to Setting the bus
address, page 10)
Insert the desired plug-in communicator into the B450 (Refer to Insert the B44x
communication module (required and available separately), page 10)
Mount the B450 into the enclosure (Refer to Mount the module in the enclosure, page 11)
Wire the B450 to a compatible control panel (Refer to Wire to the control panel, page 13)
Power up the system
2
2.1
2.2
2.3
Conettix Plug-in Communicator
Interface Introduction | en 5
Bosch Security Systems, Inc. Installation and Operation Guide 2013.09 | 02 | F.01U.282.875
Install a communication program (if required) (Refer to Install a communication program,
page 24)
Configure the communication module (non SDI2 control panels)
Verify LED activity
Review signal strength on the cellular communicator. Refer to your cellular communicator
Installation Guide for more information on signal strength.
Installation is complete
See also
–Configuration, page 17
–Maintenance and troubleshooting, page 39
6en | Introduction Conettix Plug-in Communicator
Interface
2013.09 | 02 | F.01U.282.875 Installation and Operation Guide Bosch Security Systems, Inc.
System overview
Refer to the graphic below for the complete B450 system configuration.
1
2
7
8
9
5
6
3
4
B450 system connections overview
Callout ᅳ Description Callout ᅳ Description
1 ᅳ Compatible Bosch control panel 6 ᅳ Cellular carrier network
2 ᅳ Panel data bus (SDI2 , SDI, or Option) 7 ᅳ Internet/LAN/WAN
3 ᅳ B450 8 ᅳ Remote Programming Workstation
4 ᅳ USB direct connection for B450
configuration (if required)
9 ᅳ Bosch Conettix IP receiver (D6600,
D6100i, or D6100IPv6)
5 ᅳ B44x Plug-in Cellular Communicator
(required and available separately)
Module overview
The B450 Conettix Plug-in Communicator Interface (wired to a compatible control panel) is a
four-wire powered SDI2, or SDI device that provides two-way communication over commercial
cellular networks using a plug-in communicator.
The B450 Conettix Plug-in Communicator Interface bus address switch determines the bus
address of the device. When required, configuration of the module is managed through the
control panel, a local USB connection, or using SMS.
3
3.1
Conettix Plug-in Communicator
Interface System overview | en 7
Bosch Security Systems, Inc. Installation and Operation Guide 2013.09 | 02 | F.01U.282.875
B450 module overview
1
862
9
10
3
754
TX RX
Figure 3.1: B450 Plug-in Communicator Interface
Callout ￚ Description
1 ￚ Tamper switch connector
2 ￚ Bus address switch
3 ￚ MODE 2-pin jumper connector (for future use)
4 ￚ Bus address label
5 ￚ USB connector (Type A)
6 ￚ Heartbeat LED
7 ￚ RX LED (indicates packets received from the wireless network)
8 ￚ TX LED (indicates packets transmitted over the wireless network)
9 ￚ Terminal strip (to control panel)
10 ￚ Interconnect wiring connectors (to control panel or other compatible modules)
Bus address settings
The address switch determines the bus address for the B450 Conettix Plug-in Communicator
Interface. The control panel uses the address for communications. Use a slotted screwdriver
to set the address switch.
Notice!
The B450 reads the bus address switch setting only during power up. If you change the
switch after you apply power to the module, you must cycle the power to the module in order
for the new bus address setting to be used for bus communication.
3.2
8en | System overview Conettix Plug-in Communicator
Interface
2013.09 | 02 | F.01U.282.875 Installation and Operation Guide Bosch Security Systems, Inc.
Bus address label
Use the bus address label to select the desired setting on the bus address switch, depending
on your control panel.
PANEL ADDRESSES
TX RX
0 1 2 4 5 6 7 8 9
Bus cfg 1 2 88 92 250
Addr SDI2 SDI Option
Figure 3.2: Bus address label
Conettix Plug-in Communicator
Interface System overview | en 9
Bosch Security Systems, Inc. Installation and Operation Guide 2013.09 | 02 | F.01U.282.875
Installation
Perform the following steps to install the B450.
Notice!
Remove all power (AC and Battery) before making any connections. Failure to do so may
result in personal injury and/or equipment damage.
Setting the bus address
The B450 Conettix Plug-in Communicator Interface address switch provides the value for the
module's address. The figure below shows the address switch setting for address 1. Refer to
the table below for panel-specific settings.

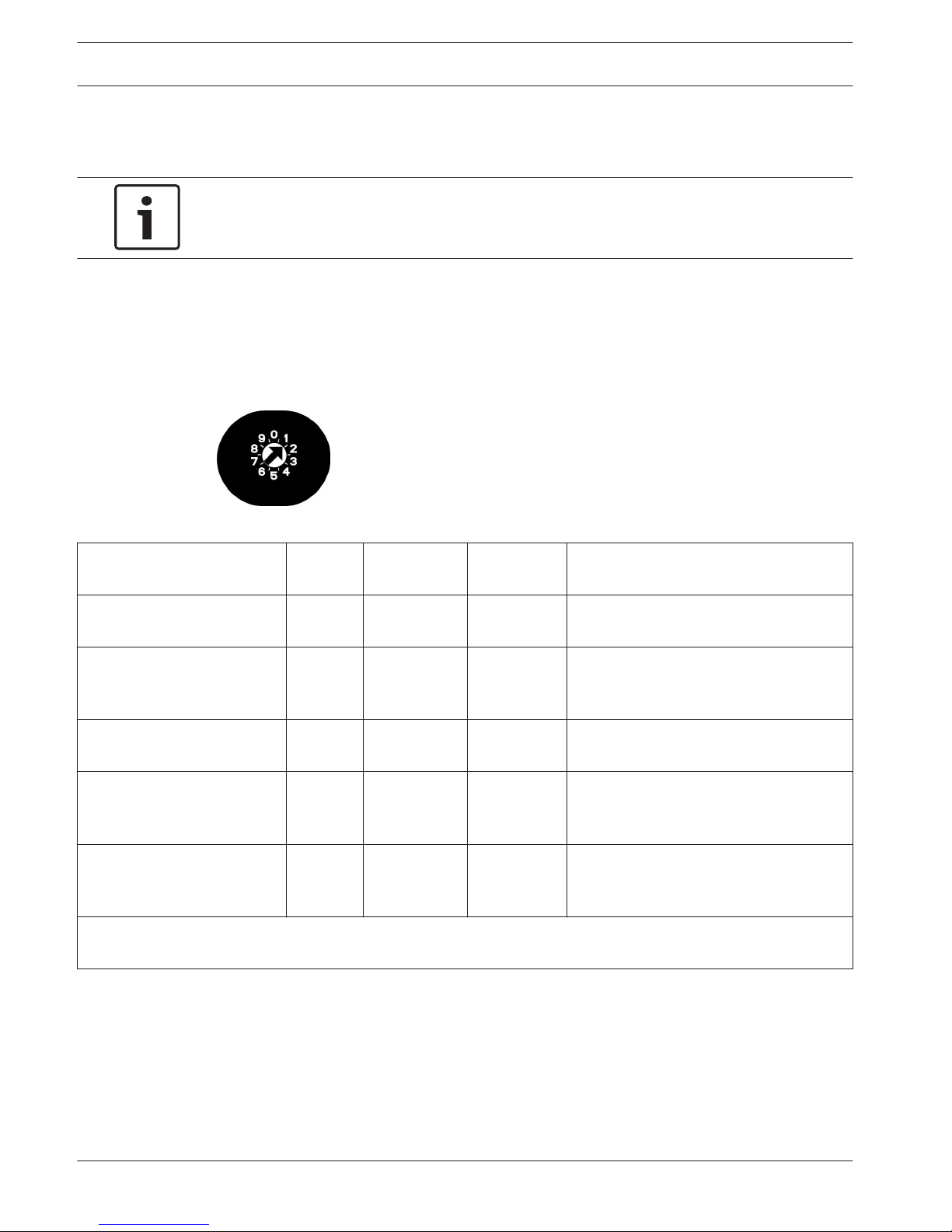

Figure 4.1: Address switch set to address 1
Control panels Switch
position
Control panel
bus address
Bus type Function
USB or SMS configuration
setting
0 N/A Any Change configuration
B5512/B4512/
B3512,D9412GV4/
D7412GV4/D7212GV4
1 1 SDI2 Automation, RPS, or Reporting
D9412GV4/D7412GV4/
D7212GV4
2 2 SDI2 Automation, RPS, or Reporting
D9412GV4/D7412GV4/
D7212GV4, D9412GV3/
D7412GV3/D7212GV3
4 88 SDI1RPS or Reporting
D9412GV4/D7412GV4/
D7212GV4, D9412GV3/
D7412GV3/D7212GV3
5 92 SDI1RPS or Reporting
1For D9412GV4/D7412GV4/D7212GV4 configurations, SDI2 bus connection is the recommended configuration
option, but SDI bus configuration is also supported.
Table 4.1: B450 address switch settings
Insert the B44x communication module (required and available
separately)
Insert the desired B44x communication module into the slot of the B450 until you feel the
module “click” into place.
4
4.1
4.2
10 en | Installation Conettix Plug-in Communicator
Interface
2013.09 | 02 | F.01U.282.875 Installation and Operation Guide Bosch Security Systems, Inc.
