English

Safety Notes

General Power Tool Safety Warnings

Read all safety warnings and all instructions. Fail-

ure to followthe warnings and instructions may result

in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated

(corded) power tool or battery-operated (cordless) power tool.

Work area safety

fKeep work area clean and well lit. Cluttered or dark areas invite acci-

dents.

fDo not operate power tools in explosive atmospheres, such as in

the presence of flammable liquids, gases or dust. Power tools cre-

ate sparks which may ignite the dust or fumes.

WARNING

OBJ_BUCH-1433-002.book Page 18 Friday, March 16, 2012 9:10 AM

English | 19

Bosch Power Tools 1 619 929 L03 | (16.3.12)

fKeep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

Electrical safety

fPower tool plugs must match the outlet. Never modify the plug in

any way. Do not use any adapter plugs with earthed (grounded)

power tools.Unmodified plugsandmatchingoutletswillreduceriskof

electric shock.

fAvoid body contact with earthed or grounded surfaces, such as

pipes,radiators,rangesandrefrigerators.Thereisanincreasedrisk

of electric shock if your body is earthed or grounded.

fDonot expose powertools torain or wet conditions.Water entering

a power tool will increase the risk of electric shock.

fDo not abuse the cord. Never use the cord for carrying, pulling or

unplugging the power tool. Keep cord away from heat, oil, sharp

edges and moving parts. Damaged or entangled cords increase the

risk of electric shock.

fWhen operating a power tool outdoors, use an extension cord suit-

able for outdoor use. Use of a cord suitable for outdoor use reduces

the risk of electric shock.

fIf operating a power tool in a damp location is unavoidable, use a

residual current device (RCD) protected supply. Use of an RCD re-

duces the risk of electric shock.

Personal safety

fStay alert, watch what you are doing and use common sense when

operating a power tool. Do not use a power tool while you aretired

orundertheinfluenceofdrugs,alcoholormedication.Amomentof

inattention while operating power tools may result in serious personal

injury.

fUse personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard

hat, or hearing protection used for appropriate conditions will reduce

personal injuries.

fPrevent unintentional starting. Ensure the switch is in the off-po-

sition before connecting to power source and/or battery pack,

picking up or carrying the tool. Carrying power tools with your finger

OBJ_BUCH-1433-002.book Page 19 Friday, March 16, 2012 9:10 AM

1 619 929 L03 | (16.3.12) Bosch Power Tools

20 | English

on the switch or energising power tools thathave the switch on invites

accidents.

fRemoveanyadjustingkey or wrench beforeturningthepowertool

on. A wrench or a key left attached to a rotating part of the power tool

may result in personal injury.

fDo not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

fDress properly. Do not wear loose clothing or jewellery. Keep your

hair, clothing and gloves away from moving parts. Loose clothes,

jewellery or long hair can be caught in moving parts.

fIf devices are provided for the connection of dust extraction and

collection facilities, ensure these are connected and properly

used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

fDonotforcethe power tool.Usethecorrectpowertool for your ap-

plication. The correct power tool will do the job better and safer at the

rate for which it was designed.

fDo not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous

and must be repaired.

fDisconnect the plug from the power source and/or the battery

pack from the power tool before making any adjustments, chang-

ing accessories, or storing power tools. Such preventive safety

measures reduce the risk of starting the power tool accidentally.

fStore idle power tools out of the reach of children and do not allow

persons unfamiliar with the power tool or these instructions to op-

erate the power tool. Power tools are dangerous in the hands of un-

trained users.

fMaintain power tools. Check for misalignment or binding of mov-

ing parts, breakage of parts and any other condition that may af-

fect the power tool’s operation. If damaged, have the power tool

repaired before use. Many accidents are caused by poorly main-

tained power tools.

fKeep cutting tools sharp and clean. Properly maintained cutting

tools with sharp cutting edges are less likely to bind and are easier to

control.

OBJ_BUCH-1433-002.book Page 20 Friday, March 16, 2012 9:10 AM

English | 21

Bosch Power Tools 1 619 929 L03 | (16.3.12)

fUse the power tool, accessories and tool bits etc. in accordance

with these instructions, taking into account the working condi-

tions and the work to be performed. Use of the power tool for opera-

tions different from those intended could result in a hazardous situa-

tion.

Battery tool use and care

fRecharge only with the charger specified by the manufacturer. A

charger that is suitable for one type of battery pack may create a risk of

fire when used with another battery pack.

fUse power tools only with specifically designated battery packs.

Use of any other battery packs may create a risk of injury and fire.

fWhen battery pack is not in use, keep it away from other metal ob-

jects,likepaperclips,coins, keys,nails,screws or othersmallmet-

al objects, that can make a connection from one terminal to anoth-

er. Shorting the battery terminals together may cause burns or a fire.

fUnder abusive conditions, liquid may be ejected from the battery;

avoid contact. If contact accidentally occurs, flush with water. If

liquid contacts eyes, additionallyseek medical help. Liquid ejected

from the battery may cause irritation or burns.

Service

fHave your power tool serviced by a qualified repair person using

only identical replacement parts. This will ensure that the safety of

the power tool is maintained.

Safety Warnings for Cordless Tackers

fAlways assume that the tool contains fasteners. Careless handling

of the tacker can result in unexpected firing of fasteners and personal

injury.

fDo not pointthe tool towards yourselfor anyonenearby. Unexpect-

ed triggering will discharge the fastener causing an injury.

fDo not actuate the tool unless the tool is placed firmly against the

workpiece.Ifthetoolisnotincontactwiththeworkpiece,thefastener

may be deflected away from your target.

fDisconnectthetoolfromthe power sourcewhenthefastener jams

in the tool. While removing a jammed fastener, the tacker may be ac-

cidentally activated if it is plugged in.

OBJ_BUCH-1433-002.book Page 21 Friday, March 16, 2012 9:10 AM

1 619 929 L03 | (16.3.12) Bosch Power Tools

22 | English

fUse caution while removing a jammed fastener. The mechanism

may be under compression and the fastener may be forcefully dis-

charged while attempting to free a jammed condition.

fDo not use this tacker for fastening electrical cables. It is not de-

signed for electric cable installation and may damage the insulation of

electric cables thereby causing electric shock or fire hazards.

fUse appropriate detectors to determine if utility lines are hidden

in the work area or call the local utility company for assistance.

Contactwithelectriclinescanleadtofire andelectricshock.Damaging

a gas line can lead to explosion. Penetrating a water line causes prop-

erty damage.

fSecure the workpiece. A workpiece clamped with clamping devices

or in a vice is held more secure than by hand.

Protect the power tool against heat, e. g., against continuous

intense sunlight, fire, water, and moisture. Danger of explo-

sion.

fIncaseofdamageandimproperuseofthebattery,vapoursmaybe

emitted. Provide for fresh air and seek medical help in case of

complaints. The vapours can irritate the respiratory system.

Safety Warnings for Battery Chargers

Keep the battery charger away from rain ormoisture. Penetra-

tionofwaterinthebattery charger increasesthe riskof an electric

shock.

fOnly charge Bosch lithium ion batteries or batteries installed in

Bosch products with the voltages listed in the technical data. Oth-

erwise there is danger of fire and explosion.

fKeep the battery charger clean. Contamination can lead to dangerof

an electric shock.

fBefore each use,check the battery charger,cableand plug.Ifdam-

age is detected, do not use the battery charger. Never open the

battery charger yourself. Have repairs performed only by a quali-

fied technician and only using original spare parts. Damaged bat-

tery chargers, cables and plugs increase the risk of an electric shock.

fSupervise children. This will ensure that children do not play with the

charger.

OBJ_BUCH-1433-002.book Page 22 Friday, March 16, 2012 9:10 AM

English | 23

Bosch Power Tools 1 619 929 L03 | (16.3.12)

fChildrenorpersonsthatowingto theirphysical,sensoryormental

limitations or to their lack of experience or knowledge, are not ca-

pable of securely operating the charger, may only use this charger

undersupervisionorafterhavingbeeninstructedbyaresponsible

person. Otherwise, there is danger of operating errors and injuries.

Products sold in GB only: Your product is fitted with a BS 1363/A ap-

proved electric plug with internal fuse (ASTA approved to BS 1362).

Ifthe plug is not suitableforyoursocketoutlets,it should be cut off and an

appropriate plug fitted in its place by an authorised customer service

agent. The replacement plug should have the same fuse rating as the orig-

inal plug.

The severed plug must be disposed of to avoid a possible shock hazard

and should never be inserted into a mains socket elsewhere.

Product Description and Specifications

Read all safety warnings and all instruc-

tions. Failure to follow the warnings and

instructions may result in electric shock,

fire and/or serious injury.

Intended Use

The power tool is intended for tacking fabrics, leather, card board, foils,

insulation material and other materials to soft structuralsurfaces, such as

wood or wood-like materials. The power tool is not suitable for fastening

wall or ceiling panelling.

Product Features

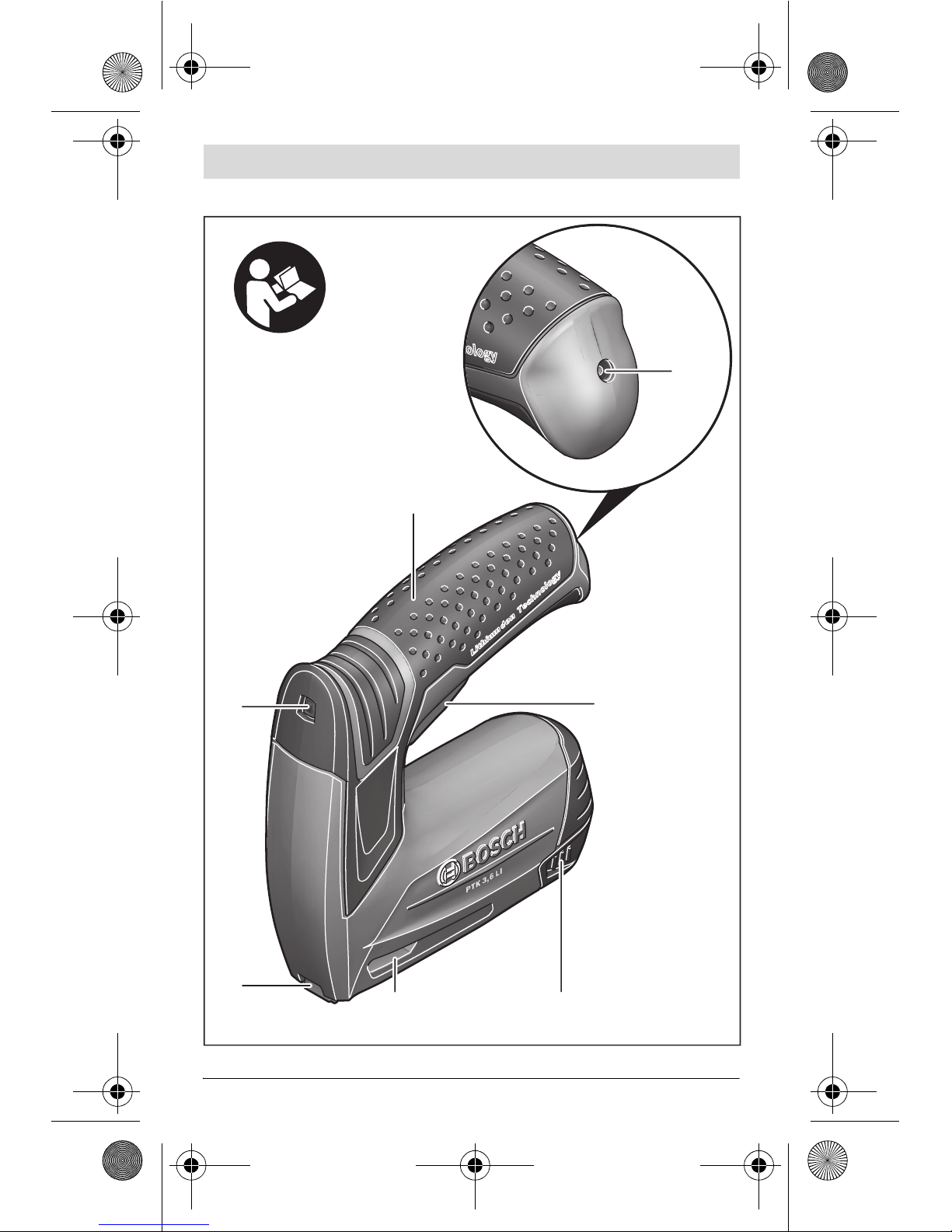

The numbering of the product features refers to the illustration of the ma-

chine on the graphics page.

1Tacker head

2Battery charge-control indicator

3Handle

4Socket for charge connector

5Trigger

6Magazine release button

7Refill indicator

OBJ_BUCH-1433-002.book Page 23 Friday, March 16, 2012 9:10 AM

Otros manuales para PTK 3

Tabla de contenidos

Otros manuales de Herramientas eléctricas de Bosch

Bosch

Bosch GST 120 E professional Manual de usuario

Bosch

Bosch 1617 Instrucciones de montaje

Bosch

Bosch GDS 18 E Professional Manual de usuario

Bosch

Bosch Professional GHG 20-63 Manual de usuario

Bosch

Bosch Professional GST 18 V-LI S Manual de usuario

Bosch

Bosch FWA 43 Series Especificaciones técnicas

Bosch

Bosch Professional GSC 12V-13 Manual de usuario

Bosch

Bosch GBS 100 A Manual de usuario

Bosch

Bosch pst 900 PEL Manual de usuario

Bosch

Bosch GNA 2,0 Professional Manual de usuario

Bosch

Bosch JS260 Instrucciones de montaje

Bosch

Bosch GDR 10,8-LI Professional Manual de usuario

Bosch

Bosch 1500C Instrucciones de montaje

Bosch

Bosch GRB 14 CE Professional Manual de usuario

Bosch

Bosch pst 800 PEL Manual de usuario

Bosch

Bosch GSR 14 Manual de usuario

Bosch

Bosch 1506 - Unishears - Net Weight: 6 Lbs Manual de usuario

Bosch

Bosch GSC 2,8 Professional Manual de usuario

Bosch

Bosch PSB 12 VE-2 Manual de usuario

Bosch

Bosch GBM 13 RE Manual de usuario

Bosch

Bosch GIS 1000 C Professional Manual de usuario

Bosch

Bosch GDB 1600 WE Manual de usuario

Bosch

Bosch pst 700 PE Manual de usuario

Bosch

Bosch EasyHeat 500 Manual de usuario

Manuales populares de Herramientas eléctricas de otras marcas

AEG

AEG OMNI-JS Manual de usuario

SIP

SIP 01533 Manual de usuario

Ribimex

Ribimex PRS499 Manual de usuario

3M Fiber Optic Connector Crimp Tool Manual de usuario

Ryobi

Ryobi P524 Manual de usuario

ROJEK

ROJEK FSN 300A Manual de usuario

Kemper

Kemper 1740PRO Manual de usuario

WABCO

WABCO OptiTire Manual de usuario

EINHELL

EINHELL TE-MS 18/210 Li Manual de usuario

Orgapack

Orgapack OR-T 85 Guía rápida

TOUGHCUT

TOUGHCUT Diamond 400 Manual de usuario

Yaros

Yaros PB-3603 Manual de usuario

Fein

Fein BSS 2.0 E Guía de configuración

Baileigh Industrial

Baileigh Industrial SS-2725 Manual de usuario

Milwaukee

Milwaukee 2674-20 Manual de usuario

Fein

Fein BLs 1.6 Manual de usuario

Princess

Princess Electric Multi Sharpener Manual de usuario

FOREDOM

FOREDOM K.1050 Manual
