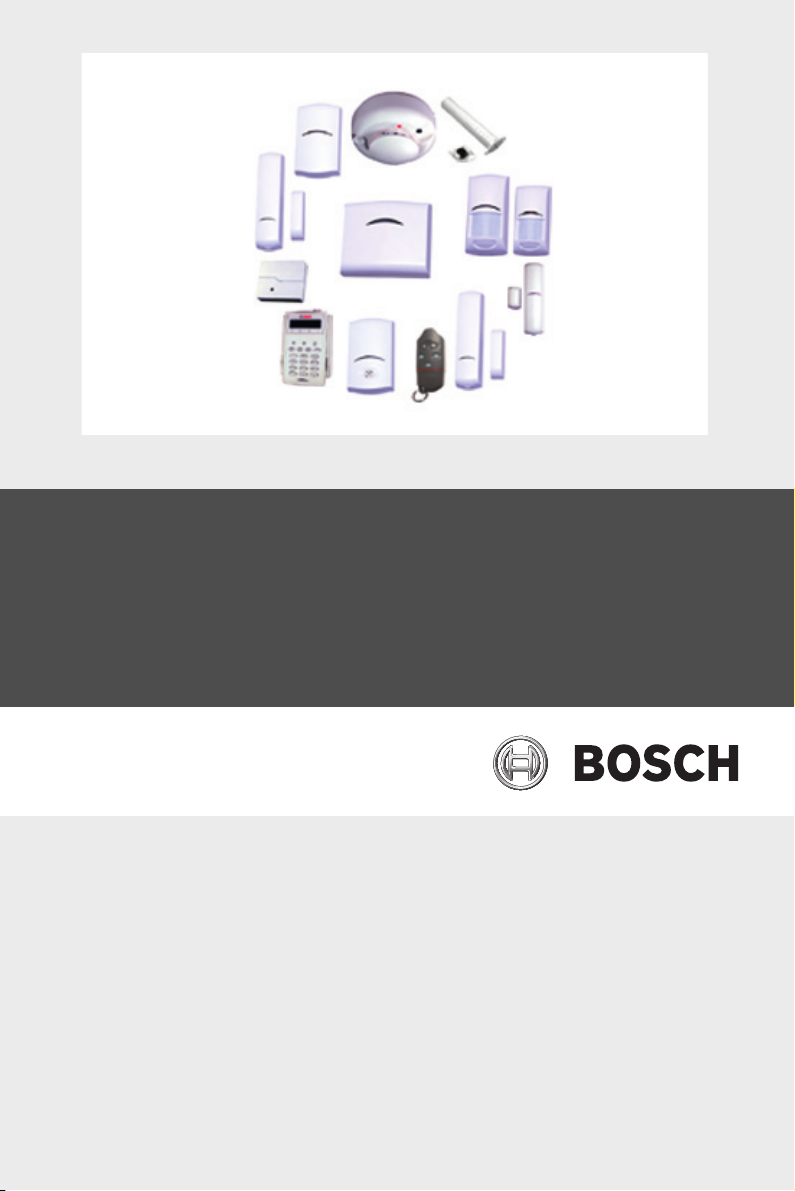

Bosch WLSN Manual de usuario

wLSN

wireless Local SecurityNetwork

en System Reference Guide

wLSN Table of Contents | en 3

Bosch Security Systems, Inc. System Reference Guide F01U138553 | 01 | 2010.05

Table of Contents

1 Using this Manual 5

2 Installation Considerations 6

3 RFSS Mode (RF Signal Strength) 8

3.1 Prepare the wLSN Diversity Hub for RFSS Testing 9

3.2 RFSS Test using the wLSN Diversity Hub and wLSN Installation

Tool10

4 Discovering and Defaulting a wLSN Device 12

4.1 Discovering a wLSN Device 12

4.2 Defaulting a wLSN Device 13

5 wLSN Devices 17

5.1 wLSN Installation Tool 17

5.2 wLSN Diversity Hub 19

5.3 wLSN PIR and Dual Motion Detectors 22

5.3.1 Sensitivity Settings 22

5.3.2 Walk Test 24

5.4 wLSN Door-Window Contact 26

5.5 wLSN Recessed Door-Window Contact 29

5.6 wLSN Mini Door-Window Contact 30

5.7 wLSN Inertia Detector 31

5.7.1 Sensitivity Settings 32

5.7.2 Test Mode 33

5.8 wLSN Relay Module 34

5.9 wLSN Sirens 35

5.9.1 wLSN Indoor Sirens 35

5.9.2 wLSN Outdoor Siren 37

5.10 wLSN Water Sensor/Low Temperature Sensor 39

5.10.1 Installation Considerations 39

5.10.2 Testing and Enabling the Sensor 40

4en | Table of Contents wLSN

F01U138553 | 01 | 2010.05 System Reference Guide Bosch Security Systems, Inc.

5.11 wLSN Key Fob 42

5.12 wLSN Smoke Detector 44

5.13 wLSN Glass Break Detector 49

5.13.1 Installation Considerations 51

5.13.2 Sensitivity Settings 51

5.13.3 Testing 53

5.13.4 Low Battery Indication 55

5.13.5 Entering RFSS Mode 55

6 Trademarks, Icons, and Symbols 56

6.1 Trademarks 56

6.2 Icons and Symbols 56

wLSN Using this Manual | en 5

Bosch Security Systems, Inc. System Reference Guide F01U138553 | 01 | 2010.05

1 Using this Manual

This document contains the basic information that a trained

installer needs to install the wireless Local SecurityNetwork

(wLSN). It supplements the documents listed in Table 1.1,

Page 5.

This manual contains:

– A description of the wLSN general installation procedure

(Section 2 Installation Considerations, page 6)

– Device-specific installation procedures

(Section 5.1 wLSN Installation Tool, page 17 through

Section 5.13 wLSN Glass Break Detector, page 49)

– A description of the icons used in the wLSN

documentation (Section 6.2 Icons and Symbols, page 56).

Use this manual together with the control panel’s

documentation and each device’s installation instructions to

complete the installation process.

Table 1.1 wLSN Products and Instructions

Product wLSN Device Manual Part Number

ISW-BIT1-HAX, HBX, HCX Installation Tool F01U008748

ISW-BHB1-WX Hub F01U500915

ISW-BPR1-W13PX PIR Motion Detector F01U500908

ISW-BDL1-W11PGX, PHX,

PKX

Dual Motion Detector F01U500901

ISW-BMC1-R135X Recessed Door-Window Contact F01U011878

ISW-BMC1-S135X Door-Window Contact F01U500909

ISW-BMC1-M82X Mini Door-Window Contact F01U011876

ISW-BIN1-S135X Inertia Detector F01U011980

ISW-BKF1-H5X Key Fob F01U001565

ISW-BRL1-WX Relay Module F01U009264

ISW-BSR1-WX Siren F01U009265

ISW-BSM1-SX Smoke Detector F01U012075

ISW-BGB1-SAX Glassbreak F01U027173

ISW-BSR1-WIX Indoor Siren F01U132671

ISW-BSR1-WOX Outdoor Siren F01U132670

ISW-BWL1-SX Water Sensor/Low Temperature

Sensor

F01U075110

6en | Installation Considerations wLSN

F01U138553 | 01 | 2010.05 System Reference Guide Bosch Security Systems, Inc.

2 Installation Considerations

– With the exception of the ISW-BSR1-WOX Outdoor Siren,

wLSN devices are intended only for indoor, dry

applications.

– Avoid mounting wLSN devices in areas with large metallic

objects, electrical panels (for example: control panel or

fuse box) or electric motors. They might reduce the radio-

frequency (RF) range of a wLSN device.

– Avoid installing the devices where excessive humidity or

moisture, or temperatures outside of the acceptable

operating range exist.

– When installing a wLSN Network, plan your installation

based on the control panel and wLSN specifications, and

the radio frequency signal strength (RFSS) between

remote devices and the wLSN Diversity Hub.

Table 2.1 wLSN General Specifications

NOTICE!

Refer to the control panel’s documentation for detailed

instructions on wLSN programming and device setup.

Humidity Range 0% to 95%

Frequency Band 868 to 869 MHz European Security Band

wLSN Installation Considerations | en 7

Bosch Security Systems, Inc. System Reference Guide F01U138553 | 01 | 2010.05

Note for Customers in the European Union

As a manufacturer of batteries or devices containing batteries,

we are obliged to inform you of the following in accordance

with the Battery Ordinance:

– Batteries must not be disposed of in household waste.

– As a consumer, you are legally obliged to take batteries to

a suitable collection point.

– You can return used batteries free of charge to the point of

sales or to a communal collection point.

– Batteries can contain substances that are hazardous to the

environment or health.

– Only dispose of discharged batteries in the container

provided and, in the case of lithium batteries, mask the

poles.

Batteries are identified with a crossed out trash can symbol.

If the batteries contain specific harmful substances, the

chemical symbols are also indicated:

–Cd-Cadmium

–Pb-Lead

– Hg - Mercury

8en | RFSS Mode (RF Signal Strength) wLSN

F01U138553 | 01 | 2010.05 System Reference Guide Bosch Security Systems, Inc.

3 RFSS Mode (RF Signal Strength)

Perform a radio frequency signal strength (RFSS) test to

determine the best installation locations for the wLSN Diversity

Hub and each wLSN device.

To perform the RFSS test:

1. Prepare the wLSN Diversity Hub for RFSS testing.

Refer to Section 3.1 Page 9.

2. Conduct an RFSS test using the wLSN Diversity Hub and

Installation Tool. Refer to Section 3.2 Page 10.

CAUTION!

When testing for RF signal strength, the wLSN Diversity Hub

and the control panel must be set to the same EN50131

Security Grade.

CAUTION!

If you have wLSN devices that you will not immediately install,

reinsert the battery tabs or remove the batteries to prevent

battery depletion.

NOTICE!

Do not permanently install the wLSN Diversity Hub or any wLSN

devices until you receive acceptable, or better, signal strength

readings between the wLSN Diversity Hub and all wLSN device

locations.

If you receive unacceptable or marginal readings at several

wLSN device locations, move the wLSN Diversity Hub to a

different location and re-test for RFSS until you receive at least

acceptable readings at all wLSN device locations.

wLSN RFSS Mode (RF Signal Strength) | en 9

Bosch Security Systems, Inc. System Reference Guide F01U138553 | 01 | 2010.05

3.1 Prepare the wLSN Diversity Hub for RFSS

Testing

1. Unlock the locking mechanisms on the bottom of the hub.

Refer to Figure 3.1.

2. To remove the hub from the base, push gently down on the

hub and slide it off the base. Refer to Figure 3.1.

Figure 3.1 Removing the wLSN Diversity Hub from the Base

3. Set the S1 rotary switch to the appropriate position

according to the RF power level or EN50131 security grade

you wish to use. Refer to Table 3.1 for RFSS Mode switch

settings. Refer to Figure 5.2, Page 20 for the location of the

rotary switches.

Table 3.1 S1 Switch RFSS Mode Settings

Refer to the individual device’s specification for the EN50131

classification.

4. Find a suitable location for the hub base and apply power

by connecting it to the control panel (refer to the control

panel’s installation instructions), or by temporarily

connecting a 9 VDC to 12 VDC battery.

5. Insert the wLSN Diversity Hub onto the base.

The wLSN Diversity Hub is now ready for RFSS testing.

Callout Description

1 Unlock hub

2 Slide hub off of base

Switch Position Operation

4 RFSS Mode, Antenna 1, full power

5 RFSS Mode, Antenna 1, Grade 2 (6 dB attenuation)

6 RFSS Mode, Antenna 2, full power

7 RFSS Mode, Antenna 2, Grade 2 (6 dB attenuation)

1 2

10 en | RFSS Mode (RF Signal Strength) wLSN

F01U138553 | 01 | 2010.05 System Reference Guide Bosch Security Systems, Inc.

3.2 RFSS Test using the wLSN Diversity Hub

and wLSN Installation Tool

1. Go to the installation location for the first wLSN device.

2. Press any key on the wLSN Installation Tool to turn it on.

The screen shows the start-up display.

3. Press and hold the [*] and [#] keys to enter RFSS Mode.

Select Mode 3 to test RFSS.

4. Press [3] to select Mode 3.

Mode 3 determines the signal strength based on the signal-

to-noise ratio (SNR).

SNR is measured in decibels (dB):

–Unacceptable: <30 dB

–Acceptable: 35 dB

–Good: 40 dB

–Very Good: 45 dB

–Excellent: 50 dB

5. Hold the wLSN Installation Tool at the installation location

for at least 10 sec.

CAUTION!

When testing for RF signal strength, the wLSN Diversity Hub

and the control panel must be set to the same EN50131

Security Grade.

NOTICE!

When testing RFSS for the wLSN smoke detector, you must use

the wLSN Installation Tool. The wLSN smoke detector cannot

measure RFSS.
