Bosch PHANTOM EDGE Manual de usuario

PHANTOM

EDGE

Discover the World of AIoT

Installation Manual

Table of Contents

List of components

Phantom Edge overview

Installation steps

Technical specification

Safety instructions for installation

Uninstallation and End-of-Life disposal instructions

Regulatory Information 22

Content Pg No.Sl No.

List of components

Sl No. Item Quantity

1Phantom Edge Sensor Device 1

2LTE Antennas 2

3Wi-Fi Antenna 1

4Current Transformer (CT) with Connector set of 3

5CT Cable Extender (Optional) 1

6Voltage Connection Cable with Connector 1

7Cable Ties 4

8Mounting Screws 4

9Contact and Warranty Card 1

11 Double Sided Tape 1

10 Drill Paper Guide 1

12 Wall Plugs 4

3 4

911 12

PHANTOM

EDGE

Discover the World of AIoT

Phantom EDGE View

2.1 Front View

EthernetLED

Indicator

Voltage

Input

CT Input RS 232

CT INPUTVOLTAGE INPUT

Differential

Pressure Element

LTE

Antenna 1

Micro

Sim Slot

2.2 Right View

LTE 1

LTE

Antenna 2

Wi-Fi

Antenna

2.4 Back View

LTE 2 Wi-Fi

2.3 Left View

Technical Specifications &

Manufacturer Details Label

Hardware ID

Installation Steps

3.1 SIM Card Insertion(Optional)

Gently pull the flap on its right side to reveal the Micro SIM card slot

Insert Micro SIM into Phantom Edge as per the marking sticker

LTE 1

If Wi-Fi connection is not available, use SIM card for it

Close the Micro SIM cap and fasten it firmly without any bulge

LTE 1

Option A: Mount Phantom Edge in a horizontal direction using sticker

Mount Phantom Edge in a horizontal

direction by using adhesive surface

of the stickers. Ensure mounting

surface is cleaned using Iso-Propyl

alcohol before sticking the device.

PHANTOM

EDGE

Discover the World of AIoT

Connection

3.2 Mounting

Peel off the other liner of double

sided tape from the backside of

Phantom Edge

Clean the backside of the device

using Iso-Propyl alcohol, peel off the

liner from one side of double sided

tape and stick it to the backside of

Phantom Edge as shown above.

Ensure there are no air bubbles while

sticking.

Identify a flat painted wall or metallic surface to mount Phantom Edge. Ensure

that Phantom Edge is mounted within 1 meter of radius from the point of CT

installation. Phantom Edge can be mounted in the following options:

Use the Drill Paper Guide and mark

the four locations to drill on the

target wall

Drill holes of sufficient depth to

accommodate wall plugs provided in

the installation kit

Option B: Mount Phantom Edge on a vertical surface using screws

Insert four wall plugs into the drill

holes with the help of hammer

Mount the Phantom Edge on the wall

using the four screws provided in the

kit

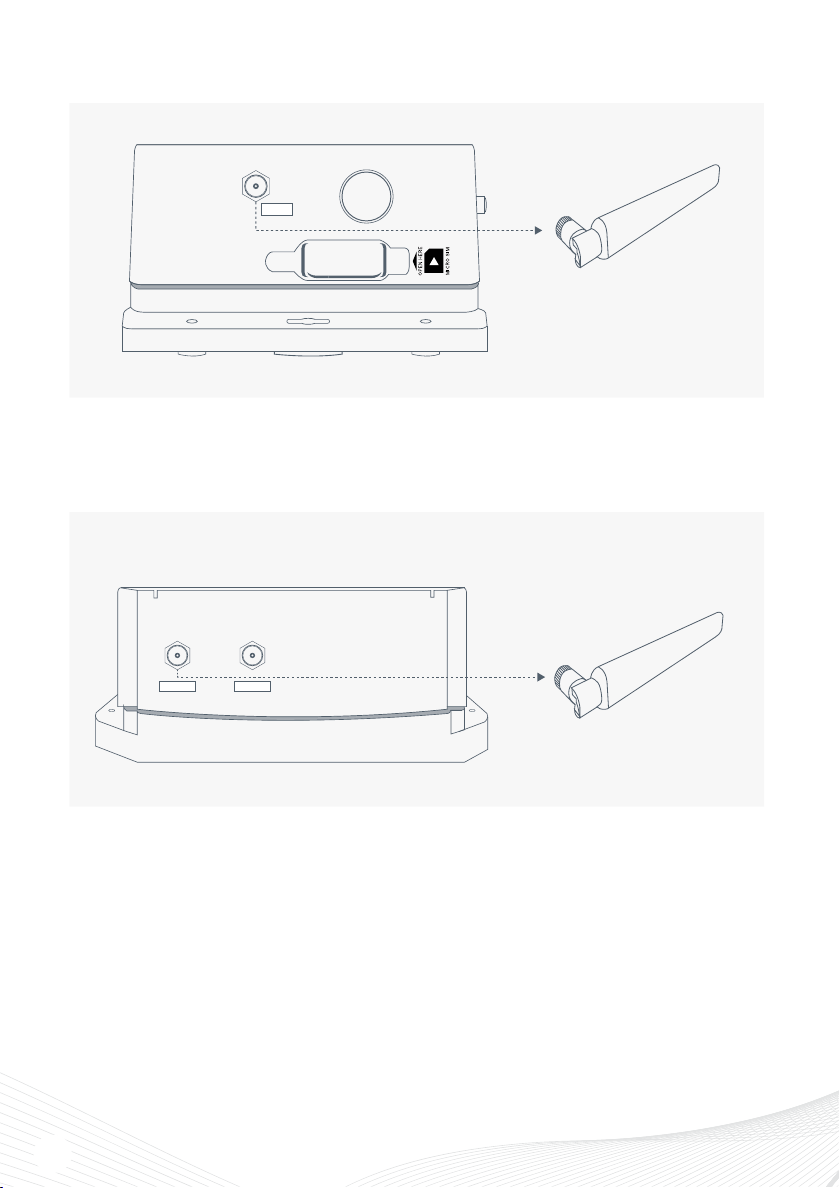

3.3 Antenna Connection

Insert LTE antenna 1 into LTE antenna 1 port and rotate the antenna nut in a

clockwise direction until it is firm. Ensure not to overtighten.

LTE 1

Insert LTE antenna 2 into LTE antenna 2 port and rotate the antenna nut in a

clockwise direction until it is firm. Ensure not to overtighten.

LTE 2 Wi-Fi

LTE 2

Wi-Fi
