6en | Safety Instructions Conventional fire panel

2020.02 | 9.0 | F.01U.172.980 Bosch Sicherheitssysteme GmbH

1 Safety Instructions

Danger!

The fire panel may only be operated with the housing closed

because of the danger of an electric shock.

Danger!

Connect the panel to a mains supply line protected by a double

pole fuse with a double pole manual circuit breaker. Only

perform installation work when the mains supply line has been

interrupted by the circuit breaker.

Caution!

Installation may only be performed by authorized qualified

personnel in order to ensure that the system is not damaged

and operates properly.

Notice!

Note local regulations when connecting to 230V power

supplies.

Notice!

Please observe the country-specific regulations and guidelines

during planning, installation and programming of the fire panel.

Notice!

In line with EN 54-13 (BOSEC certificate TCC 2 - 977), each

conventional line must be terminated with EOL modules for the

operation of fire detection systems.

The AUX power supply must also be terminated with EOL

modules when using four-wire detectors.

Conventional fire panel System Overview | en 7

Bosch Sicherheitssysteme GmbH 2020.02 | 9.0 | F.01U.172.980

Notice!

The fire panel has been designed for operation in closed rooms.

Please note the permissible environmental conditions in the

technical specifications.

2 System Overview

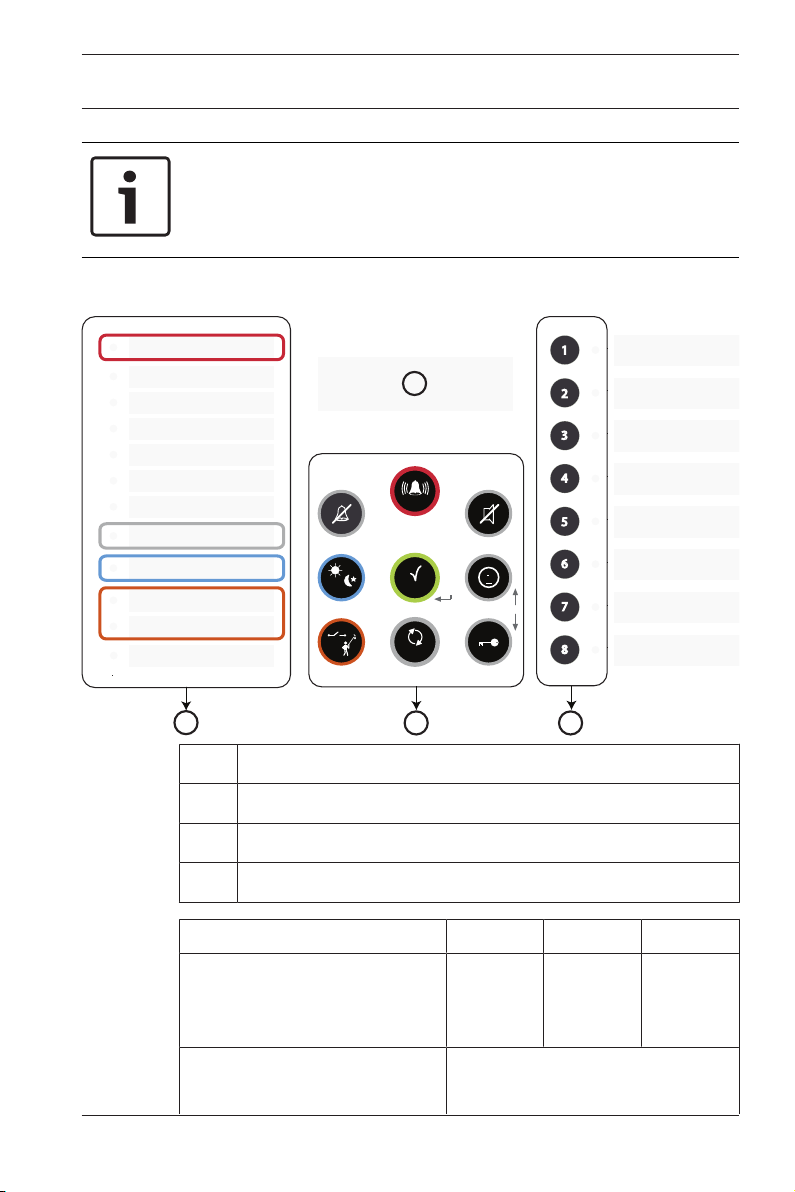

ESC

8765432

A CK

RESET

EVAC

Pre-Alarm

Fault

System Fault

Earth Fault

Power Fault

NAC Fault / Disabled

Notiﬁcation Appliance Silent

Day Mode

Test

Disable

Power

ALARM

4 3

1 LED display

2 LCD display with zone numbers

3 Zone keys and zone status LEDs

4 Operating panel

FPC-500-2 FPC-500-4 FPC-500-8

Inputs

– Zones

– Prog. inputs

Outputs

– Prog. AUX (500mA) 1

8en | System Overview Conventional fire panel

2020.02 | 9.0 | F.01U.172.980 Bosch Sicherheitssysteme GmbH

FPC-500-2 FPC-500-4 FPC-500-8

– Alarm device, 500mA

each

– Relay

Extensions

– Open collector (20mA)

– Relay (via OC)

no 1 x 4 2 x 4

LCD, 2 x 16 characters Yes

230

VAC

AUX

24 V DC

OC (0, 4, 8)

Z8 ALARM RLY

FAULT RLY

IN1

IN2

Conventional detectors

Conventional manual call point

Visual or audible notification appliances

Conventional fire panel System Overview | en 9

Bosch Sicherheitssysteme GmbH 2020.02 | 9.0 | F.01U.172.980

Z1 ... Z8

Conventional zones 1 to 8

(max. 2 on FPC-500-2, max. 4 on FPC-500-4)

Inputs (max. 1 on FPC‑500‑2 and FPC‑500‑4,

max. 2 on FPC‑500‑8)

ALARM RLY

Alarm relay

FAULT RLY

Fault relay

Transistor output for extension cards

(0 on FPC‑500‑2, 4 on FPC‑500‑4, 8 on

FPC‑500‑8)

AUX 24 VDC AUX power supply

Features

– Alarm verification: The user is prompted to verify the alarm.

– Intermediate alarm storage: an alarm triggered by an

automatic detector is reset automatically after 20 seconds

(adjustable) by the panel. If there is an additional alarm

within 10 minutes in this zone, the notification appliances

are enabled. Otherwise the pre-alarm is reset automatically.

– Dual-zone dependency on neighboring zones.

– Dual-detector dependency for detectors in a zone.

– Alarm counter for 999 alarms.

– Event memory for 1000 entries.

– Three operating levels, two of them protected with freely

selected code.

– Up to 8 monitored detector zones depending on panel

version.

– Up to 2 monitored inputs available depending on panel

version.

– One alarm and one fault relay.

– Up to 8 additional transistor or relay outputs, freely

programmable, depending on panel version.

10 en | System Overview Conventional fire panel

2020.02 | 9.0 | F.01U.172.980 Bosch Sicherheitssysteme GmbH

– Quick and easy programming using the keypad and LCD

display.

– Easy operation for the end user.

– Two monitored notification appliance outputs.

– EN 54-13 (BOSEC certificate TCC 2 - 977) compliant system

by using EOL modules.

– Power supply via power supply unit with thermal fuse.

– Emergency power supply using batteries, up to 7.2Ah,

reverse polarity protected.

– Removable quick guide for the user on the panel.
