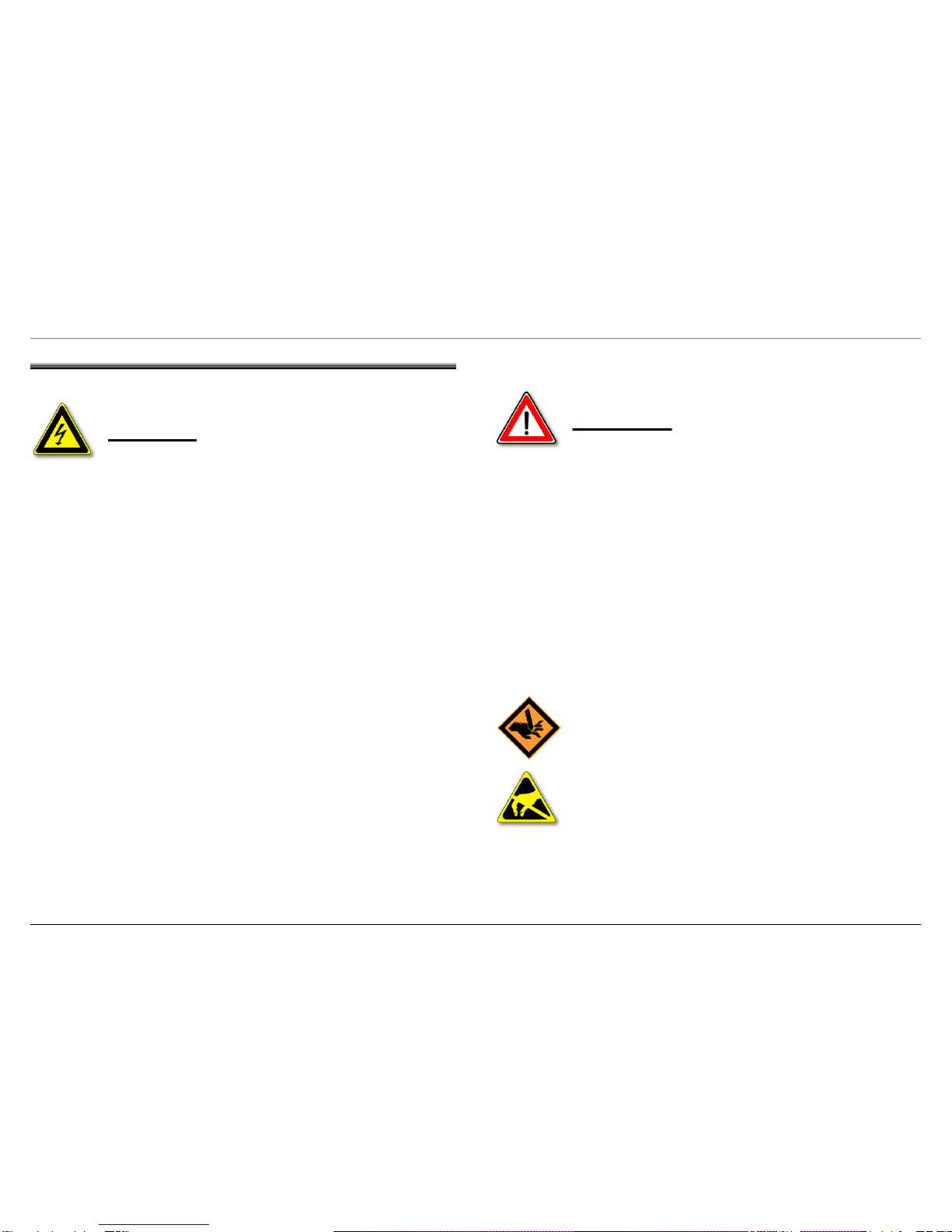

1 SAFETY

DANGER

Repairs may be carried out by a qualified electrician only!

The user may be put at risk and injured by improper repairs!

To prevent electric shocks, always comply with the following

instructions:

►If the appliance is faulty, the housing or frame may be live!

►Electric shock may occur if live components are touched

inside the appliance!

►Before commencing repairs, disconnect the appliance from

the power supply!

►If tests have to be performed while the appliance is live,

always use a residual-current-operated circuit-breaker!

►The protective conductor resistance must never exceed the

values specified in the standard! The protective conductor is

crucial for personal safety and appliance function.

►When repairs are complete, conduct a test in accordance with

VDE 0701 or the corresponding national regulations!

►When repairs are complete, perform a function and leak test.

WARNING

Comply with the following instructions:

If conducting the test in accordance with VDE 0701 via the connector,

the heater (instantaneous water heater) must be tested directly for

insulation faults due to all-pole disconnection (relays; pressure switch)

or the differential current must be measured on the appliance!

If replacing the dispensing device and the pump sump, beware of

sharp edges in the area of the stainless-steel modules.

Before commencing repairs, always disconnect the appliance from the

power supply! If tests have to be performed while the appliance is live,

always use a residual-current-operated circuit-breaker!

Sharp edges: Wear protective gloves.

Electrostatic sensitive devices!

Please observe handling regulations.

58300000002393_ara_en_a.doc – 31.07.07 Seite 3 von 60

2 INSTALLATION

2.1 Aligning the appliance

To ensure a perfect locking function and prevent leaks in the area of

the door, the appliance must be aligned precisely via the height-

adjustable feet. If the appliance is integrated, the middle rear height-

adjustable foot can be adjusted from the front.

Note: Built-under and built-in appliances.

Using the height-adjustable feet, raise the appliance until the housing

touches the worktop.

The installation instructions (drilling template) are required for

attaching the furniture front to integrated and fully integrated

appliances.

The tensile force of the door springs in integrated and fully integrated

appliances can be adjusted to the weight of the furniture door (See

Door spring point).

To prevent injury, a side cover 481271 can be fitted near the hinges of

end appliances which are built in or under or are free-standing.

2.2 Electrical connection

Connect the appliance to a correctly installed earthed socket only.

Comply with the specifications on the rating plate.

2.3 Water connection

If the appliance is connected to the drain with the standard hose

length, the max. permitted height from the floor is 90 cm. If the

drainage hose is extended, a max. height of 80 cm must not be

exceeded. The water connection (¾ inch) requires a conventional

water line with a water pressure of at least 0.5 bar (0.5 at.) (when the

tap is turned on, the water flow rate must be more than 8 l/min.). If the

water pressure is more than 10 bar (10 at.), a pressure reducing valve

must be installed.

The appliances can be connected to warm water up to 60 °C.

However, it is recommended to connect the appliance to cold water

(better drying and washing results).

Connection dimensions for all 45 cm dishwashers

a = 1.4 m

b = 1.7 m

c = 1.3 m (3.5 m with extension set)

d = 1.4 m (3.6 m with extension set)

e = 1.5 m (3.5 m with extension set)

f = 1.4 m (3.4 m with extension set)

58300000002393_ara_en_a.doc – 31.07.07 Seite 4 von 60

3 OPERATION

The electronic control consists of two modules, fitted in a housing. The

control / power module is connected to the control / display module by

a ribbon cable.

3.1 Function

3.1.1 LEDs

►

Programme selection

Low rinse aid display

Low salt display

2½ -digit display

3.1.2 Push buttons / Programme selection

Timer programming (ZVW)

The timer preselection button is used to delay the programme start by

up to a max. of 19 hours (setting between 0 h – 19 h). The button

must be pressed for at least 1 sec.

Intensive 70

The programme consists of a prerinse at 50°, wash cycle at 70°, two

intermediate rinse cycles, final rinse at 70° and a drying cycle.

auto 55 / 65

Depending on the aqua sensor decision, the programme consists of:

►

Wash cycle at 50°, one intermediate rinse cycle, final rinse at 65°

and a drying cycle.

Wash cycle at 65°, two intermediate rinse cycles, final rinse at 65°

and a drying cycle.

Prerinse, wash cycle at 55°, one intermediate rinse cycle, final

rinse at 65° and a drying cycle.

ECO 50

The programme consists of a wash cycle at 50°, one intermediate

rinse cycle, final rinse at 65° and a drying cycle. Drying may last

anything up to 45 minutes, depending on the energy label.

Gentle 40

The programme consists of a prerinse cycle, a wash cycle at 40°, one

intermediate rinse cycle, final rinse at 55° and a drying cycle.

Quick 35

The programme consists of a wash cycle at 35°, one intermediate

rinse cycle, final rinse at 55° without drying.

Prerinse

The programme consists of a cold rinse only

58300000002393_ara_en_a.doc – 31.07.07 Seite 5 von 60

3.1.3 Display

A 2½-digit 7-segment display enables programme run times, etc., over

99 min. to be displayed. The remaining running time is recalculated at

the end of the heating positions. If deviations occur on account of the

aqua sensor decisions, water supply temperature, number of utensils,

etc., the indicated remaining running time is corrected in these

positions. Therefore, at the end of the wash cycle and final rinse the

time may jump by up to 20 minutes.

3.2 Programme reset

When the appliance is switched on, simultaneously press the S2 and

the S4 buttons for 3 sec. The appliance is drained for approx. one

minute. Then close the detergent dispenser to reset the dispenser.

3.3 Special functions

3.3.1 Setting the hardness range

Hold down the S3 button and switch on the appliance. The set value is

indicated on the digital display. The set value increases by one each

time the S3 button is pressed. When “7” is reached, the display jumps

back to “0”. If the appliance is switched off, the value is saved.

Standard setting = 4

3.3.2 Setting the intensive drying

Hold down the S2 button and switch on the appliance. “0” is indicated

on the digital display. If the S2 button is pressed again, “1” is

displayed and intensive drying is switched on. If the appliance is

switched off, the value is saved. If intensive drying is activated, the

temperature is increased by 3 K in the final rinse.

°dH °fH °Clarke mmol / l Salt consumption

per rinse cycle in g

Set value

0-6 0-11 0-8 0-1.1 --- 0

7-8 12-15 9-10 1.2-1.4 4 1

9-10 16-17 11-12 1,5-1,8 7 2

11-12 18-21 13-15 1.9-2.1 9 3

13-16 22-29 16-20 2.2-2.9 14 4

17-21 30-37 21-26 3.0-3.7 18 5

22-30 38-54 27-38 3.8-5.4 27 6

31-50 55-89 39-62 5.5-8.9 54 7

58300000002393_ara_en_a.doc – 31.07.07 Seite 6 von 60

3.4 General information on control

3.4.1 Tap turned off

The appliance stops in the programme 6 minutes after the start of

programme (scan filling position). The remaining running time is

displayed unchanged. The control remains in this position until the

filling level has been reached.

3.4.2 Regeneration electronics

The electronics determine, in comparison with the water hardness set

on the appliance, the volume of water which is possible until the

softening system is exhausted.

The volume of water which has run through is calculated.

Regeneration then takes place once the maximum possible number of

rinse cycles has been reached.

The sequence characteristics of the regeneration electronics are

described under Initial start-up / Replacing the electronics.

3.4.3 Warm water detection

If the water running in for the final rinse is hotter than 45 °C, the heat

exchanger for the drying phase is not filled. In order to ensure the

temperature difference required for condensation, the temperature in

the final rinse cycle is increased to 72 °C, thereby increasing the

inherent heat of the dishes.

3.4.4 Memory electronics

The electronics module has its own memory which remembers the

programme last selected. If no new selection is made at the start of

the programme, the programme last selected will run.

3.4.5 Power failure

The electronics module has a power failure memory function which

ensures that the current rinse programme continues in the event of

a power failure or programme interruption.

3.4.6 Sensors

All outgoing signals from the door switch, the level switch, the NTC

sensor and the refill switches are recorded and evaluated by the

microprocessor at the required time.

3.4.7 Components

The components such as the valves, the detergent and rinse aid

dispensers (actuator) are actuated by triacs (see photo). The

circulation pump, drainage pump and the instantaneous water heater

are switched on by relays.

58300000002393_ara_en_a.doc – 31.07.07 Seite 7 von 60

3.4.8 Listing of triacs

If replacing a module due to a defective triac, ensure that the actuated

component is also checked.

Front:

Rear:

R5 = Filling level

R6 = Filling level

TY6 = Heat exchanger outlet valve

TY7 = Dispenser actuator

TY8 = Regeneration valve

TY9 = Filler valve

TY11 = Actuator for top basket valve / water points

58300000002393_ara_en_a.doc – 31.07.07 Seite 8 von 60

3.4.9 Initial start-up / Replacing the electronics

The following programme sequence must be taken into consideration

during the initial start-up or when replacing the electronics.

( Programme counter = 0 ! )

Programme sequence during the initial start-up without heat

exchanger

Programme sequence during the initial start-up with heat exchanger

Programme

counter

Programme

counter

Pump 15 sec.

Salt refill

indicator

Filler valve on

10 sec.

Regenerate

60 sec.

Increase loop

counter by 1

Check

counter

PZ>0

PZ=0

Salt refill

= OFF

Salt refill

= ON

PZ=>3 PZ<3

Start rinse programme

Pump 15 sec.

Salt refill

indicator

Pump + outlet

valve 70 sec.

Regenerate

60 sec.

Increase loop

counter by 1

Check

counter

Prefill heat

exchanger up to

PZ>0

Salt refill

= OFF

Salt refill

= ON

PZ=>3 PZ<3

Start rinse programme

PZ=0

58300000002393_ara_en_a.doc – 31.07.07 Seite 9 von 60

The electronic control consists of two modules, fitted in a housing. The

control / power module is connected to the control / display module by

a ribbon cable.

3.5 Function

3.5.1 LEDs

►Programme selection

►Low rinse aid display

►Low salt display

►End of programme

3.5.2 Push buttons / Programme selection

Intensive 70

The programme consists of a prerinse at 50°, wash cycle at 70°, two

intermediate rinse cycles, final rinse at 70° and a drying cycle.

Normal 65

The programme consists of a prerinse, a wash cycle at 65 °, two

intermediate rinses, final rinse at 69 ° and a drying cycle.

ECO 50

The programme consists of a wash cycle at 50°, one intermediate

rinse cycle, final rinse at 66° and a drying cycle.

Gentle 40

The programme consists of a prerinse cycle, a wash cycle at 40°, one

intermediate rinse cycle, final rinse at 55° and a drying cycle.

Quick 35

The programme consists of a wash cycle at 35°, one intermediate

rinse cycle, final rinse at 55° without drying.

Prerinse

The programme consists of a cold rinse only

3.6 Programme reset

Press the S2 and the S4 buttons for 3 seconds while the appliance is

on. Close the door; the pump continues to drain for approx. one

minute. Then close the detergent dispenser to reset the dispenser.

58300000002393_ara_en_a.doc – 31.07.07 Seite 10 von 60

Tabla de contenidos

Otros manuales de Lavavajillas de Bosch

Bosch

Bosch SMS6ECI93E Hoja de especificaciones

Bosch

Bosch SMS4HCW40G Manual de usuario

Bosch

Bosch SPS40C12GB Manual de usuario

Bosch

Bosch SGS2HKW66G Manual de usuario

Bosch

Bosch SMI69M85EU Manual de usuario

Bosch

Bosch Benchmark SHV9PCM3N Manual de usuario

Bosch

Bosch SPU4EMI28S Manual de usuario

Bosch

Bosch Ascenta SHX3AR75UC Manual de usuario

Bosch

Bosch SMV6ZCX07E Hoja de especificaciones

Bosch

Bosch SMT4ECX21E Hoja de especificaciones

Bosch

Bosch SMS4HDW52E Hoja de especificaciones

Bosch

Bosch SMS2HAW12E Hoja de especificaciones

Bosch

Bosch Ascenta Evolution SHE6AF0 Manual de usuario

Bosch

Bosch Ascenta SHX3AR76UCAscenta SHE3AR55UC Manual de usuario

Bosch

Bosch SHEM63 Series Manual de usuario

Bosch

Bosch SPI4HDS006 Hoja de especificaciones

Bosch

Bosch SMS6HCI02A Manual de usuario

Bosch

Bosch SMV69N40EU Manual de usuario

Bosch

Bosch SPI50E65EU Manual de usuario

Bosch

Bosch SHE53C85N Manual de usuario

Bosch

Bosch SMI8ZCS07E Manual de usuario

Bosch

Bosch SMV4HB800E Manual de usuario

Bosch

Bosch SHE43R52UC Manual de usuario

Bosch

Bosch SMS25AI00X Manual de usuario

Manuales populares de Lavavajillas de otras marcas

Electrolux

Electrolux ESI5211LOX Manual de usuario

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario
