Bosch SHXM88Z75N/01 Manual de usuario

en Installation Instructions

fr Notice d’installation

es Instrucciones de instalación

Customer Service:

1-800-944-2904

These instuctions are intended

for use by qualified installers only

Safety Definitions

This indicates that damage to the appliance or property may occur as a

result of non-compliance with this advisory.

NOTICE

This indicates that death or serious injuries may occur as a result

of non-observance of this warning.

WARNING

Note: This alerts you to important information and/or tips.

Table of Contents

Safety Instructions ........................................4

Avoiding General Hazards ..................................5

Tools & Materials .........................................6

Enclosure Requirements ...................................9

Electrial Connections .....................................14

Installation of Mounting Brackets ............................17

Positioning the Dishwasher ................................19

Securing the Dishwasher ..................................23

Water Inlet Connection....................................24

Drain Connection ........................................25

Attaching the Toe Panel...................................29

Customer Service........................................33

This indicates that minor or moderate injuries may occur as a

result of non-observance of this warning.

CAUTION

To avoid possible injury or property damage, OBSERVE ALL WARNINGS

AND CAUTIONS.

WARNING:

These instructions are intended for use by qualified installers only. The

dishwasher must be installed by a qualified service technician or installer.

• In addition to these instructions, the dishwasher shall be installed to

meet all electrical and plumbing codes and ordinances (both national

and local).

Read these installation instructions completely and follow them carefully.

They will save you time and eort and help to ensure safety and optimum

dishwasher performance.

IMPORTANT

• The dishwasher drain hose must be installed with a portion of it at least

33″ (84 cm) o the cabinet floor; otherwise the dishwasher may not

drain properly.

• This dishwasher is intended for indoor residential use only, and should

not be used in commercial food service establishments.

• This dishwasher is designed to be enclosed on the top and both sides

by cabinetry.

• NEW INSTALLATION - If the dishwasher is a new installation, ensure all

connections are properly made before the dishwasher is moved into

place.

• REPLACEMENT - If the dishwasher is replacing another dishwasher,

check the existing dishwasher connections for compatibility with the

new dishwasher, and replace parts as necessary.

• This appliance has been found to be in compliance with CAN/CSA-C22.2

No. 167/UL 749. It is the responsibility of the owner and the installer

to determine if additional requirements and standards apply in specific

installations.

• Not for outdoor use.

Important Safety Instructions:

Please READ and SAVE this information

Avoiding General Hazards

To reduce the risk of electric shock, fire, or injury to persons, the installer

must ensure that the dishwasher is completely enclosed at the time of

installation.

Do not use the dishwasher until it is completely installed. When opening the

door on an uninstalled dishwasher, carefully open the door while supporting

the rear of the unit. Failure to follow this warning can cause the dishwasher

to tip over and result in serious injury.

Before installing the supplied counter top mounting brackets, decide which

method will be used to secure the dishwasher into its opening. Once these

mounting brackets are installed on the dishwasher, removing them is dif-

ficult and will damage the mounting brackets and the dishwasher.

In some conditions, hydrogen gas can form in a hot water system that

has not been used for weeks. Hydrogen gas is explosive. Before filling a

dishwasher from a system that has been o for weeks, run the water from

a nearby faucet in a well ventilated area until there is no sound or evidence

of gas.

Removing any cover or pulling the dishwasher from the cabinet can expose

hot water connections, electrical power and sharp edges or points. Handle

with care.

Proposition 65 Warning:

This product may contain a chemical known to the State of California, which

can cause cancer or reproductive harm. Therefore, the packaging of your

product may bear the following label as required by California:

Inspect the Dishwasher

After unpacking the dishwasher and prior to installation, thoroughly inspect

the dishwasher for possible freight or cosmetic damage. Report any damage

immediately. Cosmetic defects must be reported within 30 days of installation.

NOTE: Do not discard any bags or items that come with the original package

until after the entire installation has been completed.

WARNING

STATE OF CALIFORNIA PROPOSITION 65 WARNING:

WARNING

Cancer and Reprodutive Harm - www.P65Warnings.ca.gov

Elbow connection with 3/4” female hose threads on one end and fits

your water supply line (copper tubing, compression fitting, or braided

hose) on the other.

Hot Water Supply Line - Minimum 3/8″O.D. copper tubing or metal

braided dishwasher supply line.

Only needed if house water supply line is not sucient.

Shut-o valve and fittings appropriate for hot water supply line

(copper tubing/compression fitting, or braided hose).

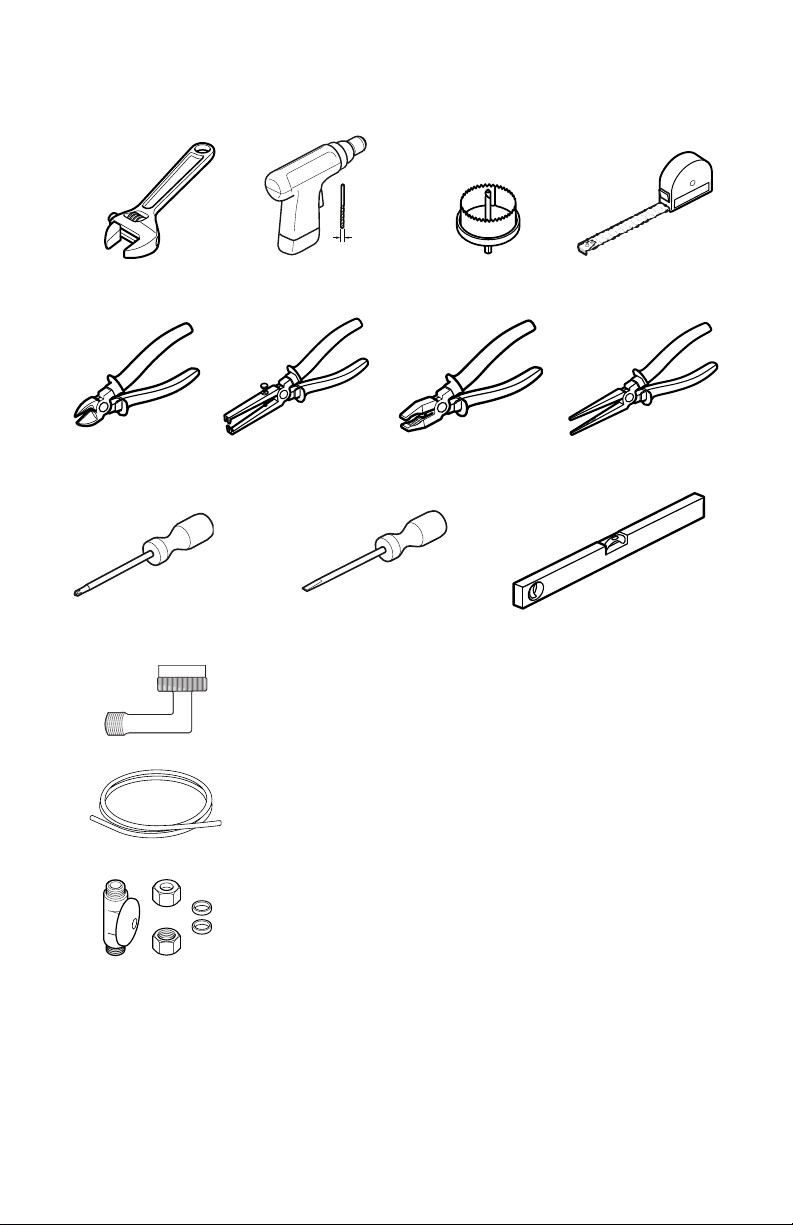

Tools and Materials Needed



Wire Cutter Needle Nose Pliers

Pliers

Wire Stripper

ø1/16 in

(2 mm)

Adjustable Wrench (x2) Tape Measure

Drill Hole Saw

Flat Screwdriver Level

Phillips Screwdriver

Materials Supplied

Screw Clamp (for drain hose)

Power Cord

Mounting Brackets

Mounting Bracket Screws Ø 4x13 mm

Adhesive Backed Cord Clip

Installation Guide for Fully Integrated Door Panel

Vapor Barrier

(included with some models)

For fully integrated models only:

Toe Panel Kits

(Model Dependent; your dishwasher is supplied with one of the toe panel

kits shown below)

Slotted Toe Panel

2 - Screws Ø 4x16 mm

Non-Slotted Toe Panel

2- Screws Ø 4.2x12.7 mm

Toe Panel Mounting Brackets (used with non-

slotted toe panel shown above)

LPlastic Toe Panel

MSlotted Toe Panel (used with Plastic Toe Panel)

H4 - Screws Ø 4x16 mm

2 - Screws Ø 4x16 mm

Enclosure Requirements

To Avoid Scalding or Electrical Shock Hazard!

Make sure the water supply and electrical supply are shut o

before installation or service.

To Avoid Electrical Shock/Fire Hazard!

Do not allow the electrical and supply lines to touch.

Note: This dishwasher is designed to be enclosed on the top, back and

both sides by standard residential kitchen cabinetry.

• Select a location as close to the sink as possible for easy access to

water supply and drain lines.

• For proper dishwasher operation and appearance, ensure that the

enclosure is square and has the dimensions shown.

• If the dishwasher is to be installed in a corner, ensure that there is

adequate clearance to open the door as shown.

min 34"

(864 mm)

min 24"

(610 mm)

235/8"- 241/4"

(600 - 616 mm)











WARNING

• After locating the proper place for your dishwasher, create required

openings in your cabinets in order to allow for water, drain and

electrical lines on the appropriate side.

• The holes should be cut within the 7 x 2.5" area shown.

• If the opening is made through wood, sand it smooth.

• If the opening is made through metal, use the Edge Protector Kit

SMZEP001UC.

(177.8 mm)
