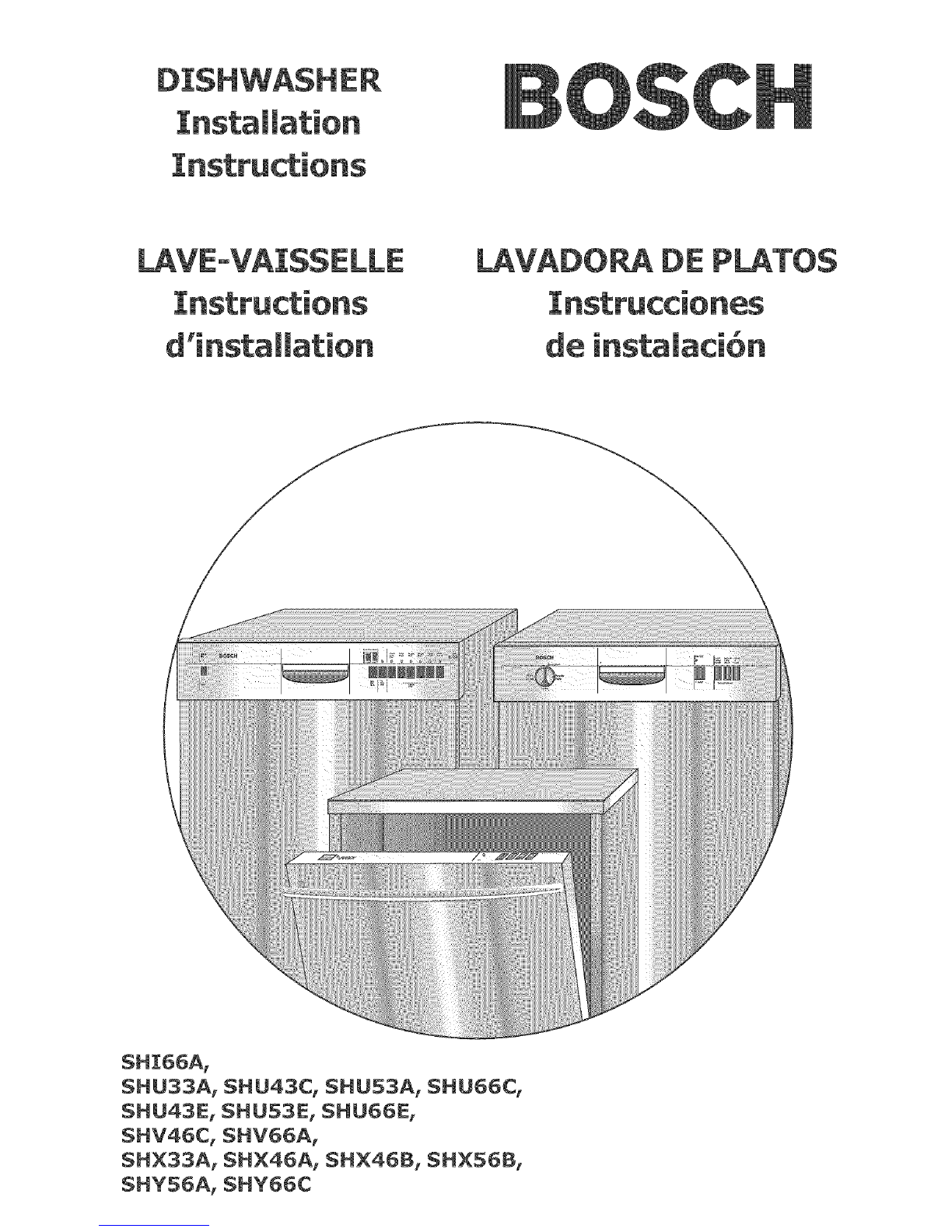

Bosch SHI66A Manual de usuario

Installation

LAVADO_ DE PLATO$

SHU33Ar SHU43Cr SHUS3AI SHU66Cr

SHU43Er SHU53EI SHU66Er

SHV46Cr SHV66AI

SHX33Ar SHX46Ar SHX46BI SHXS6BI

SHYS6A/$HY66C

TABLE OF CONTENTS

INTRODUCTION ................................................... 2

TOOLS AND MATERIALS NEEDED .......................... 3

MATERIALS SUPPLIED ........................................... 4

CHOOSING LOCATION .......................................... 5

PLUMBING PREPARATION ..................................... 6

ELECTRICAL PREPARATION ................................... 7

PLACING THE DISHWASHER ................................. 8

DRAIN HOSE CONNECTION .................................. 9

HOT WATER CONNECTION .................................. 10

ELECTRICAL SUPPLY CONNECTION ...................... 11

GROUNDING INSTRUCTIONS ............................... 11

DOOR PANEL INSTALLATION ........................ 12 & 13

FINAL AD]USTMENTS .......................................... 14

BASE AND TOE PANEL .......................................... 15

TOE PANEL AND HANDLE ..................................... 16

FINAL CHECKLIST ................................................ 17

IMPORTANT: Before you begin, read these instructionscompmetely and carefully,

INSTALLER: Please leave this manual with owner for future reference,

OWNER: Save these installation instructions for local

electrical inspector's use and for future reference,

www,boschappliances,com ENGLISH =1

THESE INSTALLATION INSTRUCTIONS ARE INTENDED

FOR USE BY QUALIFIED INSTALLERS,

Xn add(tion to these instructionsthe dishwasher shall be installed:

(n the Un(ted States, (n accordance w(th the Nat(ona) Electr(c

Code/State and Municipal codes and/or local codes,

• In Canada, in accordance with the Canadian Electric Code

C22_1 =latest edition/Provincial and Municipal codes and/or

local codes,

Please read these installation inst:ructions completely and carefully,

They will save you time and effort and help to ensure optimum dishwasher

performance,

Be sure to observe all listed

warnings and cautions. (Look for

the triangles with e×clamation marks

(ns(de,)

NEW INSTALLATION =]:f the dishwasher (s a new insta(lation, most of the work

must be done before the dishwasher is moved into place°

REPLACEMENT -If the dishwasher is replacing another dishwasher, the

connections for the dishwasher being replaced must be checked for

compatibHi_with the new dishwasher and replaced as necessary,

INSPECT THE DTSHWkSHER

After unpacking the dishwasher and prior to insta((ation_ thoroughly inspect the

dishwasher for possible freight or cosmetic damage, Report any damage immediately,

Cosmetic defects must be reported within 5 days of installation,

NOTE: Please do not discard any bags or items that come with the

original package until after the entire installation has been completed!

= _GLTS_ www,boschapp(ia.ces,com

TooLs Needed for Installation

Hammer Hole saw or 1" hole cutter

Pipe wrench, 2 reqd.

Adjustable wrench,

(size med., 2 reqd.)

Wire stripper

Tape Heasure

Wire Cutter

Electric Drill

Slotted screwdriver (#2)

Phillips screwdriver (#2)

Torx screwdriver, #20

Figure 1

Materials Needed

1Electric Connection - 2 conductor, 1 ground

insulated electrical supply cable (30" or

suffident length for your installation),

Hot Water Supply Line - Hinimum 3/8"

O.D, copper tubing or metal braided

dishwasher supply Iineo

Shut-off valve and fittings for hot water

supply line.

490° elbow with 3/8" N.RTo external threads

on one end and sized to fit your water

supply line on the other end°

5Teflon tape or other pipe thread compound

which help seal plumbing connectionso

63 twist-on wire connectors for 16 AWG

wireo

UL listed conduit connector or strain relief.

Additional materials may be required to comply with local cedes,

Figure 2

www,boschappiiances,com _N_LT_ - 3

Accessory Parts Supplied

Accessory Parts for your model dishwasher will

come in one or more plastic bags, Check to

make sure that the parts supplied for your

model are all there, See Figure 3. If any parts

are missing contact your dealer immediately.

DISHWASHER

%NSTALLATION KIT (Clear Bag)

D, Toe Panel Screws (Smm) (2)

E. Mounting Brackets (1L & 1R)

F. Mounting Bracket Screws (2)

G. Rubber Connection Hose (1)

and Drain Hose Clamps (2)

$HY66 & $HXS6 Models

Dishwasher InstallationKit(i) and

(Green Bag) wi the following:

L. J-Box Cover (1)

M, 3-Box Screw (8ram) (1)

N. Toe Panel Screw (4x16) (2)

$HV and SH][ Models

Dishwasher InstallationKitand

Outer Door InstallationKit(Blue bag):

J. SHIiSHV Panel Installation Template

C, Cap (2 BIk)

K. Wood Screws (2)

1". Mounting Door Brackets(2 plastic)

w/Screws (4) and;

Mounting Door Brackets (2 metal)

w/Screws (4)

H. Spring Tension Screw (2)

Manual Bag

All Dishwashers come with a manual bag,

The following contents are located in every

bag:

® Use &Care Manual

® Installation Instructions

P. Tall Item Sprinkler (1)

SHY66 &SHX56 models

have an additional part:

Q, Cotton Insulation Strip (1)

Note: Pictures are not to scale. Figure 3

4- ENGLISH www.boschappiiances.com

THBEIN AW ON

INSTRUCTIONS

INTENDEDFORU_ BY

QU_EDINSTALLE_ 1

Choosing the Location

Select a locationas close to the sink as

possibleforready accesstowater and drain

lines.

Most of the installation work is done before

the dishwasher is moved into place.

Any built-in dishwasher must be fully

enclosed on the top, both sides and back.

Therefore the cabinet space below your

counter is probably the best location.

For proper operation and appearance of the

dishwasher, the cabinet opening should be

square and have dimensions as shown in

Figure 5.

(49ram)

Figure 4

23-9/16" (598 mm) "_

/F /S'I _'

....j

23-5/8" -24-1/8" (600-613 cam)

Figure 5

If the dishwasher is to be installed in a

corner, make sure there is adequate clea-

rance to open the door. See Figure 6.

Clearance-

o0on,o/11 I

oDpOrnin L

)osition

Dishwasher

Countertop

Figure 6

www,boschappliances,com FNGL]:SH - 5

INSTRUCTIONSAPE U

%NTENBED FORUSE BY I

QU_FIED INSTNJLE_ ]

Drain Hose

The dishwasher comes with a seven (7)

foot drain hose.

A 1.25" access hole must be made to

allow the drain hose to be run to the

drain connection location.

To protect against possible rupture of

the fill valve, water lines leading to

the dishwasher, as well as water lines

in the dishwasher MUST be protected

against freezing. If the valve or water

line freezes, flooding may occur. Such

ruptures are not covered by the

warranty.

Hot Water Supply

The hot water line to the dishwasher

must provide between 5 - 120 psi (0.3-

8.27 bars) water pressure.

The hot water heater should be set to

deliver 140°F (60°C) water

temperature to the dishwasher.1

A 3/8" minimum O.D. copper tubing

inlet line is recommended.

All solder connections must be made

before water line is connected to the

dishwasher's inlet water valve. Do not

solder within 6inches (IS2.4 ram)

of the dishwasher's inlet water

valve,

• Drill a 1" (25.4 mm) diameter access

hole in the cabinet for the water supply

line (Figure 9A).

Run the line to the approximate fill

valve location, as shown in Figure 9A,

It is recommended that a shut-off valve (not

supplied) be installed in the hot water

supply line in a readily accessible location,

see Figure 9.

If no air gap isused and the drain

line is run into a sink or disposer,

the drain line must be elevated to

apoint higher than the highest

water ieveJ of the sink to prevent

back siphoning into the

dishwasher,

NOTE: If connection to an air gap is

required by local code, air gap kits are

available from local plumbing sources.

Install the air gap according to the

manufacturer's instructions.

Hot water

line Electrical supply cable

Figure 7

1. In order to reduce running time, Bosch recommends 140 ° F water inlet

temperature. Your dishwasher will perform equally as well at 120 ° F water

temperature, but the run time will be extended,

6- ENGLISH www,boschappliances,com

Electricam SuppNy

The customer has the responsibility to

ensure that the dishwasher installation is

in compliance with all national and local

electrical codes and ordinances. The

dishwasher shall be installed by a qualified

electrician and properly grounded. The

electrical supply for which the dishwasher

is designed is 120\/, 60 Hz, AC, connected

to a dishwasher-dedicated electrical circuit

with a fuse or breaker rated for ::[5 amps.

If the dishwasher is connected with a food

disposer, a 20 amp (and no higher) fuse or

drcuitbreaker may be used. No other

appliances or outlets should be connected

to the dishwasher supply circuit. Electrical

supply conductors shall be copper only and

shall be minimum #16 AWG. Wire

connectors proper for the size and number

of wires used to connect the dishwasher

to the supply circuit shall be used. Do not

use all-plastic wire connectors. Strip power

supply wires approximately 1/2inch. Do not

pre-twist wire before applying wire

connector. After installing wire connectors,

gently tug wires to check the integrity of

the connector. Place all wires and

connectors into the power supply box,

and reinstall cover with the screw provided

the installation package.

Cut a :1 (25Amm) diameter hole in the

cabinet (in area of Figure 9 B). For wood

cabinets, sand the hole until smooth.

For metal cabinets, cover the edge with

a grommet.

Run flexible cable (as codes permit) from

junction through hole in cabinet. Cable

should extend 30" (762 mm) from back

wall.

Figure 8

Electrical Rating

Volts Hertz Amperes Watts

120 60 15 1,450

(max}

Table 1

Openings for electrical lines must be

installed in the marked areas as

shown in Figures 8 and 9 to avoid

interference with the dishwasher

frame or other components.

HWS {355mm)

21"

(533ram)

Hot water supply line Electric supply cable

Figure 9

www,boschappliances,com ENGm ISH -7

Placing the Dishwasher

The profile strips on the sides of the

dishwasher allow the dishwasher to fit into

a cabinet opening with a width of 23-5/8"

(600 mm) to 244[/8" (613 mm). Before

sliding the dishwasher into the cabinet

opening:

• Straighten the hot water supply line and

the electrical cable (see Figure 11).

• Level & Align (initial adjustments).

• Guide the drain hose carefully (avoiding

kinks in hose) as the dishwasher is slid

into the cabinet opening.

• Make final leveling adjustments (see

FINAL STEPS Section).

• To maintain the dishwasher position and

alignment, first determine which type

of mounting your dishwasher needs:

Top Mount is used for all types of

countertops that will not be damaged

by drilling.

• For a top mount, position the

brackets fiat on each of the top

corners of the dishwasher as

shown in Figure 10A.

Side Mount is used when there is a

granite, marble or other hard natural

surface counter top that could be

damaged by drilling.

• For a side mount, bend the

brackets, then position them as

shown in Figure 10B.

• Drive Mounting Screws (see Figure 3)

through the holes in the brackets. See

Figure 10A or 10B.

• Connect the drain hose, hot water

supply line and electrical connections

as described in the following sections.

A, Mounting bracket

for mounting to under A

countertop

Figure 10

Bo Mounting bracket

bent for mounting to

side of cabinets

IMPORTANT

]If you wish to change the front panel of

the dishwasher this must be done before

sliding the dishwasher into place.

_Note: Additional accessory door pa-

nels can not be used with SHU 9900

models.

Figure 11

8- ENGLTSH www.boschappliances,com

THESENSTALLA ON

IN U ONS J

_N_NDEDFORUSEBY I

QU_EDINSTALLE_ I

Be sure to follow your national

and local codes at all times.

Drain Hose

* Before beginning, turn off the water

supply!

The access hole for the drain hose should

be 1.25" (32 ram) diameter,

Use the hose damps and rubber

connection hose (Figure 3) to connect

the drain hose to the sink, disposer or

air gap (Figure 14).

Openings for drain lines must be

installed in the marked areas as

shown in Figures 8 and 9to avoid

interference with the dishwasher

frame or other components.

Failureto provide the proper drain

Figure 12

f_ Air Gap_

Drain Hose

in Sink

with Air

Gap &Rubber

Disposer o_8__

€ k. _7L--Trap .

Figure 13

connection height, 20" (508mm)

above floor [eve[ with high loop or

air gap, wiJ[ resuit in improper

of the dishwasher.

Improper draining may cause

damage to the dishwasher,

Drain Hose

Connected

to Sink

Figure 14

www,boschappiiances,com F@GL:ISH o 9

Otros manuales para SHI66A

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Lavavajillas de Bosch

Bosch

Bosch SHI 4300 series Manual de usuario

Bosch

Bosch SMH6ZDX00E Hoja de especificaciones

Bosch

Bosch SMS40T32GB Manual de usuario

Bosch

Bosch SPI25CS03E Manual de usuario

Bosch

Bosch SGV68U53UC Manual de usuario

Bosch

Bosch SMS6HCI02A Manual de usuario

Bosch

Bosch 300 Series Manual de usuario

Bosch

Bosch SMD8TC800E Hoja de especificaciones

Bosch

Bosch SMH4HVX32G Manual de usuario

Bosch

Bosch SX65Z802BE Hoja de especificaciones

Bosch

Bosch SHX68T52UC/07 Manual de usuario

Bosch

Bosch 8 Series Hoja de especificaciones

Bosch

Bosch SMI59M05TI Manual de usuario

Bosch

Bosch SMU6ZDW76S Manual de usuario

Bosch

Bosch SMV69T30 Manual de usuario

Bosch

Bosch SGX78C55UC Manual de usuario

Bosch

Bosch SMS2ITW00I Hoja de especificaciones

Bosch

Bosch SMS4HCC48E Hoja de especificaciones

Bosch

Bosch SHE33M02UC - Dishwasher With 3 Wash Cycles Instrucciones de montaje

Bosch

Bosch SMS2ITI04Y Hoja de especificaciones

Bosch

Bosch SPS4HMI3FZ Manual de usuario

Bosch

Bosch SMD8YCX01G Manual de usuario

Bosch

Bosch SGS4HVI33E Manual de usuario

Bosch

Bosch SMS6HVI01I Manual de usuario

Manuales populares de Lavavajillas de otras marcas

Electrolux

Electrolux ESI5211LOX Manual de usuario

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario
