Bosch ManDown Sensor Manual de usuario

ManDown Sensor

User Manual

Document 953.64c

User Manual 953.64c Bosch Security Systems Page 3

Document No 953.64c

ManDown Sensor User Manual

Edition: August 2009

Author: TeleAlarm

TeleAlarm SA reserves the right to make changes to information contained in this document at any time

without prior notice. Great care has been given to the contents of this document. However TeleAlarm SA

cannot be held liable for the consequences of any errors or omissions contained herein or for consequen-

tial or incidental damages incurred as a result of acting on information contained in the document.

TeleAlarm SA Bosch Group

Administration, R&D and Aftersale

Rue du Pont 23

CH-2300 la Chaux-de-Fonds

Switzerland

Phone +41 (0)32 911 11 11

Fax +41 (0)32 911 11 00

www.telealarm.com

Bosch Sicherheitssysteme GmbH

Haus-ServiceRuf

Ingersheimer Straße 16

D-70499 Stuttgart

Germany

Phone 0711 3653 1000

Fax 0711 811 5125 294

[email protected]m

www.bosch-sicherheitsprodukte.de

Bosch Security Systems Ltd

Broadwater Park

North Orbital Road

Denham

UB9 5HN

United Kingdom

Phone 01895-878088

Fax 01895-878089

[email protected]

www.boschsecurity.co.uk

Bosch Security Systems France

Atlantic 361

361, avenue du Général de Gaulle

F-92147 Clamart

France

Phone + 33 (0)825 12 8000 (0,15 € TTC/Min)

Fax + 33 (0)820 900 960 (0,12 € TTC/Min)

fr.securitysys[email protected]

www.boschsecurity.fr

Bosch Security Systems BV

Postbus 80002

NL-5600 JB Eindhoven

Netherlands

Phone +31 40 25 77 200

Fax +31 40 25 77 202

nl.securitysystems@bosch.com

www.boschsecurity.nl

Bosch Security Systems nv/sa

Torkonjestraat 21F

B-8510 Marke

Belgium

Phone +32 (0)56 20 02 40

Fax +32 (0)56 20 26 75

be.securitysys[email protected]

www.boschsecurity.be

Bosch Security Systems AB

Vestagatan 2

SE-416 64 Göteborg

Sweden

Phone +46 (0)31 722 5300

Fax +46 (0)31 722 5340

[email protected]

www.boschsecurity.se

ManDown Sensor Table of Contents

User Manual 953.64c Bosch Security Systems Page 4

1. Introduction 5

2. Description 5

3. Compatibility of the ManDown Sensor with Social alarm systems 6

4. Operating 6

4.1. Starting the sensor 6

4.2. Turning off the sensor 6

4.3. Detection mode 7

4.4. Repeating the alarm 7

4.5. Deactivating the help call button and the pre-alarm 7

5. Programming the ManDown Sensor 8

6. Maintenance 8

6.1. Safety instructions 8

6.2. Storage 8

6.3. Replacing the battery 9

7. Technical Specifications 10

8. Certification 11

ManDown Sensor

User Manual 953.64c Bosch Security Systems Page 5

1. Introduction

The ManDown Sensor has a built-in tilt device, which can detect if the person holding it is in

a horizontal position, such as lying on the floor.

The sensor will automatically send an alarm when its position corresponds to horizontality

after a certain time. Pressing its central bed button will activate a help call at any time.

It can be held, for instance, as a necklace by an elderly person or as a safety device by a

lone worker in a hazardous environment.

The ManDown Sensor will be part of a social alarm system. It can be associated with a

Carephone receiver, linked to a social alarm call center through the telephone line, or with a

NurseCall system.

2. Description

The ManDown Sensor can be delivered with an operational frequency of 434 MHz or 869

MHz. It is equipped with a LED indicator that will flash every ten seconds to show that the

sensor is active. This LED indicator will flash green if the battery is ok or red if the battery is

low. Pushing the central red button will send a help call to the social alarm system, followed

by a short beeping sound.

Caution!

A help call is sent only after the central red button has been released. The user should be

aware that pressing the central red button must be short. If the central red button is being

pressed longer that five seconds, the sensor will be turned off, and no help call will be sent.

See chapter 4.2. Turning off the sensor.

Fig. 1 ManDown Sensor

Help call

button

LED

ManDown Sensor

User Manual 953.64c Bosch Security Systems Page 6

3. Compatibility of the ManDown Sensor with Social alarm

systems

The different types of ManDown Sensors should always be associated with a corresponding

social alarm system, according to the following table.

Type of ManDown Sensor Social alarm system

ManDown 869 MHz, Bosch RF protocol Carephones 3050, 3100, 50, 52, 52+

ManDown 869 MHz, TeleAlarm protocol Carephones 10 & 12

ManDown 434 MHz, TeleAlarm protocol All TeleAlarm NurseCall systems

4. Operating

4.1. Starting the sensor

When the ManDown Sensor is off, the user only has to press the central red button to turn it

on. A slow beeping sound will then confirm that the sensor is active.

Notice!

No help call transmission will take place during this operation.

4.2. Turning off the sensor

Press the button for about five seconds

A beeping sound is emitted during two seconds

During these two seconds,release the button and press it a second time,

The sensor is then turned off

This last step will be confirmed by a slow beeping sound

It is always possible to turn off the sensor, even when the help call button is deactivated.

Notice!

A help call will be activated only after pressing the help call button for less the five seconds

and releasing the central red button. This means that during the procedure of turning off the

sensor, no alarm will be generated.

If the central red button is being pressed and released less that five seconds or pressed

longer than seven seconds, a help call will be generated. See chapter 2 Description.

ManDown Sensor

User Manual 953.64c Bosch Security Systems Page 7

4.3. Detection mode

Detection by the ManDown Sensor can be decomposed into two periods of time.

1) Tilt Detection

When the sensor detects a tilt of more than 60 degrees, it will start its internal chronometer

for approximately ten seconds.

If the sensor comes back to a vertical position within these ten seconds, the chronometer is

reset.

2) Pre-Alarm

If the sensor does not come back to a vertical position within ten seconds, a pre-alarm starts

accompanied by a beeping sound. This period of time is factory-set and lasts approximately

thirty seconds. The pre-alarm is cancelled if the sensor comes back to a vertical position or

if the help call button is pressed.

This pre-alarm may be suppressed by making a solder bridge. See Fig.2. Interior view of a

ManDown Sensor.

4.4. Repeating the alarm

After a fall, as long as the sensor detects a horizontal position, the alarm will repeat itself

after an average period of time of two minutes and thirty seconds.

4.5. Deactivating the help call button and the pre-alarm

Making a solder bridge allows to deactivate the help call button or to suppress the pre-alarm.

In this case, during the automatic tilt alarm, the sensor remains silent. During all help calls

made by pressing the button, the sensor will always issue a beeping sound.

Fig. 2. Interior view of a ManDown Sensor

No bridge: help call button activated

Bridged: help call button deactivated

No bridge: with pre-alarm

Bridged: without pre-alarm

ManDown Sensor

User Manual 953.64c Bosch Security Systems Page 8

5. Programming the ManDown Sensor

To program a ManDown Sensor within a Carephone social alarm system (e.g. Carephones

10, 12, 3050, 3100, 50, 52, 52+) or within a NurseCall system, follow the procedure de-

scribed for the system you are using. As the ManDown Sensor can be considered as a stan-

dard transmitter, the system will recognize it during the programming step. Please refer to the

manual of the corresponding social alarm system.

6. Maintenance

6.1. Safety instructions

Caution!

There is a danger of explosion if the replacement of the battery is not

performed correctly!

Replace the battery only by an identical or equivalent type.

Dispose of the used batteries at an appropriate recycling facility.

Although battery replacement may be done by non-specialized person-

nel, the manufacturer recommends that it should be performed by your

local dealer.

Caution!

The ManDown Sensor contains highly sensitive electronic components.

It should always be opened in an ESD (Electro Static Discharge) pro-

tected environment, with respect to the following precautions:

Discharge yourself from electrostatic loads by touching a grounded

conductive surface before opening the unit.

Avoid touching conductive parts and metallic surfaces if not abso-

lutely necessary.

6.2. Storage

Short term storage (less than two weeks)

Deactivate the sensor.

Long term storage (more than two weeks)

Remove the battery and store the ManDown Sensor protected from direct sunlight, moisture

and dust.

ManDown Sensor

User Manual 953.64c Bosch Security Systems Page 9

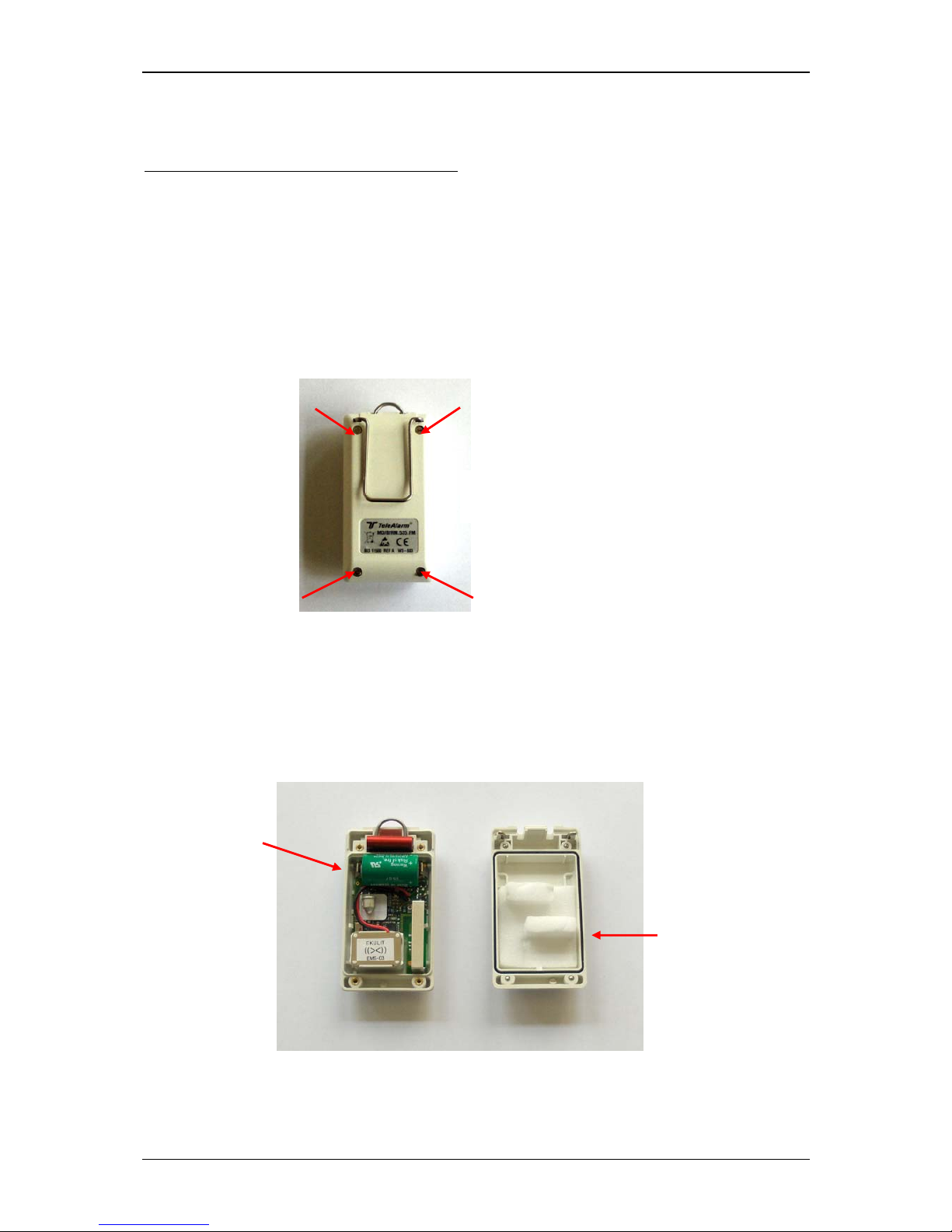

6.3. Replacing the battery

Necessary tool for opening the sensor case:

Jeweler’s Screwdriver 2.9mm

Turn off the ManDown Sensor. See chapter 4.2. Turning off the sensor.

Unscrew the four screws of the case, as shown in Fig. 3. Bottom view of the ManDown

Sensor.

Carefully remove the compression foam, as well as the used battery.

Replace the new battery; ensure that it is in the correct position.

Carefully place the compression foam as shown in Fig. 4. Opening the ManDown Sensor.

Close the case with the four screws.

Notice!

To avoid deteriorating the inserts, do not force the screwing.

VARTA battery

3V CR1/2AA

Fig. 4. Opening the ManDown Sensor

Compression foam

Fig. 3. Bottom view of the ManDown Sensor

The arrows show the screws of

the transmitter case

ManDown Sensor

User Manual 953.64c Bosch Security Systems Page 10

7. Technical Specifications

Dimensions 75mm x 40mm x 23mm

Frequency 434Mhz and 869Mhz

Tilt sensor Mercury-free type with activating at a 60° angle with vertical

Pre-alarm 10 seconds of detection, followed by 30 seconds of signal

before automatic activation.

Battery VARTA 3V CR1/2AA

or equivalent (Lithium 3.0V, diam.14.5mm x 25mm)

Consumption < 5 µA if the ManDown Sensor is deactivated.

< 13 µA if the ManDown Sensor is on stand-by

Battery lifetime from six months to two years, depending on operation and

the number of detections performed

Type of plastic ABS Cycolac GPM5500S white 25020

with fire classification UL 94 HB
